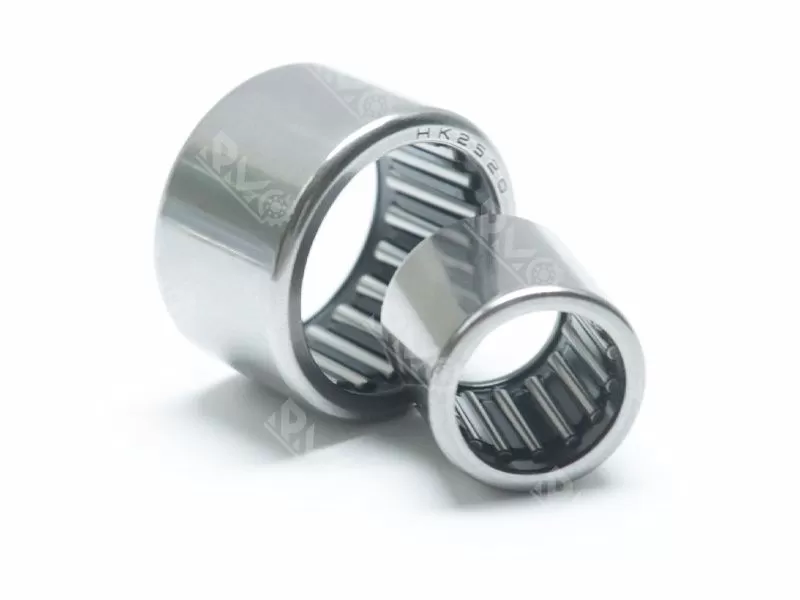

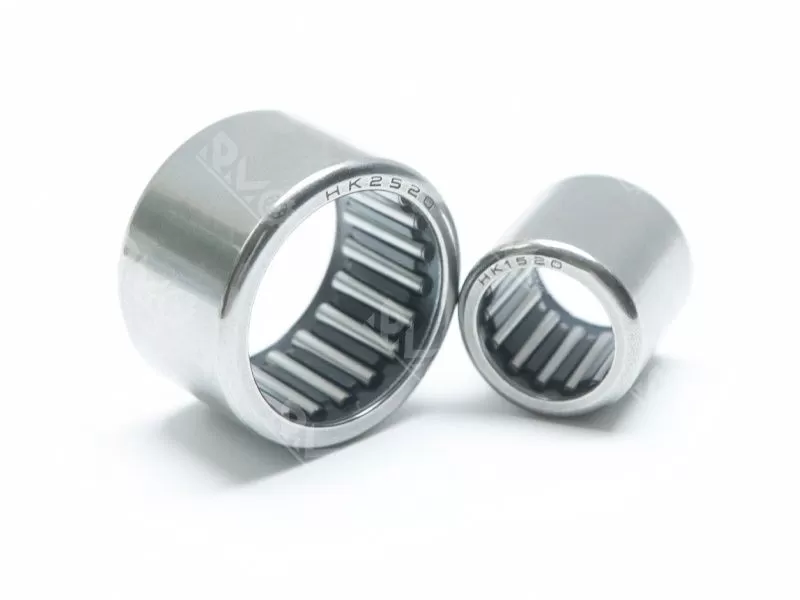

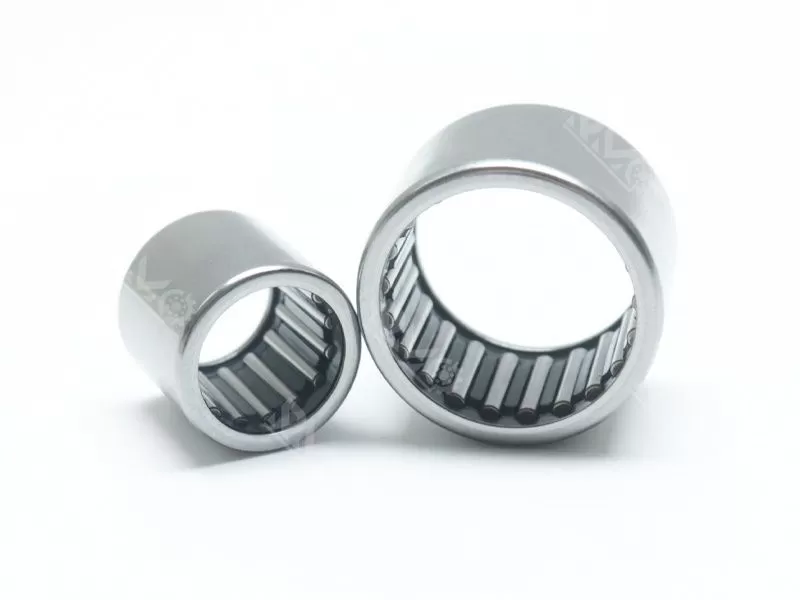

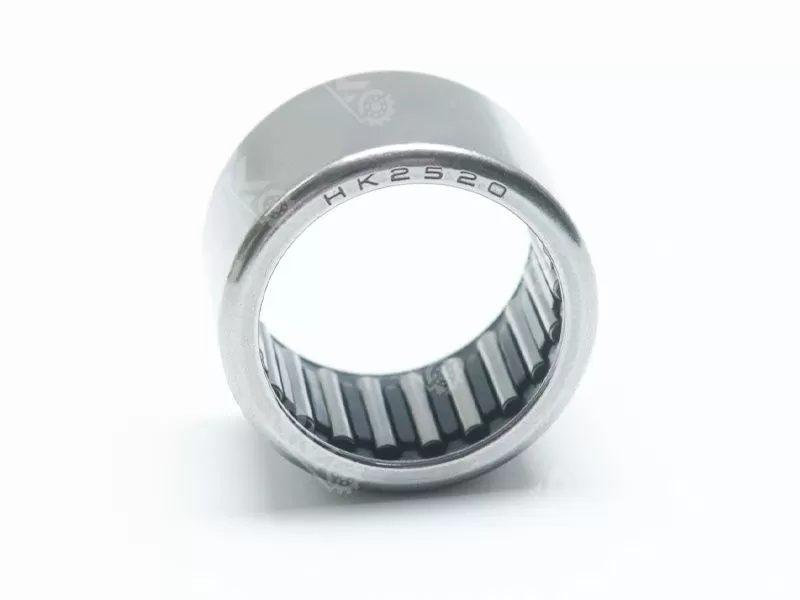

HK2520 drawn cup needle roller bearing

Drawn cup needle roller bearing is a combination, there are two types of open and closed type. The assembly comprises a thin-walled stamped outer ring, a needle roller and a cage assembly.

Model number: HK2520

Size: 25x32x20mm

Materials: ST14 steel with chrome steel GCr15

Weight: 0.033KG

Lead Time: 5-7 days

Inquire Now Next Product

Specification

Package: plastic bag,plastic tube or single box+Carton+Pallet

MOQ: 100 PCS

Shipping Port: Guangzhou, Ningbo, Shanghai

Payment: 100% T/T or 30% T/T before production, 70% before delivery

Product Introduction:

Drawn cup needle roller bearing is precisely stamped with thin steel plate, which has small structural space and large load capacity. It is suitable for occasions where installation space is limited and housing holes are not suitable for raceway. Further axial positioning is not necessary after pressing into the bearing seat hole.

Product Type:

Sealed Drawn cup needle roller bearing with sealing ring seal, under normal working conditions, can protect the bearing from debris intrusion and grease leakage. Therefore, it can be operated for a long time in the range of -20℃-120℃. If suitable grease can be added in time or short-term use, it can be used at +130℃.

The sealing ring is made of synthetic rubber, with good lip elasticity and steel plate lining core, strong mechanical rigidity. In addition, the sealing ring plays an axial guiding role on the retaining rack.

Related Products

HK1010 drawn cup needle roller bearing

Model No.	d	D	H	m	Model No.	d	D	H	m
HK1515	15 mm	21 mm	15 mm	23	HK2018	20 mm	26mm	18mm	22g
HK1516	15 mm	21 mm	16 mm	15 g	HK2020	20 mm	26mm	20mm	24g
HK1520	15mm	21mm	20mm	18g	HK1520	15mm	21mm	20mm	18g
HK1522	15 mm	21 mm	22 mm	20g	HK2030	20 mm	26 mm	30 mm	40 g
HK15x22x12	15 mm	22 mm	12 mm	13.4g	HK20x27x20	20 mm	27 mm	20 mm	31.4g
HK1612	16 mm	22 mm	12 mm	12 g	HK2210	22 mm	28 mm	10 mm	13 g
HK1614	16 mm	22 mm	14 mm	14g	HK2212	22 mm	28 mm	12 mm	15 g
HK1616	16 mm	22 mm	16 mm	16 g	HK2216	22 mm	28 mm	16 mm	21 g
HK1622	16 mm	22 mm	22 mm	27 g	HK2220	22 mm	28 mm	20 mm	26 g
HK1712	17 mm	23 mm	12 mm	12 g	HK2230	22 mm	28 mm	30 mm	41g
HK1714	17 mm	23 mm	14 mm	14g	HK22x29x30	22 mm	29 mm	30 mm	43g
HK1716	17 mm	23 mm	16 mm	16g	HK2512	25 mm	32 mm	12 mm	20 g
HK1718	17 mm	23 mm	18 mm	18g	HK2514	25 mm	32 mm	14 mm	22g
HK17x25x14	17 mm	25 mm	14 mm	22	HK2516	25 mm	32 mm	16 mm	27 g
HK17x25x18	17 mm	25 mm	18 mm	24.4	HK2520	25 mm	32 mm	20 mm	33 g
HK1812	18 mm	24 mm	12 mm	13 g	HK2526	25 mm	32 mm	26 mm	44 g
HK1816	18 mm	24 mm	16 mm	18 g	HK2538	25 mm	32 mm	38 mm	77 g
HK2010	20 mm	26 mm	10 mm	12 g	F-50119	25 mm	34 mm	20 mm	43.6 g
HK2012	20 mm	26 mm	12 mm	14 g	HK2816	28 mm	35 mm	16 mm	29 g
HK2014	20 mm	26 mm	14 mm	16g	HK2820	28 mm	35 mm	20 mm	36 g 3
HK2016	20 mm	26 mm	16 mm	19 g	HK3012	30 mm	37 mm	12 mm	23 g
