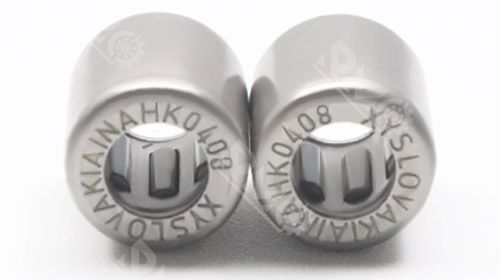

HK0408-B Mini Needle Roller Bearings

Drawn cup needle roller bearing is a combination, there are two types of open and closed type. The assembly comprises a thin-walled stamped outer ring, a needle roller and a cage assembly.


Model number: HK0408-B

Size: 4x8x8mm

Materials: ST14 steel with chrome steel GCr15

Weight: 0.0015KG

Lead Time: 3-5 days

Specification

HK0408-B miniature needle roller bearings are stamped outer ring needle roller bearings without an inner ring, featuring a steel plate cage. They offer characteristics such as a low radial cross-sectional height, high load-carrying capacity, high rigidity, and high limiting speed (up to 42,500 rpm with oil lubrication). These bearings are suitable for mechanical components with limited space and high load-carrying requirements.



HK0408-B Mini Needle Roller Bearings


Technical parameter:


 Model Number                                                                               HK0408-B
 Size                                    4x8x8mm
 Weight                                    0.0015KG
 Material                                    ST14 steel with chrome steel GCr15
 Clearance                                    C2  C0  C3  C4
 Precision Grade                                    p0  p6  p5  p4
 Package                                    plastic bag, plastic tube or single box+Carton+Pallet
 MOQ                                    100 PCS
 Shipping Port                                    Guangzhou, Ningbo, Shanghai
 Payment                                    100% T/T or 30% T/T before production, 70% before delivery
 Lubrication                                    Pre-lubricated with High-Performance Grease
 Temperature Range                                    -20°C to +120°C
 Lead Time                                    3-5 Days



Product Introduction:

Drawn cup needle roller bearing is precisely stamped with thin steel plate, which has small structural space and large load capacity. It is suitable for occasions where installation space is limited and housing holes are not suitable for raceway. Further axial positioning is not necessary after pressing into the bearing seat hole.


Product Type:

Sealed Drawn cup needle roller bearing with sealing ring seal, under normal working conditions, can protect the bearing from debris intrusion and grease leakage. Therefore, it can be operated for a long time in the range of -20℃-120℃. If suitable grease can be added in time or short-term use, it can be used at +130℃.

The sealing ring is made of synthetic rubber, with good lip elasticity and steel plate lining core, strong mechanical rigidity. In addition, the sealing ring plays an axial guiding role on the retaining rack.

Related Products

HK1010 drawn cup needle roller bearing


Model No.    d     D    H  m
HK0205-B2 mm4.6 mm5 mm0.3 g
HK0306-B3 mm6.5 mm6 mm1 g
HK0408-B4 mm8 mm8 mm2 g
HK05095 mm9 mm9 mm2 g
HK06066 mm10 mm6 mm1.5 g
HK06086 mm10 mm8 mm2.1 g
HK06096 mm10 mm9 mm2.5 g
HK07087 mm11 mm8 mm0
HK07097 mm11 mm9 mm2.6 g
HK08088 mm12 mm8 mm2.7 9
HK08108 mm12 mm10 mm3 g
HK08x14x108 mm14 mm10 mm0
HK08x14x128 mm14 mm12 mm0
HK09089 mm13 mm8 mm3 g
HK09109 mm13 mm10 mm4 g
HK09129 mm13 mm12 mm4.6 g
F-504639 mm16 mm10 mm7.1 g
HK101010 mm14 mm10 mm4.1 g
HK101210 mm14 mm12 mm4.8 g
HK101510 mm14 mm15 mm6 g


Application fields

HK needle roller bearings are applicable to a wide range of industrial equipment, including shoe eye machines, vertical reducers, forestry machinery, etc. Their high dynamic load and static load characteristics make them perform exceptionally well in industrial mechanical transmission systems. In addition, HK needle roller bearings are also commonly used in low-speed heavy-load conditions, especially in cases where the shaft surface cannot be hardened. They can be used in conjunction with IR type inner rings.
