Needle Roller Bearings
Roller bearing: It is a type of bearing that combines the characteristics of roller and needle bearings.

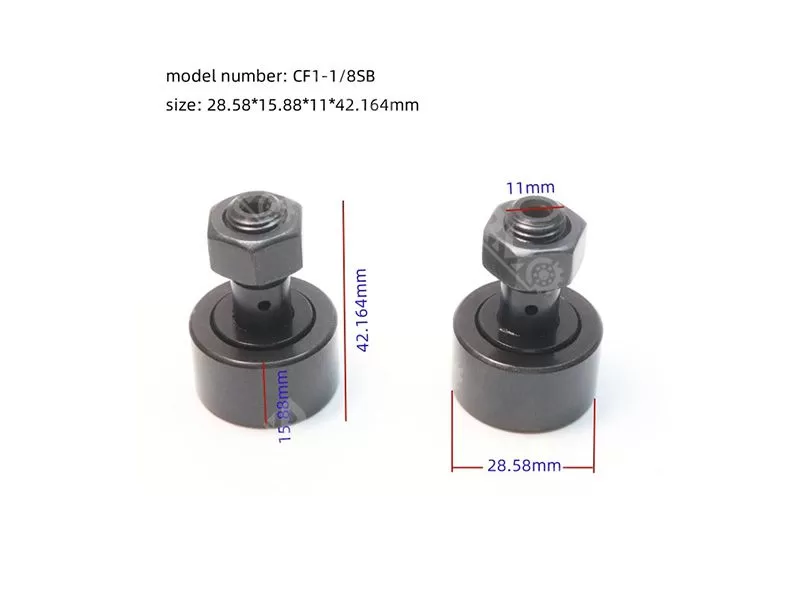

Model No.: CF1-1/8SB
Size: 11x28.58x42.16mm
Material: chrome steel Gcr15
weight: 0.09KG
Lead time: normally 3-5 days
Specification

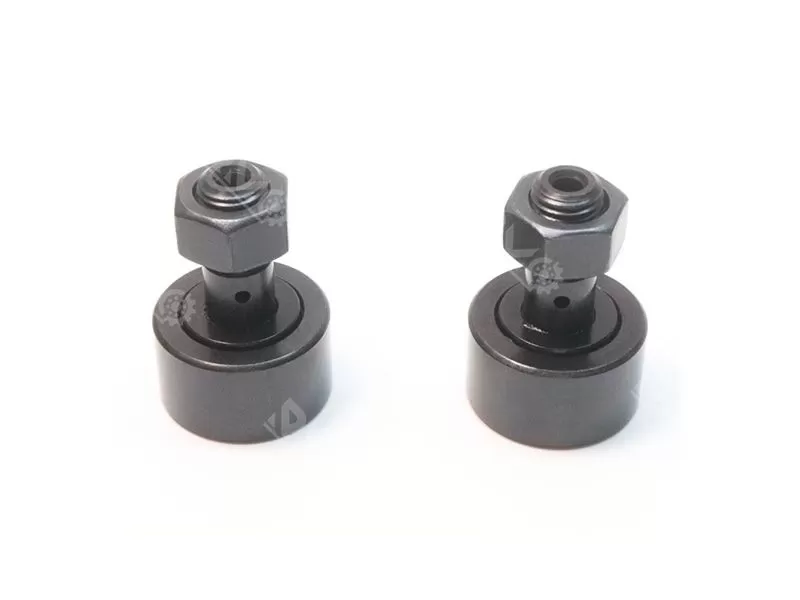

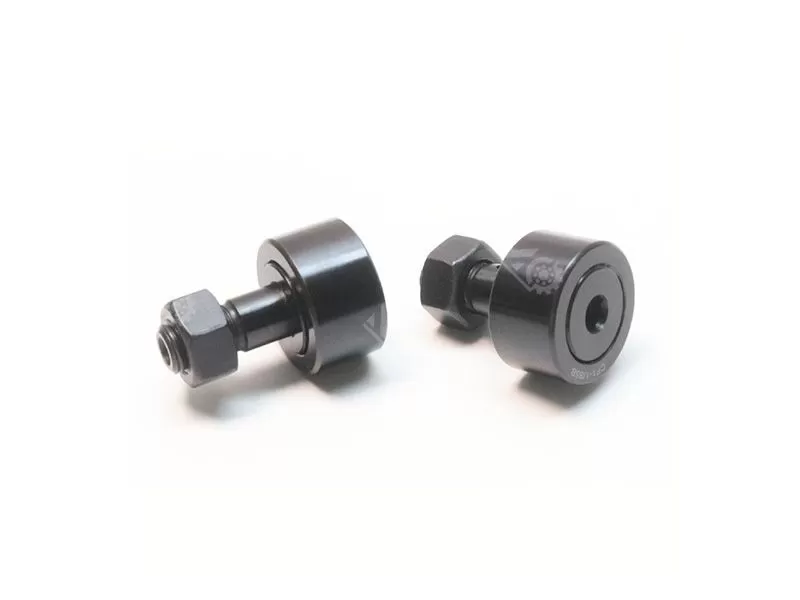

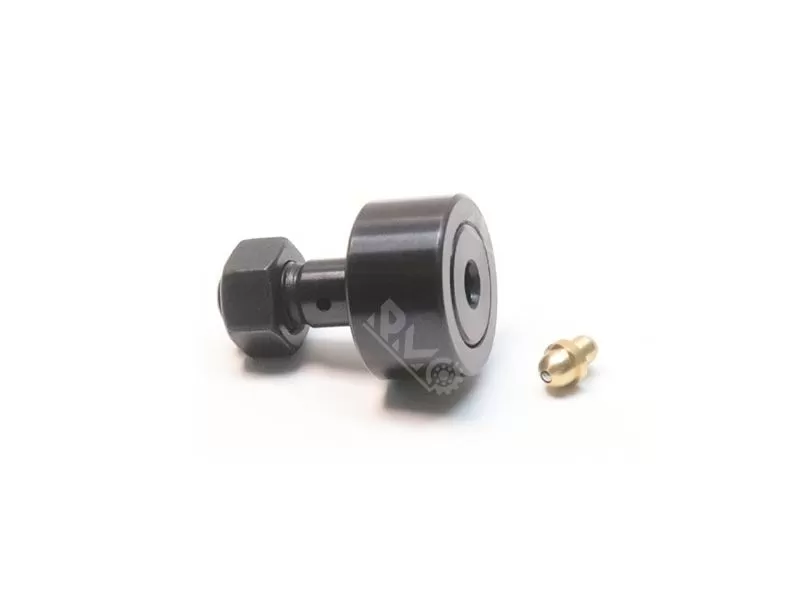

CF1-1/8SB and CF1-1/8 cam follower needle roller bearings are both inch-sized bearings. CF1-1/8SB is typically sealed, made of black oxide-treated bearing steel with cylindrical needles. CF1-1/8 may be unsealed, featuring a cylindrical outer ring and a center-type shaft collar. These bearings are suitable for cam mechanisms and linear motion systems requiring low friction and high load capacity.
Technical parameter:
| Model Number | CF1-1/8SB |
| Size | 11x28.58x42.16mm |
| Weight | 0.09KG |
| Material | chrome steel Gcr15 |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Dynamic Load Rating | 9.897 lbf |
| Static Load Rating | 13.611 lbf |
| Max Speed (Grease Lubrication) | 3400 RPM |
| MOQ | 50PCS |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Taime | 3-5 Days |
Definition and Structure:
The roller bearing is mainly composed of the main roller, side roller, shaft head and cover plate. The main roller adopts a full-roller design and mainly bears vertical loads and impacts; the side roller adopts an open-ended full-needle structure and is responsible for horizontal loads; the shaft head is connected to the equipment, and the cover plate is used for fixing and protecting the internal components.
Performance features:
1. High load-bearing capacity: Due to the slender and densely arranged needle rollers, it can withstand a large radial load in a relatively small space.
2. Low friction: With a sealed structure and pre-filled lubricating grease design, it enables long-term maintenance-free operation and reduces wear during movement.
3. Compact design: The structure is compact, suitable for limited space applications.
4. Long lifespan: Through a reasonable lubrication design, it can increase the service life of the bearing and reduce maintenance requirements.
Related Products
| Model No. | d | D | H | m |
| F 1/2 SB | 4.83 mm | 12.7 mm | 26.16 mm | 20 g |
| CF 1/2 N SB | 4.83 mm | 12.7 mm | 22.35 mm | 20 g |
| CF 9/16 SB | 4.83 mm | 14.29 mm | 26.16 mm | 20 g |
| CF 5/8 SB | 6.35 mm | 15.88 mm | 30.99 mm | 20 g |
| CF 5/8 N SB | 6.35 mm | 15.88 mm | 26.92 mm | 20 g |
| CF 11/16 SB | 6.35 mm | 17.48 mm | 30.99 mm | 30 g |
| CF 3/4 SB | 9.52 mm | 19.05 mm | 35.81 mm | 30 g |
| CF 7/8 SB | 9.52 mm | 22.22 mm | 35.81 mm | 40 g |
| CF 1 1/8 SB | 11 mm | 28.58 mm | 42.16 mm | 90 g |
| CF 1 SB | 11.11 mm | 25.4 mm | 42.16 mm | 80 g |
| CF 1 1/4 SB | 12.7 mm | 31.75 mm | 51.56 mm | 140 g |
| CF 1 3/8 SB | 12.7 mm | 34.92 mm | 51.56 mm | 160 g |
| CF 1 1/2 SB | 15.88 mm | 38.1 mm | 61.21 mm | 240 g |
Application scenarios
Roller bearings are widely used in various industrial fields, including:
1. Machine tools: Supporting rotating parts, reducing friction, and ensuring rotational accuracy.
2. Robots: Working in high-speed and high-pressure environments, extending service life.
3. Metallurgical equipment: Withstanding heavy loads and impacts.
4. Mining machinery: Ensuring the stable operation and precision of equipment.
