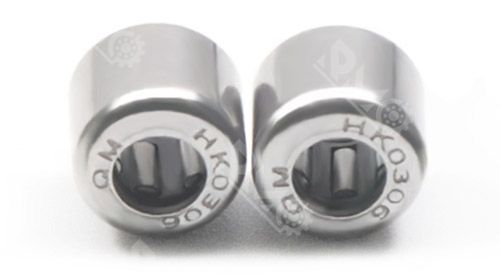

HK0306 Mini Drawn Cup Needle Roller Bearings

Drawn cup needle roller bearing is a combination, there are two types of open and closed type. The assembly comprises a thin-walled stamped outer ring, a needle roller and a cage assembly.


Model number: HK0306

Size: 3x6.5x6mm

Materials: ST14 steel with chrome steel GCr15

Weight: 0.0007KG

Lead Time: 5-7 days

Specification

Package: plastic bag, plastic tube or single box+Carton+Pallet

MOQ: 100 PCS

Shipping Port: Guangzhou, Ningbo, Shanghai

Payment: 100% T/T or 30% T/T before production, 70% before delivery


HK0306 Mini Drawn Cup Needle Roller Bearings


Product Introduction:

Drawn cup needle roller bearing is precisely stamped with thin steel plate, which has small structural space and large load capacity. It is suitable for occasions where installation space is limited and housing holes are not suitable for raceway. Further axial positioning is not necessary after pressing into the bearing seat hole.


Product Type:

Sealed Drawn cup needle roller bearing with sealing ring seal, under normal working conditions, can protect the bearing from debris intrusion and grease leakage. Therefore, it can be operated for a long time in the range of -20℃-120℃. If suitable grease can be added in time or short-term use, it can be used at +130℃.

The sealing ring is made of synthetic rubber, with good lip elasticity and steel plate lining core, strong mechanical rigidity. In addition, the sealing ring plays an axial guiding role on the retaining rack.

Related Products

HK1010 drawn cup needle roller bearing

Model No.    d     D    H  m
HK02052 mm4.6 mm5 mm0.3 g
HK03063 mm6.5 mm6 mm1 g
HK04084 mm8 mm8 mm2 g
HK05095 mm9 mm9 mm2 g
HK06066 mm10 mm6 mm1.5 g
HK06086 mm10 mm8 mm2.1 g
HK06096 mm10 mm9 mm2.5 g
HK07087 mm11 mm8 mm0
HK07097 mm11 mm9 mm2.6 g
HK08088 mm12 mm8 mm2.7 9
HK08108 mm12 mm10 mm3 g
HK08x14x108 mm14 mm10 mm0
HK08x14x128 mm14 mm12 mm0
HK09089 mm13 mm8 mm3 g
HK09109 mm13 mm10 mm4 g
HK09129 mm13 mm12 mm4.6 g
F-504639 mm16 mm10 mm7.1 g
HK101010 mm14 mm10 mm4.1 g
HK101210 mm14 mm12 mm4.8 g
HK101510 mm14 mm15 mm6 g


Application fields

HK needle roller bearings are applicable to a wide range of industrial equipment, including shoe eye machines, vertical reducers, forestry machinery, etc. Their high dynamic load and static load characteristics make them perform exceptionally well in industrial mechanical transmission systems. In addition, HK needle roller bearings are also commonly used in low-speed heavy-load conditions, especially in cases where the shaft surface cannot be hardened. They can be used in conjunction with IR type inner rings.
