Needle Roller Bearings
Roller bearing: It is a type of bearing that combines the characteristics of roller and needle bearings.

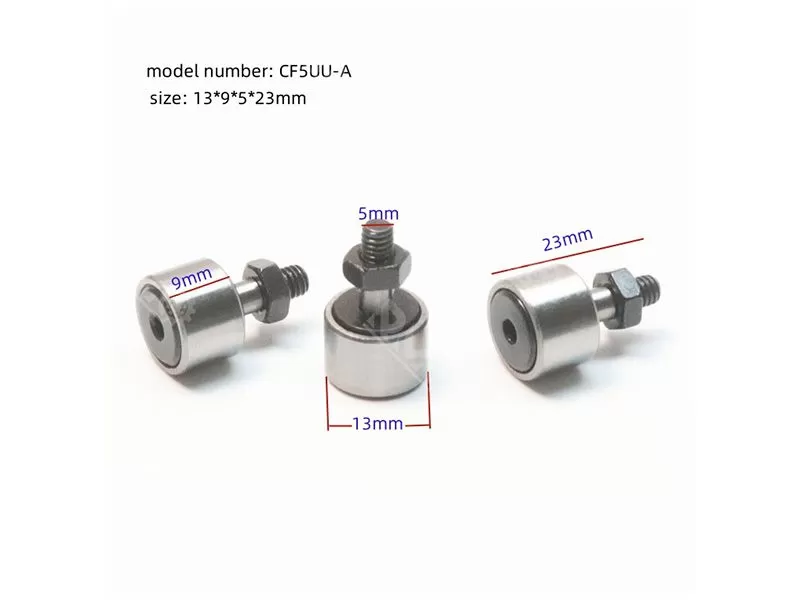

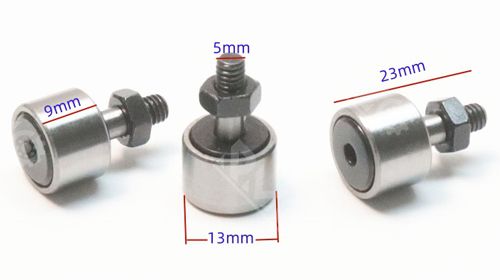

Model No.: CF5UU-A
Size: 5x13x9x23mm
Material: chrome steel Gcr15
weight: 0.016KG
Lead time: normally 3-5 days
Specification

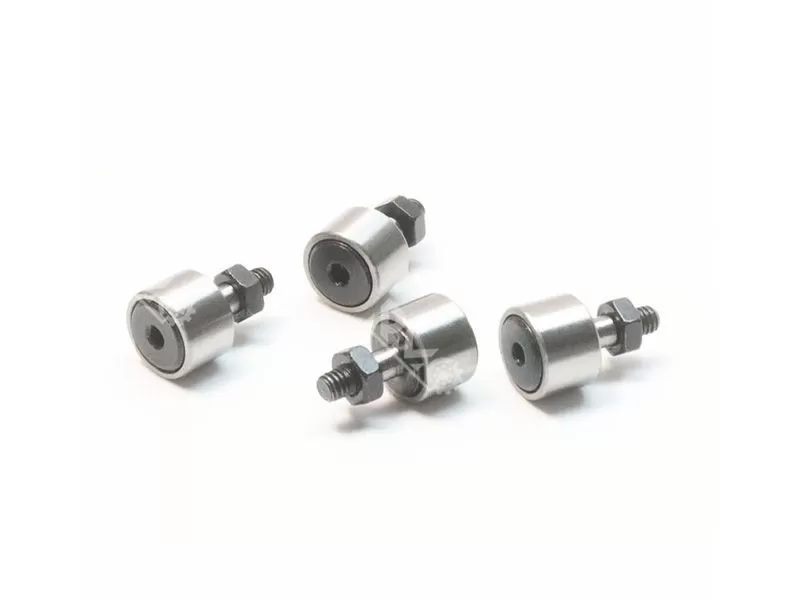

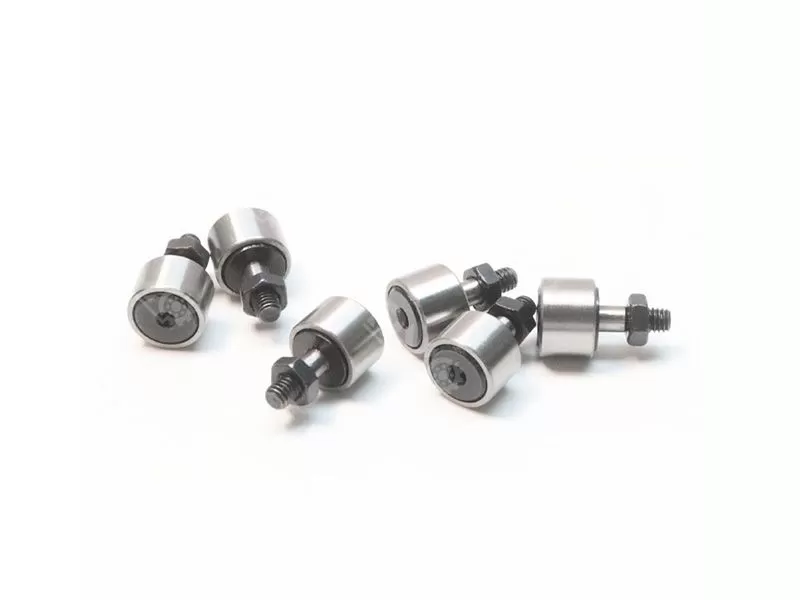

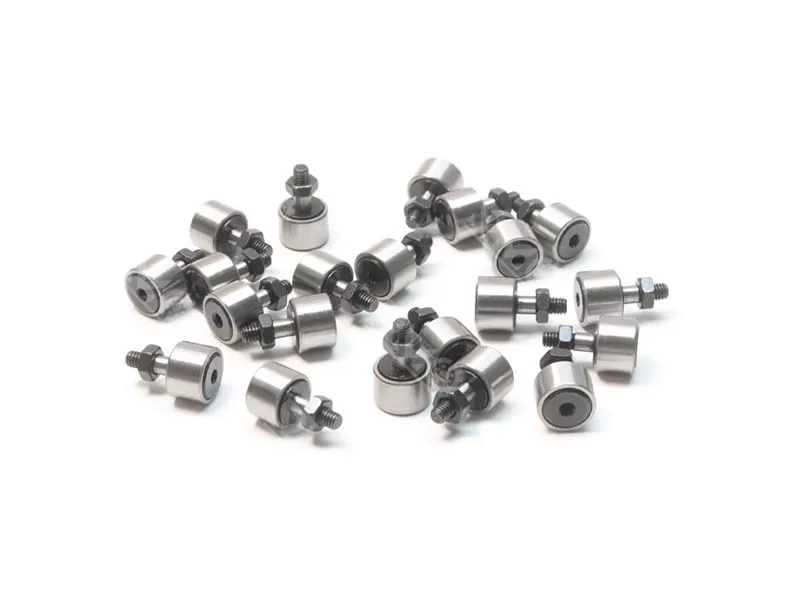

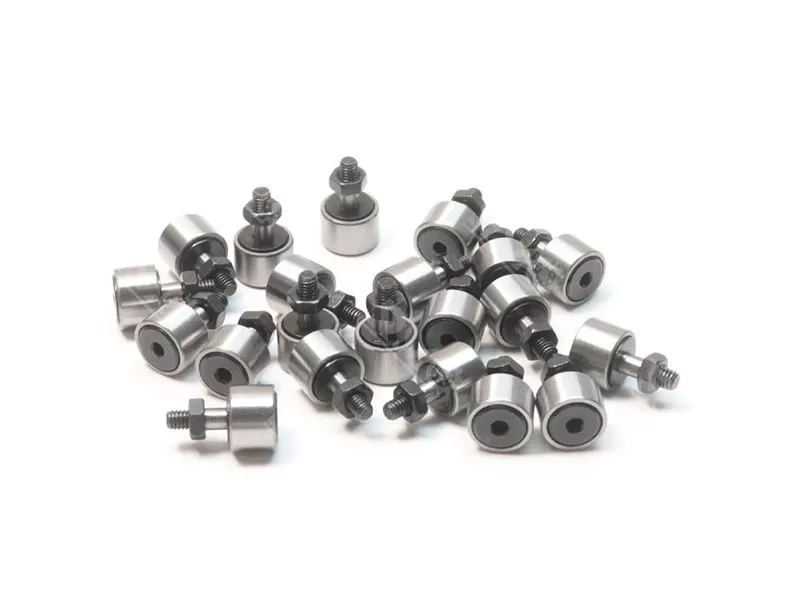

CF5UU-A and CF5 cam follower needle roller bearings are both compact designs. The CF5UU-A is typically sealed, while the CF5 is open. Manufactured from chrome steel, they feature high rigidity, low friction, impact resistance, and extended service life. These bearings are suitable for applications such as cam mechanisms, linear motion systems, and conveyor systems.
Technical parameter:
| Model Number | CF5UU-A |
| Size | 5x13x9x23mm |
| Weight | 0.016KG |
| Material | chrome steel Gcr15 |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Package | industrial packaging |
| MOQ | 50pcs |
| Brand name | famous brand/RMO/Neutral/OEM |
| Payment terms | 100% T/T or 30% T/T in advance, 70% before delivery |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Definition and Structure:
The roller bearing is mainly composed of the main roller, side roller, shaft head and cover plate. The main roller adopts a full-roller design and mainly bears vertical loads and impacts; the side roller adopts an open-ended full-needle structure and is responsible for horizontal loads; the shaft head is connected to the equipment, and the cover plate is used for fixing and protecting the internal components.
Performance features:
1. High load-bearing capacity: Due to the slender and densely arranged needle rollers, it can withstand a large radial load in a relatively small space.
2. Low friction: With a sealed structure and pre-filled lubricating grease design, it enables long-term maintenance-free operation and reduces wear during movement.
3. Compact design: The structure is compact, suitable for limited space applications.
4. Long lifespan: Through a reasonable lubrication design, it can increase the service life of the bearing and reduce maintenance requirements.
Related Products

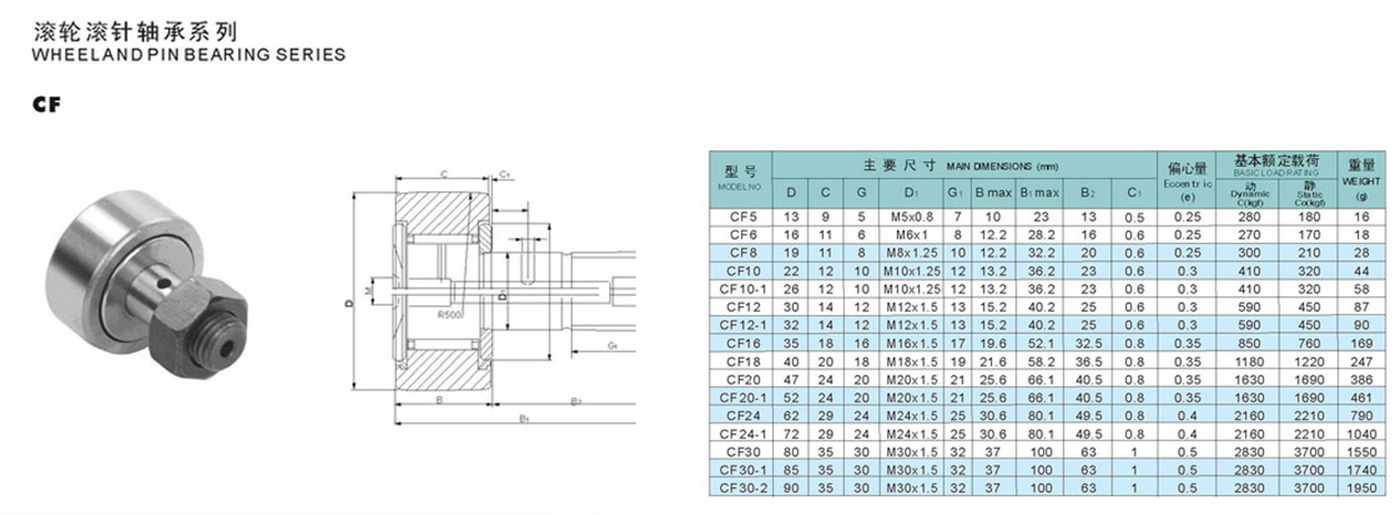

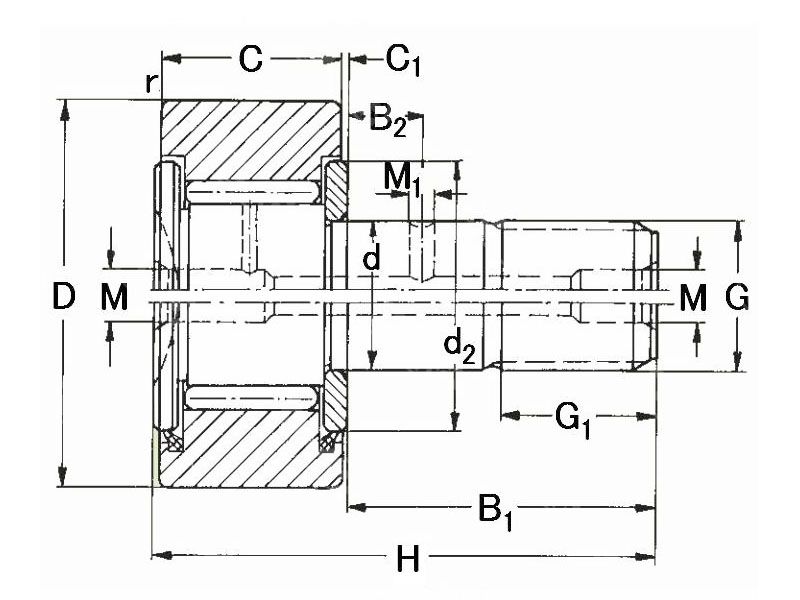

| Model No. | d | D | H | m |
| CF3UU-A | 3 mm | 10 mm | 17 mm | 4.5 g |
| CF4UU-A | 4 mm | 12 mm | 20mm | 7.5 g |
| CF5UU-A | 5 mm | 13 mm | 23 mm | 10.5 g |
| CF6UU-A | 6 mm | 16 mm | 28 mm | 18.5 g |
| CF8UU-A | 8 mm | 19 mm | 32 mm | 28.5 g |
| CF10UU-A | 10 mm | 22 mm | 36 mm | 45 g |
| CF10-1UU-A | 10 mm | 26 mm | 36 mm | 60 g |
Application scenarios
Roller bearings are widely used in various industrial fields, including:
1. Machine tools: Supporting rotating parts, reducing friction, and ensuring rotational accuracy.
2. Robots: Working in high-speed and high-pressure environments, extending service life.
3. Metallurgical equipment: Withstanding heavy loads and impacts.
4. Mining machinery: Ensuring the stable operation and precision of equipment.
