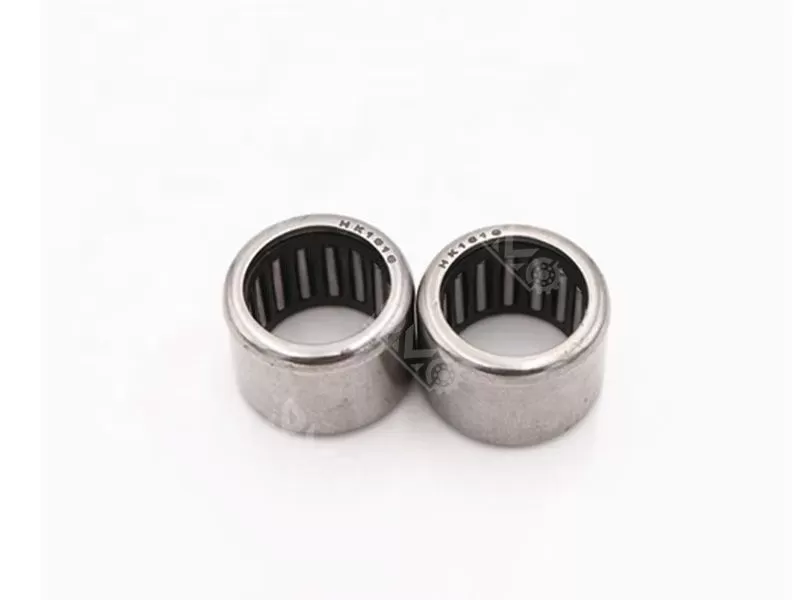

HK1010 Drawn Cup Needle Roller Bearing

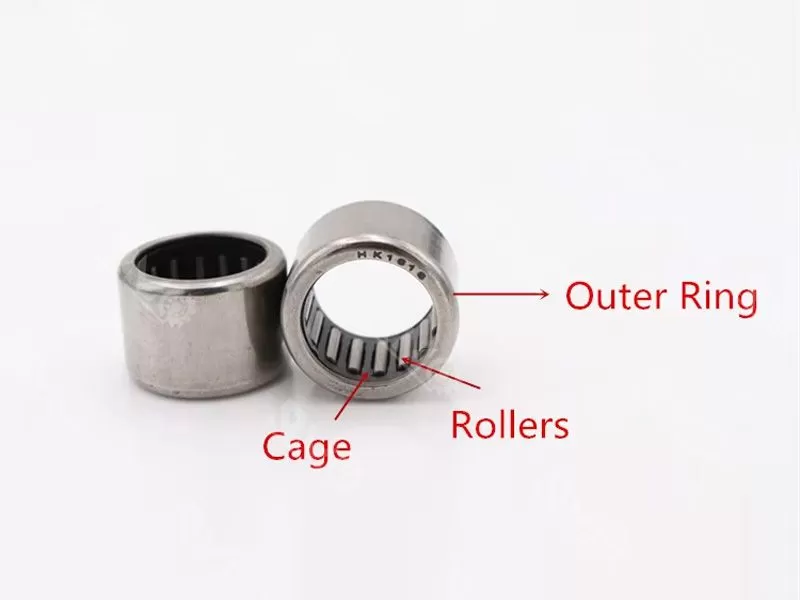

Drawn cup needle roller bearing is a combination, there are two types of open and closed type. The assembly comprises a thin-walled stamped outer ring, a needle roller and a cage assembly.

Model number: HK1010

Size: 10x14x10mm

Materials: ST14 steel with chrome steel GCr15

Weight: 0.043KG

Lead Time: 5-7 days

Inquire Now Next Product

Specification

HK1010 stamped outer ring needle roller bearings feature a thin-walled stamped outer ring and needle roller cage assembly without an inner ring. They offer a compact structure, high radial load capacity, and excellent rigidity. These bearings are suitable for applications with limited space and demanding load requirements, such as automotive transmissions and small industrial machinery.

Technical parameter:

Model Number	HK1010
Size	10x14x10mm
Weight	0.043KG
Material	ST14 steel with chrome steel GCr15
Clearance	C2 C0 C3 C4
Precision Grade	p0 p6 p5 p4
Dynamic Load Rating	4.4 lbf
Static Load Rating	5.1 lbf
Max Speed (Grease Lubrication)	24300 RPM
MOQ	100PCS
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Taime	5-7 Days

Product Introduction:

Drawn cup needle roller bearing is precisely stamped with thin steel plate, which has small structural space and large load capacity. It is suitable for occasions where installation space is limited and housing holes are not suitable for raceway. Further axial positioning is not necessary after pressing into the bearing seat hole.

Related Products

HK1010 drawn cup needle roller bearing

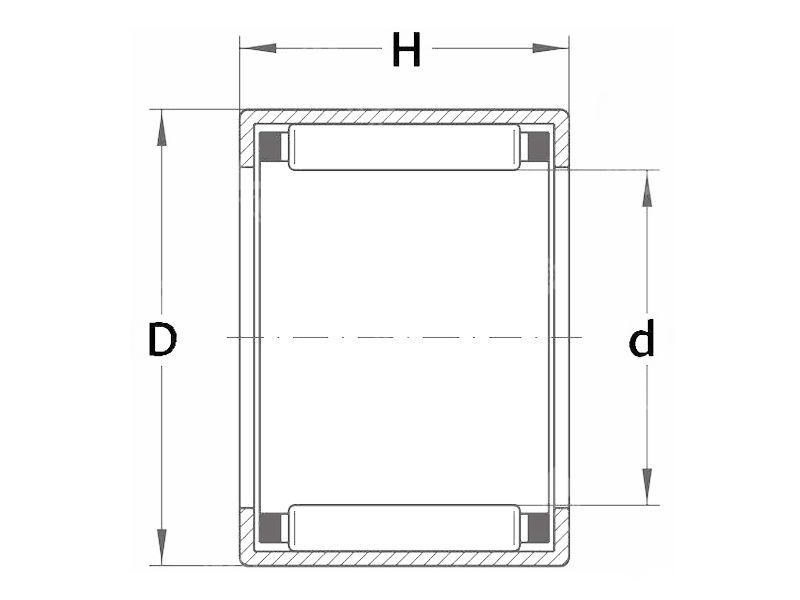

Model No.	d	D	H	m	Model No.	d	D	H	m
HK0205-TV	2 mm	4.6 mm	5 mm	0.3 g	HK10x16x10	10 mm	16 mm	10 mm	7.3g
HK0306-TV	3 mm	6.5 mm	6 mm	1 g	HK10x16x12	10 mm	16 mm	12 mm	8.3g
HK0408-TV	4 mm	8 mm	8 mm	2g	HK10x16x15	10 mm	16 mm	15 mm	8.6g
HK0509	5 mm	9 mm	9 mm	2 g	HK1210	12 mm	16 mm	10 mm	4.6 g
HK0606	6 mm	10 mm	6 mm	1.5 g	HK12x17x12	12 mm	17 mm	12 mm	8.4g
HK0608	6 mm	10 mm	8 mm	2.1 g	HK12x17x15	12 mm	17 mm	15 mm	10.4g
HK0609	6 mm	10mm	9 mm	2.5 g	HK12x17x18	12 mm	17 mm	18 mm	11g
HK0708	7 mm	11 mm	8 mm	2.5g	HK1212	12 mm	18 mm	12 mm	9g
HK0709	7 mm	11 mm	9 mm	2.6 g	HK12x18x12	12 mm	18 mm	12 mm	9g
HK0808	8 mm	12 mm	8 mm	2.7 g	HK12x19x12	12 mm	19 mm	12 mm	10g
HK0810	8 mm	12 mm	10 mm	3 g	HK1312	13 mm	19 mm	12 mm	10 g
HK08x14x10	8 mm	14 mm	10 mm	3g	HK13.5x20x12	13.5 mm	20 mm	12 mm	10g
HK08x14x12	8 mm	14 mm	12 mm	3g	F-30705	14 mm	20 mm	12 mm	10.3 g
HK0908	9 mm	13 mm	8 mm	3 g	HK1412	14mm	20 mm	12 mm	10.5 g
HK0910	9 mm	13 mm	10 mm	4 g	HK1416	14 mm	20 mm	16 mm	13g
HK0912	9 mm	13 mm	12 mm	4.6 g	HK15x20x12	15 mm	20 mm	12 mm	11.5g
F-50463	9 mm	16 mm	10 mm	7.1 g	HK15x20x16	15 mm	20 mm	16 mm	14.9g
HK1010	10 mm	14mm	10 mm	4.1 g	HK15x20x20	15 mm	20 mm	20 mm	16.2g
HK1012	10 mm	14 mm	12 mm	4.8 g	HK1512	15 mm	21 mm	12 mm	11 g
HK1015	10 mm	14 mm	15 mm	6g	HK1514	15 mm	21 mm	14 mm	12.8g

Product Type

Sealed Drawn cup needle roller bearing with sealing ring seal, under normal working conditions, can protect the bearing from debris intrusion and grease leakage. Therefore, it can be operated for a long time in the range of -20℃-120℃. If suitable grease can be added in time or short-term use, it can be used at +130℃.

The sealing ring is made of synthetic rubber, with good lip elasticity and steel plate lining core, strong mechanical rigidity. In addition, the sealing ring plays an axial guiding role on the retaining rack.

Application fields

HK needle roller bearings are applicable to a wide range of industrial equipment, including shoe eye machines, vertical reducers, forestry machinery, etc. Their high dynamic load and static load characteristics make them perform exceptionally well in industrial mechanical transmission systems. In addition, HK needle roller bearings are also commonly used in low-speed heavy-load conditions, especially in cases where the shaft surface cannot be hardened. They can be used in conjunction with IR type inner rings.

⚙️Obtain Certificate:

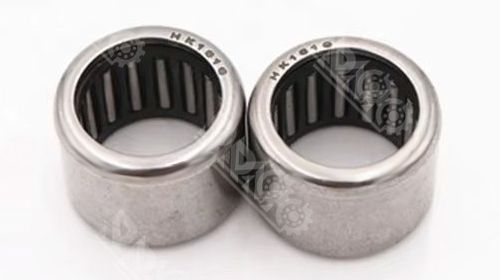

HK1010 Drawn Cup Needle Roller Bearing
