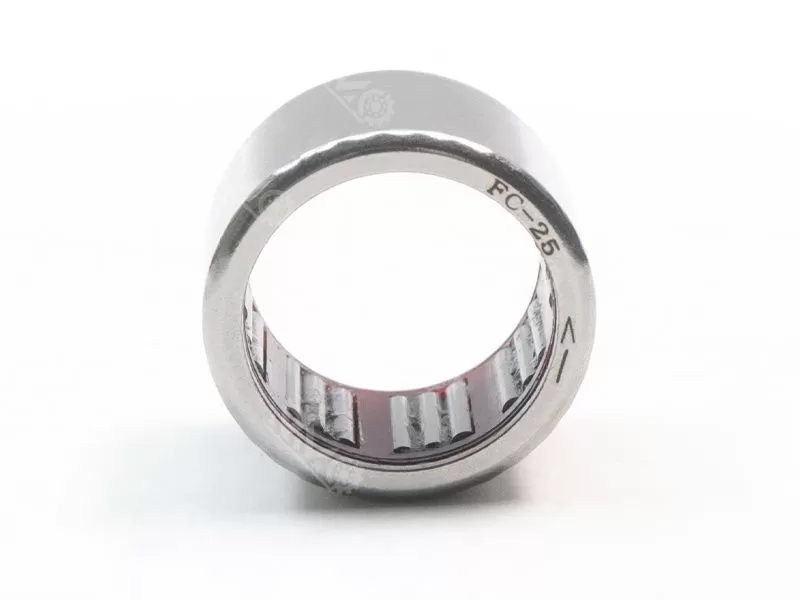

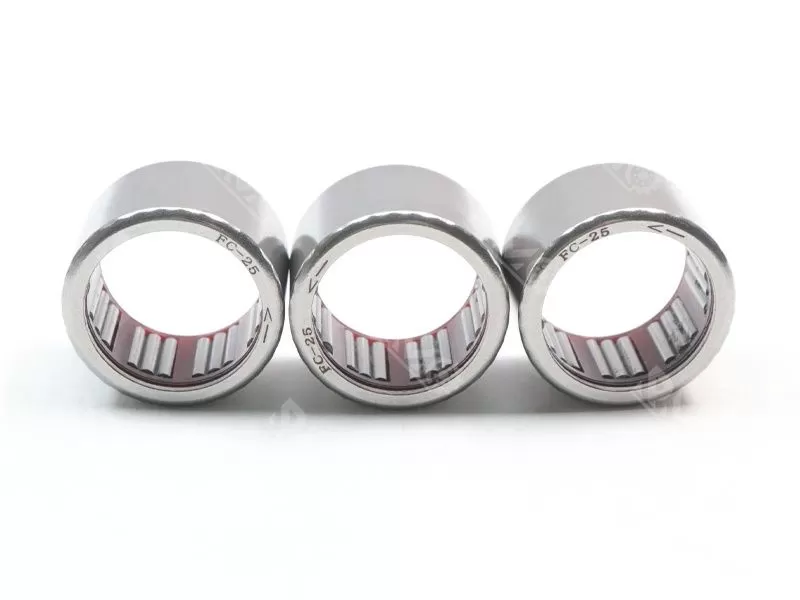

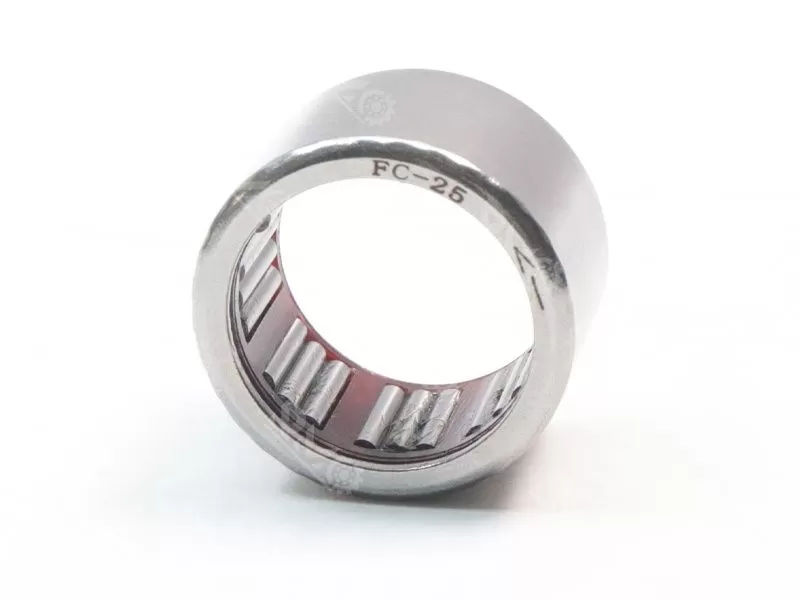

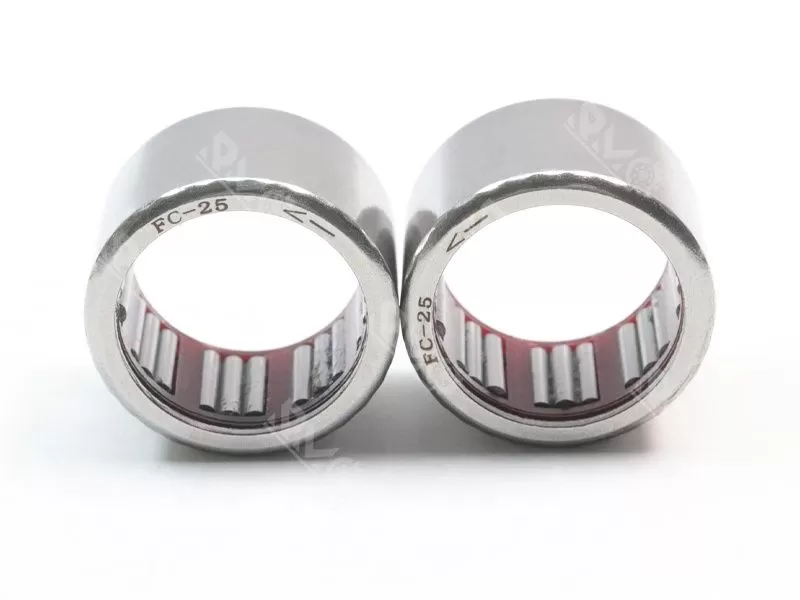

FC-25 drawn cup one-way needle roller bearing

one-way needle roller bearing, also known as needle roller clutch, is a needle roller clutch composed of a stamping outer ring and a plastic cage. The cage can have a plastic reed or a stainless steel reed to guide the needle roller, and the inclined raceway and needle roller on the outer ring are used as a locking device.

Model number: FC-25

Size: 25x32x20mm

Materials: ST14 steel with chrome steel GCr15

Cage: Nylon

Weight: 0.03KG

Package: Industrial Package

Lead Time: 5-7 days

Inquire Now Next Product

Specification

A brief introduction:

It has grooves on the surface, mainly for diabolo manufacturing enterprises, and has also launched a solid ring type one-way needle roller bearings, mainly for fitness equipment enterprises, and has also developed ultra-thin one-way needle roller bearings, mainly for precision machinery enterprises. At the same time, we specialize in the production of one-way bearings for fishing gear pay-off, special single bearings, special one-way bearings for remote control model cars. (HF, HFL, FC, FCB, RCB, RC, F, IWC, EWC, DC, CSK, CKB (B200), ASNU, CKA, FWD, NF, and so on. Another special specification of stainless steel fishing gear one-way bearing).

Main structural form:

Bearing code structural characteristics: HF steel spring pressed outer ring needle clutch HF..KF plastic spring pressed outer ring needle clutch and bearing assembly HF..R steel spring pressed outer ring needle clutch, with the outer ring having embossing HF..KFR plastic spring pressed outer ring needle clutch and bearing assembly, with the outer ring having embossing HFL steel spring pressed outer ring needle clutch and bearing assembly, sliding bearing or rolling bearing.

Related Products

FC-25 drawn cup one-way needle roller bearing

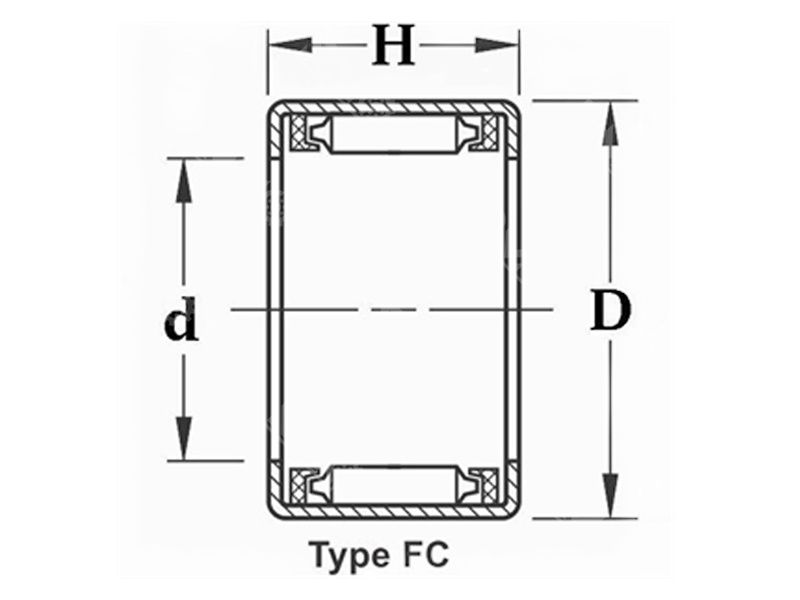

Model No.	d	D	H	KG
RC-02	3.18 mm	7.14 mm	6.35 mm	0.001
FC-4-K	4 mm	8 mm	6 mm	0.001
FCS-6	6 mm	10 mm	12 mm	0.003
RC-040708	6.35 mm	11.11 mm	12.7 mm	0.003
FCL-8-K	8 mm	12 mm	12 mm	0.0035
FC-8	8 mm	14 mm	12 mm	0.0035
RC-061008	9.52 mm	15.88 mm	12.7 mm	0.004
FCL-10-K	10 mm	14 mm	12 mm	0.004
FC-10	10 mm	16 mm	12 mm	0.004
FC-12	12 mm	18 mm	16 mm	0.012
RC-081208	12.7 mm	19.05 mm	12.7 mm	0.013
RC-101410	15.88 mm	22.22 mm	15.88 mm	0.014
FC-16	16 mm	22 mm	16 mm	0.015
RC-121610	19.05 mm	25.4 mm	15.88 mm	0.016
FC-20	20 mm	26 mm	16 mm	0.017
FC-25	25 mm	32 mm	20 mm	0.031
RC-162110	25.4 mm	33.34 mm	15.88 mm	0.032
FC-30	30 mm	37 mm	20 mm	0.036

Application

One-way needle roller bearings are used in the production of fishing gear reel devices, as well as in single-direction bearings for special purposes, such as dedicated single-direction bearings for remote control model cars.
