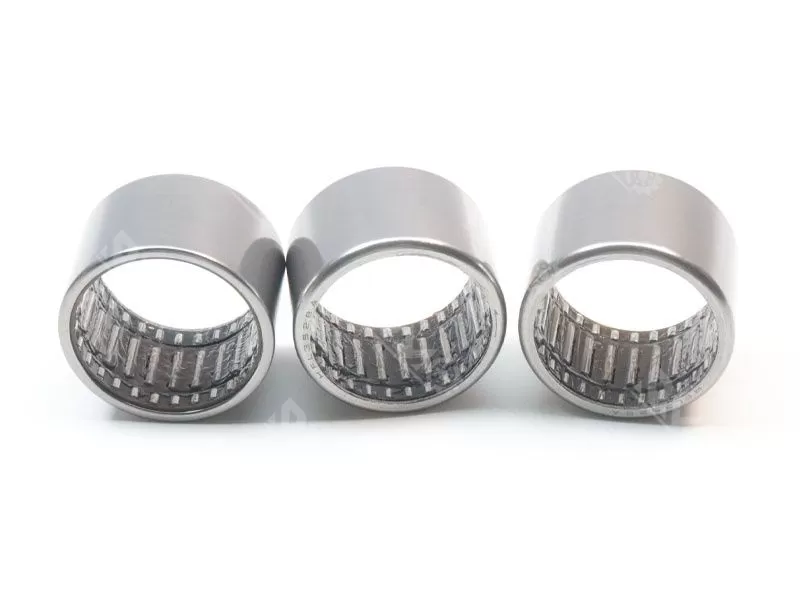

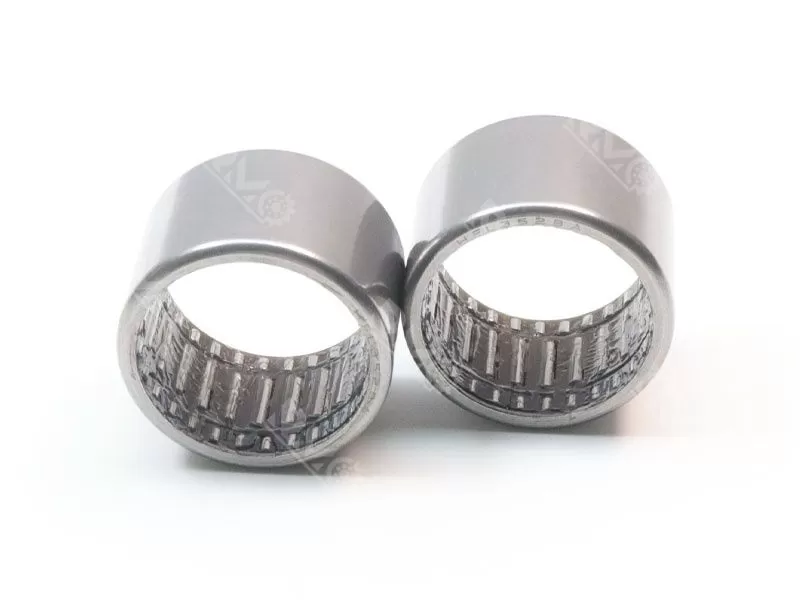

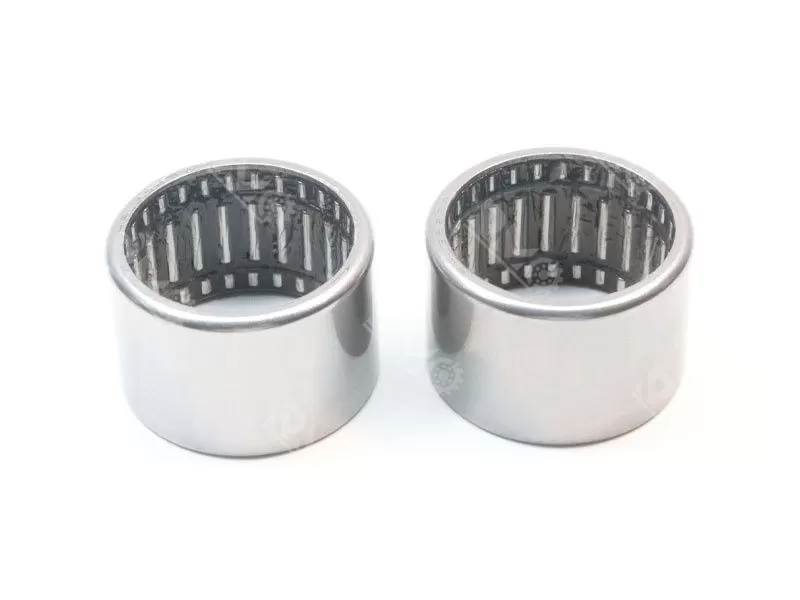

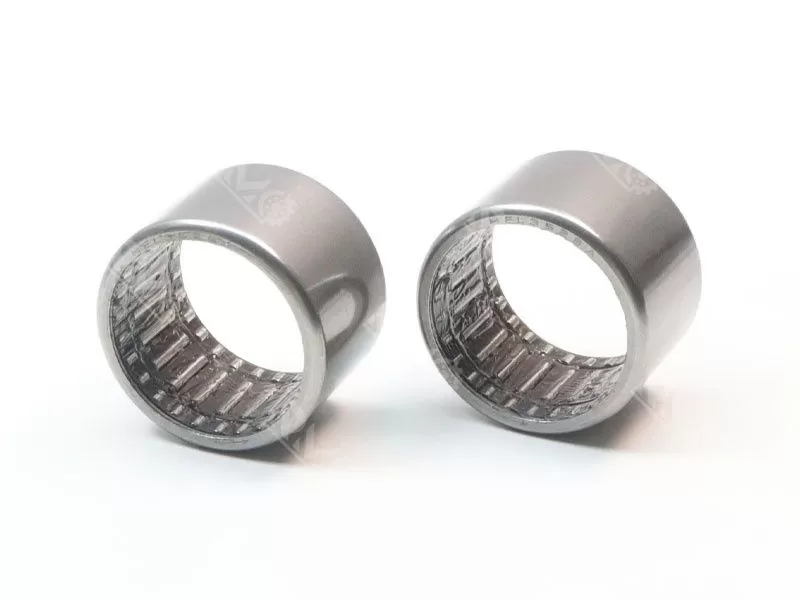

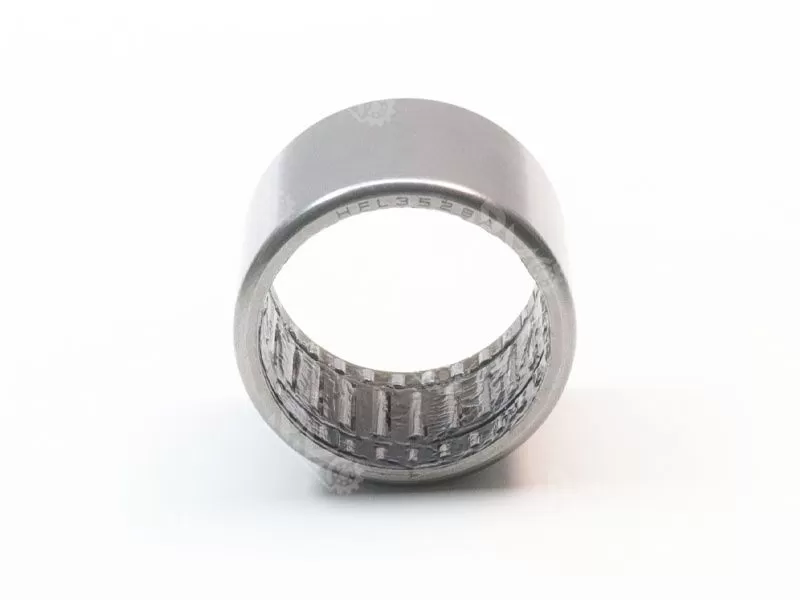

HFL3528A One Way Drawn Cup Needle Roller Bearing

The HFL3528A one way drawn cup needle roller bearing, also known as a needle roller clutch, is designed for reliable one-direction rotation in compact mechanical systems. With a drawn cup outer ring made of ST14 steel and precision GCr15 chrome steel rollers, this model ensures high strength, minimal radial space, and smooth locking performance.

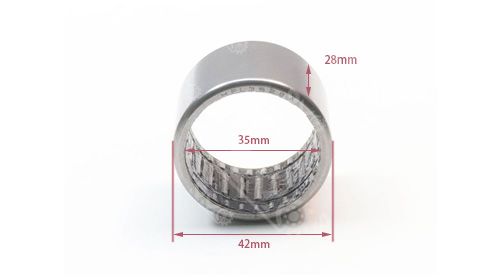

Technical parameter:

Structural Features:

Belongs to the HFL series, consisting of a stamped outer ring, plastic cage, needle rollers, and spring plates. The cage can be configured with plastic or stainless steel spring plates to guide the needle rollers. The inclined raceway on the outer ring, together with the needle rollers, forms a locking mechanism to achieve unidirectional transmission functionality. Support bearings are installed on both sides of the needle clutch to bear radial loads. These support bearings consist of needle and plastic cage assemblies. The absence of an inner ring design results in relatively higher shaft wear, typically requiring shaft hardness to reach HRC 58-62.
