One-way needle roller bearings are used in the production of fishing gear reel devices, as well as in single-direction bearings for special purposes, such as dedicated single-direction bearings for remote control model cars.
Needle Roller Bearings
one-way needle roller bearing, also known as needle roller clutch, is a needle roller clutch composed of a stamping outer ring and a plastic cage. The cage can have a plastic reed or a stainless steel reed to guide the needle roller, and the inclined raceway and needle roller on the outer ring are used as a locking device.

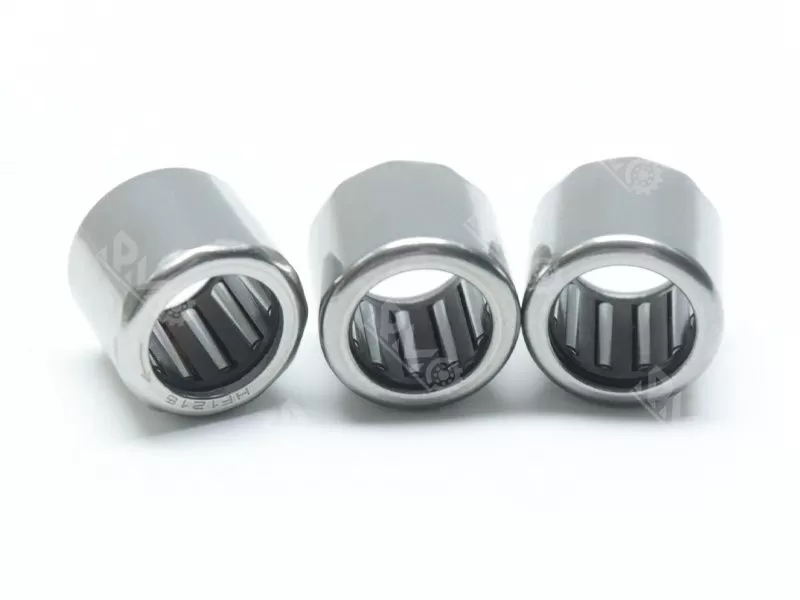

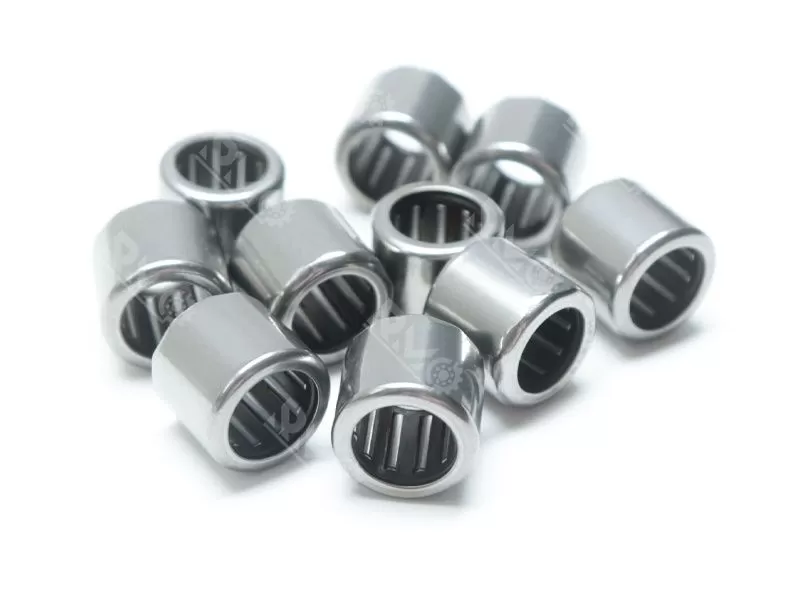

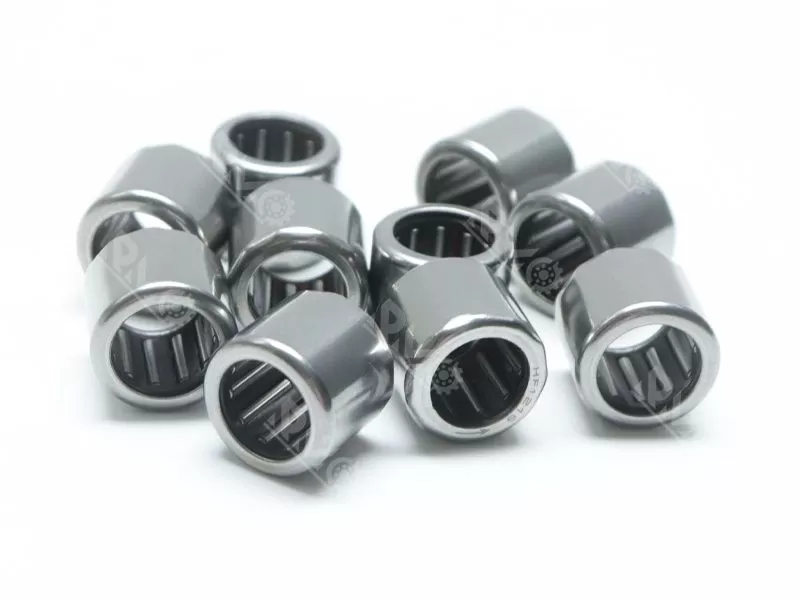

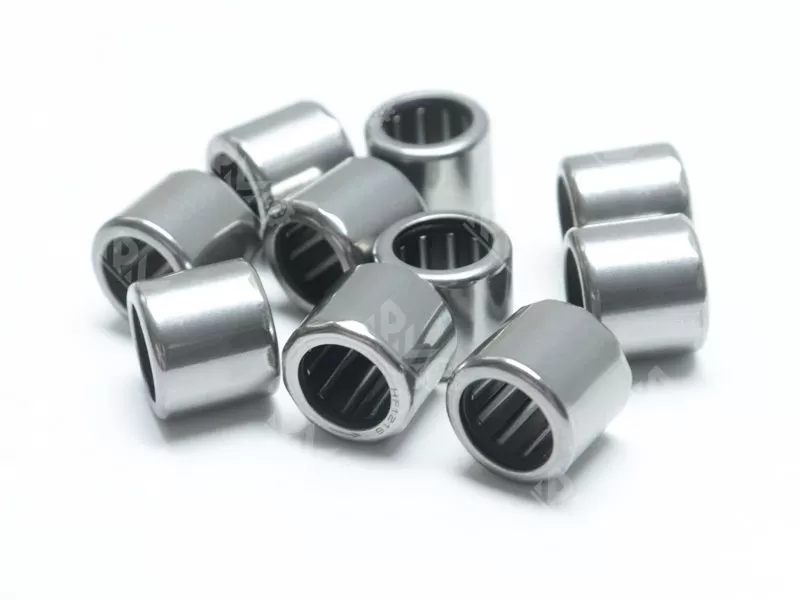

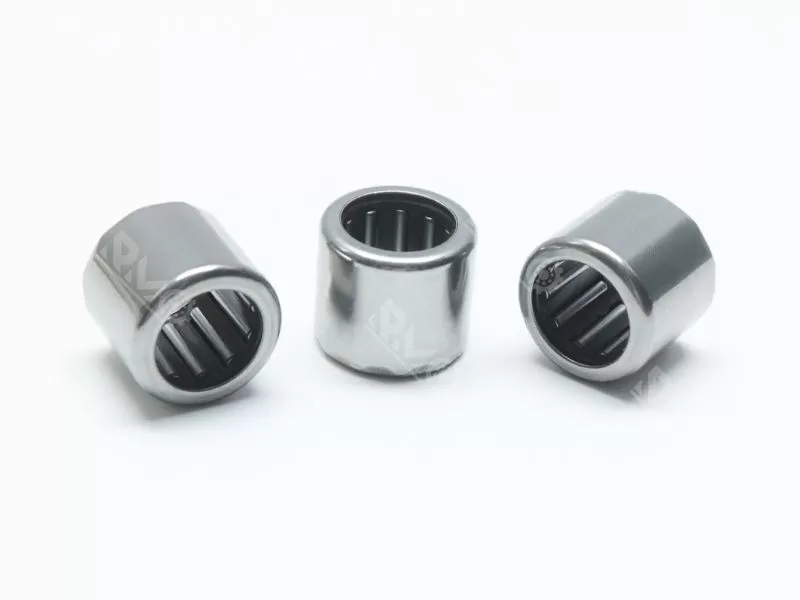

Model number: HF1216
Size: 12x18x16mm
Weight: 0.011KG
Specification

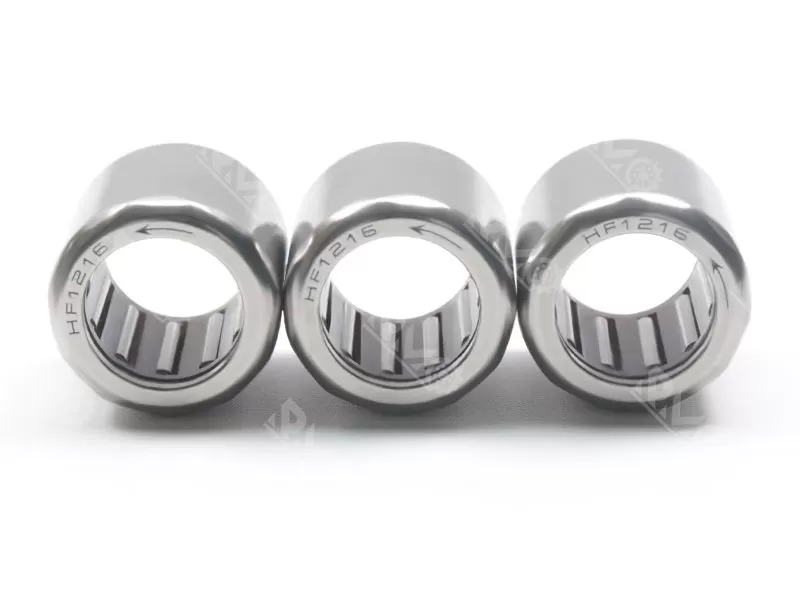

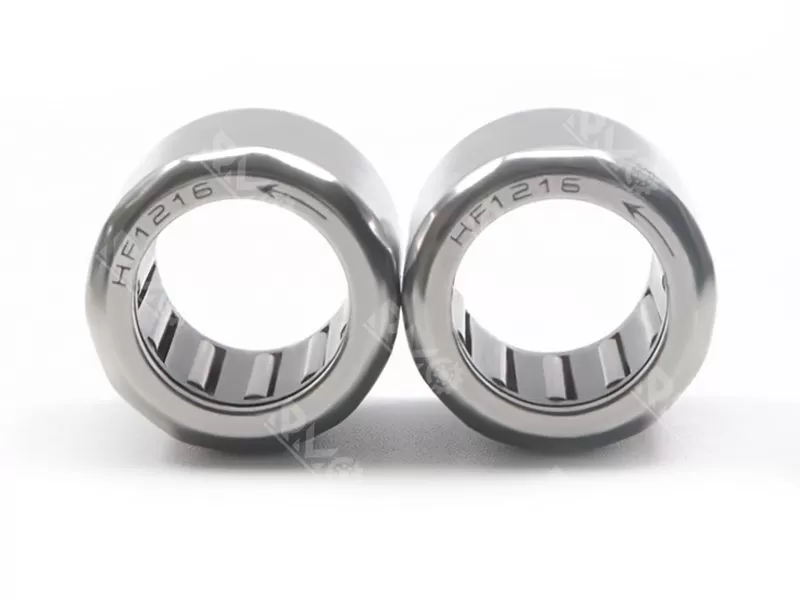

HF1216 One-Way Stamped Outer Ring Needle Roller Bearing is a one-way clutch composed of a thin-walled stamped outer ring, plastic cage, spring, and needle rollers. It features a low radial cross-sectional height, transmits one-way torque, operates at high switching frequencies, exhibits low backlash friction torque, and is easy to install.
Technical parameter:
| Model Number | HF1216 |
| Size | 12x18x16mm |
| Weight | 0.011KG |
| Material | ST14 steel with chrome steel GCr15 |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Package | plastic bag, plastic tube or single box+Carton+Pallet |
| MOQ | 100 PCS |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
A brief introduction:
It has grooves on the surface, mainly for diabolo manufacturing enterprises, and has also launched a solid ring type one-way needle roller bearings, mainly for fitness equipment enterprises, and has also developed ultra-thin one-way needle roller bearings, mainly for precision machinery enterprises. At the same time, we specialize in the production of one-way bearings for fishing gear pay-off, special single bearings, special one-way bearings for remote control model cars. (HF, HFL, FC, FCB, RCB, RC, F, IWC, EWC, DC, CSK, CKB (B200), ASNU, CKA, FWD, NF, and so on. Another special specification of stainless steel fishing gear one-way bearing).
Related Products
| Model No. | d | D | H | m |
| HF0612 | 6 mm | 10 mm | 12 mm | 3 g |
| HF0812 | 8 mm | 12 mm | 12 mm | 3.5 g |
| HF1012 | 10 mm | 14 mm | 12 mm | 4 g |
| HF1216 | 12 mm | 18 mm | 16 mm | 11 g |
| HF1416 | 14 mm | 20 mm | 16 mm | 13 g |
| HF1616 | 16 mm | 22 mm | 16 mm | 14 g |
| HF1816 | 18 mm | 24 mm | 16 mm | 16 g |
| HF2016 | 20 mm | 26 mm | 16 mm | 17 g |
| HF2520 | 25 mm | 32 mm | 20 mm | 30 g |
| HF3020 | 30 mm | 37 mm | 20 mm | 36 g |
| HF3520 | 35 mm | 42 mm | 20 mm | 40 g |
Application
One-way needle roller bearings are used in the production of fishing gear reel devices, as well as in single-direction bearings for special purposes, such as dedicated single-direction bearings for remote control model cars.
