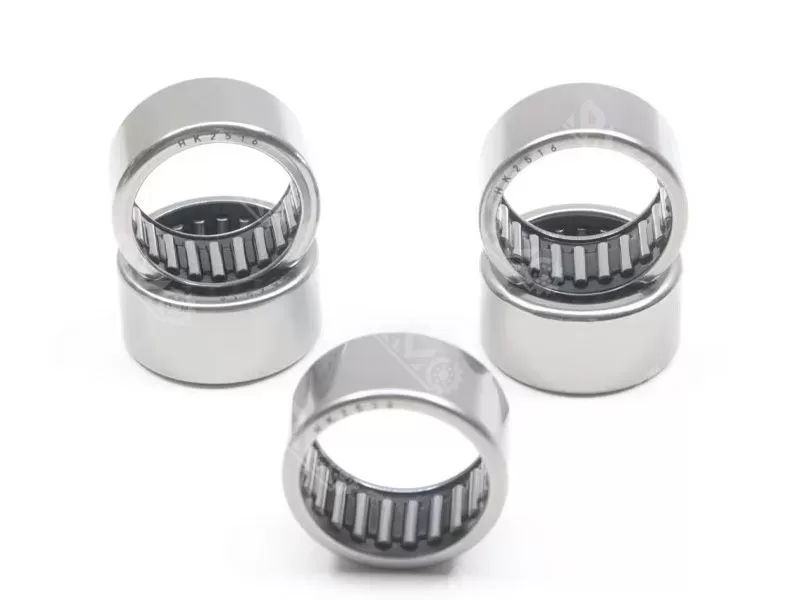

25x32x16mm 253216 Drawn Cup needle roller bearing HK2516 Open stamped outer ring needle roller bearings HK2516

Specification

Drawn cup needle roller bearing is precisely stamped with thin steel plate, which has small structural space and large load capacity. It is suitable for occasions where installation space is limited and housing holes are not suitable for raceway. Further axial positioning is not necessary after pressing into the bearing seat hole.

Technical parameter:

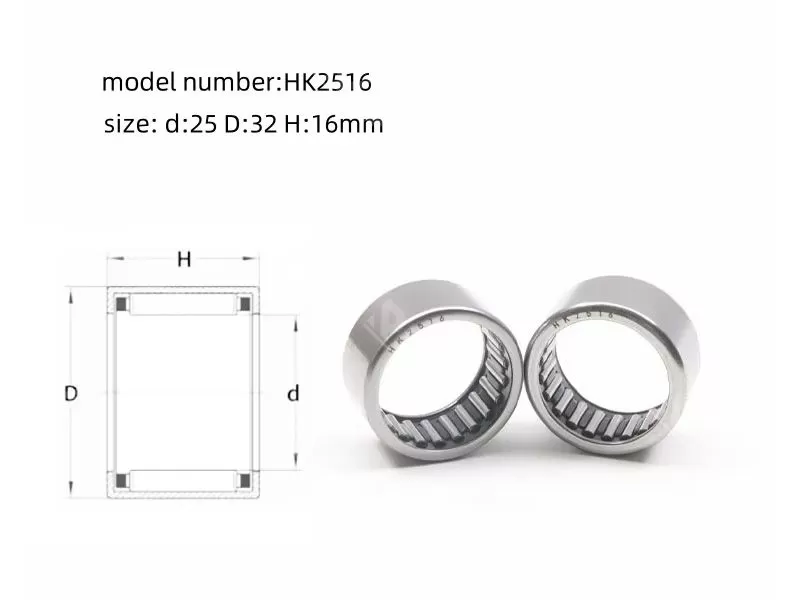

Model Number	HK2516
Size	25x32x16mm
Weight	0.027KG
Material	ST14 steel with chrome steel GCr15
Clearance	C2 C0 C3 C4
Precision Grade	p0 p6 p5 p4
Dynamic Load Rating	15.6 lbf
Static Load Rating	24 lbf
Max Speed (Grease Lubrication)	10200 RPM
MOQ	100PCS
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Taime	5-7 Days

Product Type:

Sealed Drawn cup needle roller bearing with sealing ring seal, under normal working conditions, can protect the bearing from debris intrusion and grease leakage. Therefore, it can be operated for a long time in the range of -20℃-120℃. If suitable grease can be added in time or short-term use, it can be used at +130℃.

The sealing ring is made of synthetic rubber, with good lip elasticity and steel plate lining core, strong mechanical rigidity. In addition, the sealing ring plays an axial guiding role on the retaining rack.

Application fields:

HK needle roller bearings are applicable to a wide range of industrial equipment, including shoe eye machines, vertical reducers, forestry machinery, etc. Their high dynamic load and static load characteristics make them perform exceptionally well in industrial mechanical transmission systems. In addition, HK needle roller bearings are also commonly used in low-speed heavy-load conditions, especially in cases where the shaft surface cannot be hardened. They can be used in conjunction with IR type inner rings.

Related Products

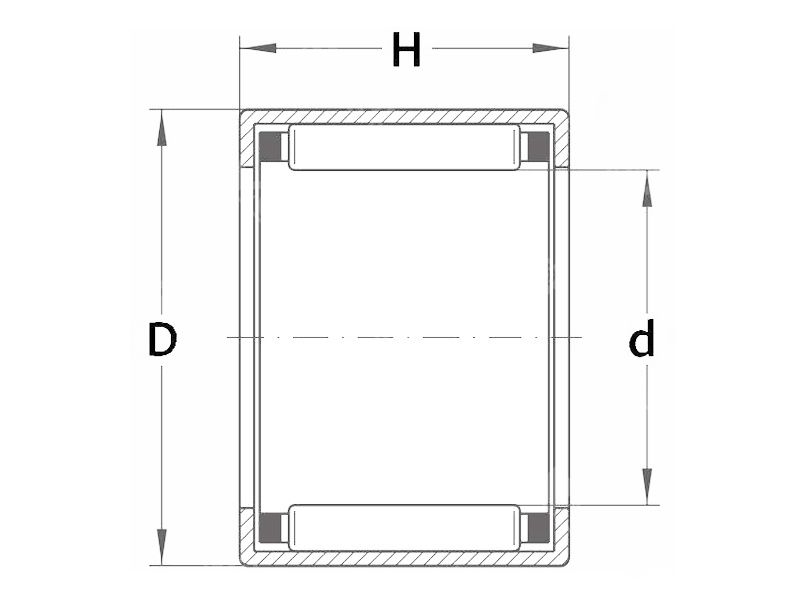

HK2516 drawn cup needle roller bearing

Model No.	d	D	H	m	Model No.	d	D	H	m
HK1515	15 mm	21 mm	15 mm	23 g	HK2018	20 mm	26mm	18mm	22 g
HK1516	15 mm	21 mm	16 mm	15 g	HK2020	20 mm	26mm	20mm	24 g
HK1520	15mm	21mm	20mm	18 g	HK1520	15mm	21mm	20mm	18 g
HK1522	15 mm	21 mm	22 mm	20 g	HK2030	20 mm	26 mm	30 mm	40 g
HK15x22x12	15 mm	22 mm	12 mm	13.4 g	HK20x27x20	20 mm	27 mm	20 mm	31.4 g
HK1612	16 mm	22 mm	12 mm	12 g	HK2210	22 mm	28 mm	10 mm	13 g
HK1614	16 mm	22 mm	14 mm	14 g	HK2212	22 mm	28 mm	12 mm	15 g
HK1616	16 mm	22 mm	16 mm	16 g	HK2216	22 mm	28 mm	16 mm	21 g
HK1622	16 mm	22 mm	22 mm	27 g	HK2220	22 mm	28 mm	20 mm	26 g
HK1712	17 mm	23 mm	12 mm	12 g	HK2230	22 mm	28 mm	30 mm	41 g
HK1714	17 mm	23 mm	14 mm	14 g	HK22x29x30	22 mm	29 mm	30 mm	43 g
HK1716	17 mm	23 mm	16 mm	16 g	HK2512	25 mm	32 mm	12 mm	20 g
HK1718	17 mm	23 mm	18 mm	18 g	HK2514	25 mm	32 mm	14 mm	22 g
HK17x25x14	17 mm	25 mm	14 mm	22 g	HK2516	25 mm	32 mm	16 mm	27 g
HK17x25x18	17 mm	25 mm	18 mm	24.4 g	HK2520	25 mm	32 mm	20 mm	33 g
HK1812	18 mm	24 mm	12 mm	13 g	HK2526	25 mm	32 mm	26 mm	44 g
HK1816	18 mm	24 mm	16 mm	18 g	HK2538	25 mm	32 mm	38 mm	77 g
HK2010	20 mm	26 mm	10 mm	12 g	F-50119	25 mm	34 mm	20 mm	43.6 g
HK2012	20 mm	26 mm	12 mm	14 g	HK2816	28 mm	35 mm	16 mm	29 g
HK2014	20 mm	26 mm	14 mm	16 g	HK2820	28 mm	35 mm	20 mm	36 g
HK2016	20 mm	26 mm	16 mm	19 g	HK3012	30 mm	37 mm	12 mm	23 g

Product Packaging

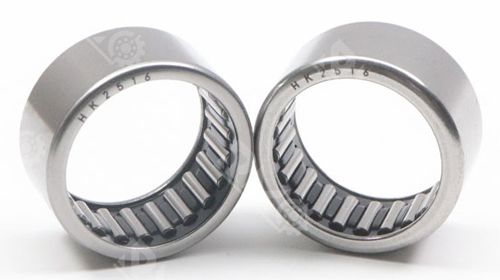

HK2516 Drawn Cup Needle Roller Bearing
