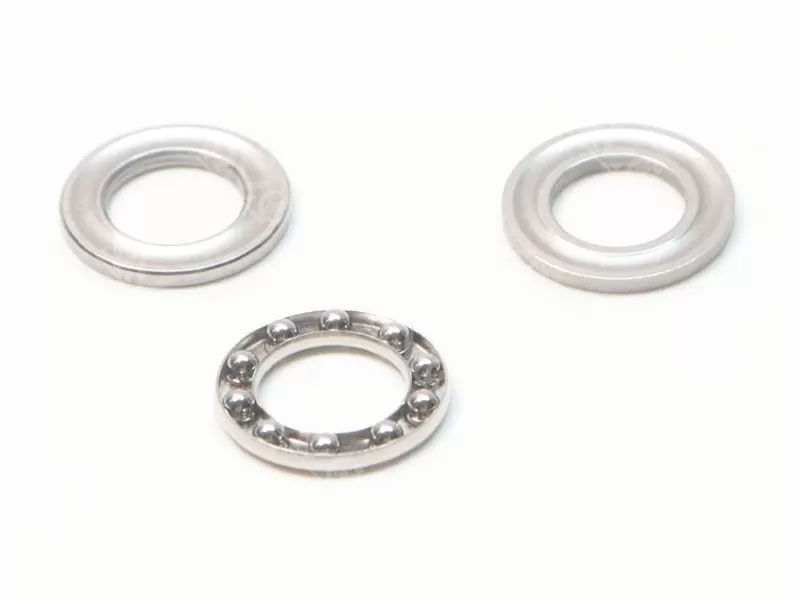

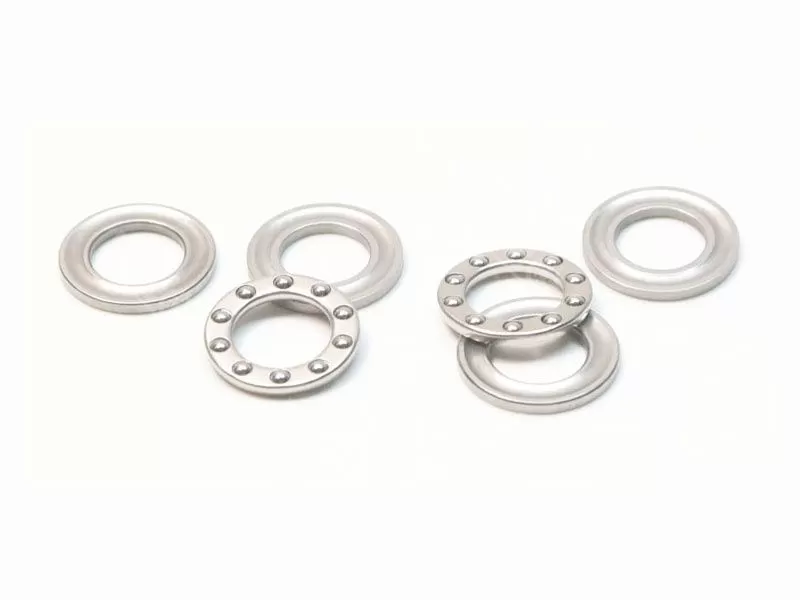

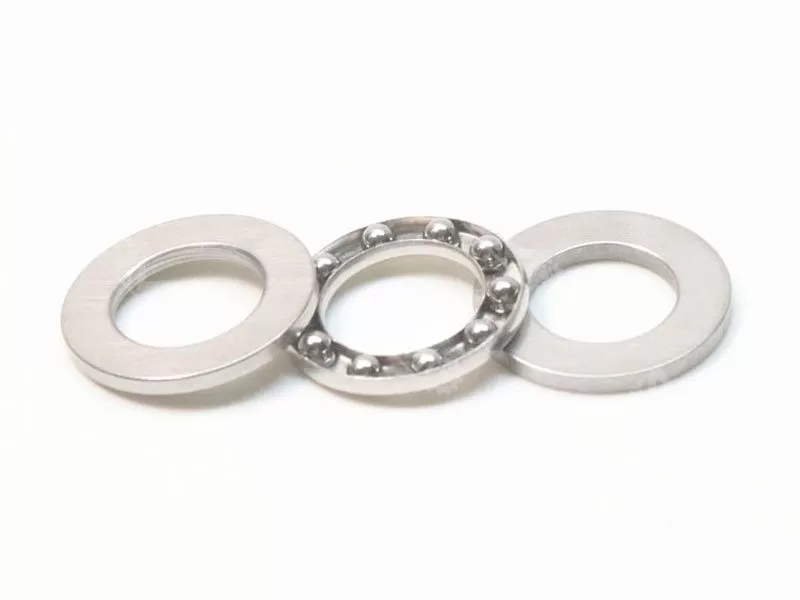

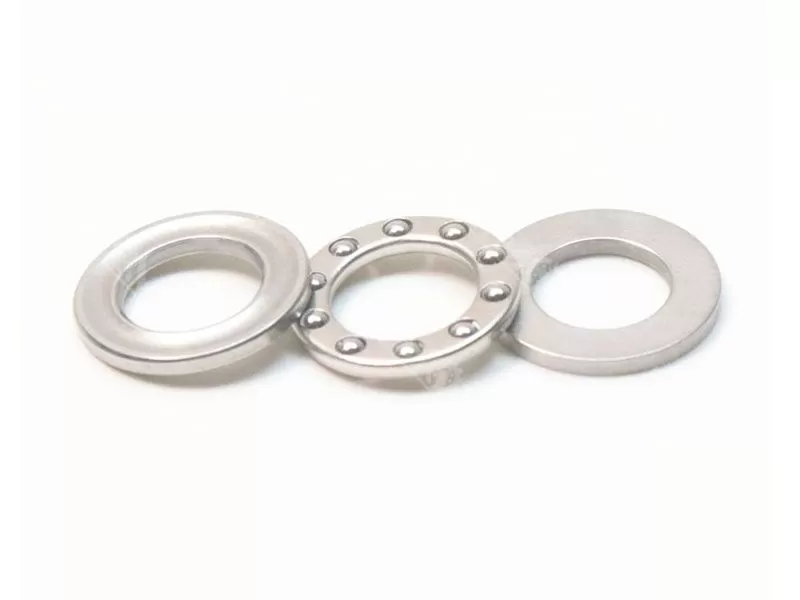

F8-14 chrome steel miniature thrust ball bearing

The thrust ball bearing consists of a seat ring, a shaft ring and a steel ball cage assembly. The shaft ring matched with the shaft, and the seat ring matched with the shell.


Model: F8-14

Size: 8x14x4mm

Material: Gcr15.chrome steel

Weight: 0.0025KG

lead time: normally 3-5 days

Shipping Port: GuangZhou, NingBo, ShangHai




Specification

Brand name: famous brand/RMO/Neutral/OEM

Package: plastic tube or single box+cartons

Minimum order quantity: 100pcs

Service: OEM ODM

Payment: 100% T/T, 30% T/T in advance ,70% T/T after finishing production


The micro thrust ball bearing ‌ is a kind of miniaturized mechanical component, which has the characteristics of small size, high precision, high speed and lightweight. Its size parameters and specifications are diverse, a wide range of inner diameters, common inner diameters are 2mm, 3mm, 4mm to 12mm, outer diameter and thickness according to the specific model and inner diameter size.




Related Products

F8-14 chrome steel miniature thrust ball bearing

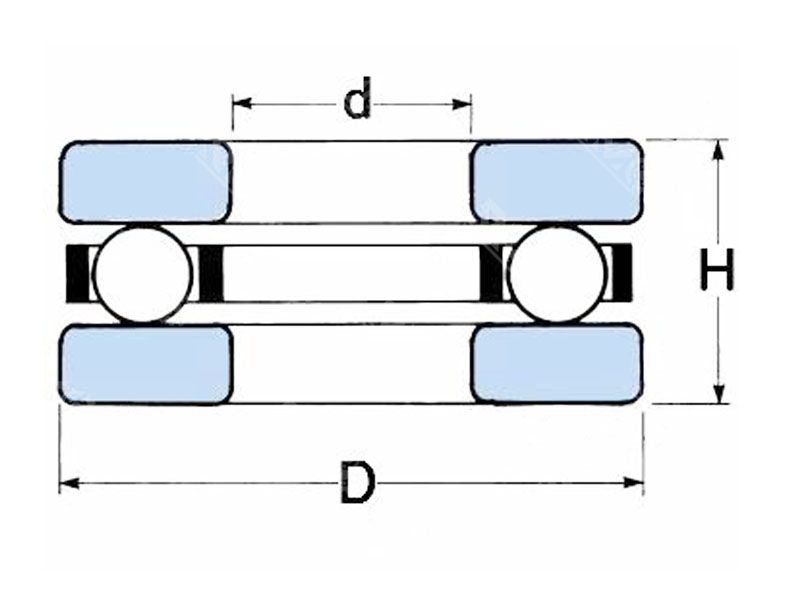

Model No.dDHm
F2-62   mm6   mm3   mm0.6   g
F2X-72.5   mm7   mm3.5   mm0.9   g
F3-83   mm8   mm3.5   mm0.6   g
F4-94   mm9   mm4   mm1.5   g
F4-104   mm10   mm4.5   mm2   g
F5-115   mm11   mm4.5   mm2.4   g
F6-126   mm12   mm4.5   mm2.5   g
F7-157   mm15   mm5   mm4.4   g
F8-148   mm14   mm4   mm2.5   g
F8-168   mm16   mm5   mm5   g
F9-179   mm17   mm5   mm5.1   g
F10-1810   mm18   mm5.5   mm6   g





Application field

Micro thrust ball bearings are widely used in many fields, including machine tools, automation equipment, electrical equipment, automotive and so on. Especially in high-speed, high-precision mechanical equipment plays a significant role, can use the rolling friction of the steel ball to reduce the friction coefficient between the two spheres, improve the operating efficiency of the bearing, with large bearing capacity, small friction coefficient, high speed, long service life and other advantages.
