The FM series thrust ball bearings are suitable for mechanical equipment that needs to withstand axial loads, such as:
miniature motors, office equipment, precision instruments, household appliances, medical devices, etc.
Thrust Ball Bearings

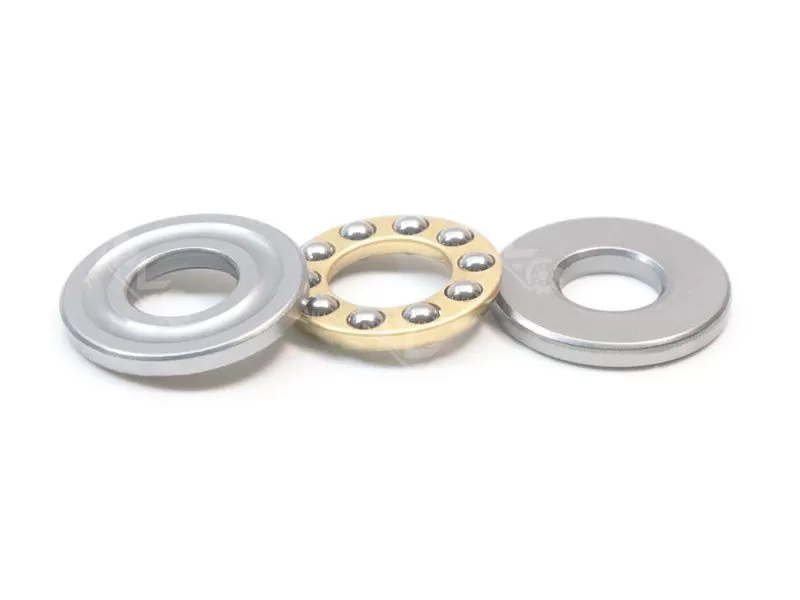

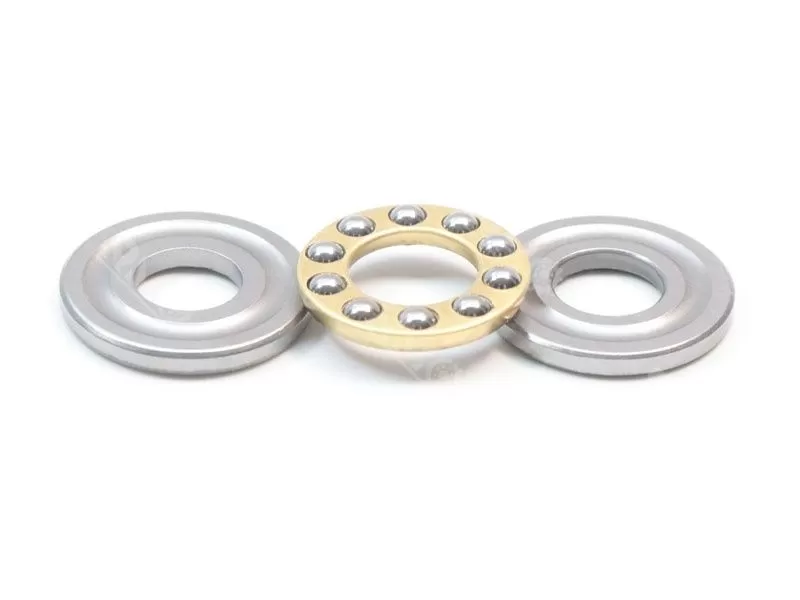

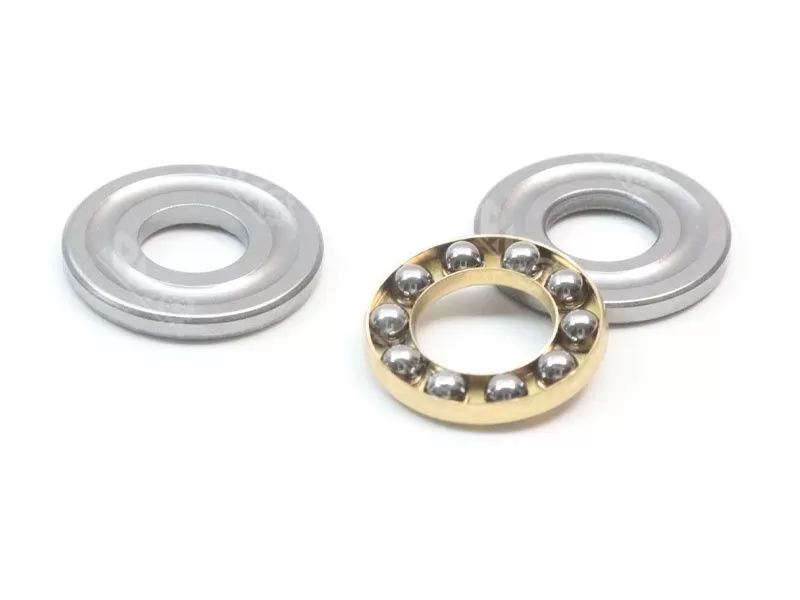

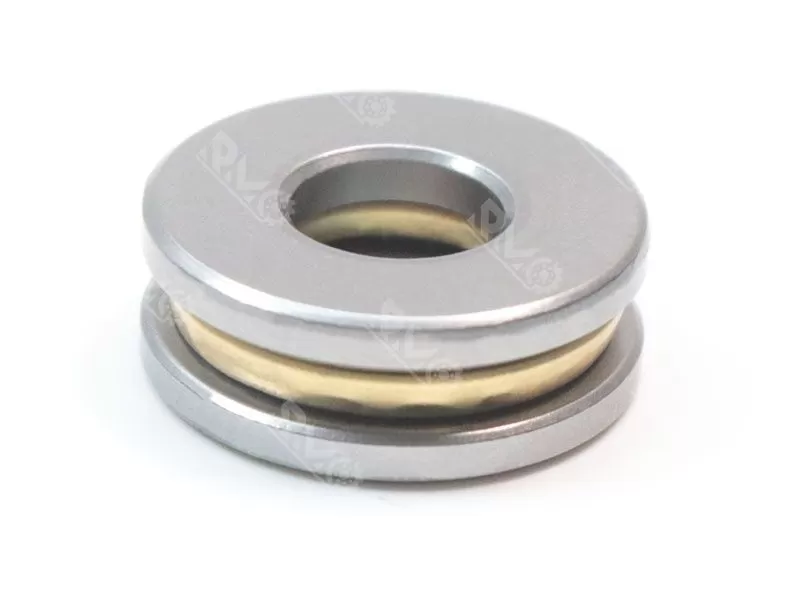

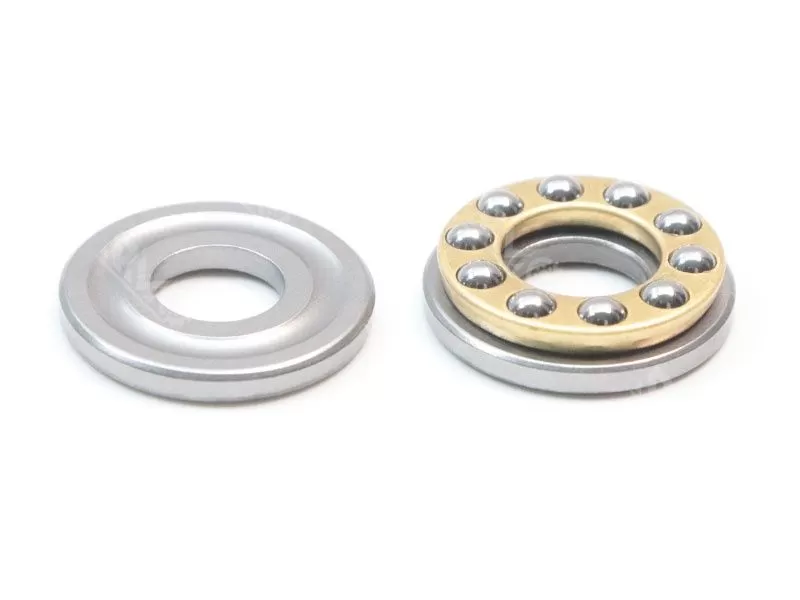

The thrust ball bearing consists of a seat ring, a shaft ring and a steel ball cage assembly. The shaft ring matched with the shaft, and the seat ring matched with the shell.
Model: F8-19M
Size: 8x19x7mm
Material: Gcr15.chrome steel with brass
Weight: 0.0095KG
lead time: normally 3-5 days
Shipping Port: GuangZhou, NingBo, ShangHai
Specification
Brand name: famous brand/RMO/Neutral/OEM
Package: plastic bag or single box+cartons
Minimum order quantity: 100pcs
Service: OEM ODM
Payment: 100% T/T, 30% T/T in advance ,70% T/T after finishing production
The FM series thrust ball bearings have the following features:
1. Single or double bearing capacity for axial loads: A single-direction thrust ball bearing can only bear axial loads in one direction, while a double-direction thrust ball bearing can bear axial loads in both directions.
2. Unable to bear radial loads: Due to the design characteristics, thrust ball bearings cannot bear radial loads.
3. Lower limit speed: Thrust ball bearings generate significant temperature rise during operation, so their limit speed is relatively low.
4. Separated design: The raceway, seat ring, and cage components can be separated, facilitating disassembly, maintenance, and repair.
Related Products

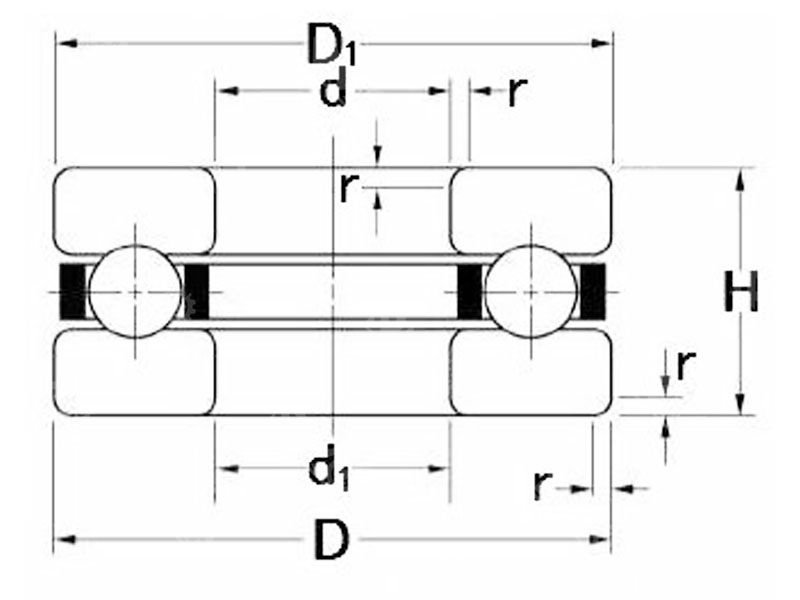

| Model No. | d | D | H | m |
| F3-8M | 3 mm | 8 mm | 3.5 mm | 0.9 g |
| F4-9M | 4 mm | 9 mm | 4 mm | 1.2 g |
| F4-10M | 4 mm | 10 mm | 4 mm | 1.5 g |
| F5-12M | 5 mm | 12 mm | 4 mm | 2.1 g |
| F6-12M | 6 mm | 12 mm | 4.5 mm | 2.2 g |
| F6-14M | 6 mm | 14 mm | 5 mm | 3.5 g |
| F7-13M | 7 mm | 13 mm | 4.5 mm | 2.6 g |
| F7-17M | 7 mm | 17 mm | 6 mm | 6.5 g |
| F8-16M | 8 mm | 16 mm | 5mm | 4.5 g |
| F8-19M | 8 mm | 19 mm | 7 mm | 9.1 g |
| F9-20M | 9 mm | 20 mm | 7 mm | 9.9 g |
| F10-18M | 10 mm | 18 mm | 5.5 mm | 5.4 g |
Application scenario
The FM series thrust ball bearings are suitable for mechanical equipment that needs to withstand axial loads, such as:
miniature motors, office equipment, precision instruments, household appliances, medical devices, etc.
