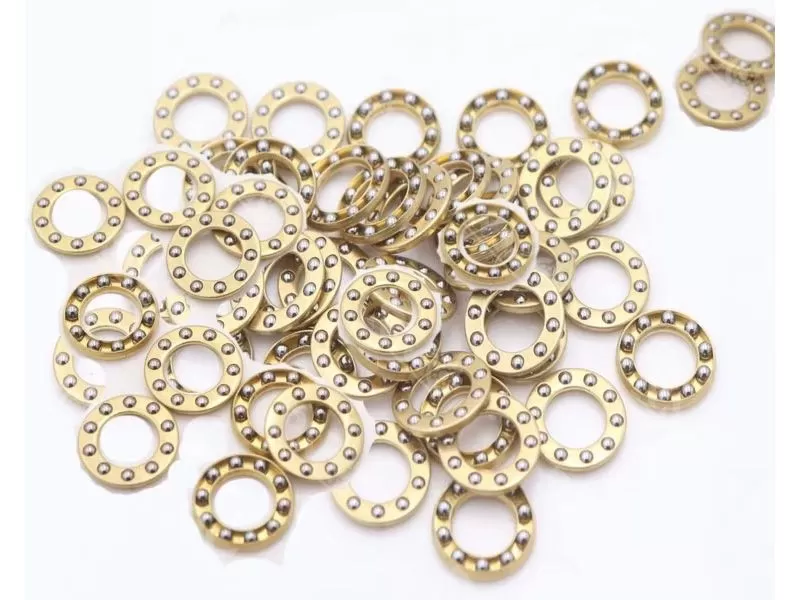

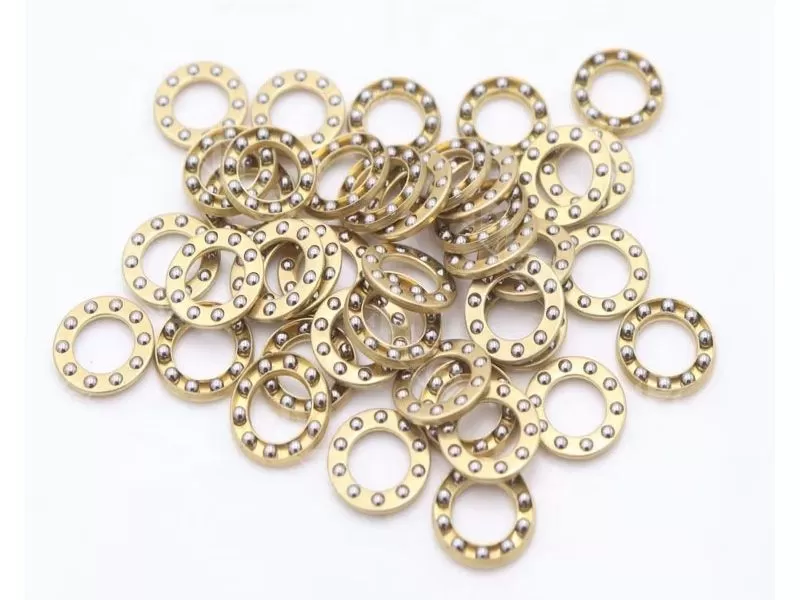

F3-8M Miniature Thrust Ball Bearing

F3-8M thrust ball bearing, chrome steel with brass cage size 3x8x3.5mm.


Model Number: F3-8M small thrust ball bearing

Size: 3x8x3.5mm

Material: chrome steel

Weight: 0.001kg

Lead time: normally 3-5 days


Specification

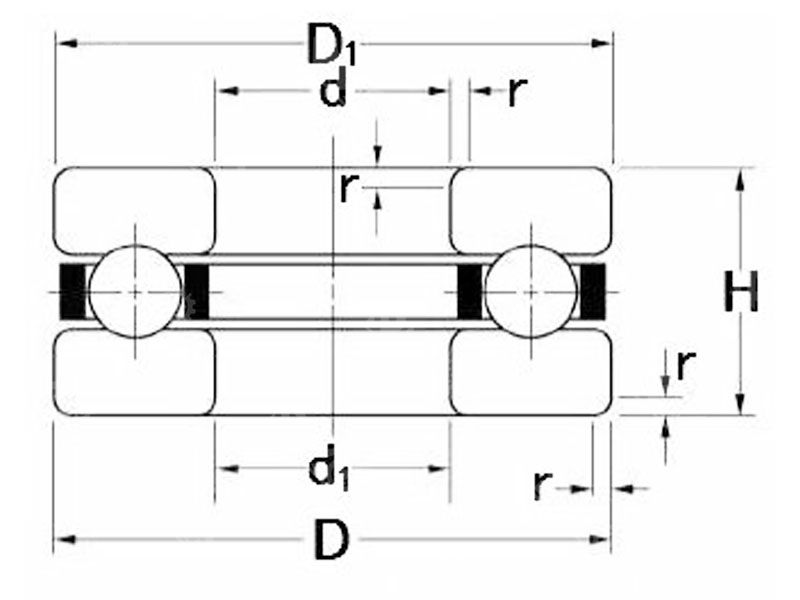

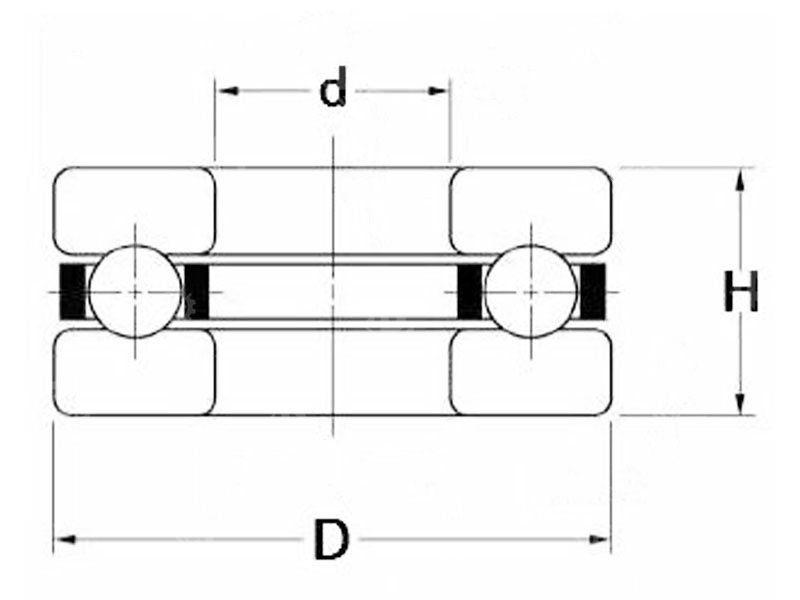

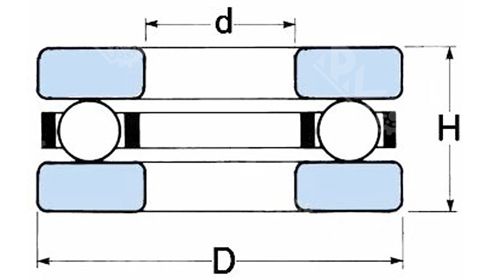

F3-8M miniature thrust ball bearing, with an inner diameter of 3mm, outer diameter of 8mm, and thickness of 3.5mm. Featuring a single-row design, it consists of a ball assembly separated by two precision washers and a cage. Equipped with deep groove raceways, it efficiently handles axial loads and is commonly used in miniature equipment with stringent space requirements.


F3-8M Miniature Thrust Ball Bearing


Technical parameter:


 Model Number                                                                               F3-8M small thrust ball bearing
 Size                                    3x8x3.5mm
 Weight                                    0.001kg
 Material                                    chrome steel
 application                                    doors
 Precision Grade                                    p0
 Package                                    Plastic tube or single box+Carton+Pallet
 MOQ                                    100 PCS
 Shipping Port                                    Guangzhou, Ningbo, Shanghai
 Payment                                    100% T/T or 30% T/T before production, 70% before delivery
 Lubrication                                    Pre-lubricated with High-Performance Grease
 Temperature Range                                    -20°C to +120°C
 Lead Time                                    3-5 Days

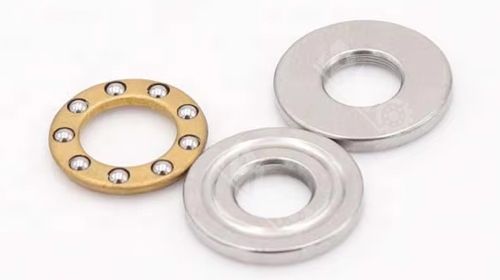

F3-8M miniature thrust ball bearing features a single-row design comprising separable inner and outer rings, along with a cage containing a ball assembly. The cage evenly distributes the balls to ensure stable operation. Its deep-groove raceways efficiently handle axial loads, while the separable inner and outer ring design facilitates easy installation and removal.


Related Products

F3-8M Miniature Thrust Ball Bearing

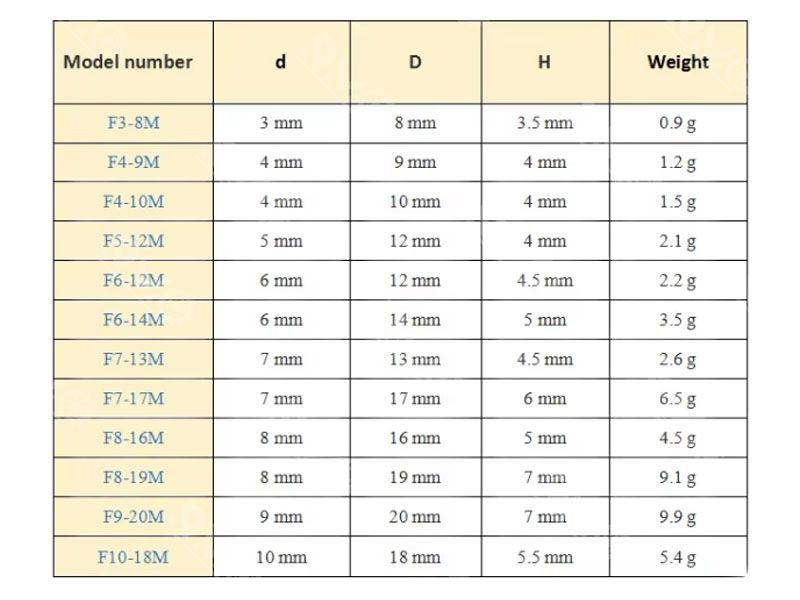

Model No.dDHm
F3-8M3   mm8   mm3.5   mm0.9   g
F4-9M4   mm9   mm4   mm1.2   g
F4-10M4   mm10   mm4   mm1.5   g
F5-12M5   mm12   mm4   mm2.1   g
F6-12M6   mm12   mm4.5   mm2.2   g
F6-14M6   mm14   mm5   mm3.5   g
F7-13M7   mm13   mm4.5   mm2.6   g
F7-17M7   mm17   mm6   mm6.5   g
F8-16M8   mm16   mm5mm4.5   g
F8-19M8   mm19   mm7   mm9.1   g
F9-20M9   mm20   mm7   mm9.9   g
F10-18M10   mm18   mm5.5   mm5.4   g


Application field

Micro thrust ball bearings are widely used in many fields, including machine tools, automation equipment, electrical equipment, automotive and so on. Especially in high-speed, high-precision mechanical equipment plays a significant role, can use the rolling friction of the steel ball to reduce the friction coefficient between the two spheres, improve the operating efficiency of the bearing, with large bearing capacity, small friction coefficient, high speed, long service life and other advantages.


⚙️Obtain Certificate:F3-8M Miniature Thrust Ball Bearing
