F6-12M miniature thrust ball bearing

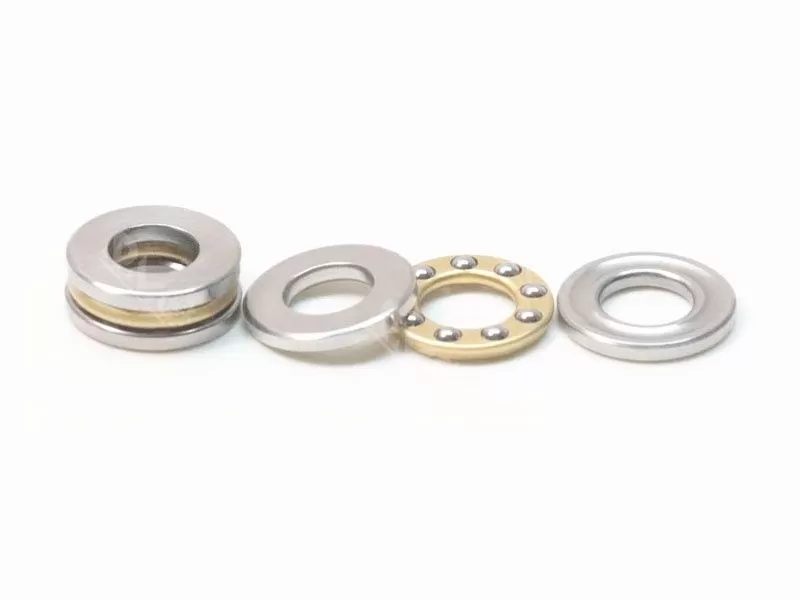

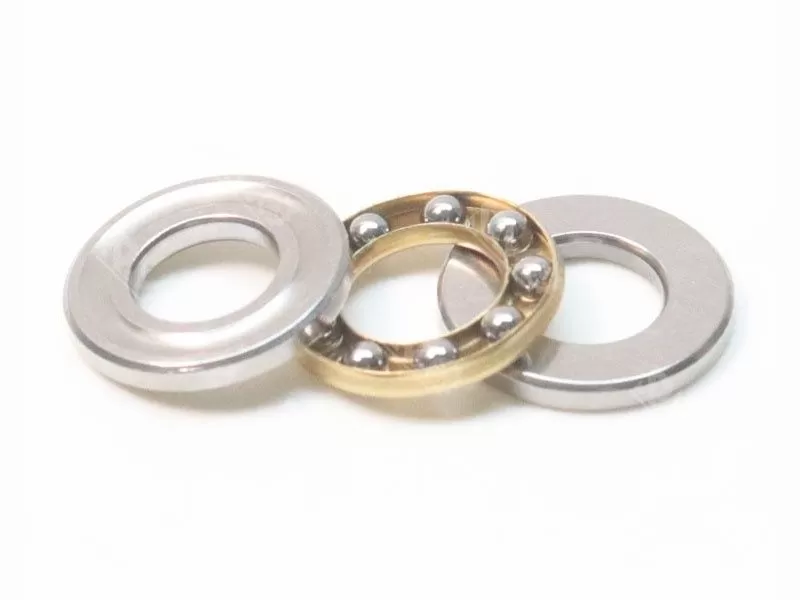

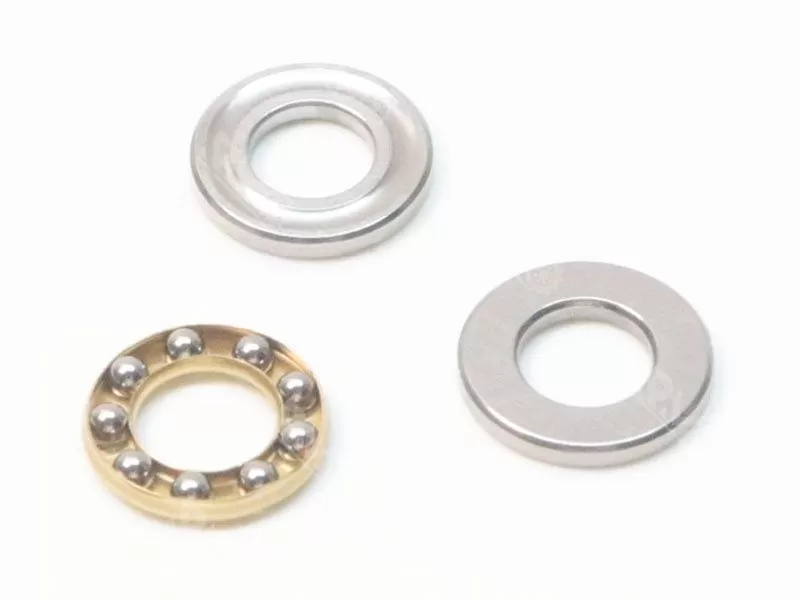

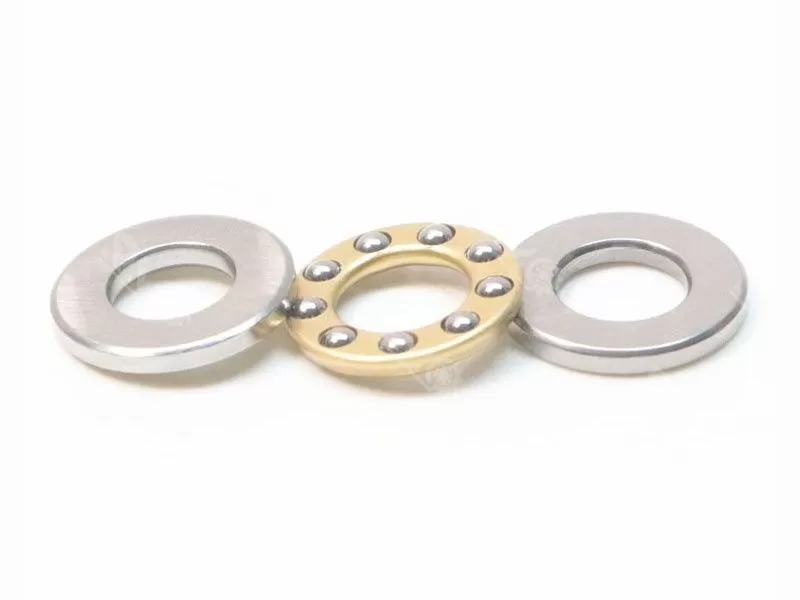

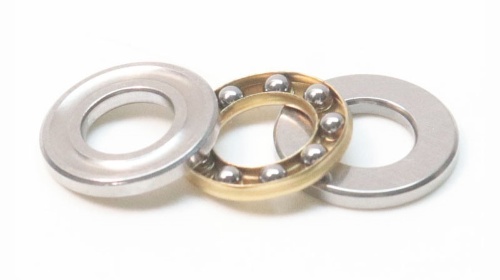

The thrust ball bearing consists of a seat ring, a shaft ring and a steel ball cage assembly. The shaft ring matched with the shaft, and the seat ring matched with the shell.


Model: F6-12M

Size: 6x12x4.5mm

Material: Gcr15.chrome steel with brass

Weight: 0.0022KG

lead time: normally 3-5 days

Shipping Port: GuangZhou, NingBo, ShangHai




Specification

Brand name: famous brand/RMO/Neutral/OEM

Package: plastic tube or single box+cartons

Minimum order quantity: 100pcs

Service: OEM ODM

Payment: 100% T/T, 30% T/T in advance ,70% T/T after finishing production

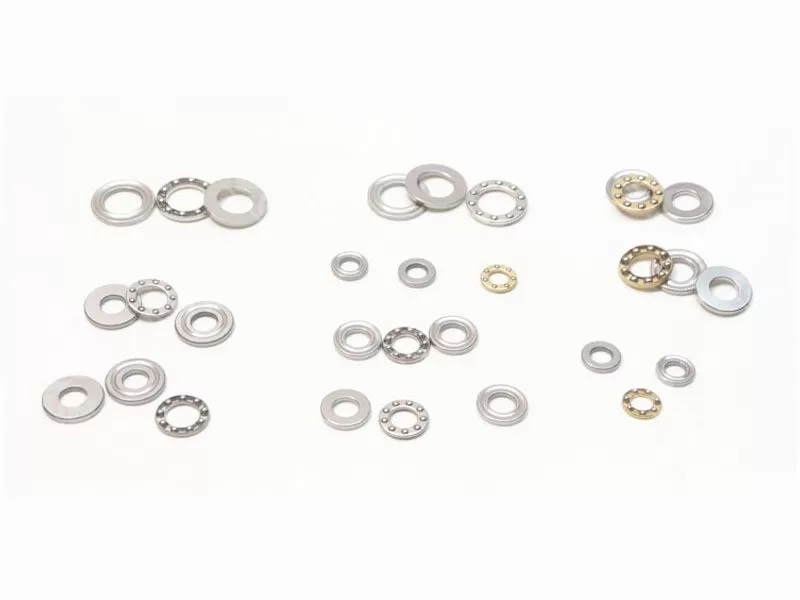

The micro thrust ball bearing ‌ is a kind of miniaturized mechanical component, which has the characteristics of small size, high precision, high speed and lightweight. Its size parameters and specifications are diverse, a wide range of inner diameters, common inner diameters are 2mm, 3mm, 4mm to 12mm, outer diameter and thickness according to the specific model and inner diameter size.




Related Products

F6-12M miniature thrust ball bearing

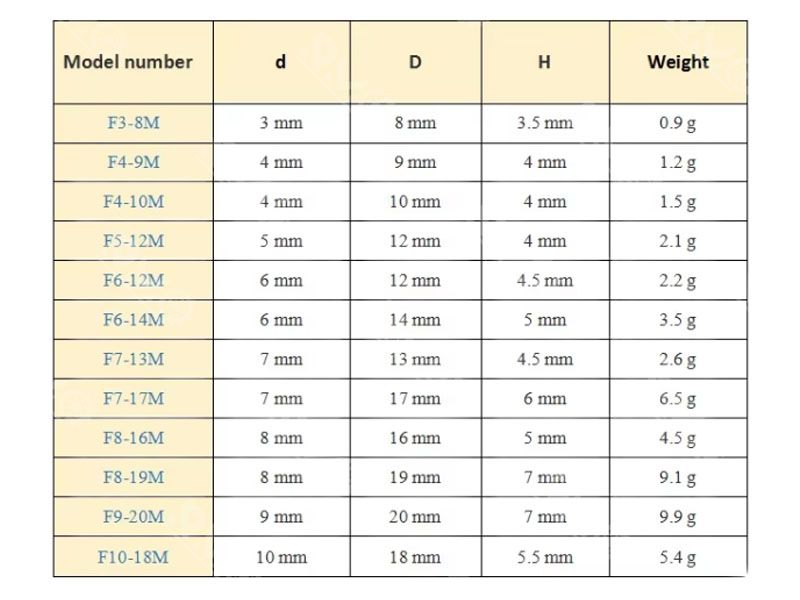

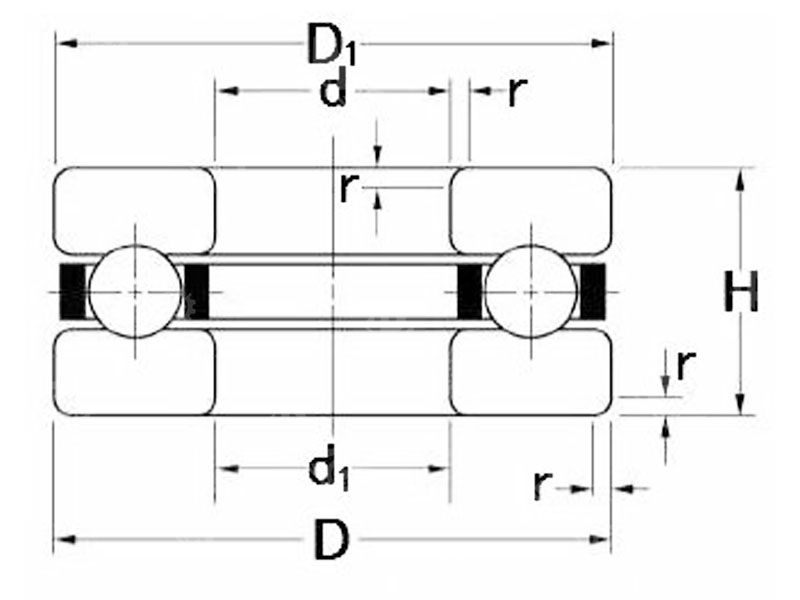

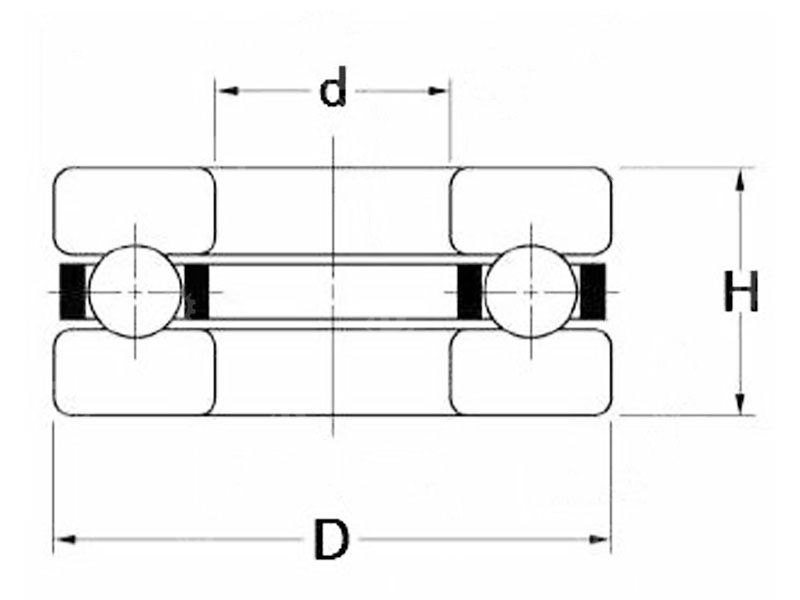

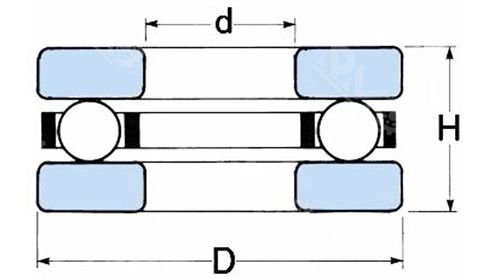

Model No.dDHm
F3-8M3   mm8   mm3.5   mm0.9   g
F4-9M4   mm9   mm4   mm1.2   g
F4-10M4   mm10   mm4   mm1.5   g
F5-12M5   mm12   mm4   mm2.1   g
F6-12M6   mm12   mm4.5   mm2.2   g
F6-14M6   mm14   mm5   mm3.5   g
F7-13M7   mm13   mm4.5   mm2.6   g
F7-17M7   mm17   mm6   mm6.5   g
F8-16M8   mm16   mm5mm4.5   g
F8-19M8   mm19   mm7   mm9.1   g
F9-20M9   mm20   mm7   mm9.9   g
F10-18M10   mm18   mm5.5   mm5.4   g





Application field

Micro thrust ball bearings are widely used in many fields, including machine tools, automation equipment, electrical equipment, automotive and so on. Especially in high-speed, high-precision mechanical equipment plays a significant role, can use the rolling friction of the steel ball to reduce the friction coefficient between the two spheres, improve the operating efficiency of the bearing, with large bearing capacity, small friction coefficient, high speed, long service life and other advantages.
