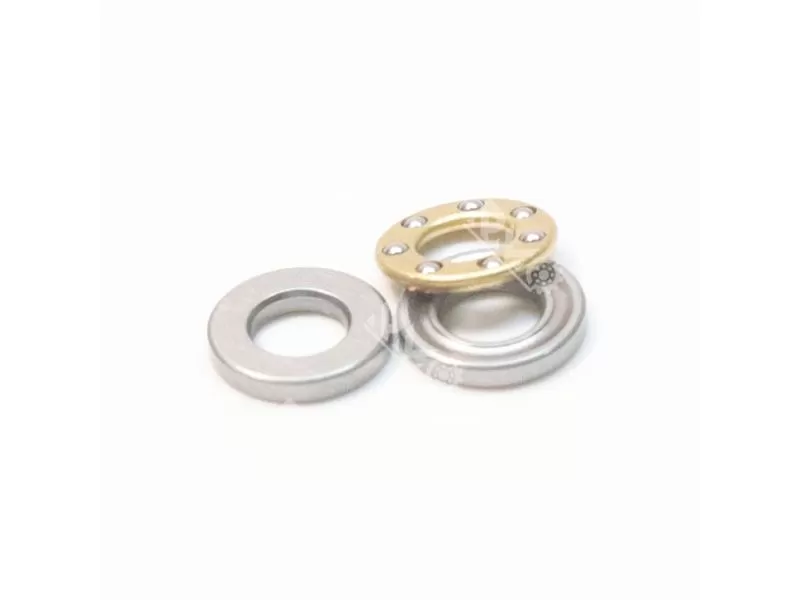

F5-12 Miniature Thrust Ball Bearing

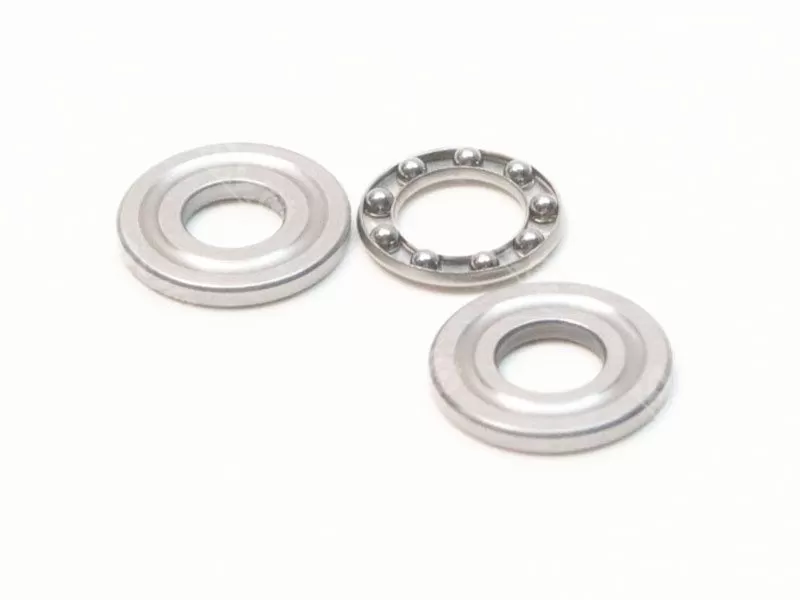

The thrust ball bearing consists of a seat ring, a shaft ring and a steel ball cage assembly. The shaft ring matched with the shaft, and the seat ring matched with the shell.


Model: F5-12

Size: 5x12x4mm

Material: Gcr15.chrome steel

Weight: 0.0021KG

Lead time: normally 3-5 days

Specification

The micro thrust ball bearing ‌ is a kind of miniaturized mechanical component, which has the characteristics of small size, high precision, high speed and lightweight. Its size parameters and specifications are diverse, a wide range of inner diameters, common inner diameters are 2mm, 3mm, 4mm to 12mm, outer diameter and thickness according to the specific model and inner diameter size.


F5-12 Miniature Thrust Ball Bearing


Technical parameter:


 Model Number                                                                               F5-12
 Size                                    5x12x4mm
 Weight                                    0.0021KG
 Material                                    Gcr15.chrome steel
 Clearance                                    C2  C0  C3  C4
 Precision Grade                                    p0
 Dynamic Load Rating                                    1.056 lbf
 Static Load Rating                                    0.942 lbf
 Max Speed (Grease Lubrication)                                    22000 RPM
 Service                                    OEM ODM
 Lubrication                                    Pre-lubricated with High-Performance Grease
 Temperature Range                                    -20°C to +120°C
 Lead Time                                    3-5 Days

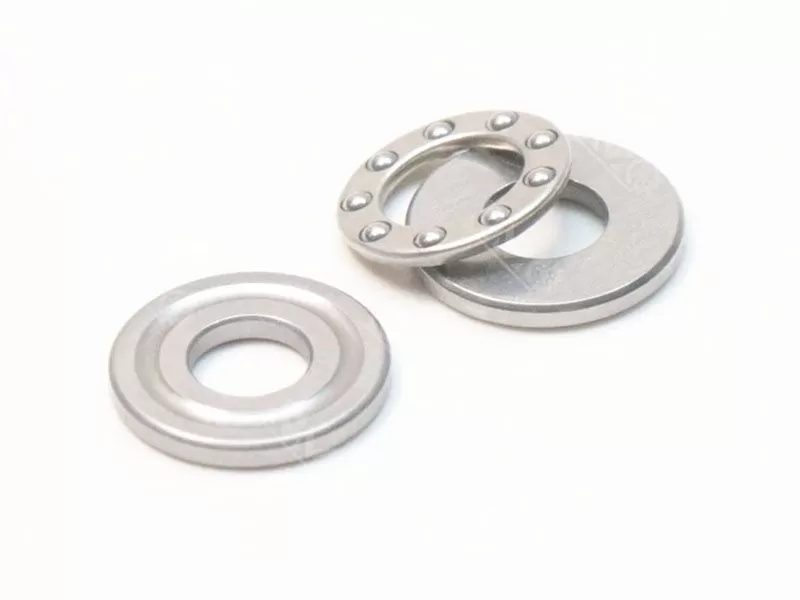

F5-12 miniature thrust ball bearing features an ultra-compact 5×12×4 mm washer-shaped structure. It consists of chrome steel inner/outer rings with grooved raceways, paired with a brass/steel cage and separable balls. The separable design facilitates assembly and disassembly, while the open structure enhances lubrication. Its lightweight (2.1 g) yet robust construction makes it ideal for installation in precision miniature equipment.


Related Products

F5-12 miniature thrust ball bearing

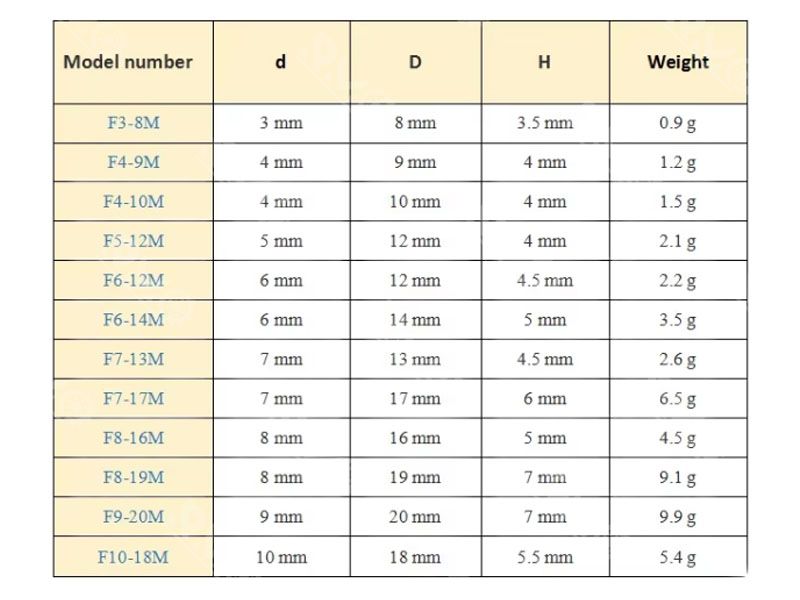

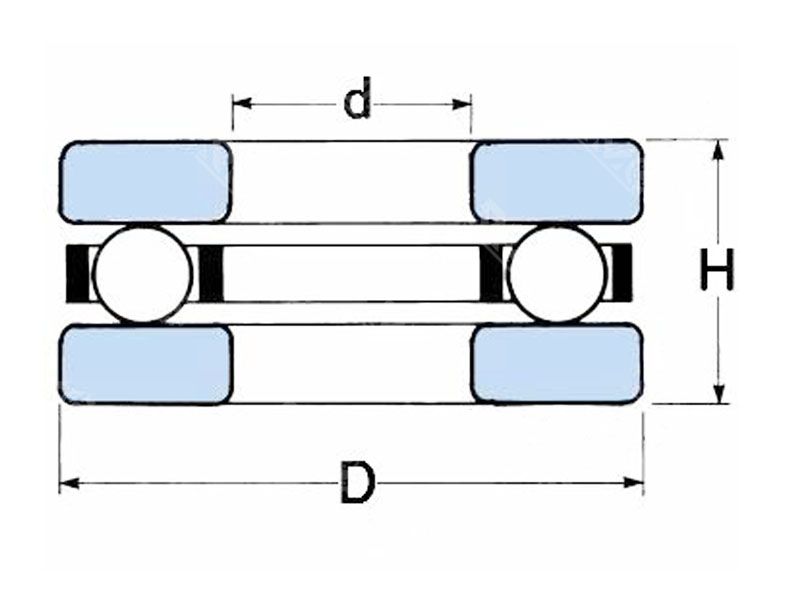

Model No.dDHm
F2-62   mm6   mm3   mm0.6   g
F2X-72.5   mm7   mm3.5   mm0.9   g
F3-83   mm8   mm3.5   mm0.6   g
F4-94   mm9   mm4   mm1.5   g
F4-104   mm10   mm4.5   mm2   g
F5-115   mm11   mm4.5   mm2.4   g
F6-126   mm12   mm4.5   mm2.5   g
F7-157   mm15   mm5   mm4.4   g
F8-148   mm14   mm4   mm2.5   g
F8-168   mm16   mm5   mm5   g
F9-179   mm17   mm5   mm5.1   g
F10-1810   mm18   mm5.5   mm6   g


Application field

Micro thrust ball bearings are widely used in many fields, including machine tools, automation equipment, electrical equipment, automotive and so on. Especially in high-speed, high-precision mechanical equipment plays a significant role, can use the rolling friction of the steel ball to reduce the friction coefficient between the two spheres, improve the operating efficiency of the bearing, with large bearing capacity, small friction coefficient, high speed, long service life and other advantages.
