Thrust Ball Bearings

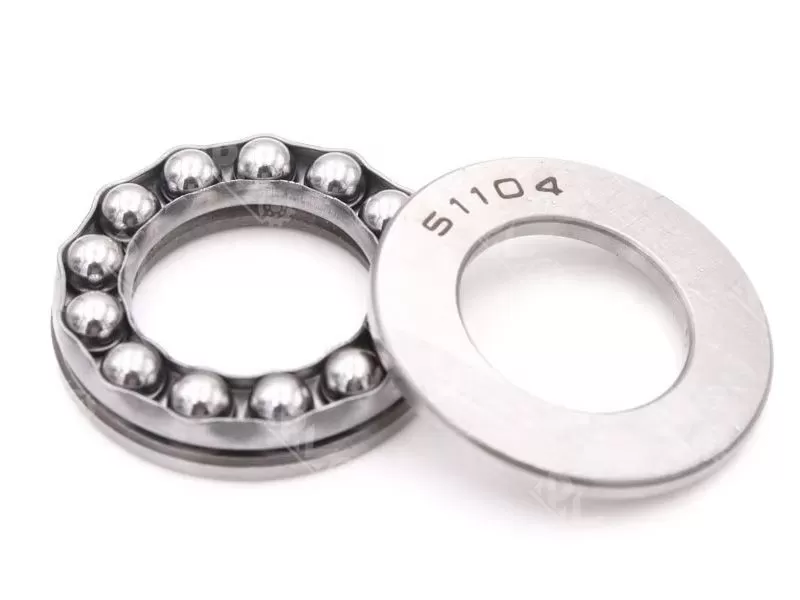

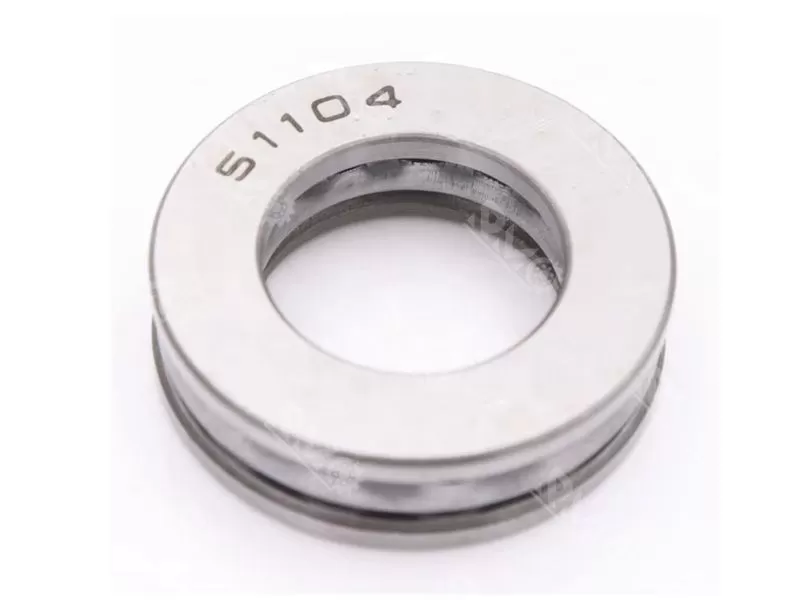

51104 thrust ball bearing chrome steel materials size 20x35x10mm fast delivery time.
Model: 51104 thrust ball bearing
Size: 20x35x10mm
Material: Gcr15.chrome steel
Weight: 0.037KG
Specification
51104 (8104) Thrust Ball Bearing adopts a steel cage and chrome steel material, enabling quiet and smooth high-speed rotation, with grease lubrication speed of 5100rpm and oil lubrication speed of 7900rpm, and boasts long service life with ISO 9001 certification.
Technical parameter:
| Model Number | 51104 thrust ball bearing |
| Size | 20x35x10mm |
| Weight | 0.037KG |
| Material | Gcr15.chrome steel |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Dynamic Load Rating | 15 lbf |
| Static Load Rating | 26.5 lbf |
| Max Speed (Grease Lubrication) | 10900 RPM |
| Service | OEM ODM |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |

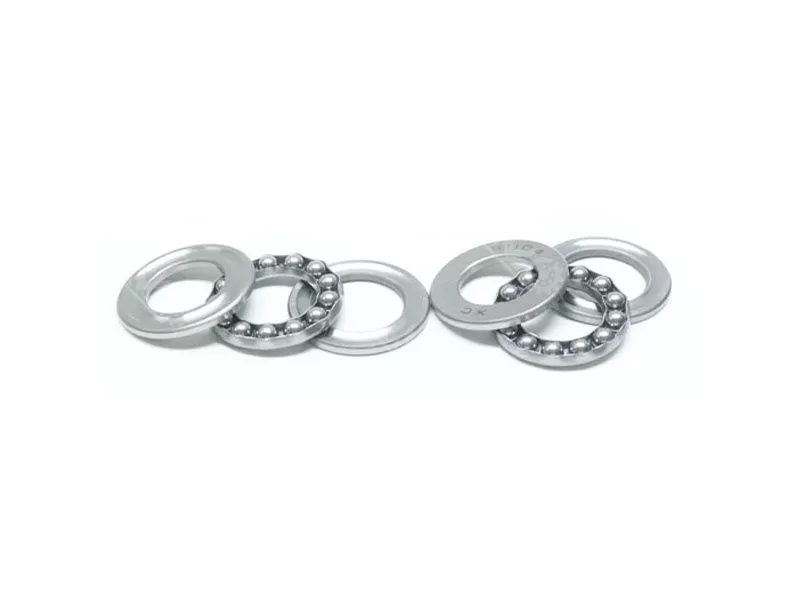

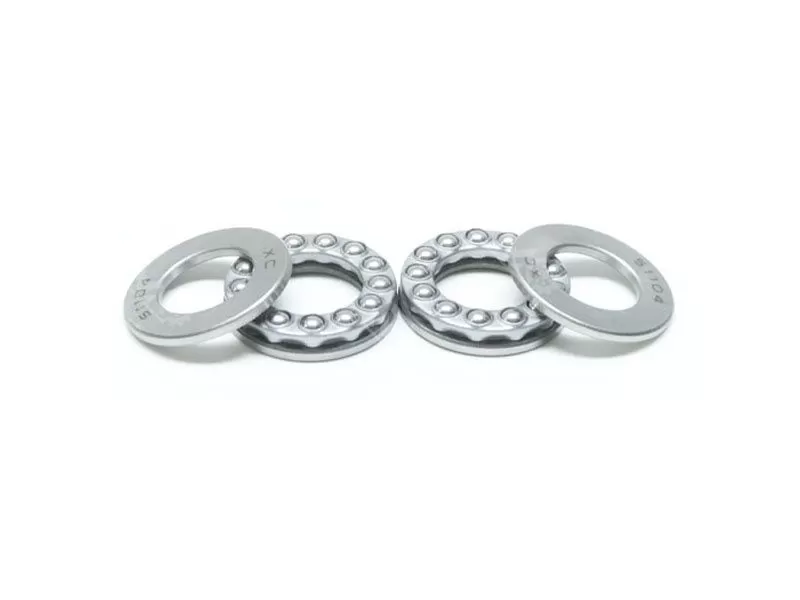

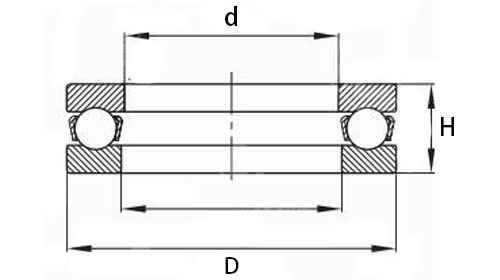

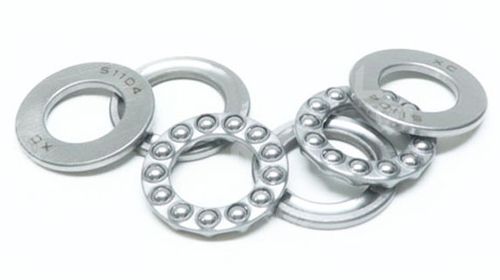

51104 (8104) Thrust Ball Bearing with Steel Cage features a compact washer-shaped structure (20×35×10mm) composed of shaft ring, seat ring and steel ball-holding steel cage, separable design for easy installation/maintenance/lubrication, precision-ground inner hole for interference fit with shafts, open structure for heat dissipation, and interchangeable components to fit space-constrained small machinery scenarios.
Related Products
| Bearings NO. | ID(d*D*B)mm | Weight (KG) | Bearings NO. | ID(d*D*B)mm | Weight (KG) |
| 51100 | 10*24*9 | 0.019 | 51122 | 110*145*25 | 1.04 |
| 51101 | 12*26*9 | 0.021 | 51124 | 120*155*25 | 1.12 |
| 51102 | 15*28*9 | 0.023 | 51126 | 130*170*30 | 1.68 |
| 51103 | 17*30*9 | 0.025 | 51128 | 140*180*31 | 2.03 |
| 51104 | 20*35*10 | 0.037 | 51130 | 150*190*31 | 2.16 |
| 51105 | 25*42*11 | 0.056 | 51132 | 160*200*31 | 2.27 |
| 51106 | 30*47*11 | 0.064 | 51134 | 170*215*34 | 3.27 |
| 51107 | 35*52*12 | 0.081 | 51136 | 180*225*34 | 3.37 |
| 51108 | 40*60*13 | 0.12 | 51138 | 190*240*37 | 3.95 |
| 51109 | 45*65*14 | 0.143 | 51140 | 200*250*37 | 4.14 |
| 51110 | 50*70*14 | 0.513 | 51144 | 220*270*37 | 4.51 |
| 51111 | 55*78*16 | 0.227 | 51148 | 240*300*45 | 7.35 |
| 51112 | 60*85*17 | 0.281 | 51152 | 260*320*45 | 7.94 |
| 51113 | 65*90*17 | 0.324 | 51156 | 280*350*53 | 12 |
| 51114 | 70*95*18 | 0.346 | 51160 | 300*380*62 | 17.1 |
| 51115 | 75*100*19 | 0.389 | 51164 | 320*400*63 | 18.5 |
| 51116 | 80*105*19 | 0.417 | 51168 | 340*420*64 | 19.9 |
| 51117 | 85*110*19 | 0.44 | 51172 | 360*440*65 | 20.4 |
| 51118 | 90*120*22 | 0.646 | 51180 | 400*480*65 | 23.8 |
| 51119 | 95*145*60 | 0.83 | 51184 | 420*500*65 | 24.21 |
| 51120 | 100*135*25 | 0.96 | 51192 | 460*560*80 | 41.7 |
Applications
only suitable for bearing one axial load, low speed on the machine, such as crane hook, vertical water pump, vertical centrifuge, jack, low speed reducer. The shaft ring, seat ring and rolling body of the bearing are separated and can be installed and disassembled respectively.
