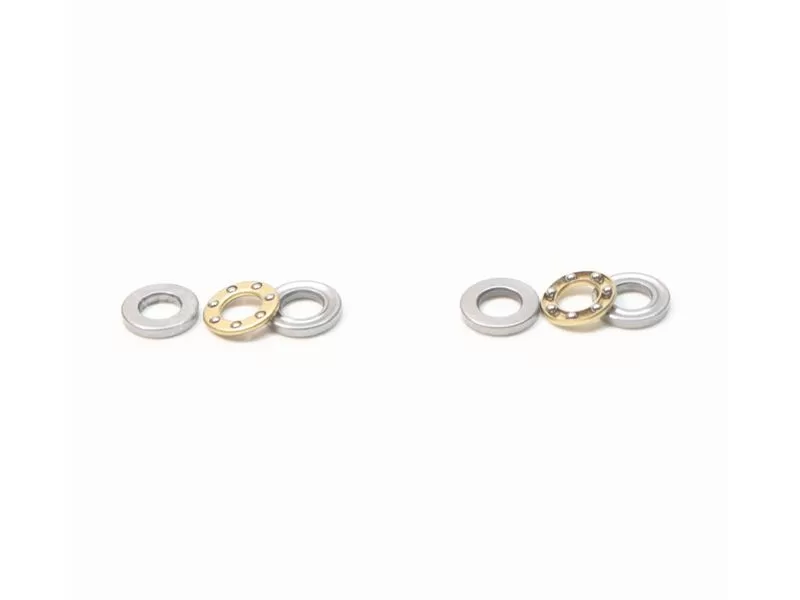

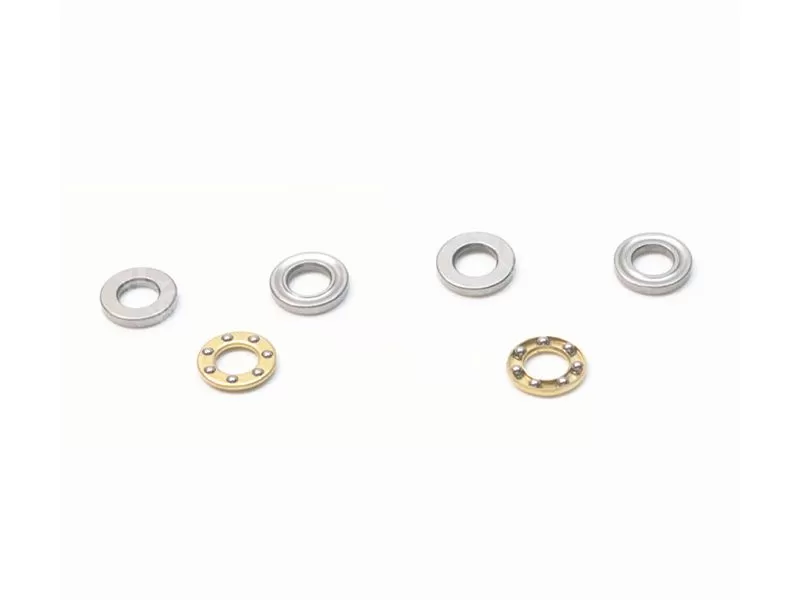

F4-8M F4-8 Brass Cage Thrust Ball Bearing

Thrust ball bearing is a kind of bearing used to bear axial load, mainly used for low-speed operation equipment.  F4-8M F4-8 high load capacity bearing with brass cage size 4x8x3.5mm.

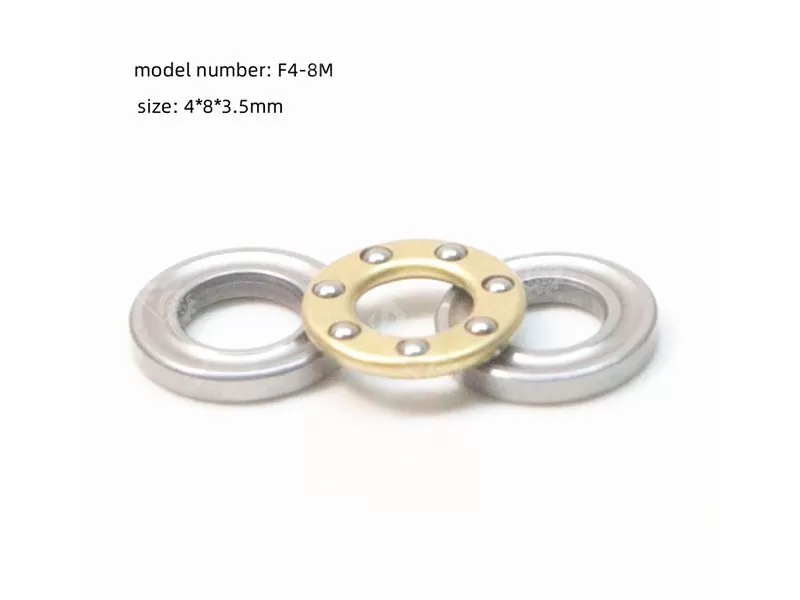

Model Number: F4-8M

Size: 4x8x3.5mm

Material: chrome steel with brass

Weight: 0.0022KG

Lead time: normally 3-5 days


Specification

The micro thrust ball bearing ‌ is a kind of miniaturized mechanical component, which has the characteristics of small size, high precision, high speed and lightweight. Its size parameters and specifications are diverse, a wide range of inner diameters, common inner diameters are 2mm, 3mm, 4mm to 12mm, outer diameter and thickness according to the specific model and inner diameter size.


F4-8M F4-8 Brass Cage Thrust Ball Bearing

Technical parameter:


 Model Number                                                                               F4-8M
 Size                                    4x8x3.5mm
 Weight                                    0.0022KG
 Material                                    chrome steel with brass
 Clearance                                    C2  C0  C3  C4
 Precision Grade                                    p0
 Package                                    Plastic tube or single box+Carton+Pallet
 MOQ                                    100 PCS
 Shipping Port                                    Guangzhou, Ningbo, Shanghai
 Payment                                    100% T/T or 30% T/T before production, 70% before delivery
 Lubrication                                    Pre-lubricated with High-Performance Grease
 Temperature Range                                    -20°C to +120°C
 Lead Time                                    3-5 Days

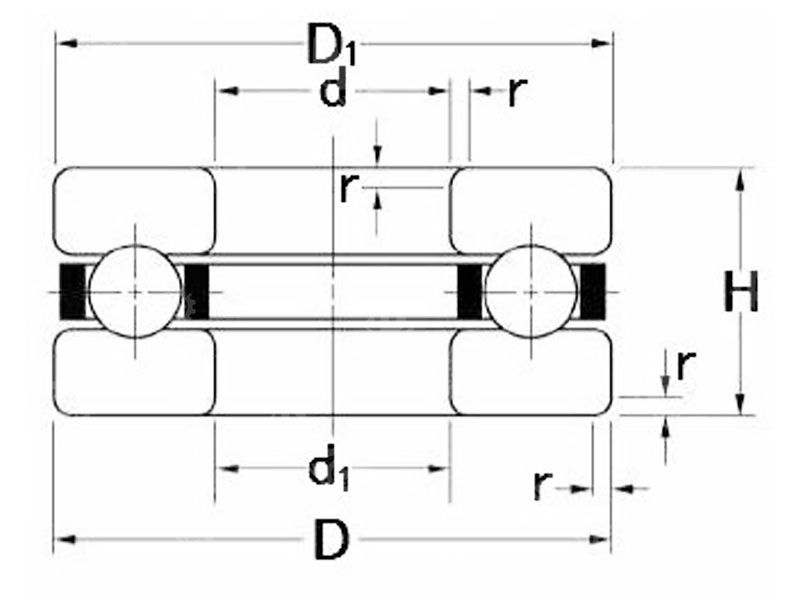

F4-8M miniature thrust ball bearing features a single-row design comprising two precision chrome steel or stainless steel washers (rings) and a set of balls separated by a bronze or steel cage. The washers incorporate raceway grooves to enable smooth axial movement, effectively supporting axial loads but not radial loads. The cage ensures smooth bearing operation and enhances durability.

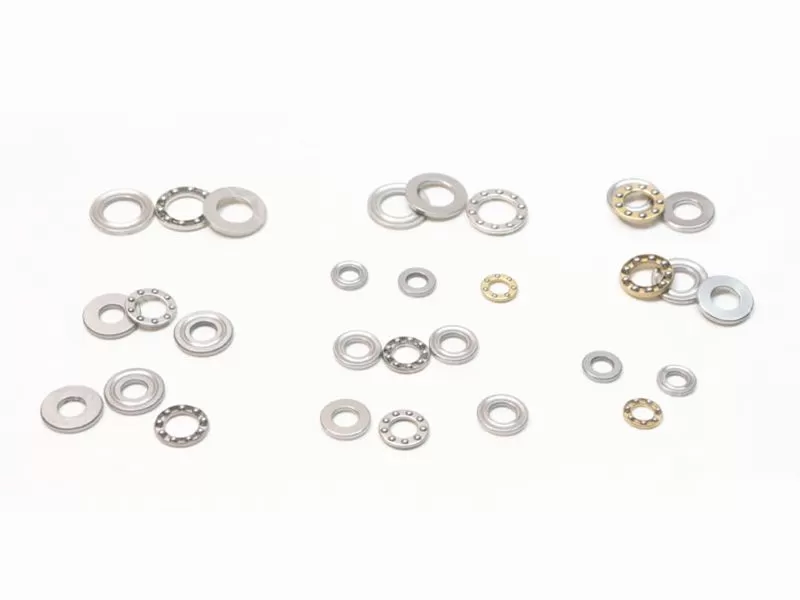

Related Products

 F4-8M F4-8 Brass Cage Thrust Ball Bearing

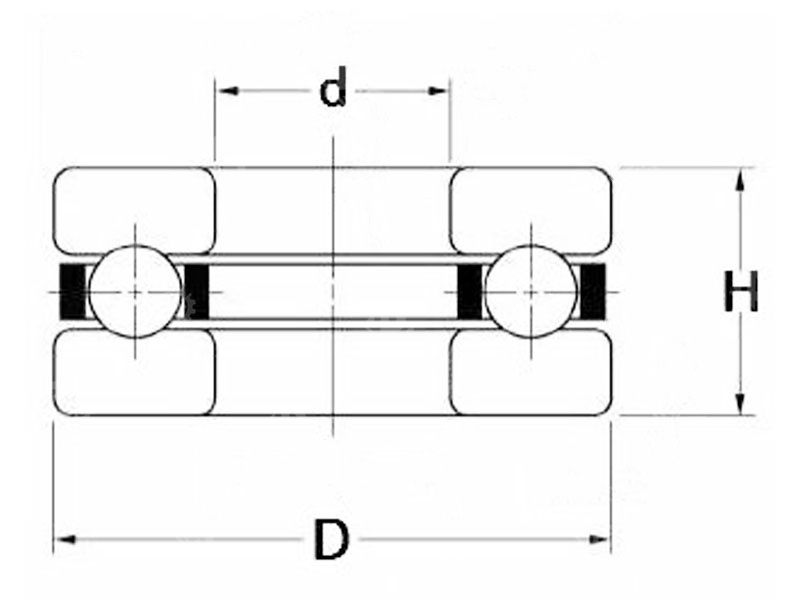

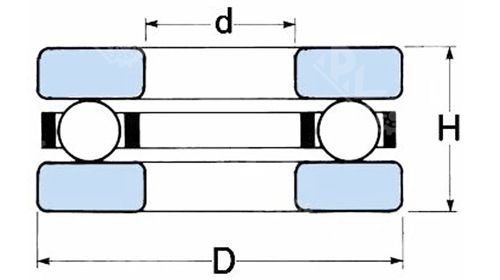

Model No.dDHm
F3-8M3   mm8   mm3.5   mm0.9   g
F4-9M4   mm9   mm4   mm1.2   g
F4-10M4   mm10   mm4   mm1.5   g
F5-12M5   mm12   mm4   mm2.1   g
F6-12M6   mm12   mm4.5   mm2.2   g
F6-14M6   mm14   mm5   mm3.5   g
F7-13M7   mm13   mm4.5   mm2.6   g
F7-17M7   mm17   mm6   mm6.5   g
F8-16M8   mm16   mm5mm4.5   g
F8-19M8   mm19   mm7   mm9.1   g
F9-20M9   mm20   mm7   mm9.9   g
F10-18M10   mm18   mm5.5   mm5.4   g


Application field

Micro thrust ball bearings are widely used in many fields, including machine tools, automation equipment, electrical equipment, automotive and so on. Especially in high-speed, high-precision mechanical equipment plays a significant role, can use the rolling friction of the steel ball to reduce the friction coefficient between the two spheres, improve the operating efficiency of the bearing, with large bearing capacity, small friction coefficient, high speed, long service life and other advantages.


⚙️Obtain Certificate:F4-8M F4-8 Brass Cage Thrust Ball Bearing
