Nylon cages are widely used in a variety of mechanical equipment that require low noise, energy saving and long life, especially in electrical appliances, automobiles, construction machinery and other fields.
Thrust Ball Bearings
Thrust ball bearing nylon cage is a component used for thrust ball bearing, its main function is to fix and guide the steel ball inside the bearing to ensure the normal operation of the bearing.

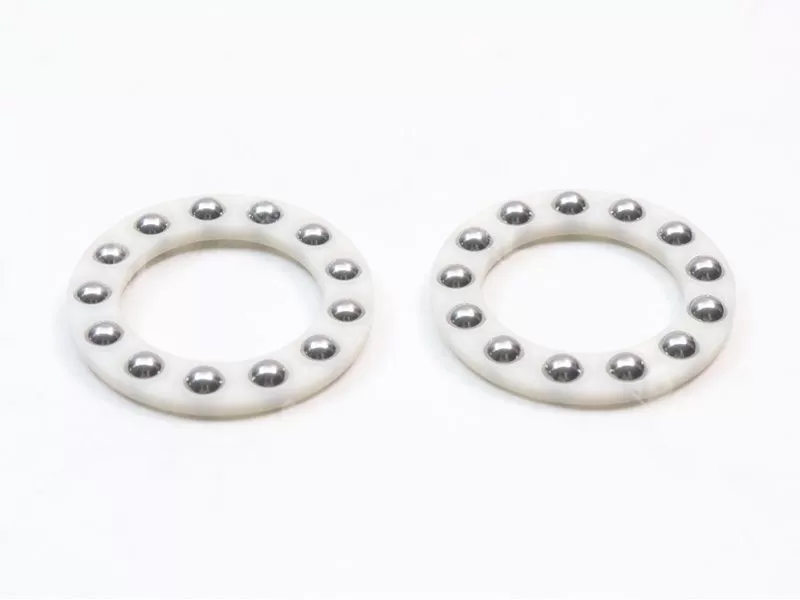

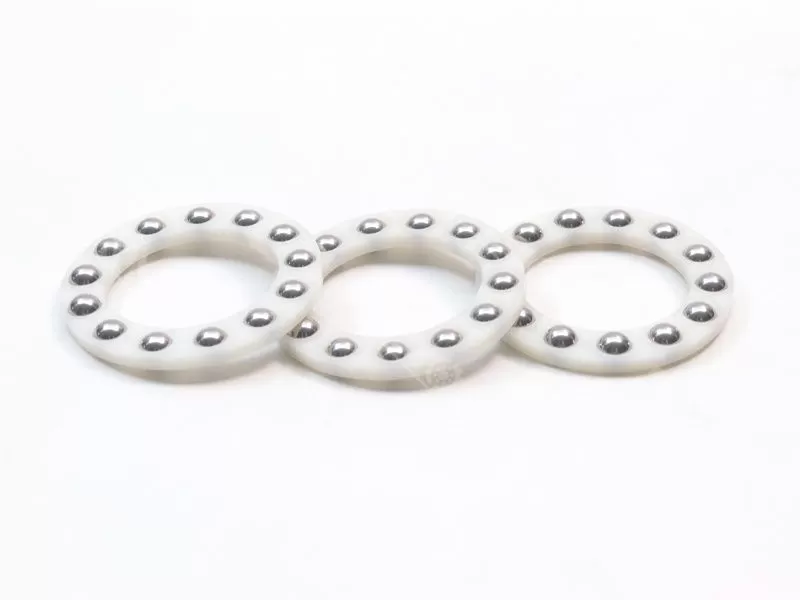

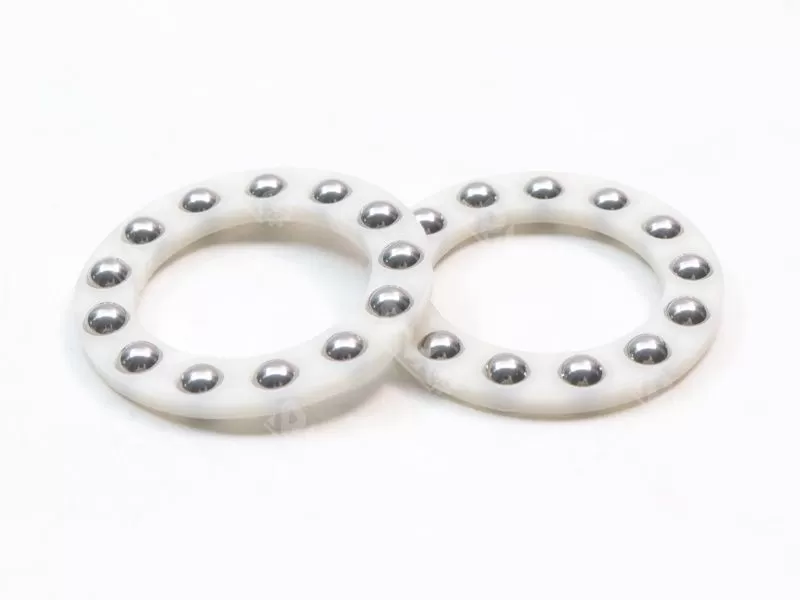

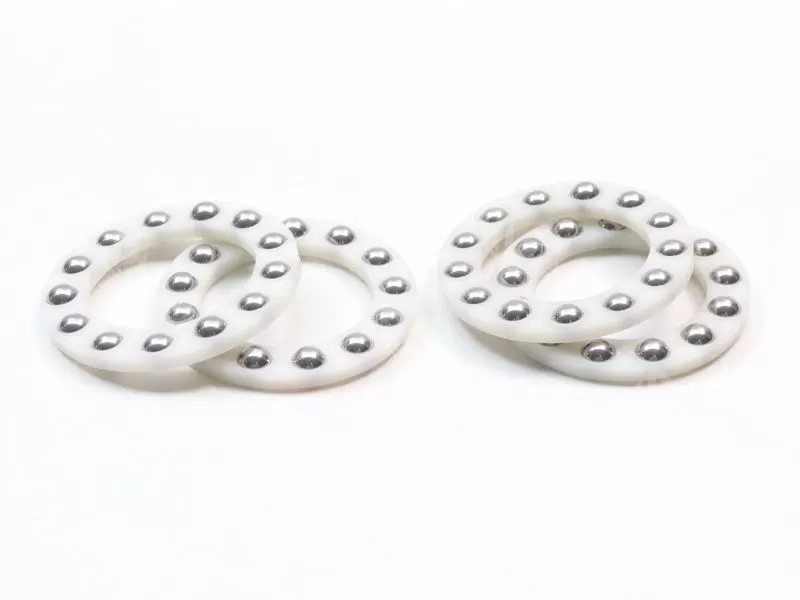

Model: 51105 Non-standard thrust ball bearing nylon cage

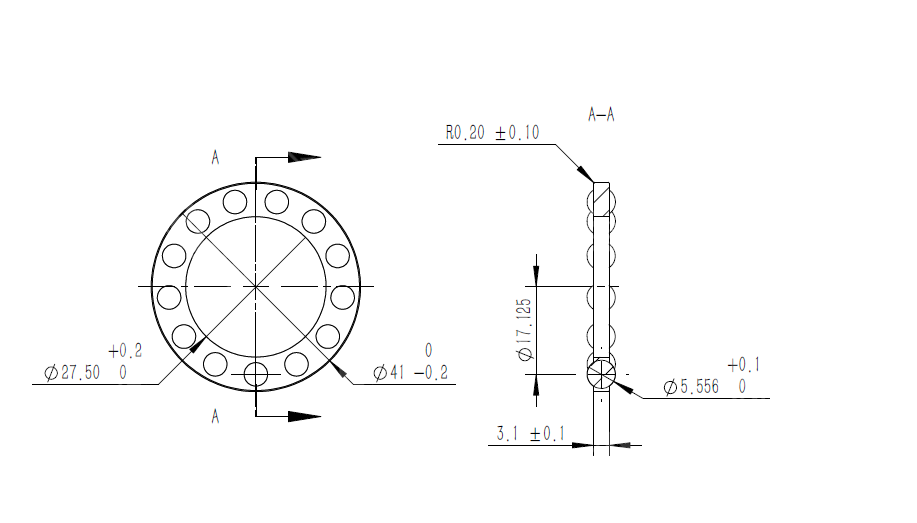

Size: 27.5x41x3.1mm
Material: nylon with Gcr15.chrome steel
Weight: 0.011KG
Specification
51105 Non-Standard Thrust Ball Bearing with a Nylon Cage is a single-direction thrust bearing usually made of chrome steel for rings and balls, featuring a separable structure of shaft washer, seat ring and ball-cage assembly, and the nylon cage realizes stable separation of balls to ensure orderly operation.
Technical parameter:
| Model Number | 51105 Non-standard thrust ball bearing nylon cage |
| Size | 27.5x41x3.1mm |
| Weight | 0.011KG |
| Material | nylon with Gcr15.chrome steel |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Branding | Famous brand/RMO/Neutral/OEM&ODM |
| Minimum order quantity | 1000pcs |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Service | 100% T/T, 30% T/T in advance ,70% T/T after finishing production |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 10-15 Days |
Advantages:
1.Lightweight design: nylon cage light weight, making the bearing flexibility is better, especially suitable for electrical appliances or power consumption products, help to save energy.
2.Low noise: Nylon cage noise is low, is the first choice for silent bearings, especially suitable for high noise requirements of electrical products.
3.Prolong life: Due to the reduction of the friction between the metal cage and the steel ball, the nylon cage can effectively extend the service life of the bearing.
Related Products
Application scenario
Nylon cages are widely used in a variety of mechanical equipment that require low noise, energy saving and long life, especially in electrical appliances, automobiles, construction machinery and other fields.
