Thrust Ball Bearings

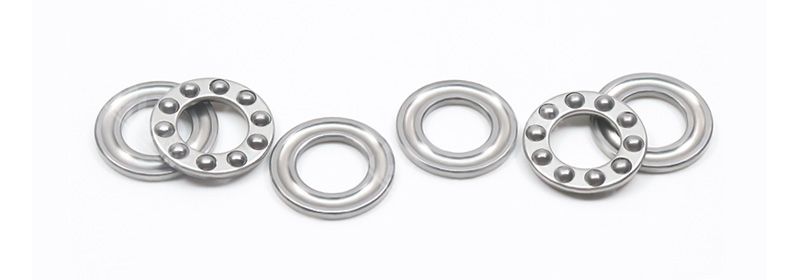

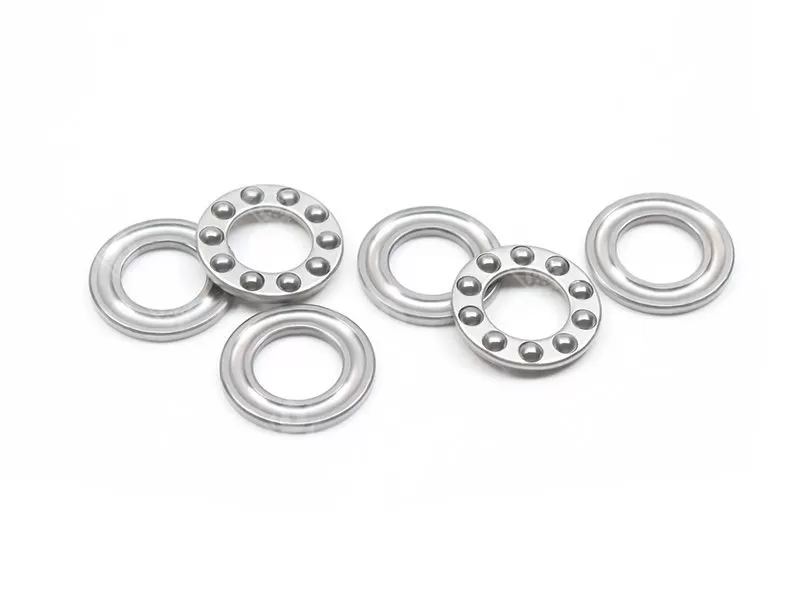

The F10-18G High Precision Miniature Thrust Ball Bearings ultra-thin, mini-light design, high-quality bearing steel, low noise.
Product name: F10-18G
Size: 10x18x5.5mm
Material: chrome steel Gcr15
weight: 0.006KG
Dynamic Load: 139 lbf
Static Load: 159 lbf
grade level：P6
Lead time: normally 3-5 days
Specification
Package: Plastic tube or single box+Carton+Pallet
MOQ: 100 PCS
Shipping Port: Guangzhou, Ningbo, Shanghai
Payment: 100% T/T or 30% T/T before production, 70% before delivery
Related Products

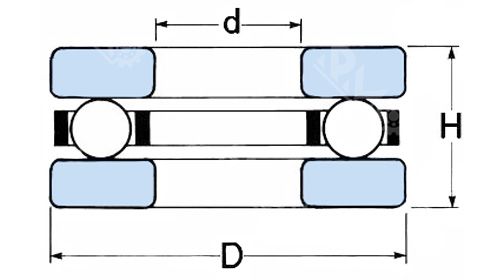

| Model No. | d | D | H | m |
| F2-6 | 2 mm | 6 mm | 3 mm | 0.6 g |
| F2X-7 | 2.5 mm | 7 mm | 3.5 mm | 0.9 g |
| F3-8 | 3 mm | 8 mm | 3.5 mm | 0.6 g |
| F4-9 | 4 mm | 9 mm | 4 mm | 1.5 g |
| F4-10 | 4 mm | 10 mm | 4.5 mm | 2 g |
| F5-11 | 5 mm | 11 mm | 4.5 mm | 2.4 g |
| F5-12 | 6 mm | 12 mm | 4.5 mm | 2.5 g |
| F7-15 | 7 mm | 15 mm | 5 mm | 4.4 g |
| F8-16 | 8 mm | 16 mm | 5 mm | 5 g |
| F9-17 | 9 mm | 17 mm | 5 mm | 5.1 g |
| F10-18 | 10 mm | 18 mm | 5.5 mm | 6 g |
Application field
F10-18G High Precision Miniature Thrust Ball Bearings are widely used in machine tools, automation equipment, electrical equipment, automotive and other fields. Especially in high-speed, high-precision mechanical equipment, they play a significant role—utilizing steel ball rolling friction to reduce the friction coefficient between two spheres, improving operating efficiency, with large bearing capacity, small friction coefficient, high speed and long service life.
