Thrust Ball Bearings
The thrust ball bearing consists of a seat ring, a shaft ring and a steel ball cage assembly. The shaft ring matched with the shaft, and the seat ring matched with the shell.
Model: 51132M

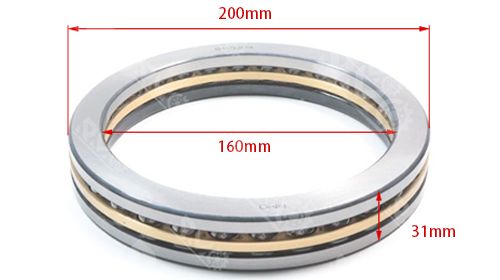

Size: 160X200X31mm
Material: Gcr15.chrome steel with brass
Weight: 2.27KG
Specification
51132M (8132M) Large-Size Thrust Ball Bearing - Brass Cage Design, High Axial Load Capacity & Wear Resistance, Precision-Machined Bearing Steel Construction, Smooth Operation for Heavy-Duty Industrial Equipment, Ideal for Cranes, Presses, Turbines & Gearboxes, ISO Certified.
Technical parameter:
| Model Number | 51132M |
| Size | 160X200X31mm |
| Weight | 2.27KG |
| Material | Gcr15.chrome steel with brass |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Brand name | famous brand/RMO/Neutral/OEM |
| Package | plastic tube or single box+cartons |
| Minimum order quantity | 5pcs |
| Service | OEM ODM |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Thrust ball bearing features:
1. There are two types, one-way and two-way.
2. In order to allow installation error, whether one-way or two-way, you can choose spherical aligning spherical cushion type or with spherical seat ring type.
3. High quality steel - ultra-clean steel that can extend bearing life by up to 80%.
4. A high degree of grease technology extends the life of the grease and improves the performance of the bearing.
5. High grade steel balls - quiet and smooth at high speed.
6. Use the ferrule in the option to allow for mounting errors.
Related Products
| Bearings NO. | ID(d*D*B)mm | Weight (KG) | Bearings NO. | ID(d*D*B)mm | Weight (KG) |
| 51100 | 10*24*9 | 0.019 | 51122 | 110*145*25 | 1.04 |
| 51101 | 12*26*9 | 0.021 | 51124 | 120*155*25 | 1.12 |
| 51102 | 15*28*9 | 0.023 | 51126 | 130*170*30 | 1.68 |
| 51103 | 17*30*9 | 0.025 | 51128 | 140*180*31 | 2.03 |
| 51104 | 20*35*10 | 0.037 | 51130 | 150*190*31 | 2.16 |
| 51105 | 25*42*11 | 0.056 | 51132 | 160*200*31 | 2.27 |
| 51106 | 30*47*11 | 0.064 | 51134 | 170*215*34 | 3.27 |
| 51107 | 35*52*12 | 0.081 | 51136 | 180*225*34 | 3.37 |
| 51108 | 40*60*13 | 0.12 | 51138 | 190*240*37 | 3.95 |
| 51109 | 45*65*14 | 0.143 | 51140 | 200*250*37 | 4.14 |
| 51110 | 50*70*14 | 0.513 | 51144 | 220*270*37 | 4.51 |
| 51111 | 55*78*16 | 0.227 | 51148 | 240*300*45 | 7.35 |
| 51112 | 60*85*17 | 0.281 | 51152 | 260*320*45 | 7.94 |
| 51113 | 65*90*17 | 0.324 | 51156 | 280*350*53 | 12 |
| 51114 | 70*95*18 | 0.346 | 51160 | 300*380*62 | 17.1 |
| 51115 | 75*100*19 | 0.389 | 51164 | 320*400*63 | 18.5 |
| 51116 | 80*105*19 | 0.417 | 51168 | 340*420*64 | 19.9 |
| 51117 | 85*110*19 | 0.44 | 51172 | 360*440*65 | 20.4 |
| 51118 | 90*120*22 | 0.646 | 51180 | 400*480*65 | 23.8 |
| 51119 | 95*145*60 | 0.83 | 51184 | 420*500*65 | 24.21 |
| 51120 | 100*135*25 | 0.96 | 51192 | 460*560*80 | 41.7 |
Applications
only suitable for bearing one axial load, low speed on the machine, such as crane hook, vertical water pump, vertical centrifuge, jack, low speed reducer. The shaft ring, seat ring and rolling body of the bearing are separated and can be installed and disassembled respectively.
