Deep Groove Ball Bearing
It is a bearing that realizes an extremely thin bearing section and a miniaturized and lightweight design.

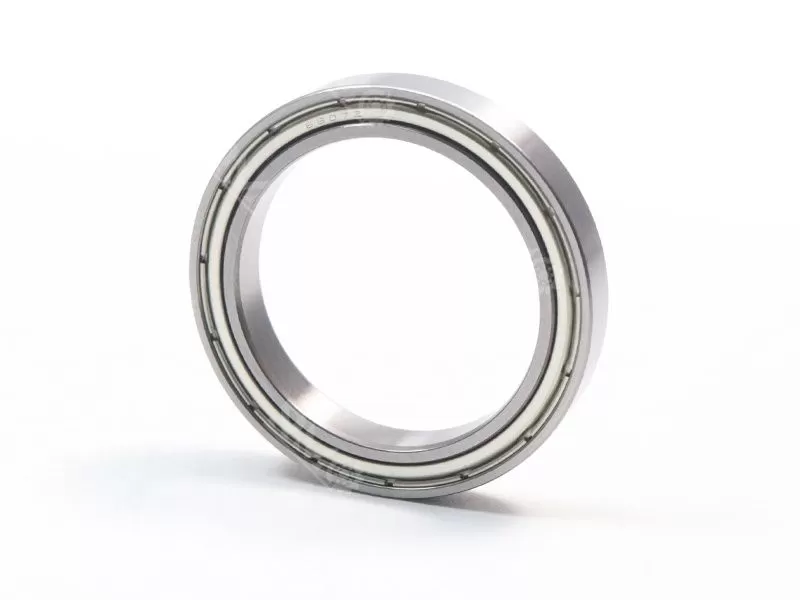

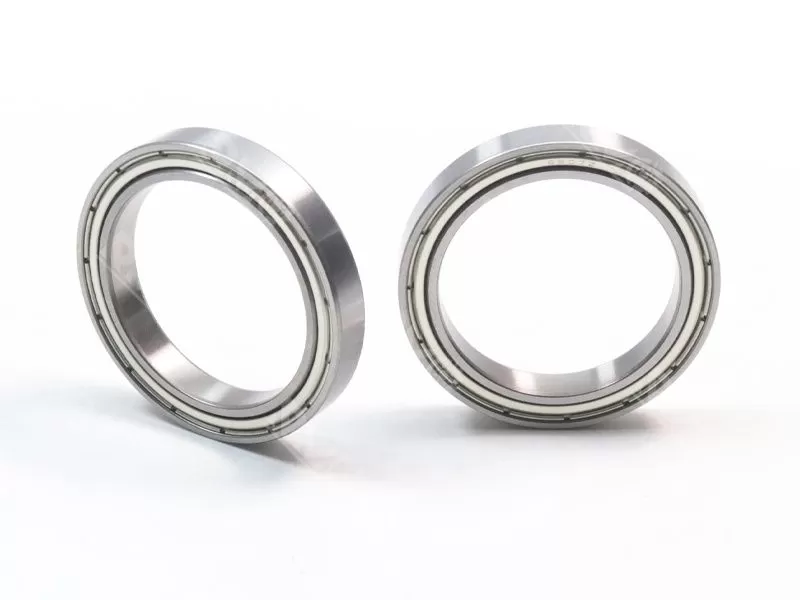

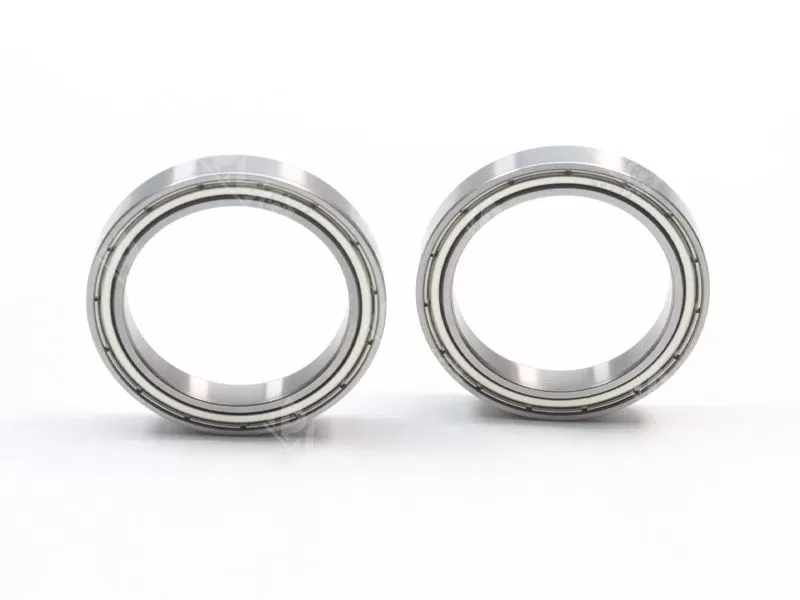

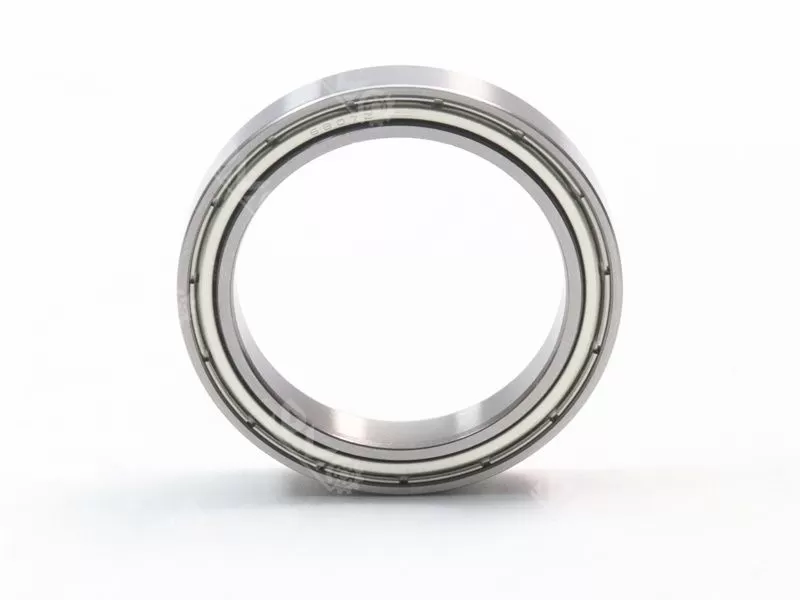

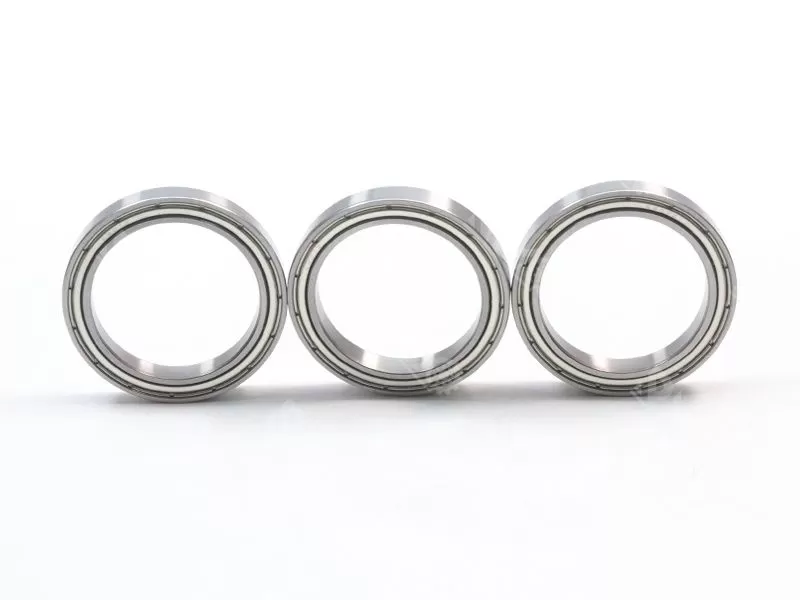

Product name: 6807ZZ thin section ball bearing

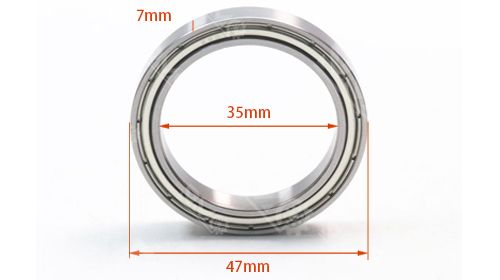

Size: 35x47x7mm
Material: chrome steel Gcr15
weight: 0.029KG
Lead time: normally 3-5 days
Specification
The 6807ZZ thin-section deep groove ball bearing is a high-precision bearing featuring a metal seal design (ZZ type). It offers advantages such as low friction, high-temperature resistance, and contamination resistance. Widely used in power tools, home appliances, industrial machinery, and precision instruments, it effectively reduces friction losses and extends equipment service life, ensuring stability and reliability during high-speed operation.
Technical parameter:
| Model Number | 6807ZZ thin section ball bearing |
| Size | 35x47x7mm |
| Weight | 0.029KG |
| Material | chrome steel Gcr15 |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Dynamic Load Rating | 4.75 lbf |
| Static Load Rating | 3.45 lbf |
| Max Speed (Grease Lubrication) | 18300 RPM |
| Shield Type | ZZ |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Taime | 3-5 Days |
Product features:
In order to obtain low friction torque, high rigidity and good rotation accuracy of bearings, steel balls with small outer diameter are used. The use of hollow shafts ensures lightweight and wiring space. The thin-walled bearing realizes the extremely thin bearing section, and also realizes the miniaturization and lightweight of the product. The variety of products expands its range of uses.
Thin-walled 6700, 6800, 6900 series have a variety of dust cover forms, with flange forms, stainless steel forms, wide forms, etc.
Related Products
| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| 681xzz | 1.5*4*2 | 0.0001 | 6811ZZ | 55*72*9 | 0.081 |
| 681 | 1*3*1 | 0.0001 | 6812ZZ | 60*78*10 | 0.106 |
| 681X | 1.5*4*1.2 | 0.0001 | 6813ZZ | 65*85*10 | 0.13 |
| 682ZZ | 2*5*2.3 | 0.0002 | 6814ZZ | 70*90*10 | 0.14 |
| 682XZZ | 2.5*6*2.6 | 0.0003 | 6815ZZ | 75*95*10 | 0.145 |
| 683 | 3*7*2 | 0.0005 | 6816ZZ | 80*100*10 | 0.154 |
| 684ZZ | 4*9*4 | 0.0015 | 6817ZZ | 85*110*13 | 0.27 |
| 685ZZ | 5*11*5 | 0.002 | 6818ZZ | 90*115*13 | 0.285 |
| 686ZZ | 6*13*3.5 | 0.002 | 6819ZZ | 95*120*13 | 0.3 |
| 687 | 7*14*3.5 | 0.003 | 6820ZZ | 100*125*13 | 0.313 |
| 688ZZ | 8*16*5 | 0.003 | 6821ZZ | 105*130*13 | 0.325 |
| 689ZZ | 9*17*5 | 0.003 | 6822ZZ | 110*140*16 | 0.515 |
| 6800ZZ | 10*19*5 | 0.005 | 6824ZZ | 120*150*16 | 0.56 |
| 6801ZZ | 12*21*5 | 0.006 | 6826ZZ | 110*140*16 | 0.8 |
| 6802ZZ | 15*24*5 | 0.007 | 6828ZZ | 140*175*18 | 0.85 |
| 6803ZZ | 17*26*5 | 0.008 | 6830 | 150*190*20 | 1.16 |
| 6804ZZ | 20*32*7 | 0.019 | 6832 | 160*200*20 | 1.23 |
| 6805ZZ | 25*37*7 | 0.022 | 6834 | 170*215*22 | 1.63 |
| 6806ZZ | 30*42*7 | 0.026 | 6836 | 180*225*22 | 2.03 |
| 6807ZZ | 35*47*7 | 0.029 | 6838 | 190*240*24 | 2.62 |
| 6808ZZ | 40*52*7 | 0.033 | 6840 | 200*250*24 | 2.73 |
| 6809ZZ | 45*58*7 | 0.04 | 6844 | 220*270*24 | 3 |
| 6810ZZ | 50*65*7 | 0.052 | 6848 | 240*300*28 | 4.6 |
Application scenarios
Thin-wall bearings are widely used in high-precision, high-rotation speed, limited space and lightweight requirements, such as aerospace, robotics, medical equipment, semiconductor equipment and precision instruments. In addition, thin-wall bearings are also used in model aircraft, machine tools, motors and other equipment.
