Deep Groove Ball Bearing

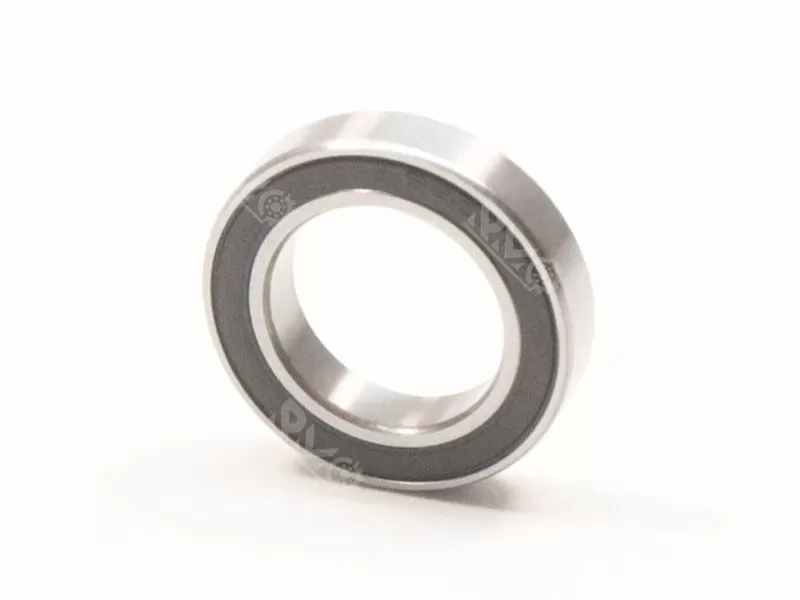

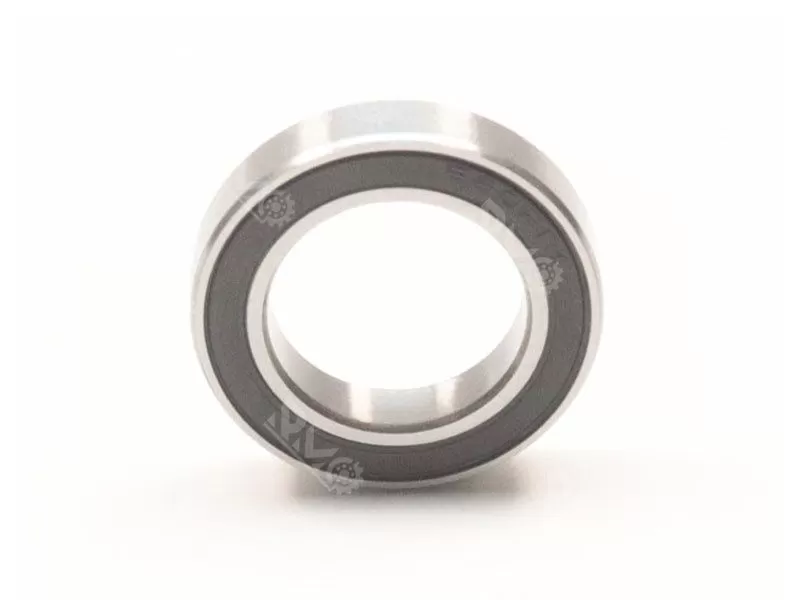

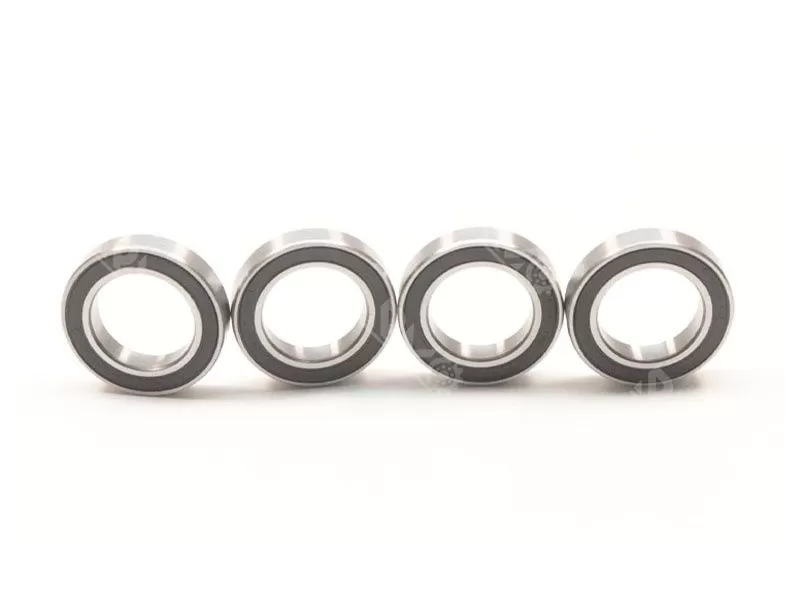

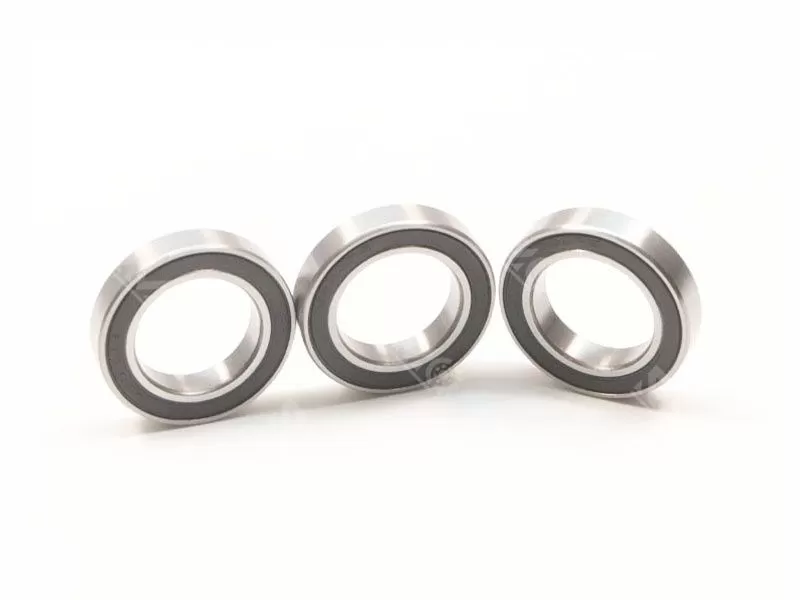

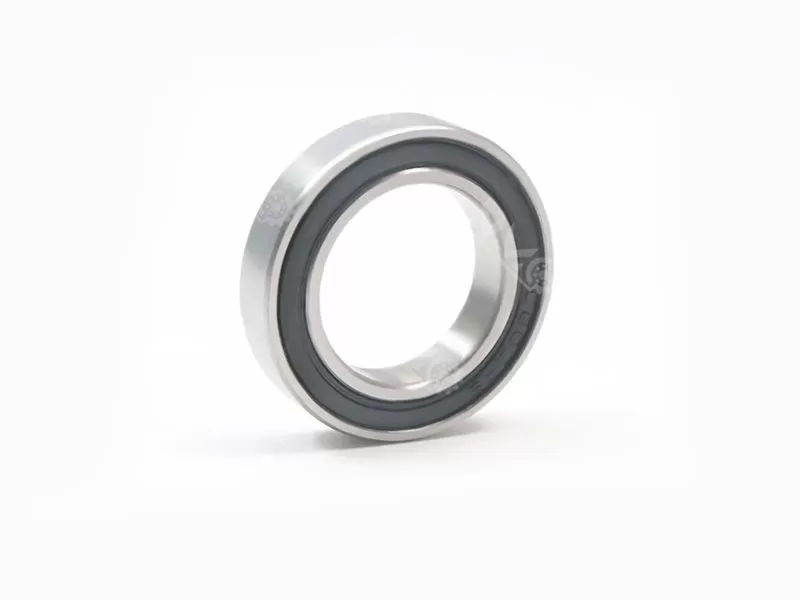

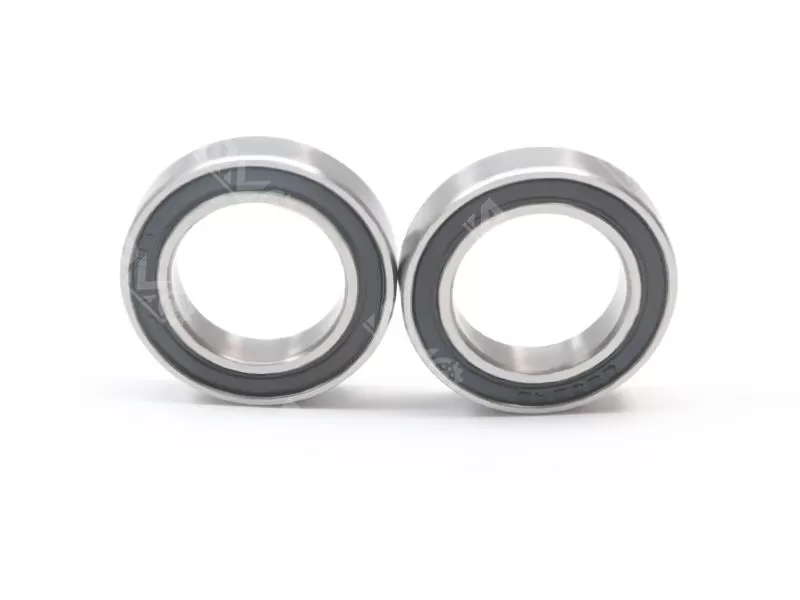

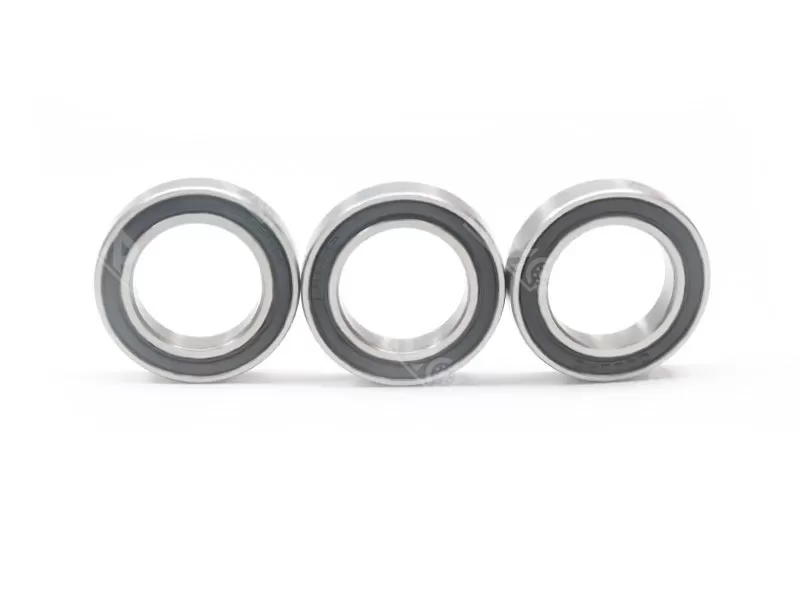

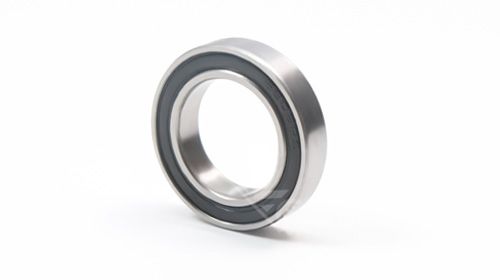

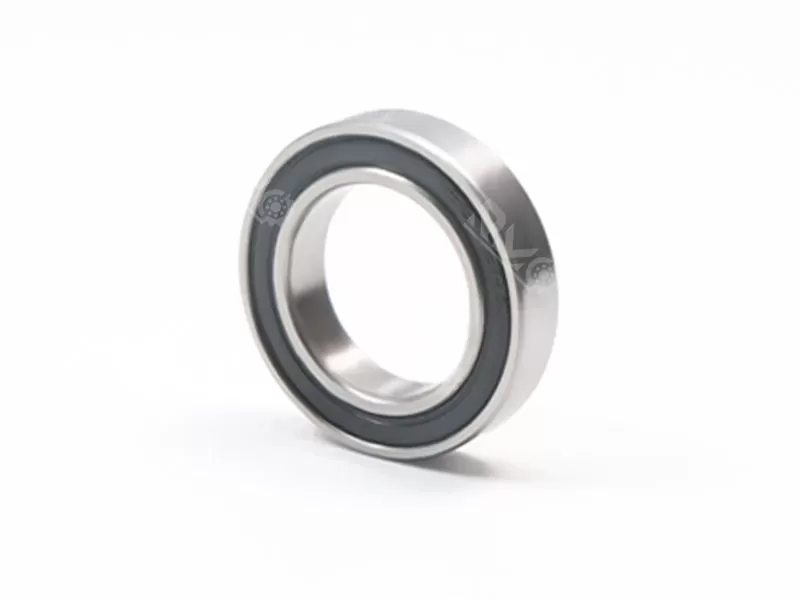

6802-2RS 15x24x5mm thin-wall bearing, chrome steel, low noise, and stable quality.
Product features:
In order to obtain low friction torque, high rigidity and good rotation accuracy of bearings, steel balls with small outer diameter are used. The use of hollow shafts ensures lightweight and wiring space. The thin-walled bearing realizes the extremely thin bearing section, and also realizes the miniaturization and lightweight of the product. The variety of products expands its range of uses.
Thin-walled 6700, 6800, 6900 series have a variety of dust cover forms, with flange forms, stainless steel forms, wide forms, etc.
Specification
| Product Name | bearing 6802 6802ZZ 6802-2RS 61802 |
| Size | 15*24*5mm |
| material | Chrome Steel |
| Precision | P0 P6 P5 P4 |
| Sealing | Open, Z, ZZ, RZ,2RZ,RS, 2RS |
| Service | OEM & ODM service |
| Delivery date | Normally ready goods and stock within 3-5 days |
| Payment terms | A:100% TT B: 30% T/T before production, 70% before delivery. |

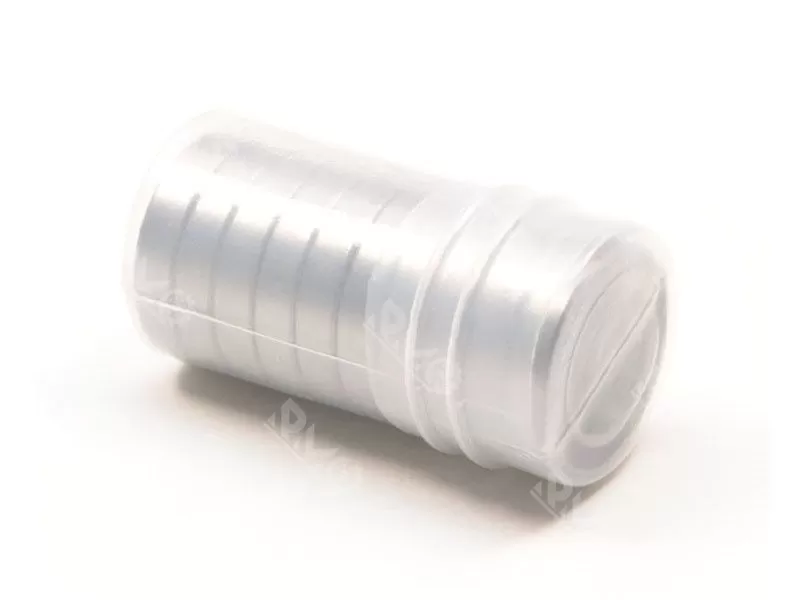

| Package | Industrial package or according to buyers' requirement |
| Details | Deep groove ball bearings are simple, easy to use, is the largest production volume, most widely used of a class of bearings. It is mainly used for a bear radial load, but also bear certain axial load. When the bearing radial clearance increased when the function with angular contact bearings can bear large axial load. |
| Special properties | 1. High accuracy 2. Low noise 3. Long life 4. Can be customized according to your needs 5. Can provide small & miniature standard and non-standard ball bearings. |
Related Products

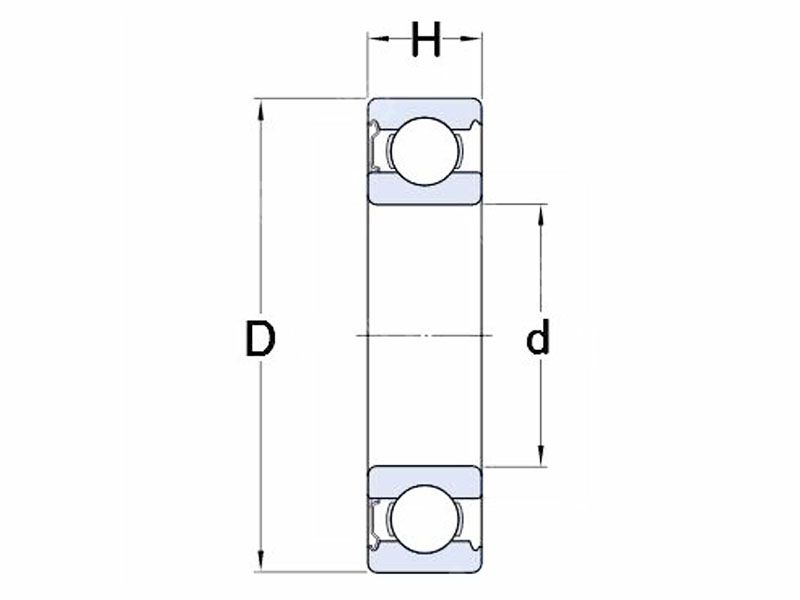

| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| 681xzz | 1.5*4*2 | 0.0001 | 6811ZZ | 55*72*9 | 0.081 |
| 681 | 1*3*1 | 0.0001 | 6812ZZ | 60*78*10 | 0.106 |
| 681X | 1.5*4*1.2 | 0.0001 | 6813ZZ | 65*85*10 | 0.13 |
| 682ZZ | 2*5*2.3 | 0.0002 | 6814ZZ | 70*90*10 | 0.14 |
| 682XZZ | 2.5*6*2.6 | 0.0003 | 6815ZZ | 75*95*10 | 0.145 |
| 683 | 3*7*2 | 0.0005 | 6816ZZ | 80*100*10 | 0.154 |
| 684ZZ | 4*9*4 | 0.0015 | 6817ZZ | 85*110*13 | 0.27 |
| 685ZZ | 5*11*5 | 0.002 | 6818ZZ | 90*115*13 | 0.285 |
| 686ZZ | 6*13*3.5 | 0.002 | 6819ZZ | 95*120*13 | 0.3 |
| 687 | 7*14*3.5 | 0.003 | 6820ZZ | 100*125*13 | 0.313 |
| 688ZZ | 8*16*5 | 0.003 | 6821ZZ | 105*130*13 | 0.325 |
| 689ZZ | 9*17*5 | 0.003 | 6822ZZ | 110*140*16 | 0.515 |
| 6800ZZ | 10*19*5 | 0.005 | 6824ZZ | 120*150*16 | 0.56 |
| 6801ZZ | 12*21*5 | 0.006 | 6826ZZ | 110*140*16 | 0.8 |
| 6802ZZ | 15*24*5 | 0.007 | 6828ZZ | 140*175*18 | 0.85 |
| 6803ZZ | 17*26*5 | 0.008 | 6830 | 150*190*20 | 1.16 |
| 6804ZZ | 20*32*7 | 0.019 | 6832 | 160*200*20 | 1.23 |
| 6805ZZ | 25*37*7 | 0.022 | 6834 | 170*215*22 | 1.63 |
| 6806ZZ | 30*42*7 | 0.026 | 6836 | 180*225*22 | 2.03 |
| 6807ZZ | 35*47*7 | 0.029 | 6838 | 190*240*24 | 2.62 |
| 6808ZZ | 40*52*7 | 0.033 | 6840 | 200*250*24 | 2.73 |
| 6809ZZ | 45*58*7 | 0.04 | 6844 | 220*270*24 | 3 |
| 6810ZZ | 50*65*7 | 0.052 | 6848 | 240*300*28 | 4.6 |
Application scenarios
Thin-wall bearings are widely used in high-precision, high-rotation speed, limited space and lightweight requirements, such as aerospace, robotics, medical equipment, semiconductor equipment and precision instruments. In addition, thin-wall bearings are also used in model aircraft, machine tools, motors and other equipment.
