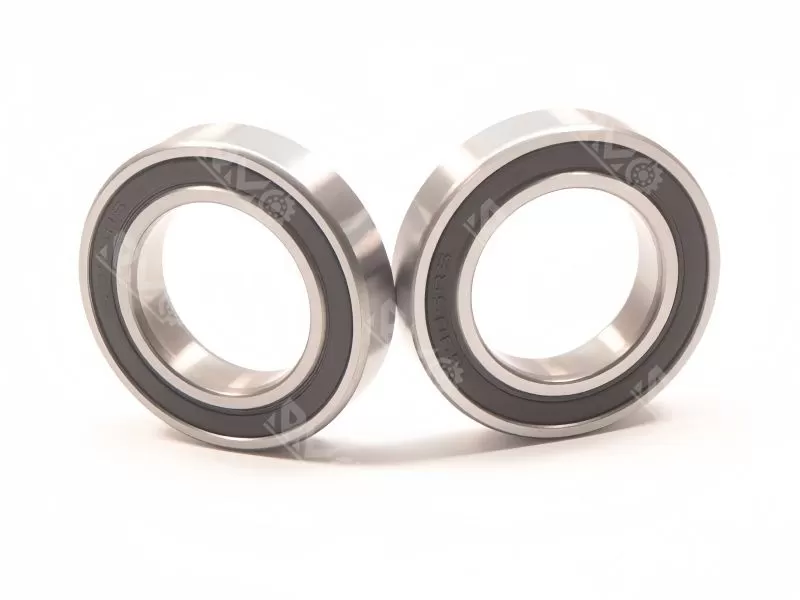

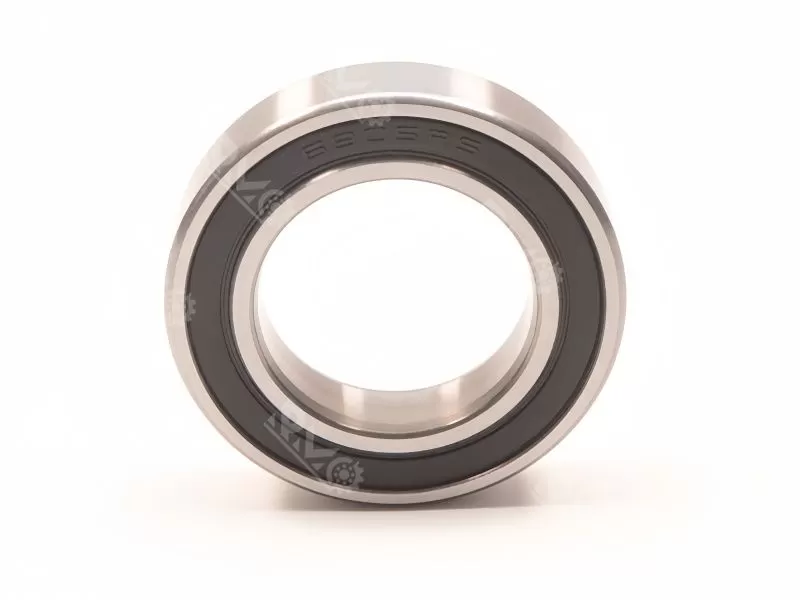

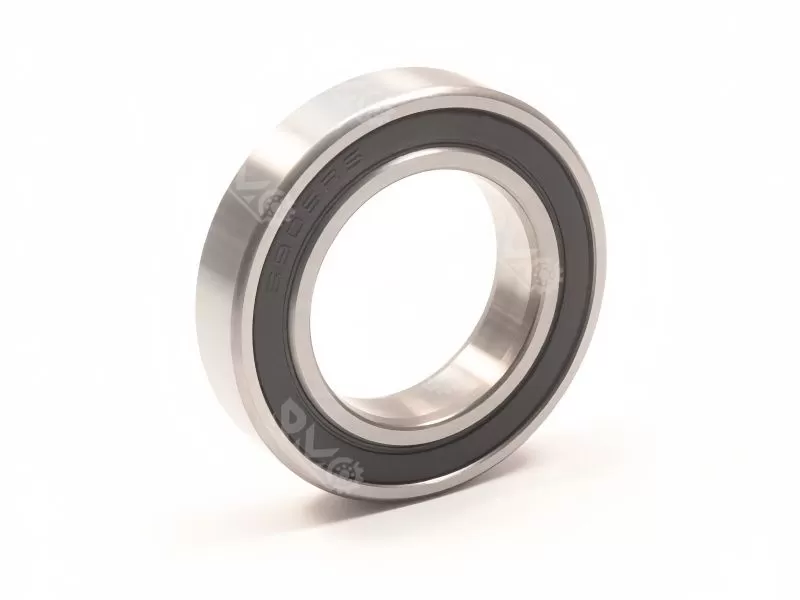

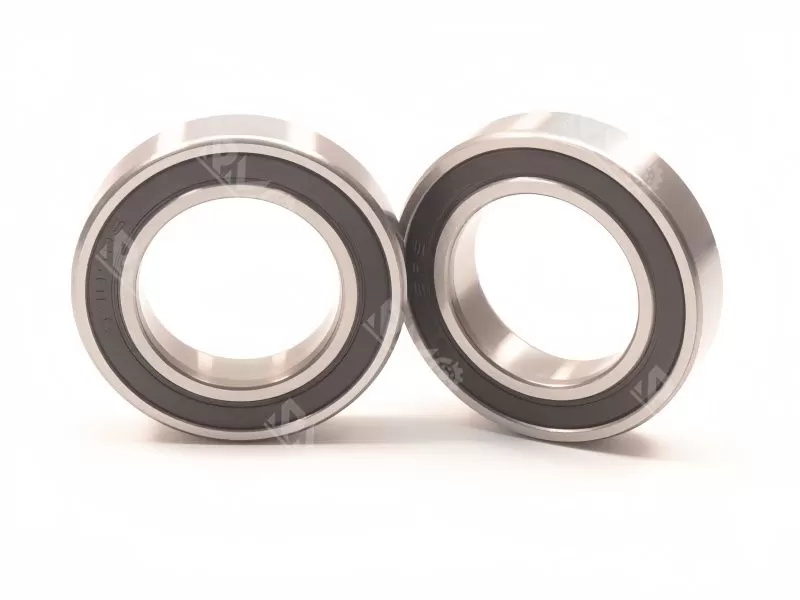

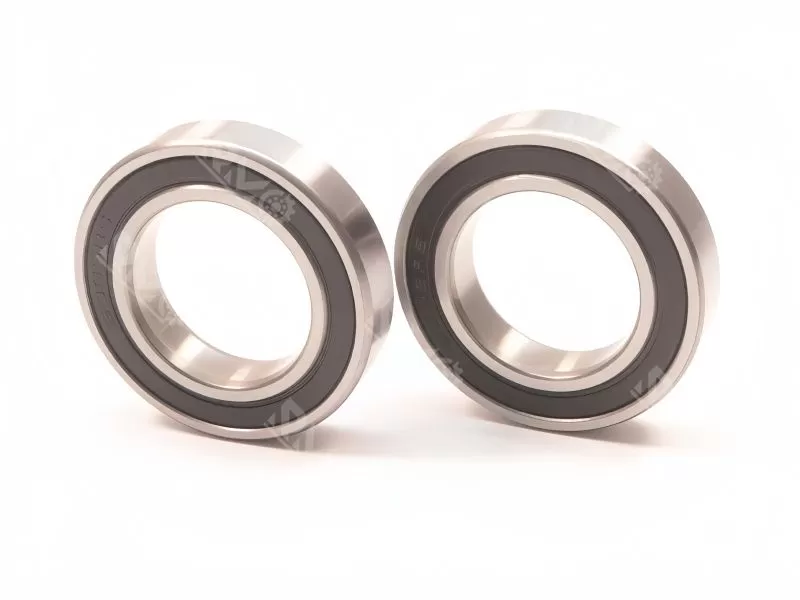

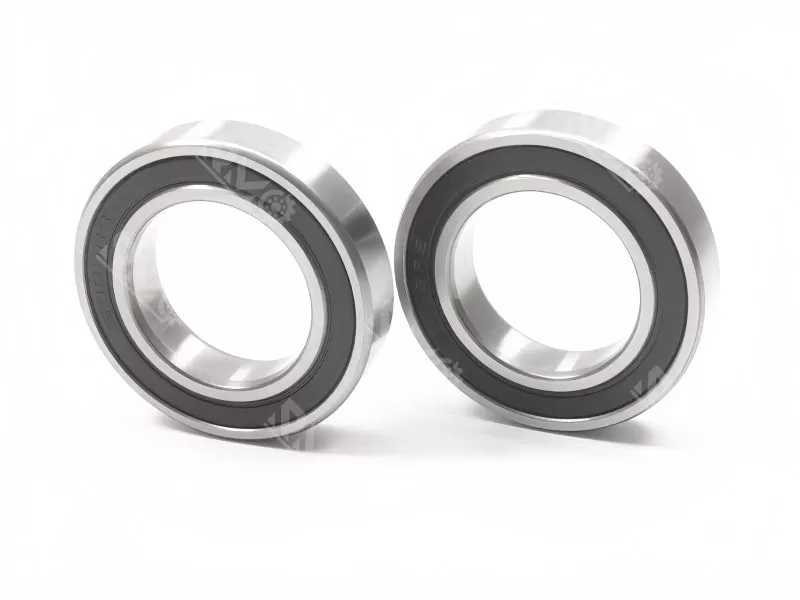

61905 6905RS Thin Section Ball Bearings

It is a bearing that realizes an extremely thin bearing section and a miniaturized and lightweight design.

Product name: 6905RS/61905RS bearing

Size: 25x42x9mm

Material: chrome steel Gcr15

weight: 0.042KG

Lead time: normally 3-5 days

Inquire Now Next Product

Specification

Package: Plastic tube or single box+Carton+Pallet

MOQ: 50 PCS

Shipping Port: Guangzhou, Ningbo, Shanghai

Payment: 100% T/T or 30% T/T before production, 70% before delivery

Thin-walled bearings are a type of bearing that achieves an extremely thin cross-section and a compact, lightweight design. They are generally classified into different sealing forms, such as rubber sealed - RS and metal sealed - ZZ, and use small outer diameter steel balls to achieve low friction torque, high rigidity, and excellent rotational accuracy. Meanwhile, the hollow shaft design in thin-walled bearings ensures lightweight construction and wiring space.

Core Features:

1. Lightweight Design: By reducing the diameter of the steel balls and adopting a thin-walled structure, the weight is reduced while optimizing the equipment layout.

2. High Precision and Rigidity: Utilizing precise manufacturing processes ensures rotational accuracy and enhances resistance to deformation.

3. Rotational Performance: With a low friction coefficient design, it is suitable for high-speed operation scenarios (maximum speed up to 6500 r/min).

4. Diverse Structures: Including rubber sealed (RS), steel sealed (ZZ), stainless steel, wide width and other special models, to adapt to different working conditions.

Related Products

61905 6905RS Thin Section Ball Bearings

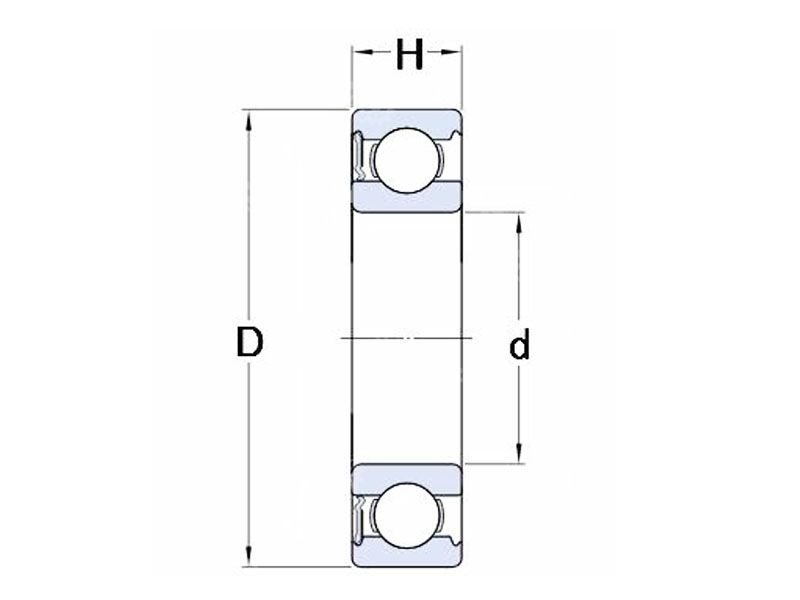

Model No.	d	D	H	m	Model No.	d	D	H	m
6900RS	10 mm	22 mm	6 mm	0.01 KG	6912RS	60 mm	85 mm	13 mm	0.19KG
6901RS	12 mm	24 mm	6 mm	0.01 KG	6913RS	65 mm	90 mm	13 mm	0.21 KG
6902RS	15 mm	28 mm	7 mm	0.02 KG	6914RS	70 mm	100 mm	16 mm	0.34 KG
6903RS	17 mm	30 mm	7 mm	0.02 KG	6915RS	75 mm	105 mm	16 mm	0.36 KG
6904RS	20 mm	37 mm	9 mm	0.04 KG	6916RS	80 mm	110 mm	16 mm	0.38 KG
6905RS	25 mm	42 mm	9 mm	0.14 KG	6917RS	85 mm	120 mm	18 mm	0.53 KG
6906RS	30 mm	47 mm	9 mm	0.05 KG	6918RS	90 mm	125 mm	18 mm	0.58 KG
6907RS	35 mm	55 mm	10 mm	0.08 KG	6919RS	95 mm	130 mm	18 mm	0.55 KG
6908RS	40 mm	62 mm	12 mm	0.11 KG	6920RS	100 mm	140 mm	20 mm	0.79 KG
6909RS	45 mm	68 mm	12 mm	0.13 KG	6921RS	105 mm	145 mm	20 mm	0.82 KG
6910RS	50 mm	72 mm	12 mm	0.14 KG	6922RS	110 mm	150 mm	20 mm	0.85 KG
6911RS	55 mm	80 mm	13 mm	0.18 KG	6924	120 mm	165 mm	22 mm	1.15 KG

Application fields

1. Industrial field: machine tools, automated equipment, electronic instruments.

2. Special scenarios: aerospace, medical equipment, semiconductor precision instruments.
