Deep Groove Ball Bearing

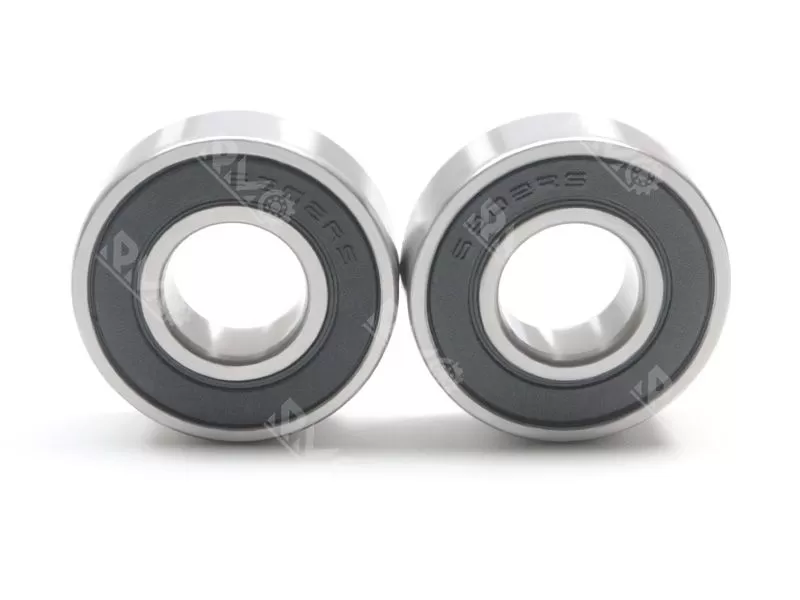

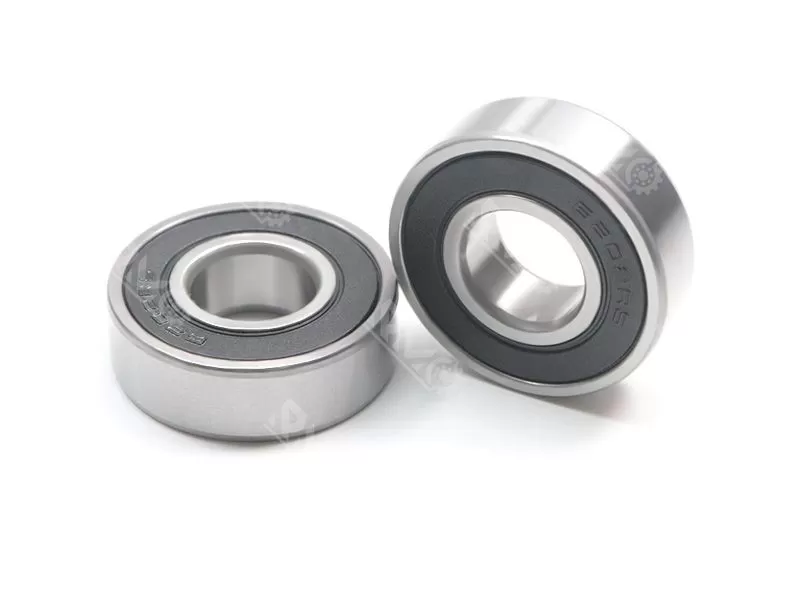

RMO brand 6202RS bearing, chrome steel materials. high speed, low noise, long service life. with a large stock, samples are available.
Item No.: 6202RS
size: 15x35x11mm
weight: 0.0426KG
Dynamic Load: 7.66 lbf
Static Load: 3.72 lbf
Speed Limit: 24000 RPM
grade level：P0
Material: GCR15, stainless steel (420 440C 304 316)
Lead Time: 3-5 Days
Specification
Precision: p0 p6 p5 p4
Clearance: C2 C0 C3 C4
Vibration: Z1V1, Z2V2, Z3V3
Cage material: Steel, nylon, copper
Shipping Port: GUANGZHOU, NINGBO, SHANGHAI
Payment: 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production
Deep Groove Ball Bearing: consists of an outer ring, an inner ring, a group of steel balls and a group of cages. There are two types of deep groove ball bearing, single row and double row, deep groove ball structure is also divided into sealed and open two structures, open refers to the bearing does not have a sealed structure, sealed deep groove ball is divided into dust seal and oil seal. The dust seal cover material is steel plate stamping, which only plays a simple role in preventing dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the leakage of grease in the bearing.
Size range:
Inner diameter: 10mm ~ 1320mm
Outer diameter: 30mm ~ 1600mm
Width size: 9mm ~ 300mm
The main materials are carbon steel, bearing steel, stainless steel, plastic, ceramic and so on. The choice of these materials directly affects the performance and service life of bearings. For example, bearing steel has good comprehensive mechanical properties and wear resistance, stainless steel is suitable for wet or corrosive environments, and ceramic materials are suitable for high temperature, high speed and high load occasions.
Use Application:
Deep groove ball bearings can be used in transmissions, instruments, motors, household appliances, internal combustion engines, traffic vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo balls and so on.
Related Products
| Model No. | d | D | H | m |
| 625-RS1 | 5 mm | 16 mm | 5 mm | 0.01 KG |
| 626-RS1 | 6 mm | 19 mm | 6 mm | 0.01 KG |
| 627-RS1 | 7 mm | 22 mm | 7 mm | 0.01 KG |
| 628-RS1 | 8 mm | 24 mm | 8 mm | 0.02 KG |
| 629-RS1 | 9 mm | 26 mm | 8 mm | 0.02 KG |
| 6200-RS1 | 10 mm | 30 mm | 9 mm | 0.03 KG |
| 6201-RS1 | 12 mm | 32 mm | 10 mm | 0.04 KG |
| 6202-RS1 | 15 mm | 35 mm | 11 mm | 0.05 KG |
| 6203-RS1 | 17 mm | 40 mm | 12 mm | 0.06 KG |
| 6204-RS1 | 20 mm | 47 mm | 14 mm | 0.1 KG |
| 62/22-RS1 | 22 mm | 50 mm | 14 mm | 0.12 KG |
| 6205-RS1 | 25 mm | 52 mm | 15 mm | 0.13 KG |
| 62/28-RS1 | 28 mm | 58 mm | 16 mm | 0.17 KG |
| 6206-RS1 | 30 mm | 62 mm | 16 mm | 0.2 KG |
| 62/32-RS1 | 32 mm | 65 mm | 17 mm | 0.23 KG |
| 6207-RS1 | 35 mm | 72 mm | 17 mm | 0 29 KG |
| 6208-RS1 | 40 mm | 80 mm | 18 mm | 0.38 KG |
| 6209-RS1 | 45 mm | 85 mm | 19 mm | 0.42 KG |
| 6210-RS1 | 50 mm | 90 mm | 20 mm | 0.47 KG |
| 6211-RS1 | 55 mm | 100 mm | 21 mm | 0.61 KG |
Bearings Applications
Auto, tractor, machine tool, electric machine, water pump, agricultural machinery and textile machinery.
