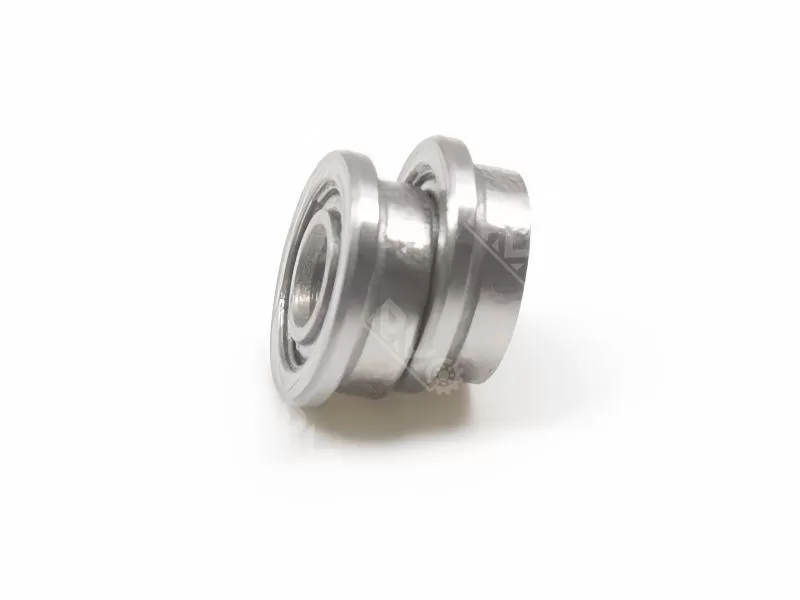

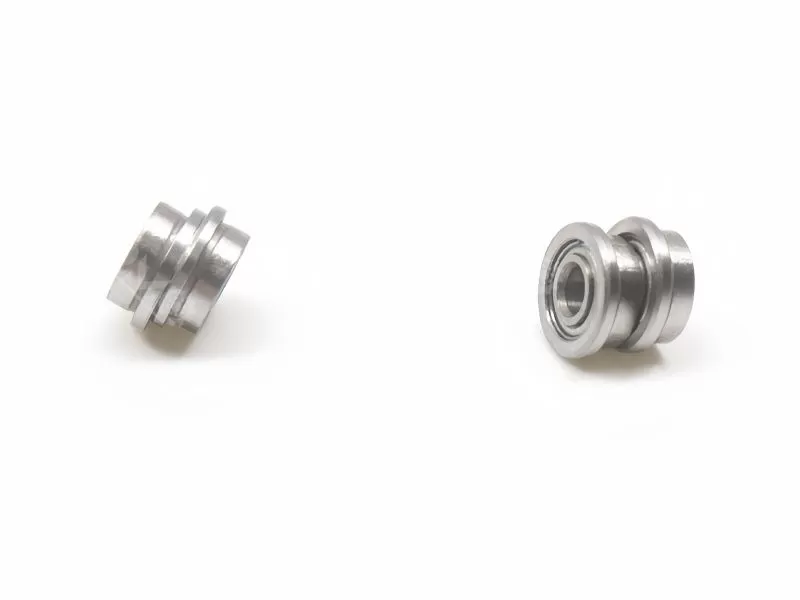

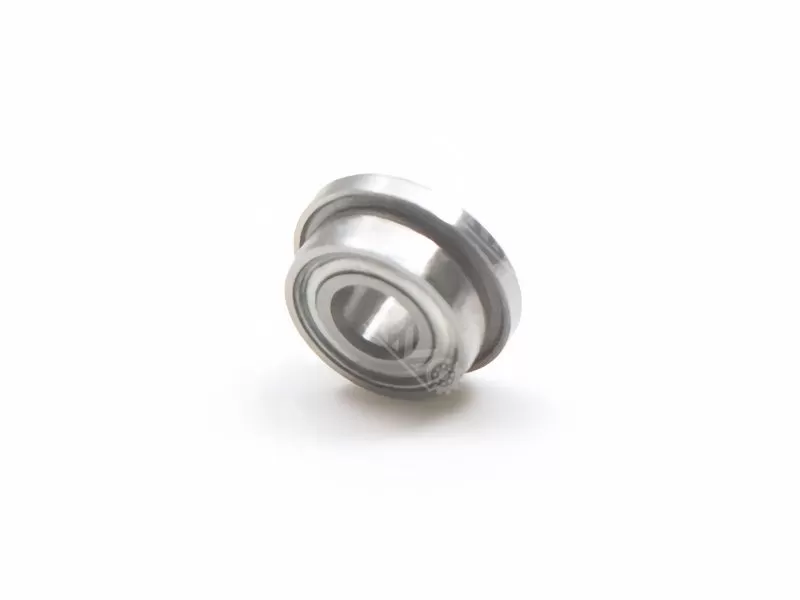

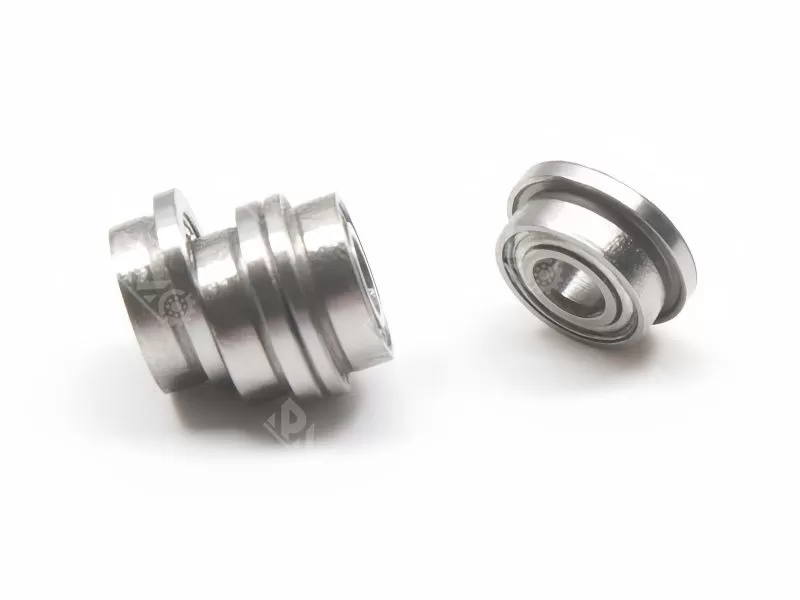

Deep Groove Ball Bearing
it is a special kind of deep groove ball bearing with flanged structure.
Model No.: F682XZZ
Size: 2.5x6x2.6mm
Weight: 0.0003KG
Material: chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc.
MOQ: 100pcs
Lead Time: normally 3-5 days
Specification
The F682XZZ high-precision miniature flanged ball bearing features an inner diameter of 2.5mm, an outer diameter of 6mm, and a thickness of 2.6mm. Equipped with dual-sided metal seals and utilizing a deep-groove ball design, it delivers high rotational speeds, low friction, and exceptional precision. This miniature bearing is suitable for applications in motors, ATM machines, card readers, and similar equipment.
Technical parameter:
| Model Number | F682XZZ |
| Size | 2.5x6x2.6 mm |
| Weight | 0.0003KG |
| Material | chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Dynamic Load Rating | 169 lbf |
| Static Load Rating | 50 lbf |
| Max Speed (Grease Lubrication) | 10000 RPM |
| Shield Type | ZZ |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Taime | 3-5 Days |
Structure:

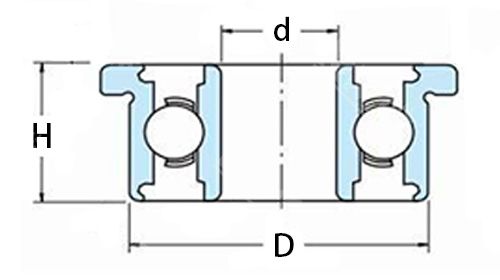

The structure of the micro flanged deep groove ball bearing includes an inner ring, an outer ring, a rolling body and a cage. It is characterized by a flange on the outer ring, which can provide additional axial positioning and radial support, enhancing the stability and bearing capacity of the bearing..
Material and manufacturing process:
The material of micro flange deep groove ball bearing can choose carbon steel, bearing steel, stainless steel, plastic and so on. Among them, stainless steel has excellent corrosion resistance and is suitable for wet or corrosive environments. The manufacturing process includes steps such as heat treatment, quenching and tempering to ensure the hardness and wear resistance of the bearing.
Related Products
| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| F682ZZ | 2*5*2.3 | 0.001 | MF115ZZ | 5*11*4 | 0.001 |
| F683ZZ | 3*7*3 | 0.001 | MF106ZZ | 6*10*3 | 0.001 |
| F684ZZ | 4*8*3 | 0.001 | MF126ZZ | 6*12*4 | 0.002 |
| F685ZZ | 5*11*3 | 0.001 | MF117ZZ | 7*11*3 | 0.002 |
| F686ZZ | 6*13*5 | 0.001 | MF137ZZ | 7*13*4 | 0.003 |
| F687ZZ | 7*14*5 | 0.0023 | MF128ZZ | 8*12*3.5 | 0.003 |
| F688ZZ | 8*16*5 | 0.0045 | MF148ZZ | 8*14*4 | 0.009 |
| F689ZZ | 9*17*5 | 0.005 | F626ZZ | 6*19*6 | 0.002 |
| F692ZZ | 2*6*3 | 0.001 | MF84ZZ | 4*8*3 | 0.02 |
| F693ZZ | 3*8*4 | 0.002 | FR6ZZ | 9.525*22.225*7.142 | 0.006 |
| F694ZZ | 4*11*4 | 0.003 | F605ZZ | 5*14*5 | 0.022 |
| F695ZZ | 5*13*4 | 0.003 | MF74ZZ | 4*7*2.5 | 0.013 |
| F696ZZ | 6*15*5 | 0.004 | F608ZZ | 8*22*5 | 0.024 |
| F697ZZ | 7*17*5 | 0.006 | F606ZZ | 6*17*6 | 0.007 |
| F698ZZ | 8*19*6 | 0.008 | F625ZZ | 5*16*5 | 0.005 |
| F699ZZ | 9*20*6 | 0.002 | F624ZZ | 4*13*5 | 0.002 |
| MF52ZZ | 2*5*2.5 | 0.0005 | F623ZZ | 3*10*4 | 0.023 |
| MF72ZZ | 2*7*2.5 | 0.0005 | FR8ZZ | 12.7*28.575*7.938 | 00.025 |
| MF82ZZ | 2*8*2.5 | 0.001 | F607 | 7*19*6 | 0.01 |
| MF63ZZ | 3*6*2.5 | 0.001 | FR168 | 6.35*9.52*3.18 | 0.005 |
| MF104ZZ | 4*10*4 | 0.001 | SFRW168ZZ | 3.175*9.525*2.778 | 0.007 |
| MF85ZZ | 5*8*2.5 | 0.001 | F6801 | 12*21*5 | 0.036 |
| MF95ZZ | 5*9*3 | 0.002 | F6202ZZ | 15*35*11 | 0.05 |
| MF105ZZ | 5*10*4 | 0.0009 | F6800ZZ | 10*19*5 | 0.007 |
Application field
Micro flanged deep groove ball bearings are widely used in various industrial equipment, small rotary motors, precision instruments, automation equipment and other fields. They are suitable for high speed, low noise applications and provide stable rotation support and long service life.
