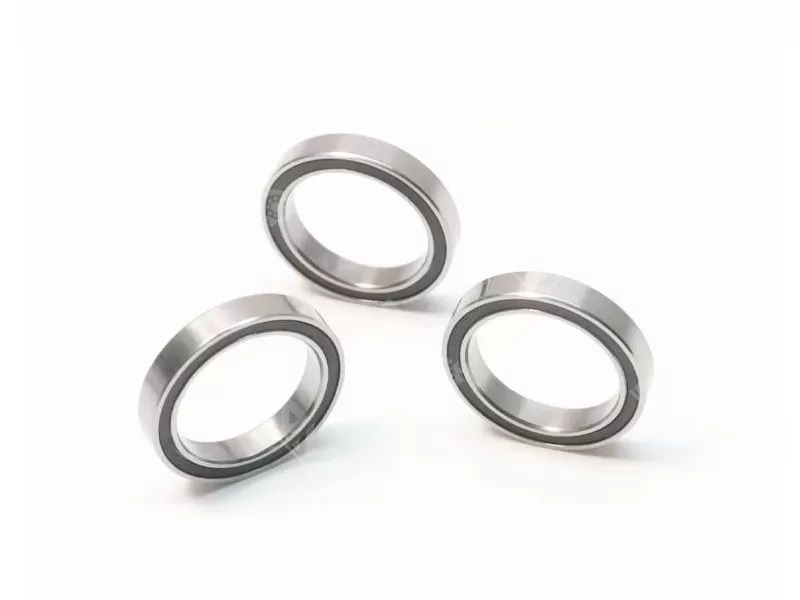

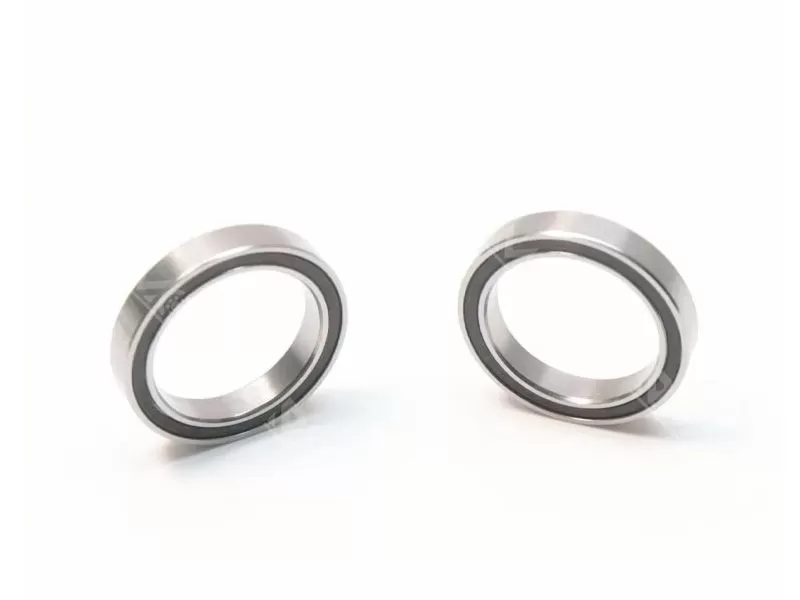

6703RS Thin-Section Ball Bearing

6703ZZ thin-section deep groove ball bearing size 17x23x4mm, chrome steel materials, high speed, low noise.

Product name: thin-section deep groove ball bearing 6703RS 6703 2RS

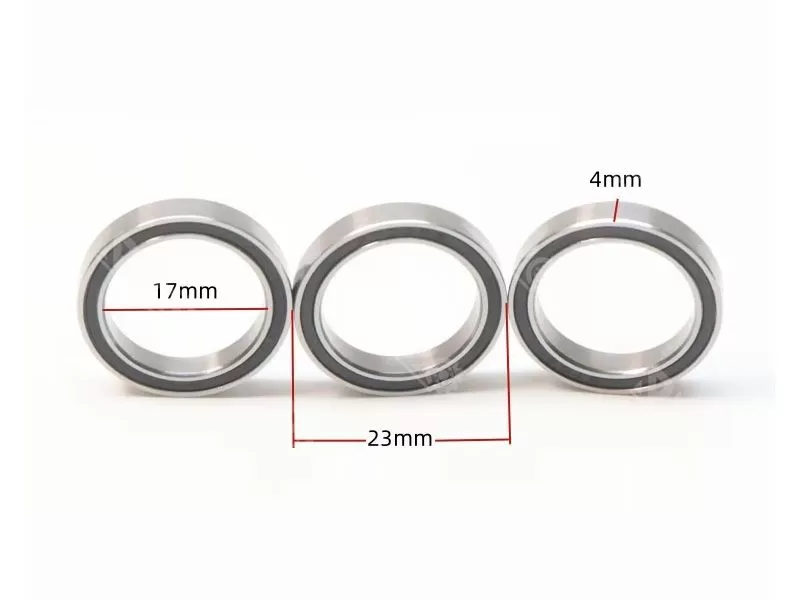

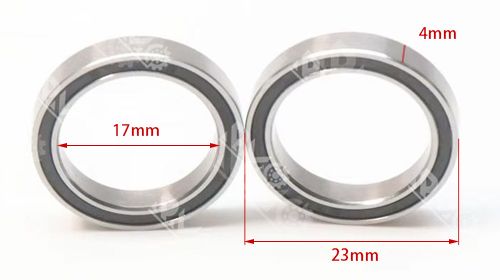

Size: 17x23x4mm

Material: Chrome Steel

weight: 0.004KG

Lead time: normally 3-5 days

Inquire Now Next Product

Specification

6703RS Thin-Wall Ball Bearing, with an inner diameter of 17mm, outer diameter of 23mm, and width of 4mm, is constructed from chrome steel with a single-sided rubber seal. It features a compact structure, low friction, high precision, and the ability to withstand radial and minor axial loads. This bearing is suitable for space-constrained equipment such as industrial robots, rotary encoders, and stepper motors.

Technical parameter:

Model Number	thin-section deep groove ball bearing 6703RS 6703 2RS
Size	17x23x4mm
Weight	0.004KG
Material	Chrome Steel
Clearance	C2 C0 C3 C4
Precision Grade	p0
Package	Plastic tube or single box+Carton+Pallet
MOQ	100 PCS
Shipping Port	Guangzhou, Ningbo, Shanghai
Shield Type	RS
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Time	3-5 Days

Details:

Deep groove ball bearings are simple, easy to use, is the largest production volume, most widely used of a class of bearings. It is mainly used for a bear radial load, but also bear certain axial load. When the bearing radial clearance increased when the function with angular contact bearings can bear large axial load.

Special properties:

1. High accuracy
2. Low noise
3. Long life
4. Can be customized according to your needs
5. Can provide small & miniature standard and non-standard ball bearings

Related Products

Bearings No.	ID(dDB)mm	Weight (KG)	Bearings No.	ID(dDB)mm	Weight (KG)
672ZZ	242	0.0001	672RS	242	0.0001
6700ZZ	10154	0.002	6700RS	10154	0.002
6701ZZ	12184	0.003	6701RS	12184	0.003
6702ZZ	15214	0.004	6702RS	15214	0.004
6703ZZ	17234	0.004	6703RS	17234	0.004
6704ZZ	20274	0.006	6704RS	20274	0.006
6705ZZ	25324	0.007	6705RS	25324	0.007
6706ZZ	30374	0.009	6706RS	30374	0.009
6707ZZ	35444	0.015	6707RS	35444	0.015
6708ZZ	40506	0.023	6708RS	40506	0.023
6709ZZ	45556	0.03	6709RS	45556	0.03
6710ZZ	50626	0.045	6710RS	50626	0.045

Maintenance Procedure

1.Installation and removal of bearings must be carried out with caution.

For different types and sizes of thin-walled deep groove ball bearings, the installation methods and tools are also different. Here are some basic installation methods and precautions that are generally applicable.

1) Do not apply excessive force to install the balls. This will cause local overload on the balls and the contact surface, leading to premature failure of the bearing.

2) Do not use hard tools, such as hammers or screwdrivers, to strike the surface of the bearing. This will cause the outer ring of the bearing to break or crack.
