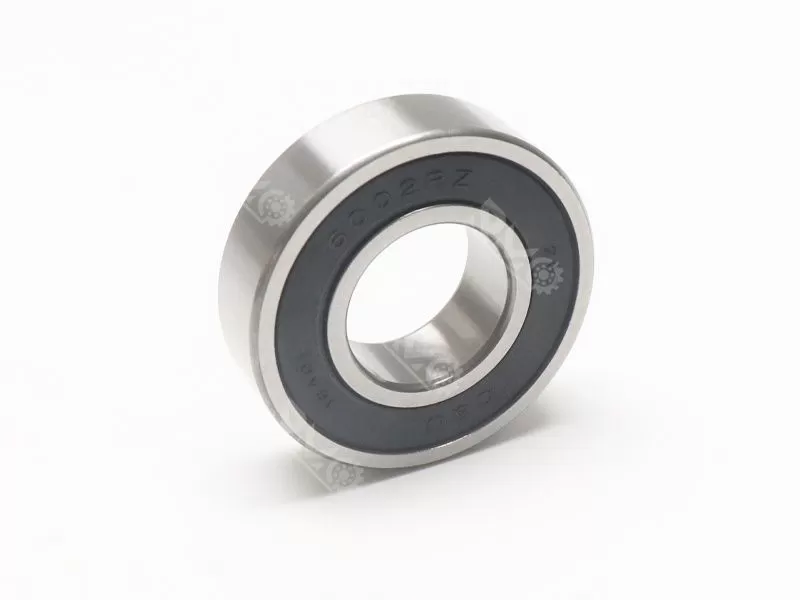

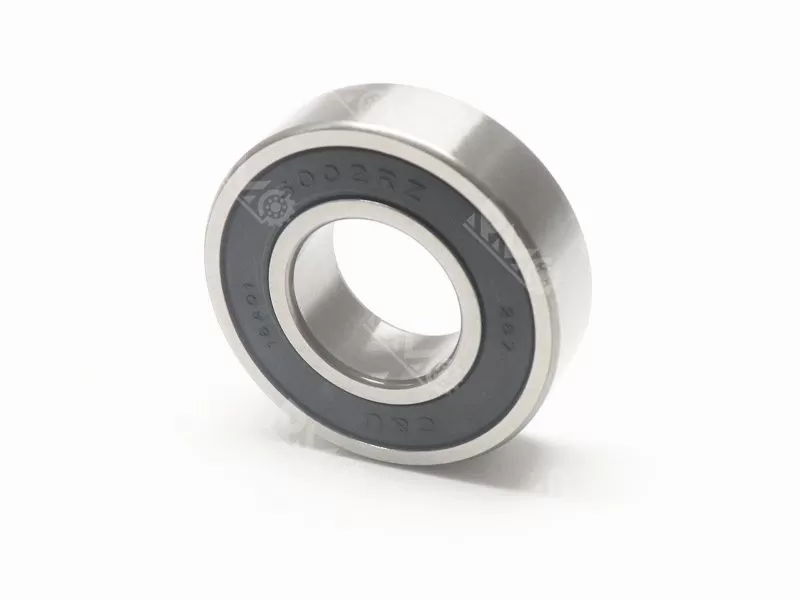

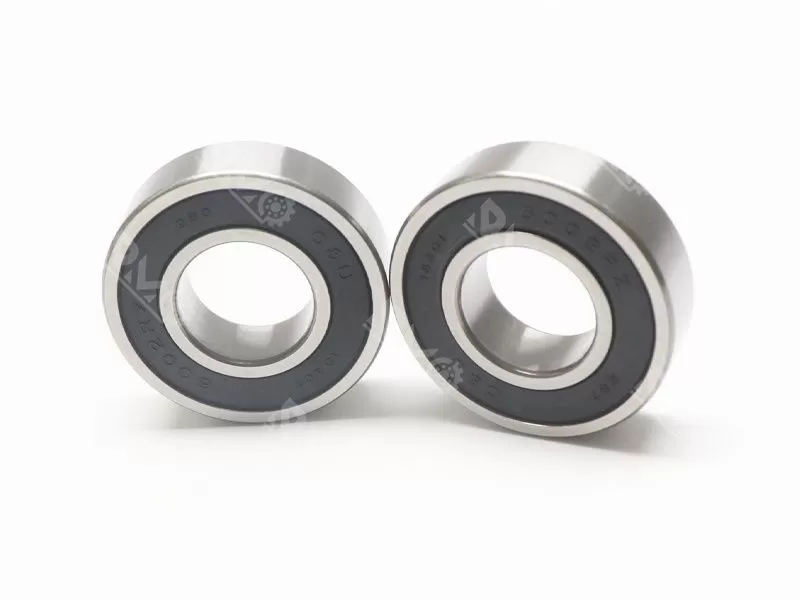

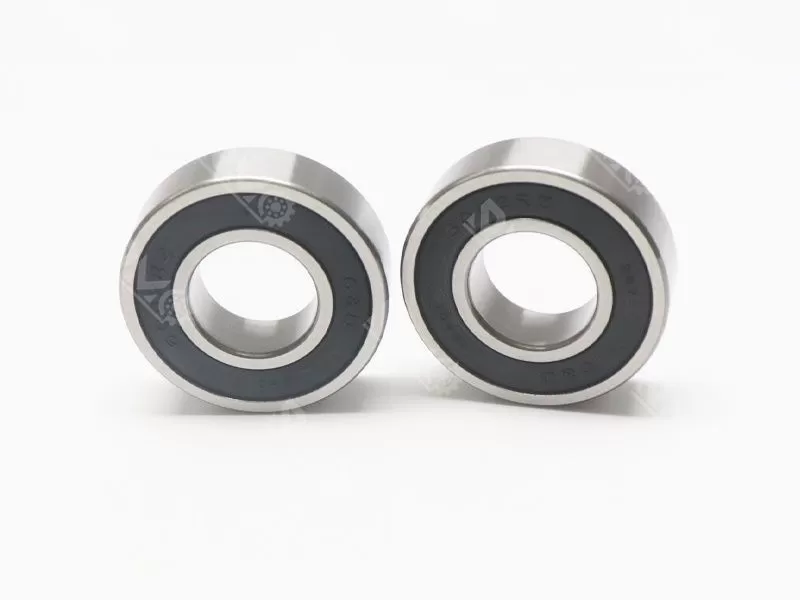

Deep Groove Ball Bearing
It is composed of an outer ring, an inner ring, a set of steel balls and a set of cages.
Model number: 6002RS
Size: 15X32x9mm
Materials: Gcr15.chrome steel
Weight: 0.03KG
Lead time: normally 3-5 days
Specification

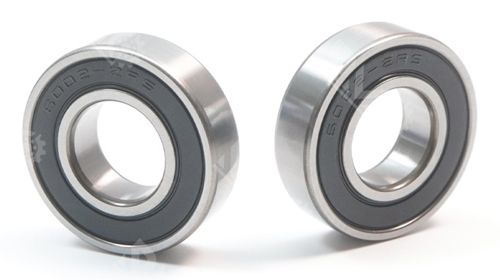

6002RZ and 6002-2RS high-quality deep groove ball bearings, with an inner diameter of 15mm, outer diameter of 32mm, and thickness of 9mm. Constructed from chrome steel, they feature non-contact rubber seals (RZ) on one side and contact rubber seals (2RS) on the other. These bearings offer low friction, low noise, and high rotational speed capabilities, capable of withstanding both radial and axial loads. They are widely used in automotive, electric motor, and textile machinery applications.
Technical parameter:
| Model Number | 6002RS |
| Size | 15X32x9mm |
| Weight | 0.03KG |
| Material | Gcr15.chrome steel |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Dynamic Load Rating | 5.62 lbf |
| Static Load Rating | 2.84 lbf |
| Max Speed (Grease Lubrication) | 28000 RPM |
| Shield Type | RS |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Deep groove ball bearing: consists of an outer ring, an inner ring, a group of steel balls and a group of cages. There are two types of deep groove ball bearing, single row and double row, deep groove ball structure is also divided into sealed and open two structures, open refers to the bearing does not have a sealed structure, sealed deep groove ball is divided into dust seal and oil seal. The dust seal cover material is steel plate stamping, which only plays a simple role in preventing dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the leakage of grease in the bearing.
Related Products
| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| 603 | 3*9*5 | 0.002 | 6011 | 55*90*18 | 0.390 |
| 604 | 4*12*4 | 0.003 | 6012 | 60*95*18 | 0.420 |
| 605 | 5*14*5 | 0.004 | 6013 | 65*100*18 | 0.440 |
| 606 | 6*17*6 | 0.006 | 6014 | 70*110*20 | 0.600 |
| 607 | 7*19*6 | 0.073 | 6015 | 75*115*20 | 0.640 |
| 608 | 8*22*7 | 0.012 | 6016 | 80*125*22 | 0.850 |
| 609 | 9*24*7 | 0.016 | 6017 | 85*130*22 | 0.890 |
| 6000 | 10*26*8 | 0.019 | 6018 | 90*140*24 | 1.150 |
| 6001 | 12*28*8 | 0.022 | 6019 | 95*145*24 | 1.200 |
| 6002 | 15*32*9 | 0.030 | 6020 | 100*150*24 | 1.250 |
| 6003 | 17*35*10 | 0.039 | 6021 | 105*160*26 | 1.62 |
| 6004 | 20*42*12 | 0.069 | 6022 | 110*170*28 | 1.96 |
| 6005 | 25*47*12 | 0.080 | 6024 | 120*180*28 | 2.08 |
| 6006 | 30*55*13 | 0.120 | 6026 | 130*200*33 | 3.26 |
| 6007 | 35*62*14 | 0.160 | 6028 | 140*210*33 | 3.48 |
| 6008 | 40*68*15 | 0.190 | 6030 | 150*225*35 | 4.24 |
| 6009 | 45*75*16 | 0.250 | 6032 | 160*240*38 | 4.82 |
| 6010 | 50*80*16 | 0.260 | 6040 | 200*310*51 | 11.8 |
Use Application
Deep groove ball bearings can be used in transmissions, instruments, motors, household appliances, internal combustion engines, traffic vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo balls and so on.
