Deep Groove Ball Bearing
The deep groove ball bearing is composed of an outer ring, an inner ring, a set of steel balls and a set of cages.

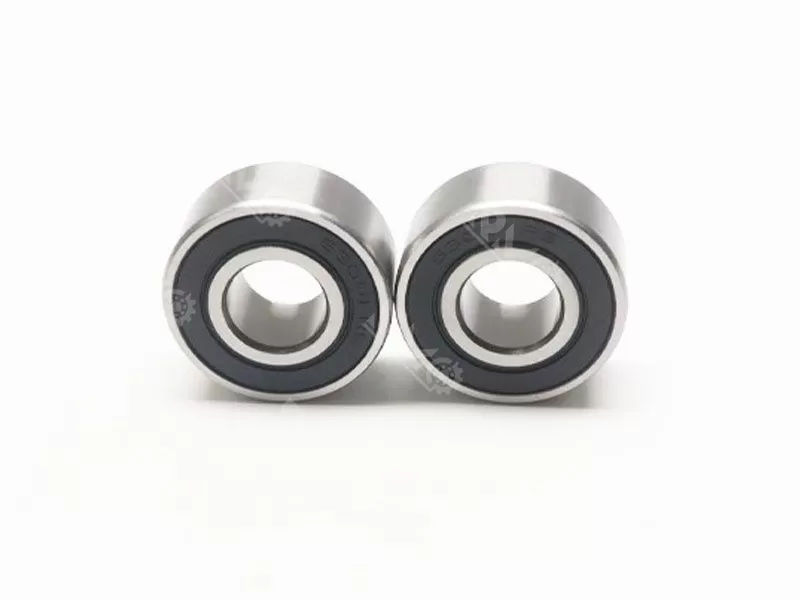

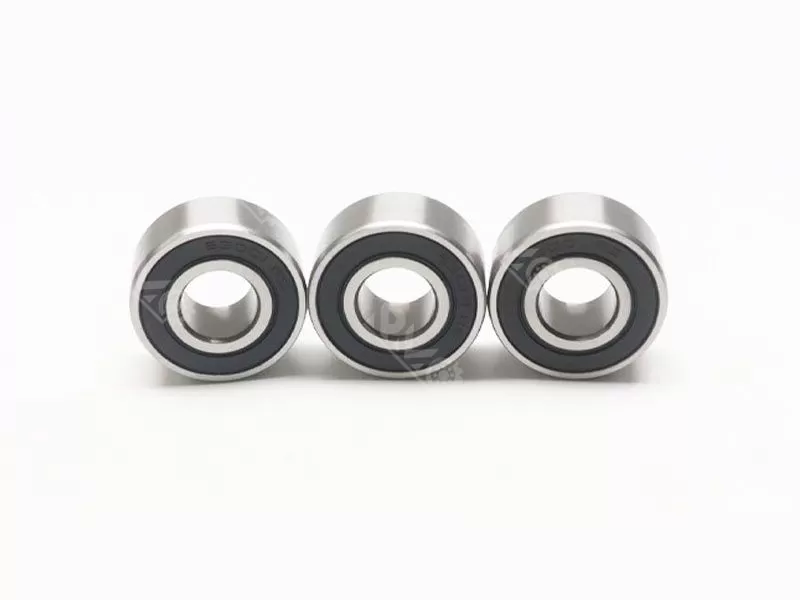

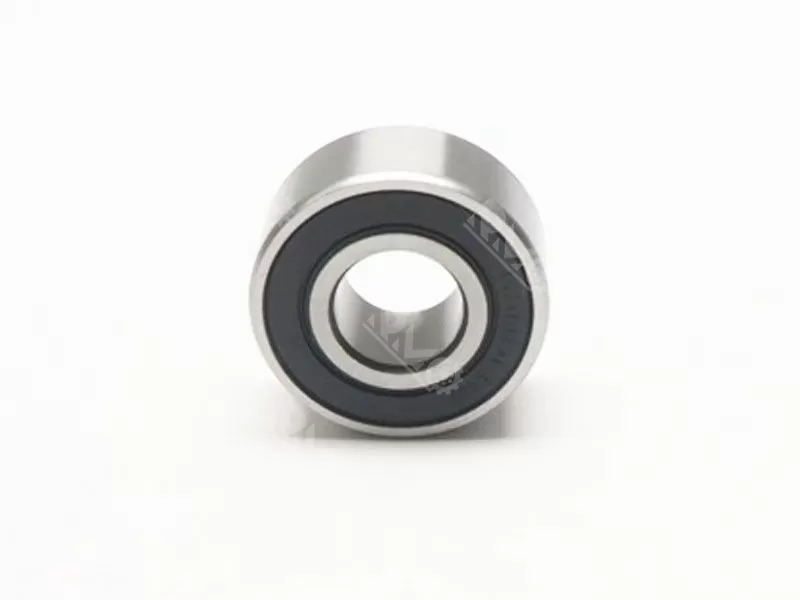

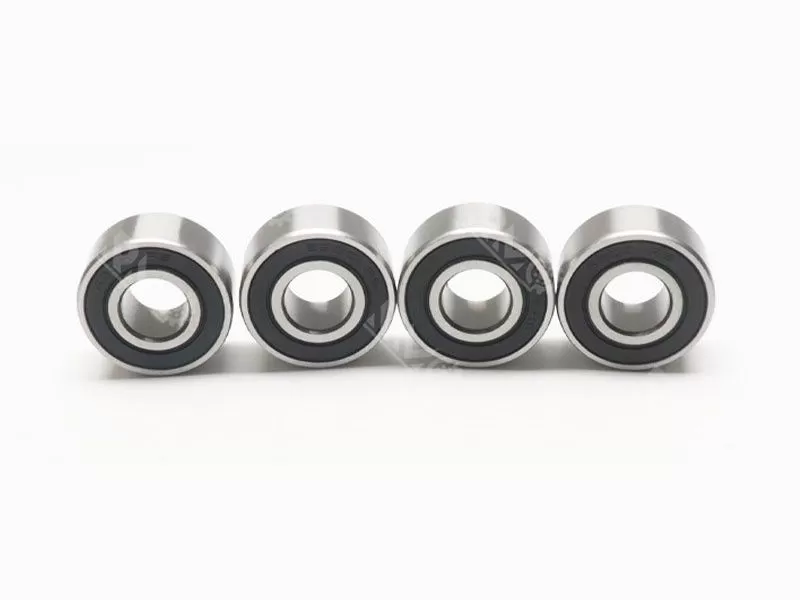

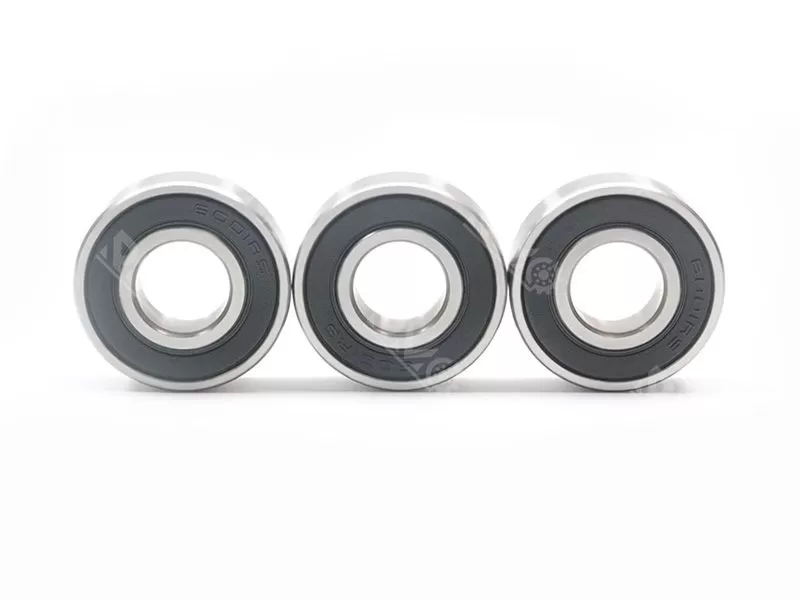

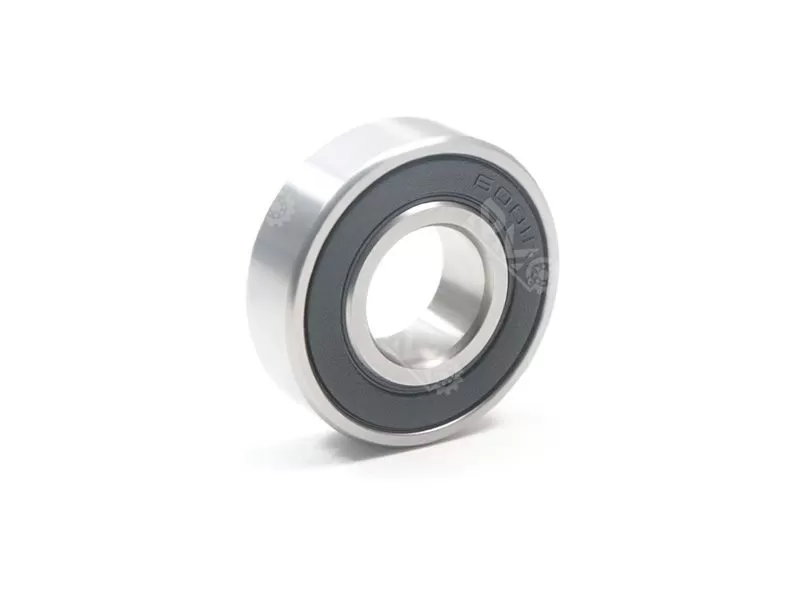

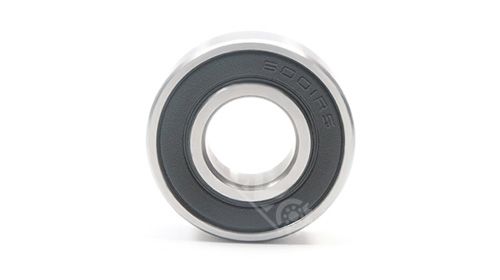

Model No.: 63001-2RS 6001-2RS thickened ball bearing

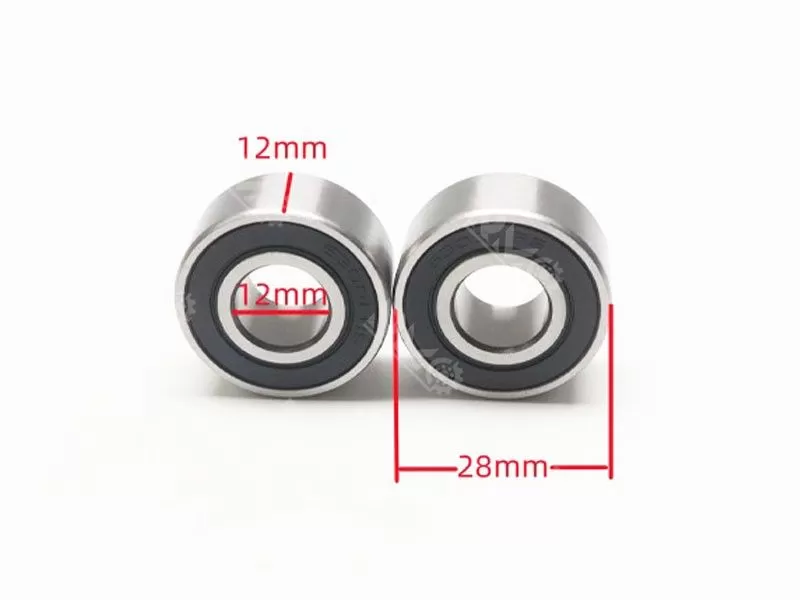

Size: 12x28x12mm
Weight: 0.029KG
MOQ:50pcs
Specification
Thickened deep groove ball bearings are a specially designed type of deep groove ball bearings, with a height twice that of ordinary bearings. Structurally, they are similar to common deep groove ball bearings, but with increased thickness. They are typically used in applications that require greater load-carrying capacity or higher stability.
Technical parameter:
| Model Number | 63001-2RS 6001-2RS thickened ball bearing |
| Size | 12x28x12mm |
| Weight | 0.029KG |
| Material | chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Dynamic Load Rating | 5.4 lbf |
| Static Load Rating | 2.36 lbf |
| Max Speed (Grease Lubrication) | 38000 RPM |
| Shield Type | RS |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
The main materials are carbon steel, bearing steel, stainless steel, plastic, ceramic and so on. The choice of these materials directly affects the performance and service life of bearings. For example, bearing steel has good comprehensive mechanical properties and wear resistance, stainless steel is suitable for wet or corrosive environments, and ceramic materials are suitable for high temperature, high speed and high load occasions.
Size range:
Inner diameter: 10mm ~ 1320mm
Outer diameter: 30mm ~ 1600mm
Width size: 9mm ~ 300mm
Related Products

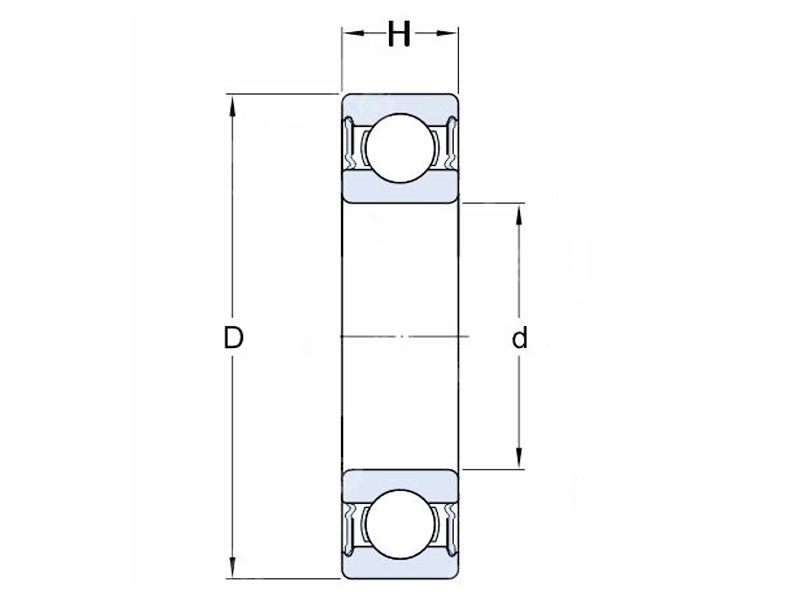

| Model No. | d | D | H | m |
| 630/8-2RS | 8 mm | 22 mm | 11 mm | 16 g |
| 63000-2RS | 10 mm | 26 mm | 12 mm | 25 g |
| 63001-2RS | 12 mm | 28 mm | 12 mm | 29 g |
| 63002-2RS | 15 mm | 32 mm | 13 mm | 39 g |
| 63003-2RS | 17 mm | 35 mm | 14 mm | 52 g |
| 63004-2RS | 20 mm | 42 mm | 16mm | 86 g |
| 63005-2RS | 25 mm | 47 mm | 16 mm | 110 g |
| 63006-2RS | 30 mm | 55 mm | 19 mm | 170 g |
| 63007-2RS | 35 mm | 62 mm | 20 mm | 230 g |
| 63008-2RS | 40 mm | 68 mm | 21 mm | 270 g |
| 63009-2RS | 45 mm | 75 mm | 23 mm | 360 g |
| 63010-2RS | 50 mm | 80 mm | 23 mm | 380 g |
Application scenarios
Thickened deep groove ball bearings are suitable for application scenarios that require greater load-carrying capacity or higher stability. For instance, in heavy machinery equipment, high-speed rotating equipment, or devices that need long-term stable operation, thickened deep groove ball bearings can offer better support and a longer service life.
