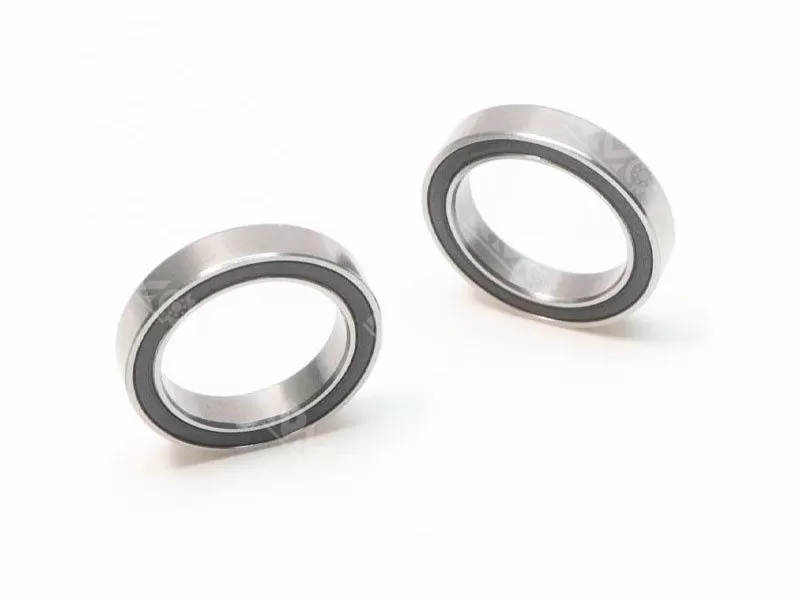

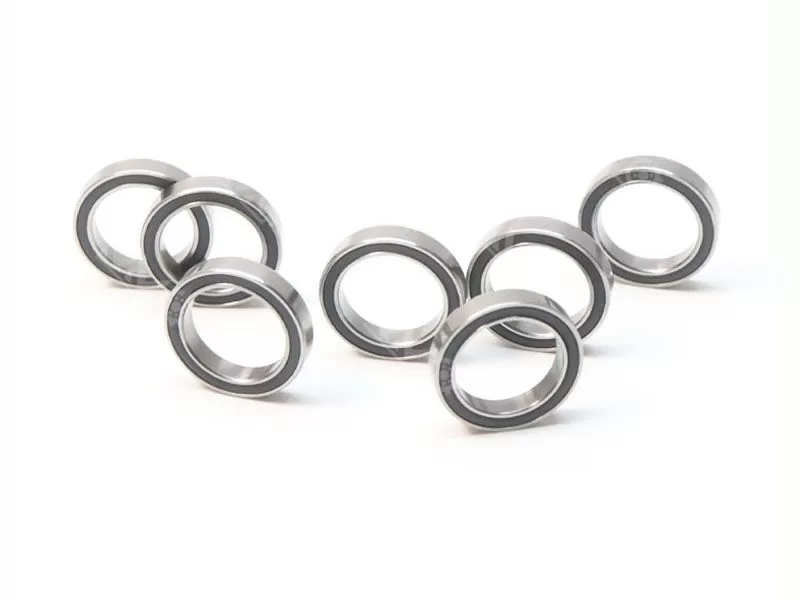

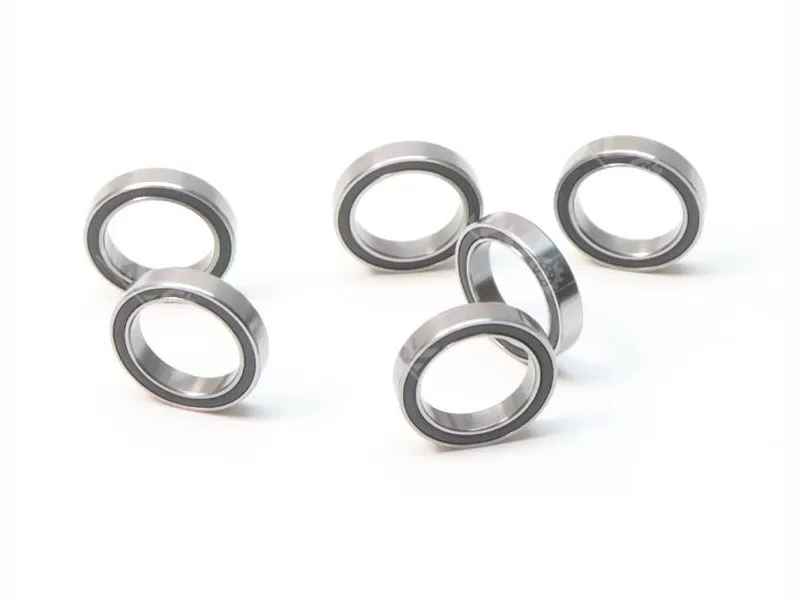

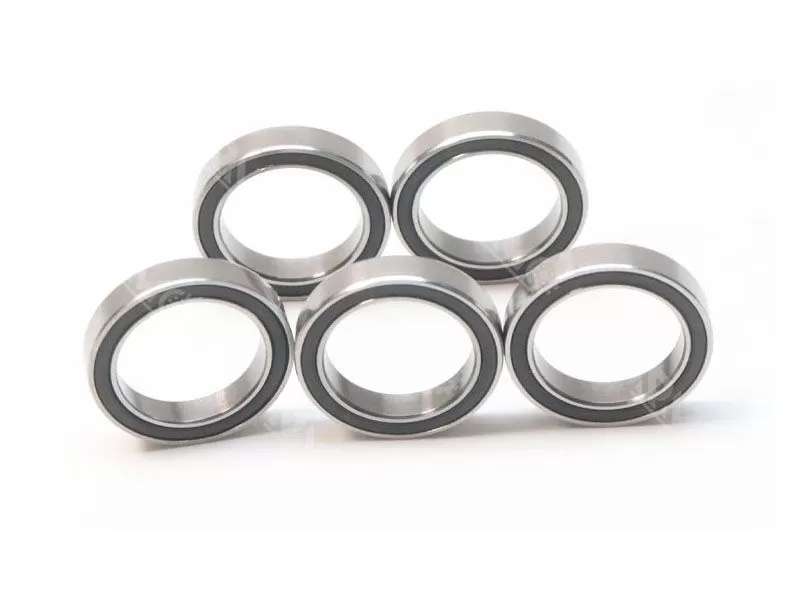

6702 2rs Thin Section Ball Bearings

It is a bearing that realizes an extremely thin bearing section and a miniaturized and lightweight design.

Product name: 6702 2rs thin-wall ball bearing

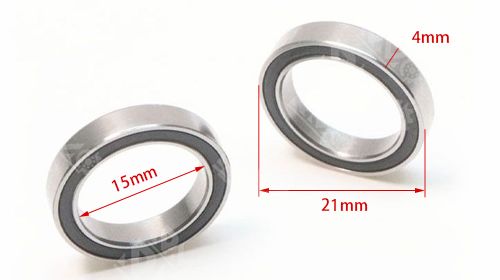

Size: 15x21x4mm

Material Number: chrome steel Gcr15

weight: 0.004KG

Lead time: normally 3-5 days

Inquire Now Next Product

Specification

6702 2RS thin-walled ball bearing, with an inner diameter of 15mm, outer diameter of 21mm, and width of 4mm. Constructed from chrome steel with dual rubber seals (2RS), it features a compact design, low friction, and high precision. Suitable for space-constrained equipment such as industrial robots, rotary encoders, and stepper motors.

Technical parameter:

Model Number	6702 2rs thin-wall ball bearing
Size	15x21x4mm
Weight	0.004KG
Material	chrome steel Gcr15
Clearance	C2 C0 C3 C4
Precision Grade	p0

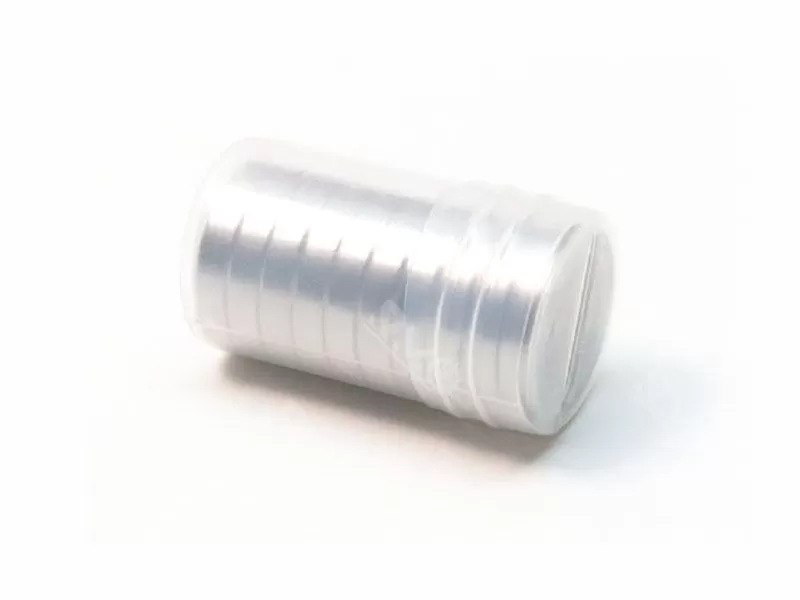

Package	Plastic tube or single box+Carton+Pallet
MOQ	100 PCS
Shipping Port	Guangzhou, Ningbo, Shanghai
Shield Type	RS
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Time	3-5 Days

Product features:

In order to obtain low friction torque, high rigidity and good rotation accuracy of bearings, steel balls with small outer diameter are used. The use of hollow shafts ensures lightweight and wiring space. The thin-walled bearing realizes the extremely thin bearing section, and also realizes the miniaturization and lightweight of the product. The variety of products expands its range of uses.

Thin-walled 6700, 6800, 6900 series have a variety of dust cover forms, with flange forms, stainless steel forms, wide forms, etc.

Application scenarios: Thin-wall bearings are widely used in high-precision, high-rotation speed, limited space and lightweight requirements, such as aerospace, robotics, medical equipment, semiconductor equipment and precision instruments. In addition, thin-wall bearings are also used in model aircraft, machine tools, motors and other equipment.

Related Products

Bearings No.	ID(dDB)mm	Weight (KG)	Bearings No.	ID(dDB)mm	Weight (KG)
672ZZ	242	0.0001	672RS	242	0.0001
6700ZZ	10154	0.002	6700RS	10154	0.002
6701ZZ	12184	0.003	6701RS	12184	0.003
6702ZZ	15214	0.004	6702RS	15214	0.004
6703ZZ	17234	0.004	6703RS	17234	0.004
6704ZZ	20274	0.006	6704RS	20274	0.006
6705ZZ	25324	0.007	6705RS	25324	0.007
6706ZZ	30374	0.009	6706RS	30374	0.009
6707ZZ	35444	0.015	6707RS	35444	0.015
6708ZZ	40506	0.023	6708RS	40506	0.023
6709ZZ	45556	0.03	6709RS	45556	0.03
6710ZZ	50626	0.045	6710RS	50626	0.045

Maintenance Procedure

1. Installation and removal of bearings must be carried out with caution.

For different types and sizes of thin-walled deep groove ball bearings, the installation methods and tools are also different. Here are some basic installation methods and precautions that are generally applicable.

1)Do not apply excessive force to install the balls. This will cause local overload on the balls and the contact surface, leading to premature failure of the bearing.

2)Do not use hard tools, such as hammers or screwdrivers, to strike the surface of the bearing. This will cause the outer ring of the bearing to break or crack.
