Deep Groove Ball Bearing

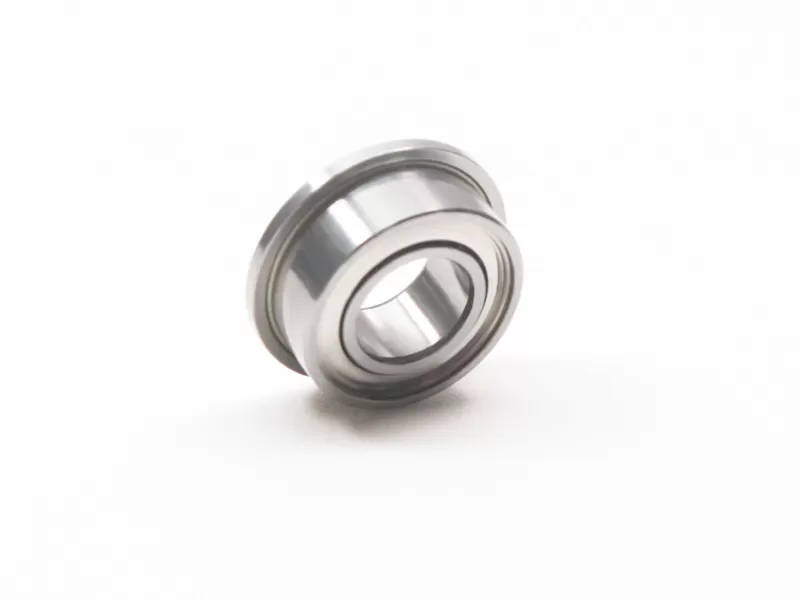

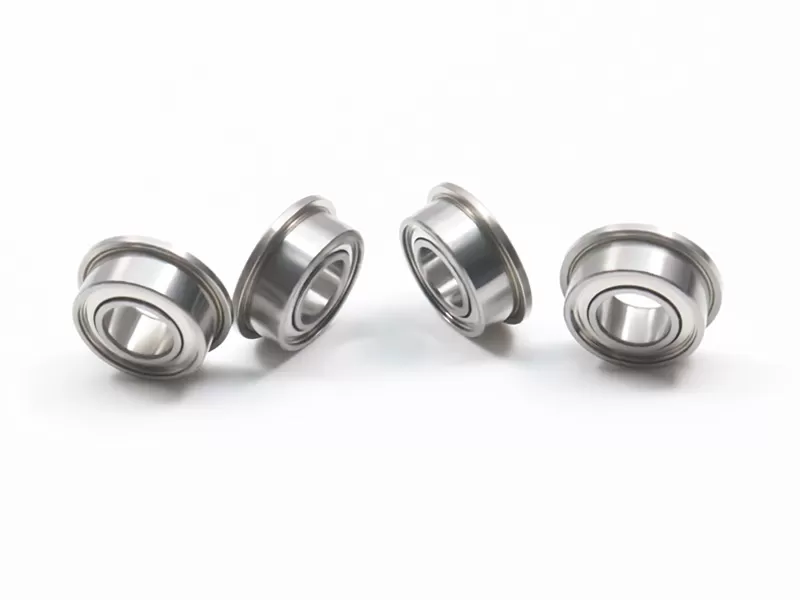

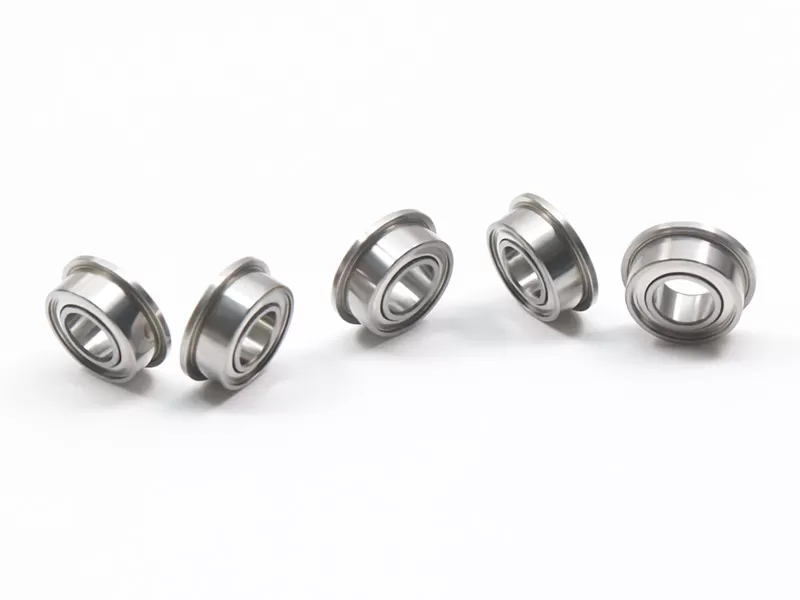

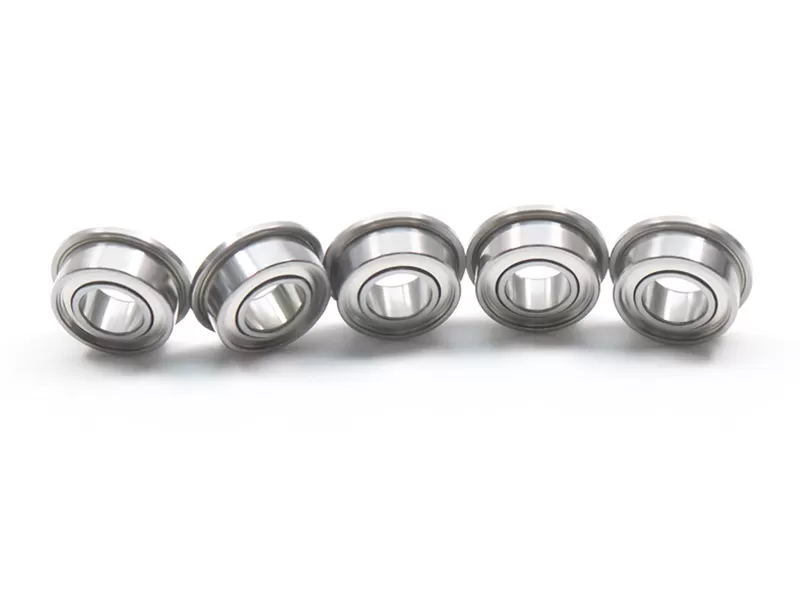

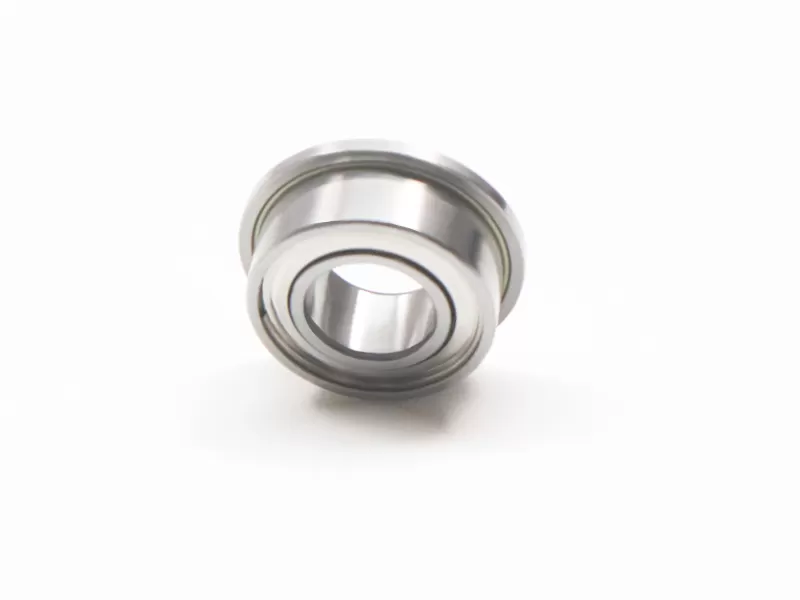

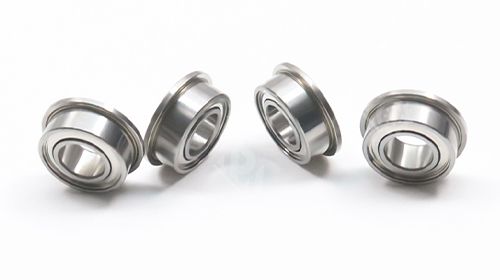

MF105ZZ Miniature Flange Ball Bearing its dimensions are 5x10x4 mm，making it perfectly suited for compact assembly structures.
Model number:MF105ZZ
Size: 5x10x4mm
weight: 0.0013KG
MOQ: 100 PCS
Lead time: normally 3-5 days
Specification
MF105ZZ bearing is a miniature deep groove ball bearing with flanges, featuring low friction and high rotational speeds. It finds extensive applications across various fields, primarily including:Motors and fans in electronic devices and smart home appliances.
Technical parameter:
| Model Number | MF105ZZ |
| Size | 5x10x4mm |
| Weight | 0.0013 KG |
| Material | chrome steel Gcr15 |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Dynamic Load Rating | 0.168 lbf |
| Static Load Rating | 0.43 lbf |
| Max Speed (Grease Lubrication) | 50000 RPM |
| Shield Type | ZZ |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Manufactured from high-quality GCr15 bearing steel and equipped with a dual-metal dust cover (ZZ), it effectively blocks contaminants and extends service life.
It can operate within a temperature range of -30°C to 110°C, adapting to various working environments.
Adhering to the ABEC-1 precision standard, it ensures stable and low-noise operation. With its excellent cost-performance ratio, it provides reliable support for
compact precision machinery, making it an ideal choice.
Related Products

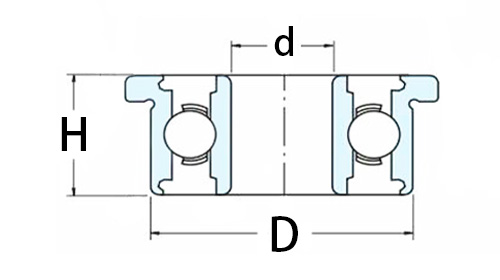

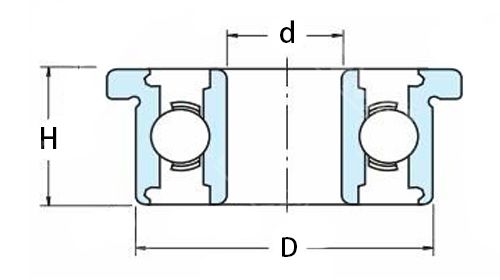

| Model No. | d | D | H | m |
| MF63-2Z | 3 mm | 6 mm | 2.5 mm | 0.28 g |
| MF83-2Z | 3mm | 8 mm | 3mm | 0.67 g |
| MF74-2Z | 4 mm | 7 mm | 2.5mm | 0.33 g |
| MF84-2Z | 4 mm | 8mm | 3 mm | 0.54g |
| MF104-2Z | 4 mm | 10 mm | 4 mm | 1.33 g |
| MF85-2Z | 5 mm | 8mm | 2.5mm | 0.34 g |
| MF95-2Z | 5mm | 9 mm | 3 mm | 0.58g |
| MF105-2Z | 5 mm | 10mm | 4 mm | 1.26 g |
| MF115-2Z | 5mm | 11 mm | 4 mm | 0.81g |
| MF106-2Z | 6 mm | 10mm | 3mm | 0.7g |
| MF126-2Z | 6 mm | 12 mm | 4 mm | 1.66 g |
| MF117-2Z | 7 mm | 11 mm | 3 mm | 0.71g |
| MF128-2Z | 8 mm | 12 mm | 3.5mm | 0.99 g |
Main uses
Suitable for small fan motors, encoders, and other precision electronic devices, as well as micro drive systems (including stepper motors and micro reducers), remote-controlled models, and lightweight automation equipment components. Its compact size, high speed, excellent sealing performance, and flange-mounted positioning advantages make it an ideal choice for these applications.
