The 63800 bearing is widely used in various fields. Here are some common areas:
Household appliances, power tools, sports equipment, electronic devices, mechanical equipment, precision instruments, bicycles, etc.

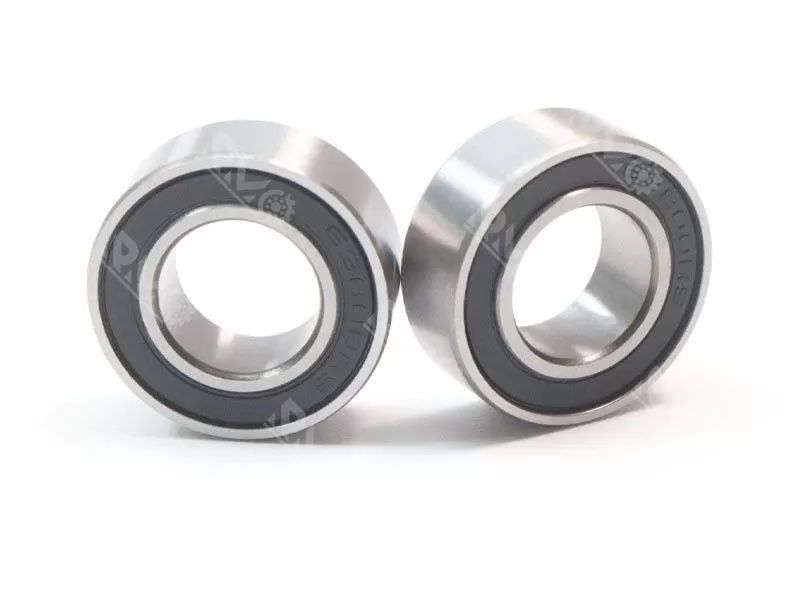

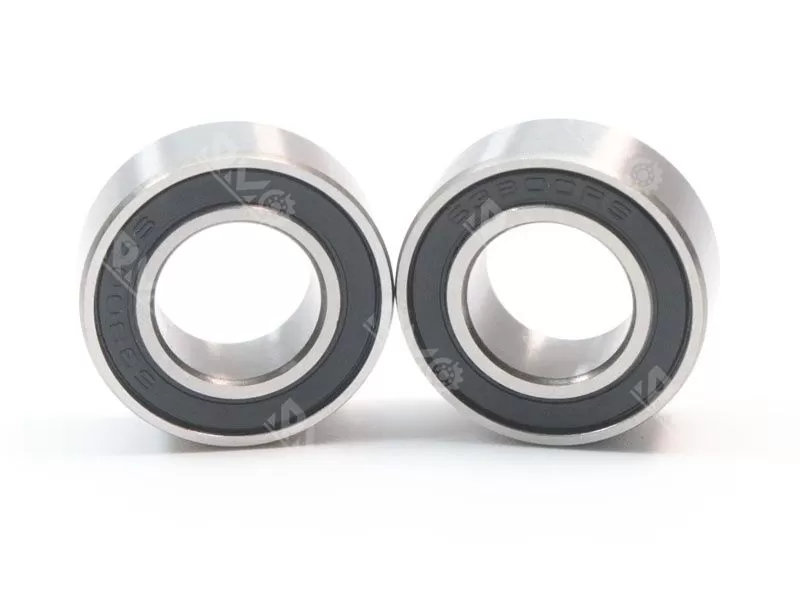

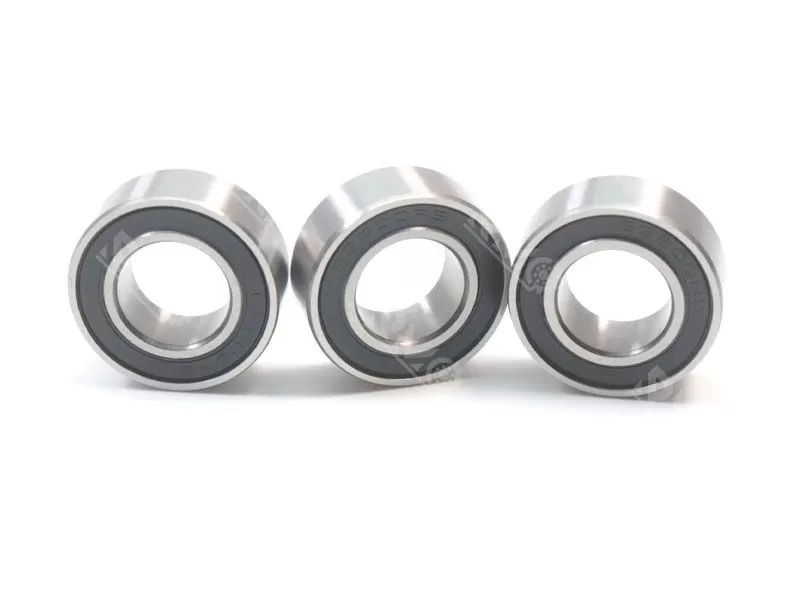

Deep Groove Ball Bearing

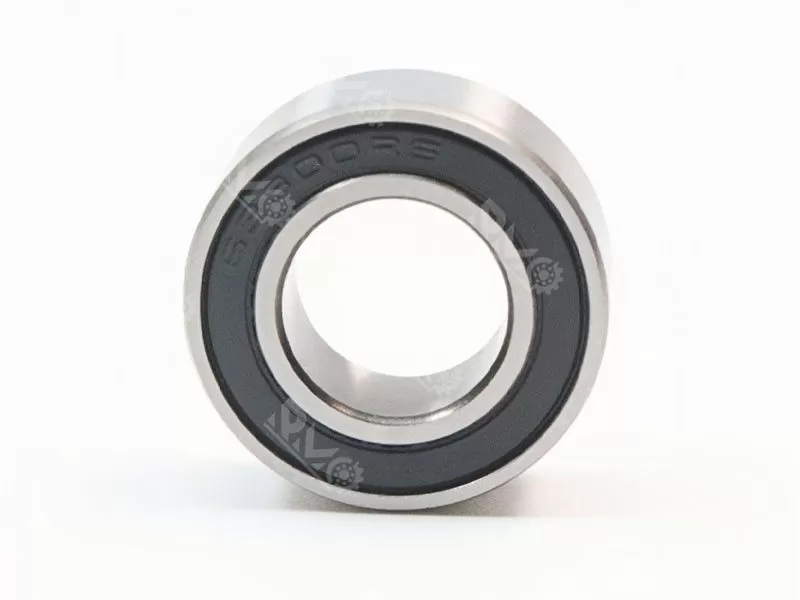

Product name: 63800RS
Size: 10x19x7mm
Material: chrome steel Gcr15
weight: 0.007KG
MOQ: 50 PCS
Lead time: normally 3-5 days
Specification
Package: Plastic tube or single box+Carton+Pallet
Shipping Port: Guangzhou, Ningbo, Shanghai
Payment: 100% T/T or 30% T/T before production, 70% before delivery
Thin-walled bearings: They are a type of bearing that has achieved an extremely thin cross-section and miniaturized, lightweight design. Generally, they are classified into different sealing forms, such as rubber seal - RS, metal seal - ZZ, etc. Small outer diameter steel balls are used to obtain low friction torque, high rigidity, and good rotational accuracy. Meanwhile, the hollow shaft design in thin-walled bearings ensures lightweight and wiring space.
Product features:
In order to obtain low friction torque, high rigidity and good rotation accuracy of bearings, steel balls with small outer diameter are used. The use of hollow shafts ensures lightweight and wiring space. The thin-walled bearing realizes the extremely thin bearing section, and also realizes the miniaturization and lightweight of the product. The variety of products expands its range of uses.
Thin-walled 6700, 6800, 6900 series have a variety of dust cover forms, with flange forms, stainless steel forms, wide forms, etc.
Related Products

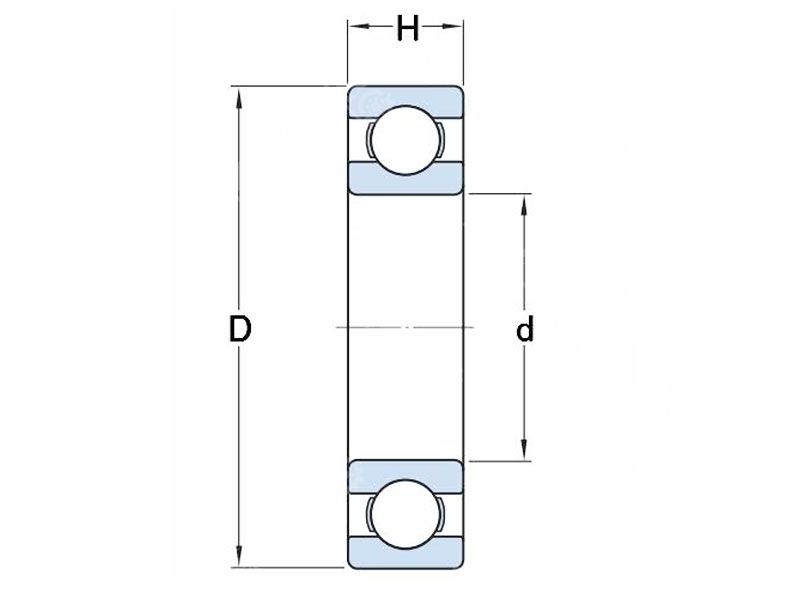

| Model No. | d | D | H | m |
| 619/9 | 9 mm | 20 mm | 6 mm | 7.2 g |
| 609 | 9 mm | 24 mm | 7 mm | 13.5 g |
| 629 | 9 mm | 26 mm | 8 mm | 18 g |
| 639 | 9 mm | 30 mm | 10 mm | 33.5 g |
| 61700 | 10 mm | 15 mm | 3 mm | 1.4 g |
| 61800 | 10 mm | 19 mm | 5 mm | 4.8 g |
| 63800 | 10 mm | 19 mm | 7 mm | 6.8 g |
| 61900 | 10 mm | 22 mm | 6 mm | 8.9 g |
| 6000 | 10 mm | 26 mm | 8 mm | 17.5 g |
| 6200 | 10 mm | 30 mm | 9 mm | 29 g |
| 6300 | 10 mm | 35 mm | 11 mm | 50.5 g |
| 61701 | 12 mm | 18 mm | 4 mm | 2.7 g |
| 61801 | 12 mm | 21 mm | 5 mm | 5.4 g |
| 63801 | 12 mm | 21 mm | 7 mm | 7.6 g |
Application scenarios
The 63800 bearing is widely used in various fields. Here are some common areas:
Household appliances, power tools, sports equipment, electronic devices, mechanical equipment, precision instruments, bicycles, etc.
