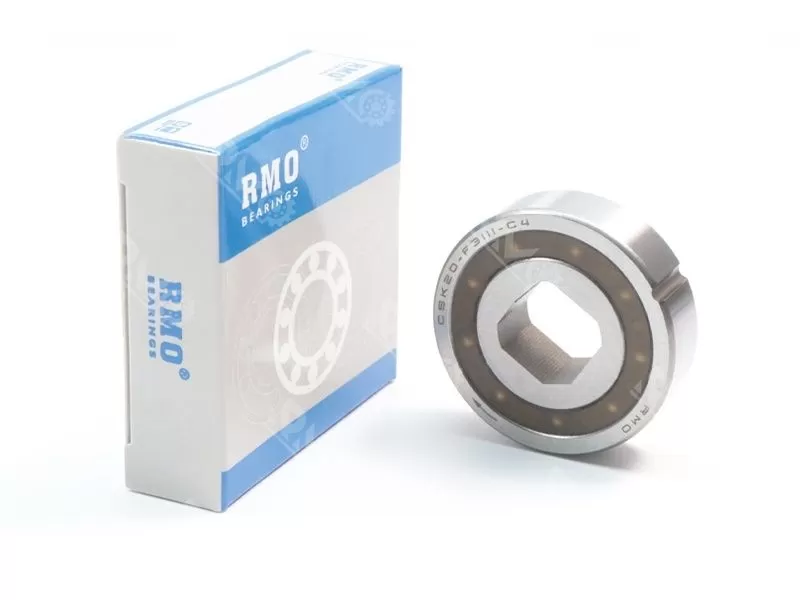

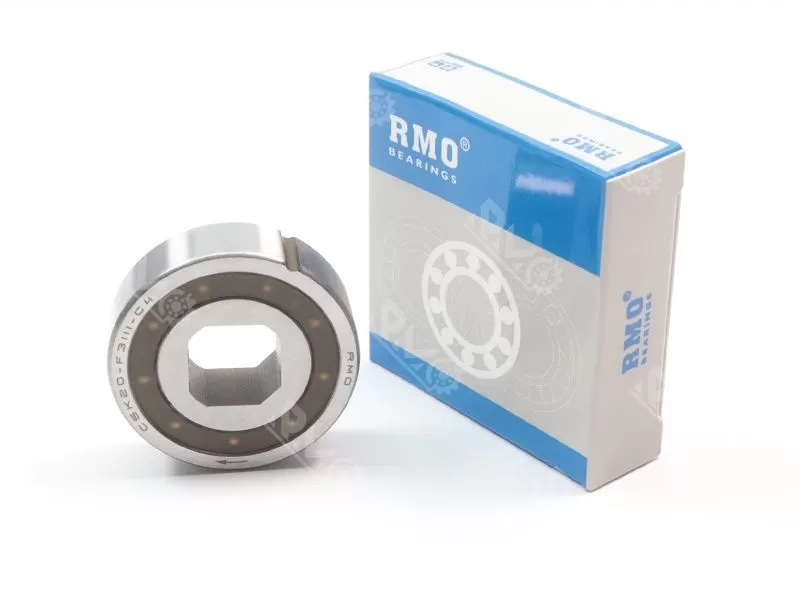

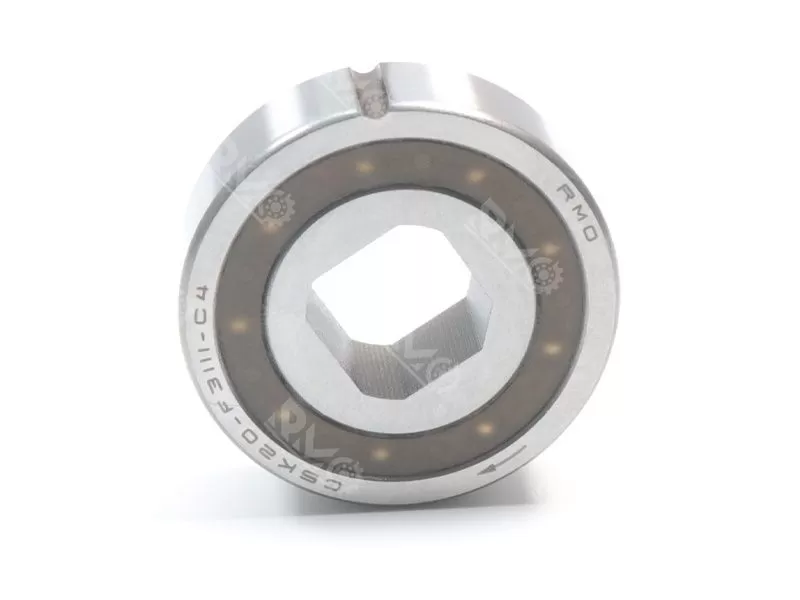

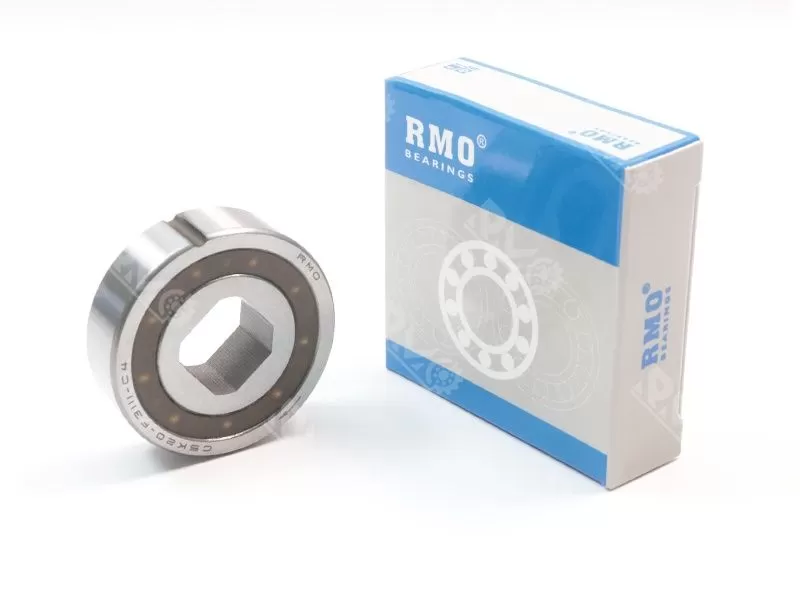

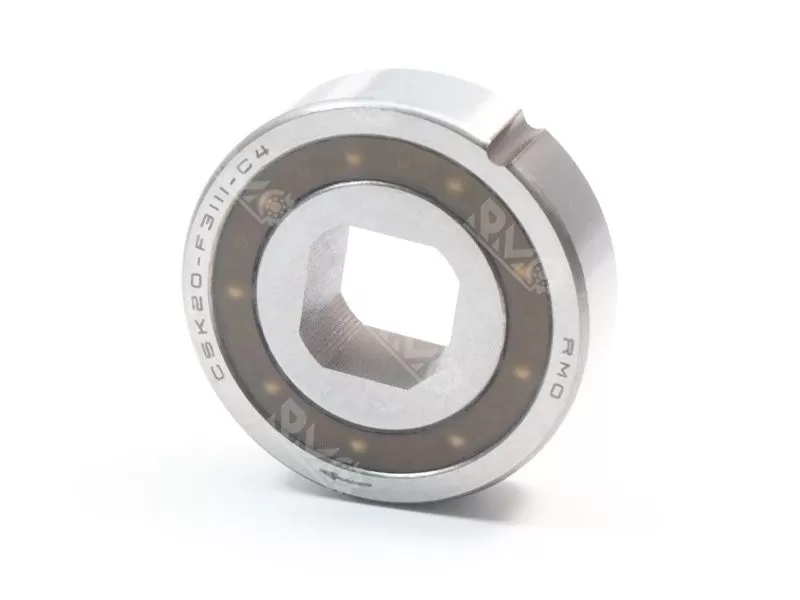

CSK20-F3111-C4 one-way ball bearing

One-way deep groove ball bearings can also be called one-way clutch, that is, only a single aspect of transmission.


Model No: CSK20-F3111-C4

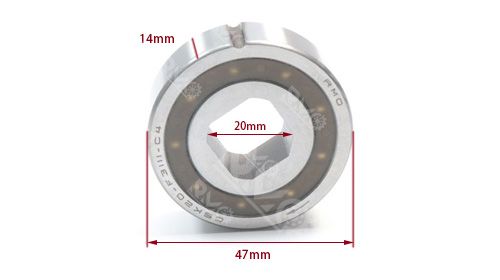

Size: 20x47x14mm

Material: chrome steel.Gcr15.

Weight: 0.13KG

Lead time: 3-5 days

Shipping Port: GuangZhou, NingBo, ShangHai

Specification

Brand name: famous brand/RMO/Neutral/OEM

MOQ: 10pcs

Package: Plastic Tube/single box+Carton+Pallet

Payment terms: 100% T/T, or 30% T/T in advance, 70% before delivery.


One-way deep groove ball bearings can only drive in a single aspect, when the power source drives the passive element, only a single direction of transmission, if the power source changes aspects (such as clockwise to counterclockwise direction), the transmission of the passive element will stop driving.


Bearing application:

CSK series one-way rotary ball bearings by standard dimensions of deep groove ball bearings and internal special-shaped stop block and special structure cage combination, has the characteristics of strong function, compact structure, suitable for small and medium torque applications, widely used in check, feed and other mechanisms, such as hydraulic machinery, printing machinery and textile machinery.


Related Products

Bearings NO.ID(d*D*B)mmWeight (KG)Bearings NO.ID(d*D*B)mmWeight (KG)
CSK88*22*90.015CSK2020*47*140.11
CSK1010*30*90.03CSK2525*52*150.14
CSK1212*32*100.04CSK3030*62*160.21
CSK1515*35*110.05CSK3535*72*170.3
CSK1717*40*120.07CSK4040*80*180.5
