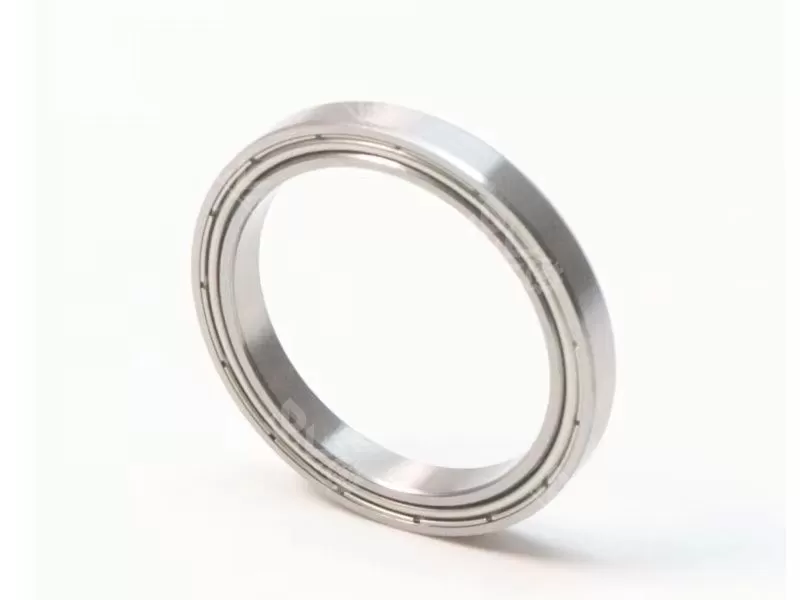

6705ZZ 61705 thin-wall ball bearings

6705ZZ thin-wall metal sealed deep groove ball bearing size 25x32x4mm, high speed with no noise.

Inquire Now Next Product

Specification

Product Name	thin-wall deep groove ball bearing 6705ZZ 61705

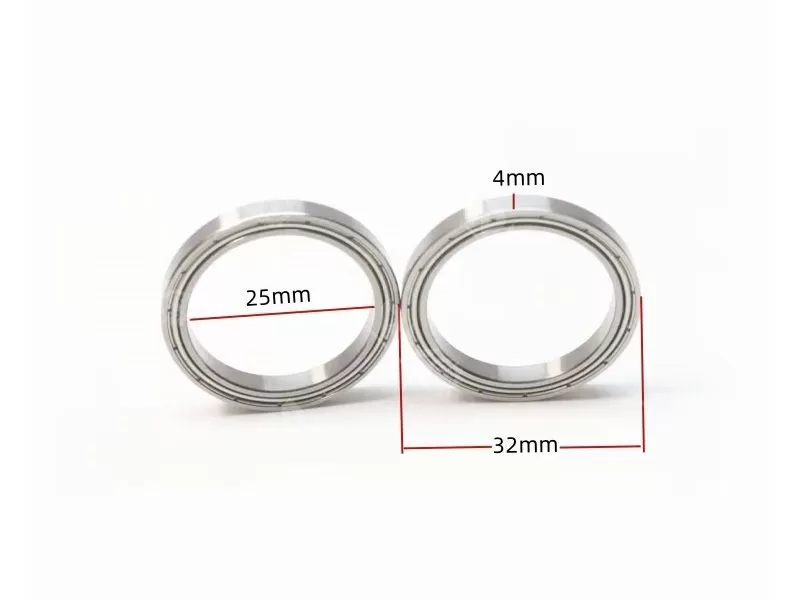

Size	25324mm
material	Chrome Steel
Precision	P0

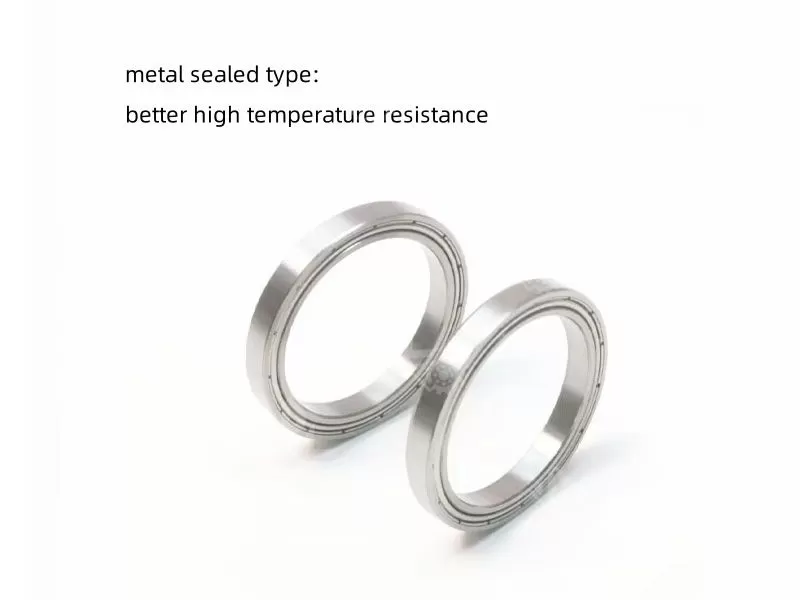

Sealing	Open, Z, ZZ, RZ,2RZ,RS, 2RS
Service	OEM & ODM service
Delivery date	Normally ready goods and stock within 3-5 days
Payment terms	100% T/T, or 30% T/T before production, 70% before delivery.
Application	bicycle, Aerospace field, automobile manufacturing, electronic equipment, medical equipment, etc.
Package	Industrial package or according to buyers' requirement
Details	Deep groove ball bearings are simple, easy to use, is the largest production volume, most widely used of a class of bearings. It is mainly used for a bear radial load, but also bear certain axial load. When the bearing radial clearance increased when the function with angular contact bearings can bear large axial load.
Special properties	1. High accuracy 2. Low noise 3. Long life 4. Can be customized according to your needs 5. Can provide small & miniature standard and non-standard ball bearings.

China famous brand metal sealed bearing 6705 61705 deep groove ball bearing 6705ZZ 6705-2Z size 25x32x4mm

Related Products

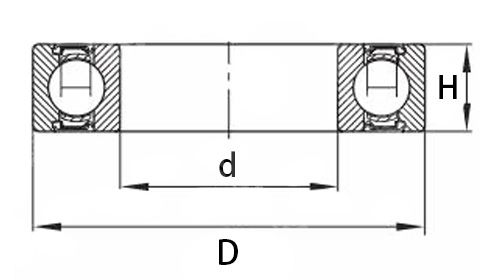

Bearings No.	ID(dDB)mm	Weight (KG)	Bearings No.	ID(dDB)mm	Weight (KG)
672ZZ	242	0.0001	672ZZ	242	0.0001
6700ZZ	10154	0.002	6700RS	10154	0.002
6701ZZ	12184	0.003	6701RS	12184	0.003
6702ZZ	15214	0.004	6702RS	15214	0.004
6703ZZ	17234	0.004	6703RS	17234	0.004
6704ZZ	20274	0.006	6704RS	20274	0.006
6705ZZ	25324	0.007	6705RS	25324	0.007
6706ZZ	30374	0.009	6706RS	30374	0.009
6707ZZ	35444	0.015	6707RS	35444	0.015
6708ZZ	40506	0.023	6708RS	40506	0.023
6709ZZ	45556	0.03	6709RS	45556	0.03
6710ZZ	50626	0.045	6710RS	50626	0.045

Maintenance Procedure:

1. Installation and removal of bearings must be carried out with caution.

For different types and sizes of thin-walled deep groove ball bearings, the installation methods and tools are also different. Here are some basic installation methods and precautions that are generally applicable.

1)Do not apply excessive force to install the balls. This will cause local overload on the balls and the contact surface, leading to premature failure of the bearing.

2)Do not use hard tools, such as hammers or screwdrivers, to strike the surface of the bearing. This will cause the outer ring of the bearing to break or crack.
