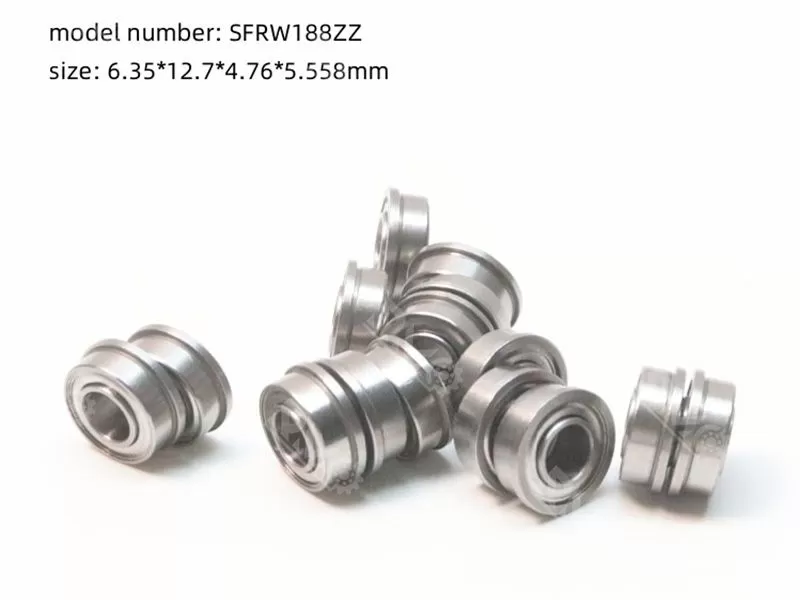

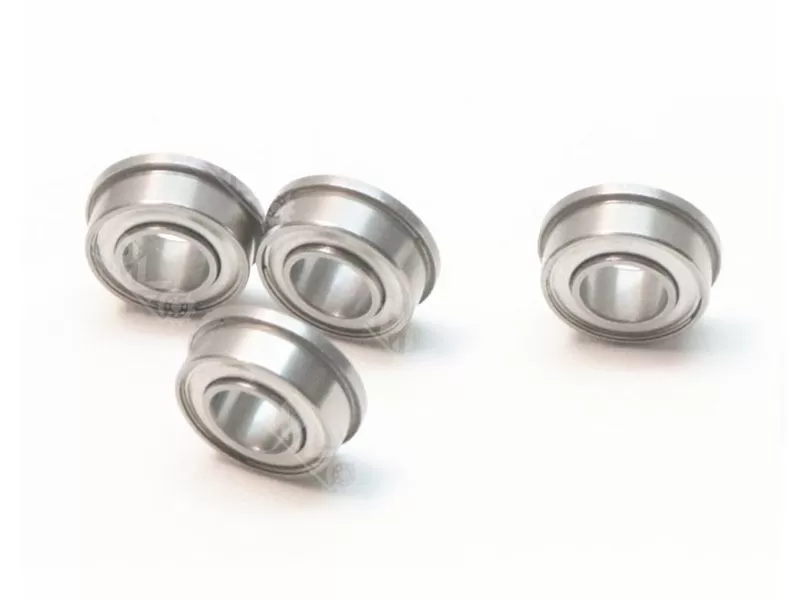

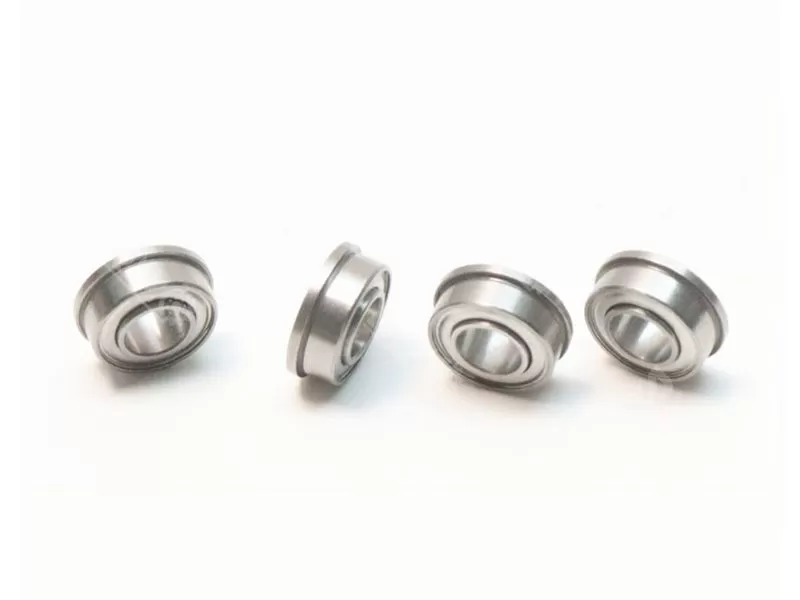

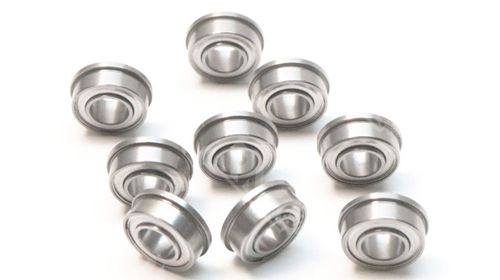

Flange Bearing SFRW188 FRW188ZZ Deep Groove Ball Bearing

Inch size stainless steel flange bearing SFRW188 FRW188ZZ P6 grade quality 0.25x0.5x0.1875 inch

Model number: Deep groove ball bearing SFRW188 FRW188ZZ RW188

Size: 6.35x12.7x4.76x5.558x13.89 mm

Materials: Gcr15.chrome steel

Weight: 0.0017KG

MOQ:100pcs

Inquire Now Next Product

Specification

SFRW188 and FRW188ZZ are both deep groove ball flange bearings. The former features stainless steel construction with an open design and an extended inner ring, while the latter incorporates metal dust shields on both sides. Both bearings offer high precision and are suitable for precision installation scenarios, making them ideal for equipment such as precision instruments and micro motors. They respectively meet the demands for high-speed precision and dust protection.

Flange Bearing SFRW188 FRW188ZZ Deep Groove Ball Bearing

Technical parameter:

Model Number	Deep groove ball bearing SFRW188 FRW188ZZ RW188
Size	6.35x12.7x4.76x5.558x13.89 mm
Weight	0.0017KG
Material	Gcr15.chrome steel
Clearance	C2 C0 C3 C4
Precision Grade	p0 p6 p5 p4
Dynamic Load Rating	1080 lbf
Static Load Rating	438 lbf
Max Speed (Grease Lubrication)	56000 RPM
Shield Type	ZZ
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Time	3-5 Days

Details:

Deep groove ball bearings are simple, easy to use, is the largest production volume, most widely used of a class of bearings. It is mainly used for a bear radial load, but also bear certain axial load. When the bearing radial clearance increased when the function with angular contact bearings can bear large axial load.

Special properties:

1. High accuracy
2. Low noise
3. Long life
4. Can be customized according to your needs
5. Can provide small & miniature standard and non-standard ball bearings.

Related Products

Flange Bearing SFRW188 FRW188ZZ Deep Groove Ball Bearing

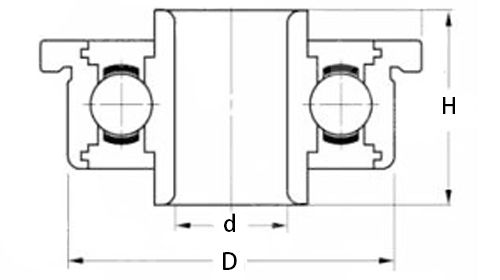

Model No.	d	D	H	m
FR0	1.19 mm	3.97 mm	1.59 mm	0.11 g
FR1	1.4 mm	4.76 mm	1.98 mm	0.2 g
FR1-4	1.98 mm	6.35 mm	2.38 mm	0.41 g
FR133	2.38 mm	4.76 mm	1.59 mm	0.13 g
FR133ZZS	2.38 mm	4.76 mm	0 mm	0.19 g
FR1-5	2.38 mm	7.94 mm	2.78 mm	0.68 g
FR144	3.18 mm	6.35 mm	2.38 mm	0.31 g
FR2-5	3.18 mm	7.94 mm	2.78 mm	0.62 g
FR2-6	3.18 mm	9.53 mm	2.78 mm	1.04 g
FR2	3.18 mm	9.53 mm	9.7 mm	1.51 g
FR155	3.97 mm	7.94 mm	2.78 mm	0.59 g
FR156	4.76 mm	7.94 mm	2.78 mm	0.47 g
FR166	4.76 mm	9.53 mm	3.18 mm	0.9 g
FR3	4.76 mm	7 mm	4.98 mm	2.97 g
FR168B	6.35 mm	9.53 mm	3.18 mm	0.66 g
FR188	6.35 mm	12.7 mm	3.18 mm	1.64 g
FR4B	6.35 mm	15.88 mm	4.98 mm	4.78 g
FR1810	7.94 mm	12.7 mm	3.97 mm	1.71 g
FR6	9.53 mm	22.23 mm	7.14 mm	14 g
FR8	12.7 mm	28.58 mm	7.94 mm	23 g

Main applications

Flange bearings are suitable for various industrial equipment, small rotary motors, office machinery, micro motor soft starters, pressure rotors, dental drills, hard disk motors, stepper motors, video recorder magnetic drums, toy models, fans, pulleys, rollers, transmission equipment, entertainment equipment, robots, medical devices, office machinery, testing instruments, deceleration and speed change devices, motor optical and imaging equipment, card readers, electromechanical equipment, precision machinery, power tools and toys, etc.
