Deep Groove Ball Bearing
It is a bearing that realizes an extremely thin bearing section and a miniaturized and lightweight design.

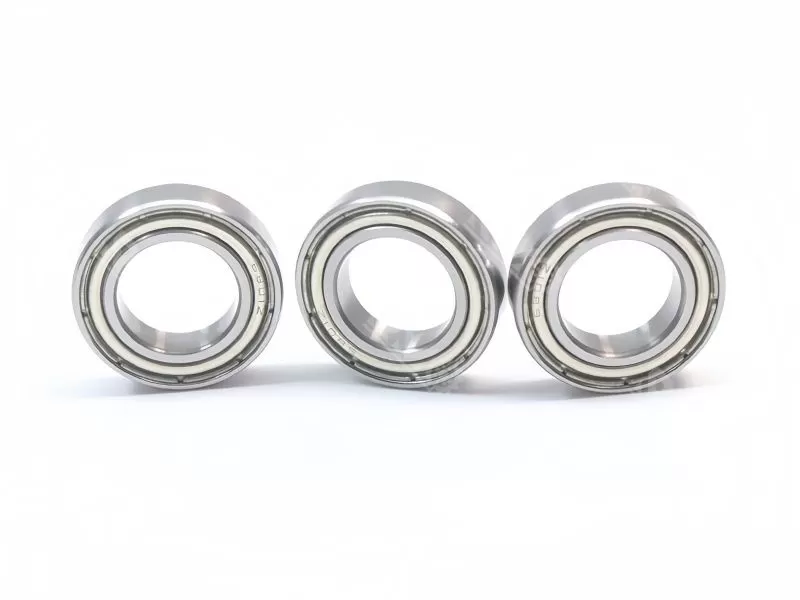

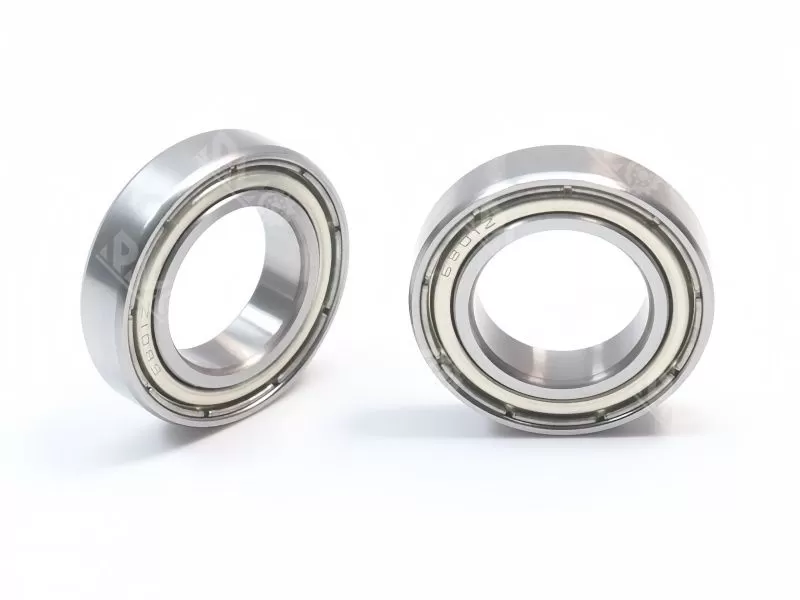

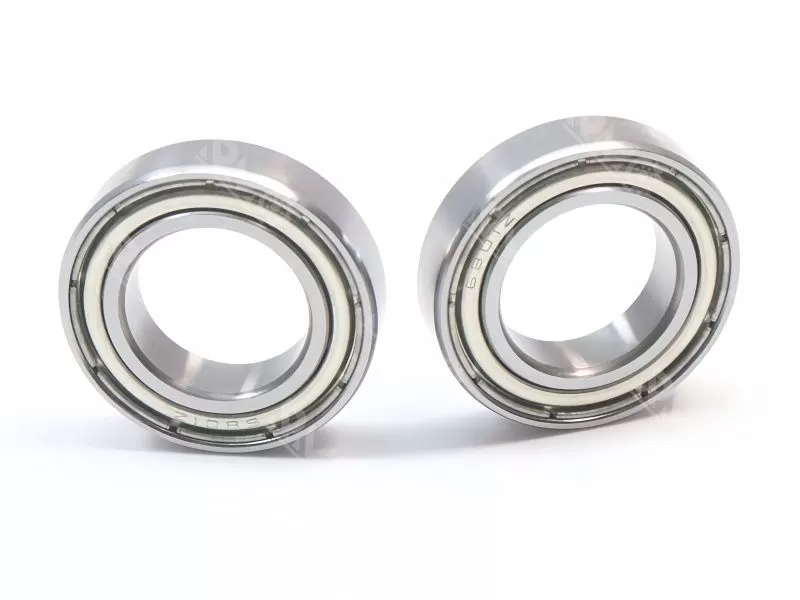

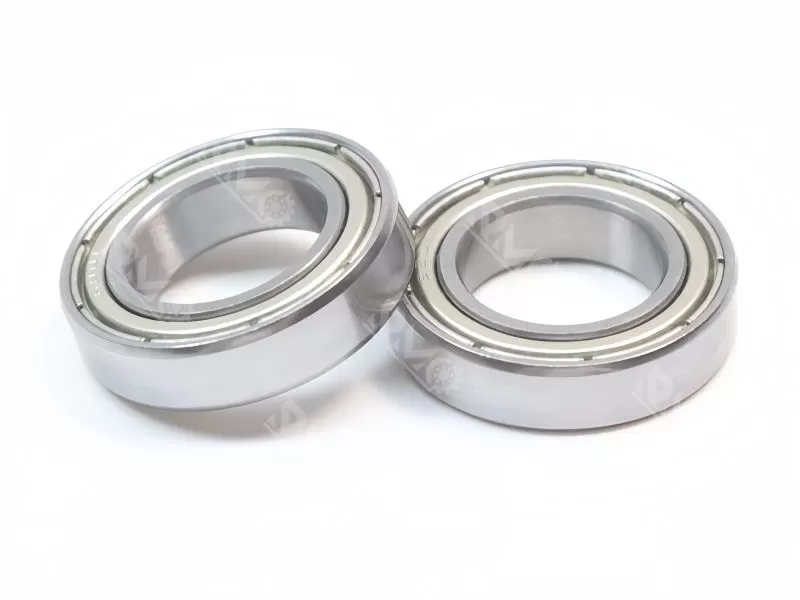

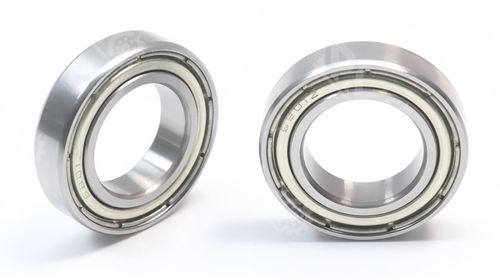

Product name: 6801ZZ bearing
Size: 12x21x5mm
Material: chrome steel Gcr15
weight: 0.006KG
MOQ: 50 PCS
Lead time: normally 3-5 days
Specification

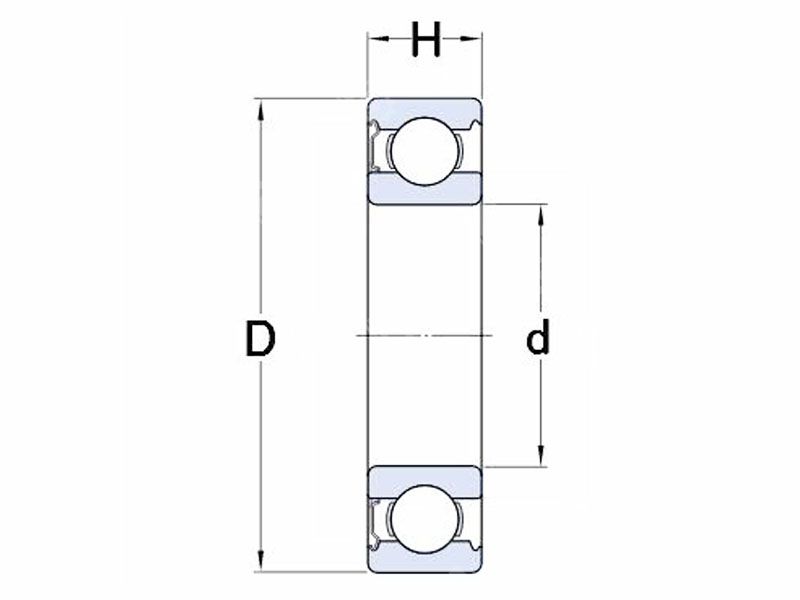

6801ZZ Thin-Wall Ball Bearing features an inner diameter of 12mm, outer diameter of 21mm, and thickness of 5mm. Equipped with metal dust shields on both sides and constructed from chrome steel, it offers low friction, high precision, and the ability to withstand both radial and axial loads. This bearing is suitable for applications with limited space, such as robotics and consumer electronics.
Technical parameter:
| Model Number | 6801ZZ bearing |
| Size | 12x21x5mm |
| Weight | 0.006KG |
| Material | chrome steel Gcr15 |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Dynamic Load Rating | 1.74 lbf |
| Static Load Rating | 0.915 lbf |
| Max Speed (Grease Lubrication) | 43000 RPM |
| Shield Type | ZZ |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Taime | 3-5 Days |
Product features:
In order to obtain low friction torque, high rigidity and good rotation accuracy of bearings, steel balls with small outer diameter are used. The use of hollow shafts ensures lightweight and wiring space. The thin-walled bearing realizes the extremely thin bearing section, and also realizes the miniaturization and lightweight of the product. The variety of products expands its range of uses.
Thin-walled 6700, 6800, 6900 series have a variety of dust cover forms, with flange forms, stainless steel forms, wide forms, etc.
Related Products
| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| 681xzz | 1.5*4*2 | 0.0001 | 6811ZZ | 55*72*9 | 0.081 |
| 681 | 1*3*1 | 0.0001 | 6812ZZ | 60*78*10 | 0.106 |
| 681X | 1.5*4*1.2 | 0.0001 | 6813ZZ | 65*85*10 | 0.13 |
| 682ZZ | 2*5*2.3 | 0.0002 | 6814ZZ | 70*90*10 | 0.14 |
| 682XZZ | 2.5*6*2.6 | 0.0003 | 6815ZZ | 75*95*10 | 0.145 |
| 683 | 3*7*2 | 0.0005 | 6816ZZ | 80*100*10 | 0.154 |
| 684ZZ | 4*9*4 | 0.0015 | 6817ZZ | 85*110*13 | 0.27 |
| 685ZZ | 5*11*5 | 0.002 | 6818ZZ | 90*115*13 | 0.285 |
| 686ZZ | 6*13*3.5 | 0.002 | 6819ZZ | 95*120*13 | 0.3 |
| 687 | 7*14*3.5 | 0.003 | 6820ZZ | 100*125*13 | 0.313 |
| 688ZZ | 8*16*5 | 0.003 | 6821ZZ | 105*130*13 | 0.325 |
| 689ZZ | 9*17*5 | 0.003 | 6822ZZ | 110*140*16 | 0.515 |
| 6800ZZ | 10*19*5 | 0.005 | 6824ZZ | 120*150*16 | 0.56 |
| 6801ZZ | 12*21*5 | 0.006 | 6826ZZ | 110*140*16 | 0.8 |
| 6802ZZ | 15*24*5 | 0.007 | 6828ZZ | 140*175*18 | 0.85 |
| 6803ZZ | 17*26*5 | 0.008 | 6830 | 150*190*20 | 1.16 |
| 6804ZZ | 20*32*7 | 0.019 | 6832 | 160*200*20 | 1.23 |
| 6805ZZ | 25*37*7 | 0.022 | 6834 | 170*215*22 | 1.63 |
| 6806ZZ | 30*42*7 | 0.026 | 6836 | 180*225*22 | 2.03 |
| 6807ZZ | 35*47*7 | 0.029 | 6838 | 190*240*24 | 2.62 |
| 6808ZZ | 40*52*7 | 0.033 | 6840 | 200*250*24 | 2.73 |
| 6809ZZ | 45*58*7 | 0.04 | 6844 | 220*270*24 | 3 |
| 6810ZZ | 50*65*7 | 0.052 | 6848 | 240*300*28 | 4.6 |
Application scenarios
Thin-wall bearings are widely used in high-precision, high-rotation speed, limited space and lightweight requirements, such as aerospace, robotics, medical equipment, semiconductor equipment and precision instruments. In addition, thin-wall bearings are also used in model aircraft, machine tools, motors and other equipment.
