Deep Groove Ball Bearing
It is a bearing that realizes an extremely thin bearing section and a miniaturized and lightweight design.

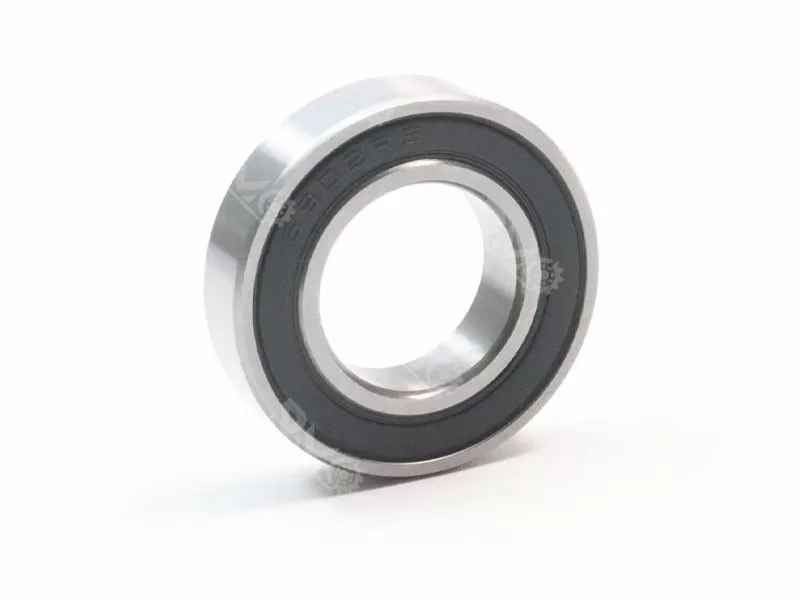

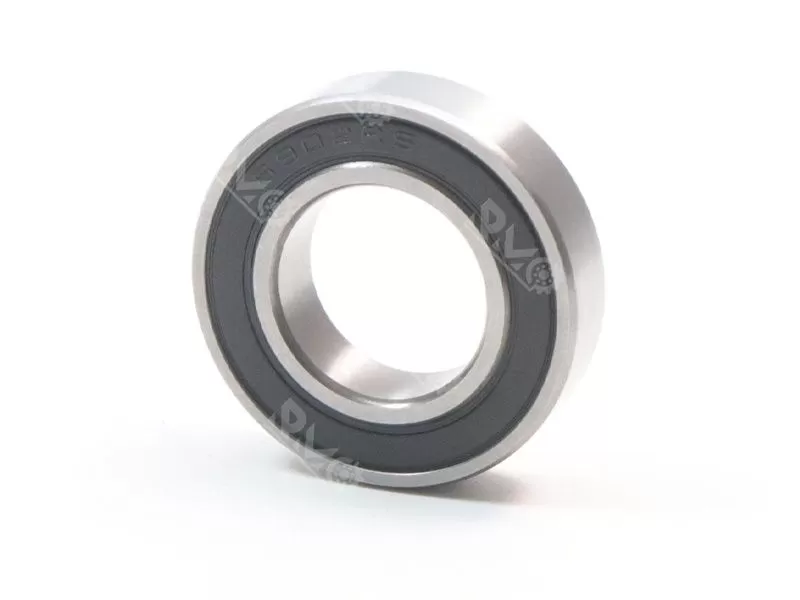

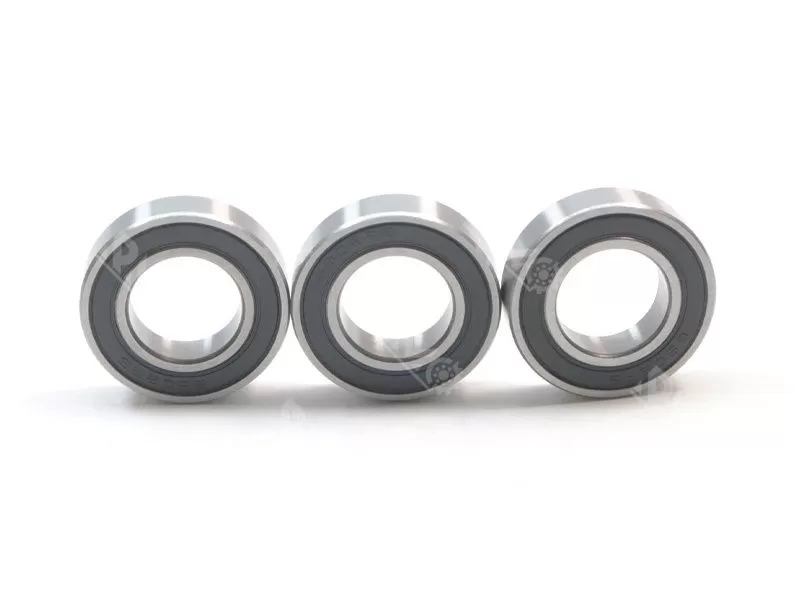

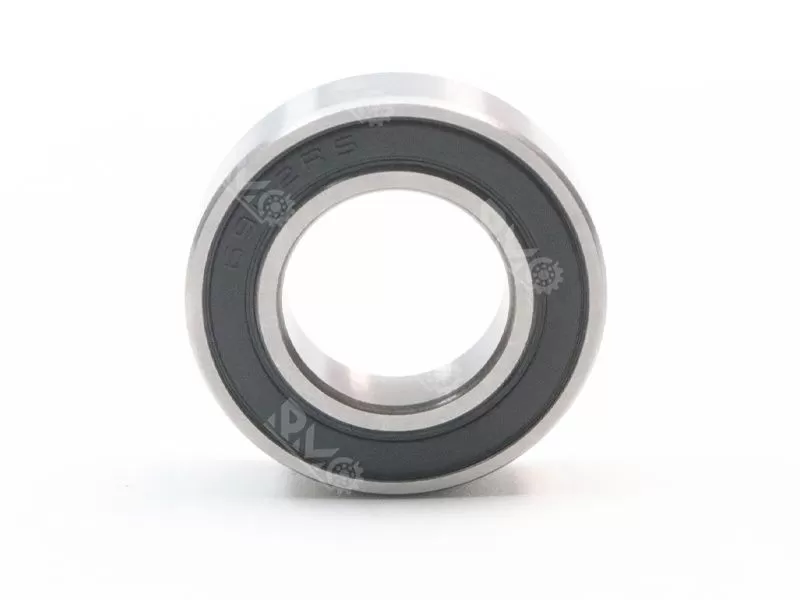

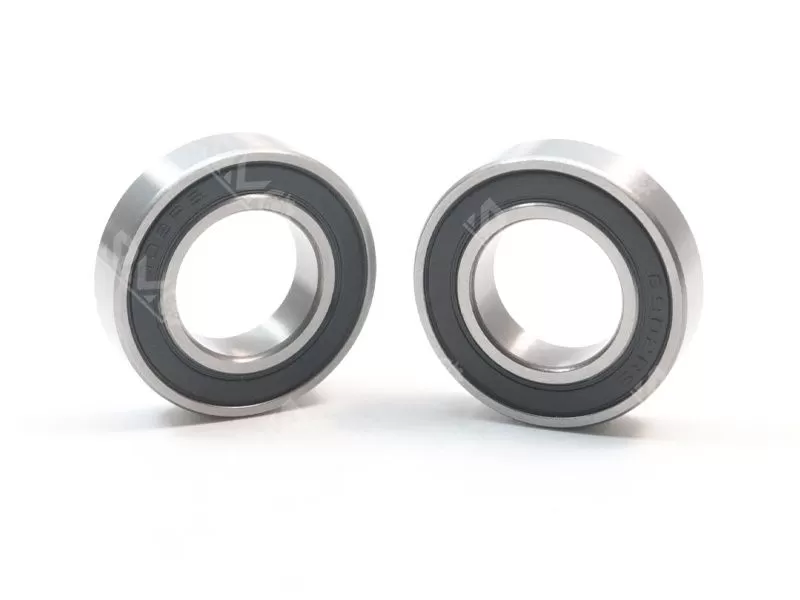

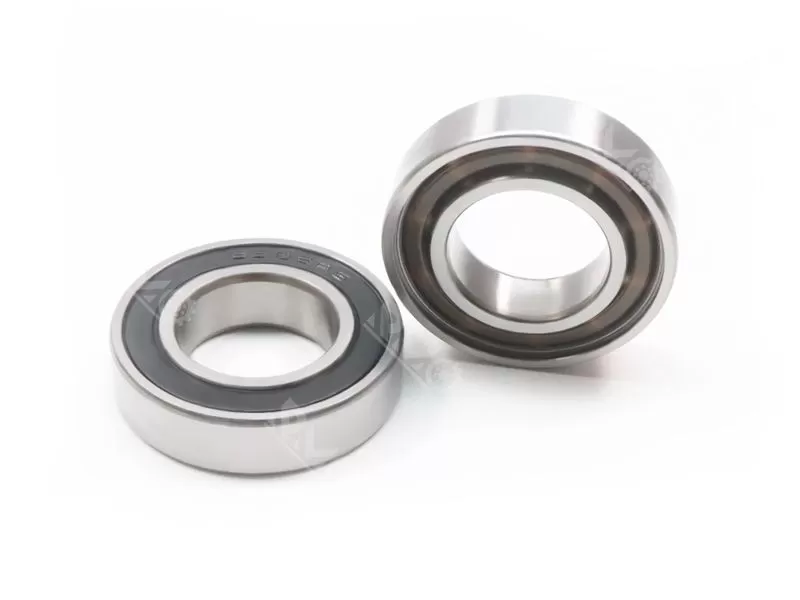

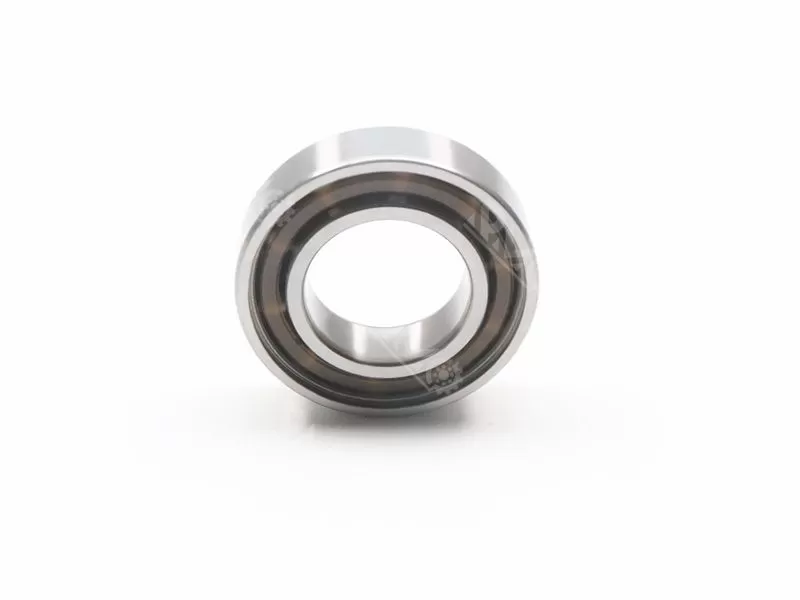

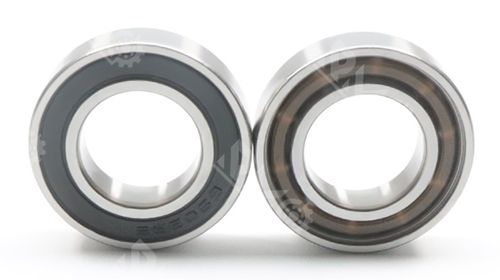

Product name: 6902 2RS thin-wall ball bearing
Size: 15x28x7mm
Material: chrome steel Gcr15
weight: 0.016KG
Static Load: 4.35 lbf
Dynamic Load: 2.26 lbf
Speed Limit: 26,000 RPM
Lead time: normally 3-5 days
Specification
Package: Plastic tube or single box+Carton+Pallet
MOQ: 100 PCS
Shipping Port: Guangzhou, Ningbo, Shanghai
Payment: 100% T/T or 30% T/T before production, 70% before delivery
Product features:
In order to obtain low friction torque, high rigidity and good rotation accuracy of bearings, steel balls with small outer diameter are used. The use of hollow shafts ensures lightweight and wiring space. The thin-walled bearing realizes the extremely thin bearing section, and also realizes the miniaturization and lightweight of the product. The variety of products expands its range of uses.
Thin-walled 6700, 6800, 6900 series have a variety of dust cover forms, with flange forms, stainless steel forms, wide forms, etc.
Application scenarios: Thin-wall bearings are widely used in high-precision, high-rotation speed, limited space and lightweight requirements, such as aerospace, robotics, medical equipment, semiconductor equipment and precision instruments. In addition, thin-wall bearings are also used in model aircraft, machine tools, motors and other equipment.
Related Products

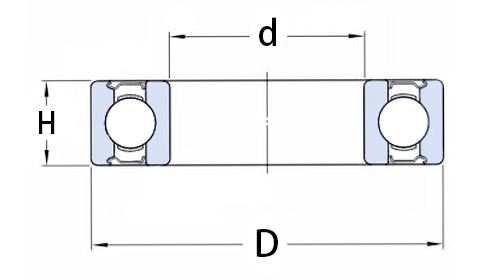

| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| 691 | 1*4*1.6 | 0.0003 | 6911ZZ | 55*80*13 | 0.133 |
| 692ZZ | 2*6*3 | 0.0005 | 6912ZZ | 60*85*13 | 0.185 |
| 693ZZ | 3*8*4 | 0.0008 | 6913ZZ | 65*90*13 | 0.193 |
| 694ZZ | 4*11*4 | 0.002 | 6914ZZ | 70*100*16 | 0.211 |
| 695ZZ | 5*13*5 | 0.002 | 6915ZZ | 75*105*16 | 0.342 |
| 696ZZ | 6*15*5 | 0.002 | 6916ZZ | 80*110*16 | 0.363 |
| 697ZZ | 7*17*5 | 0.004 | 6917ZZ | 85*120*18 | 0.382 |
| 698ZZ | 8*19*6 | 0.005 | 6918ZZ | 90*125*18 | 0.535 |
| 699ZZ | 9*20*6 | 0.008 | 6919ZZ | 95*130*18 | 0.565 |
| 6900ZZ | 10*22*6 | 0.009 | 6920ZZ | 100*140*20 | 0.785 |
| 6901ZZ | 12*24*6 | 0.010 | 6921ZZ | 105*145*20 | 0.816 |
| 6902ZZ | 15*28*7 | 0.015 | 6922ZZ | 110*150*20 | 0.849 |
| 6903ZZ | 17*30*7 | 0.017 | 6924 | 120*165*22 | 1.15 |
| 6904ZZ | 20*37*9 | 0.018 | 6926 | 130*180*24 | 1.52 |
| 6905ZZ | 25*42*9 | 0.036 | 6928 | 140*190*24 | 1.62 |
| 6906ZZ | 30*47*9 | 0.042 | 6930 | 150*210*28 | 2.47 |
| 6907ZZ | 35*55*10 | 0.048 | 6932 | 160*220*28 | 2.61 |
| 6908ZZ | 40*62*12 | 0.074 | 6934 | 170*230*28 | 2.746 |
| 6909ZZ | 45*68*12 | 0.112 | 6936 | 180*250*33 | 4.76 |
| 6910ZZ | 50*72*12 | 0.132 | 6938 | 190*260*33 | 4.98 |
Main uses
6902ZZ/6902-2RS thin-wall ball bearings are suitable for bicycles (e.g., wheel axles, bottom brackets) as well as office equipment, micro motors, laser engraving machines, dental drills, computer cooling fans and other industrial equipment and high-speed, low-noise fields, with their compact structure, ZZ metal shields/2RS rubber seals and stable high-speed operation making them a reliable choice for these scenarios.
