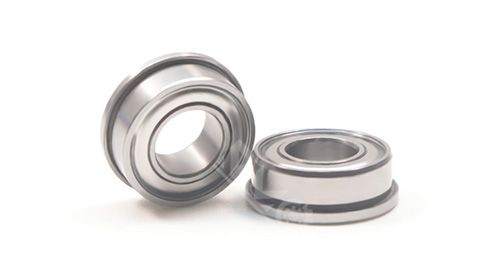

FR188ZZ miniature inch size flange bearings

FR188ZZ miniature inch size flange deep groove ball bearing 6.35*12.7*4.762*13.894mm.

Model number: FR188ZZ

Size: 6.35X12.7x4.76x13.894mm

Materials: chrome steel

Weight: 0.0025KG

Dynamic Load: 1080 lbf

Static Load: 440 lbf

Speed Limit: 50000 RPM

grade level：P0

Lead time: normally 3-5 days

Inquire Now Next Product

Specification

Service: OEM/ODM

Small order: accept

Shipping Port: GUANGZHOU, NINGBO, SHANGHAI

Payment: 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production

FR188ZZ inch size flange bearings1

Details：

Deep groove ball bearings are simple, easy to use, is the largest production volume, most widely used of a class of bearings. It is mainly used for a bear radial load, but also bear certain axial load. When the bearing radial clearance increased when the function with angular contact bearings can bear large axial load.

Special properties：

1. High accuracy

2. Low noise
3. Long life
4. Can be customized according to your needs
5. Can provide small & miniature standard and non-standard ball bearings.

Related Products

FR188ZZ inch size flange bearings

Model No.	d	D	H	m
FR0	1.19 mm	3.97 mm	1.59 mm	0.11 g
FR1	1.4 mm	4.76 mm	1.98 mm	0.2 g
FR1-4	1.98 mm	6.35 mm	2.38 mm	0.41 g
FR133	2.38 mm	4.76 mm	1.59mm	0.13 g
FR133ZZS	2.38 mm	4.76 mm	0 mm	0.19 g
FR1-5	2.38 mm	7.94 mm	2.78 mm	0.68 g
FR144	3.18 mm	6.35 mm	2.38 mm	0.31 g
FR2-5	3.18 mm	7.94 mm	2.78 mm	0.62 g
FR2-6	3.18 mm	9.53 mm	2.78 mm	1.04 g
FR2	3.18 mm	9.53 mm	97mm	1.51 g
FR155	3.97 mm	7.94 mm	2.78 mm	0.59 g
FR156	4.76 mm	7.94 mm	2.78 mm	0.47 g
FR166	4.76 mm	9.53 mm	3.18 mm	0.9 g
FR3	4.76 mm	7mm	4.98 mm	2.97 g
FR168B	6.35 mm	9.53 mm	3.18 mm	0.66 g
FR188	6.35 mm	12.7 mm	3.18 mm	1.64 g
FR4B	6.35 mm	15.88 mm	4.98 mm	4.78 g
FR1810	7.94 mm	12.7 mm	3.97 mm	1.71 g
FR6	9.53 mm	22.23 mm	7.14 mm	14 g
FR8	12.7 mm	28.58 mm	7.94 mm	23 g

Main applications

Flange bearings are suitable for various industrial equipment, small rotary motors, office machinery, micro motor soft starters, pressure rotors, dental drills, hard disk motors, stepper motors, video recorder magnetic drums, toy models, fans, pulleys, rollers, transmission equipment, entertainment equipment, robots, medical devices, office machinery, testing instruments, deceleration and speed change devices, motor optical and imaging equipment, card readers, electromechanical equipment, precision machinery, power tools and toys, etc.

Ball Bearing

Deep Groove Ball Bearing

FR188ZZ miniature inch size flange bearings
