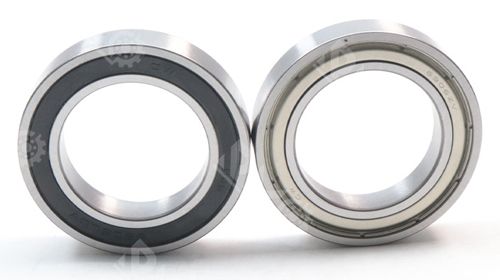

Deep Groove Ball Bearing

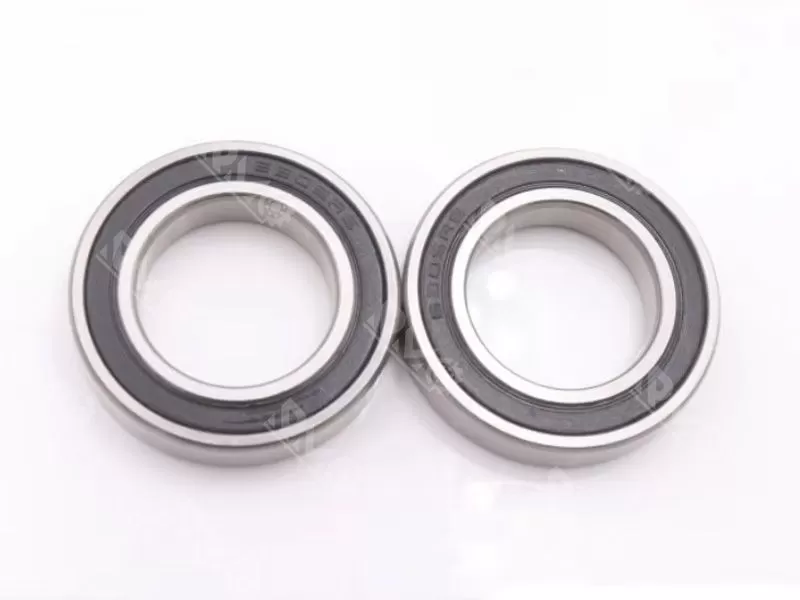

6906ZZ thin-section bearing 30*47*9mm, double sealed, waterproof and dustproof. have a large stock, fast delivery time.
Model number:6906 ZZ 2RS thin-section deep groove ball bearing
Size: 30x47x9mm
Material: chrome steel Gcr15
weight: 0.052 KG
MOQ: 100 PCS
Specification
6906ZZ Thin-Section Bearing adopts a single-row deep groove structure, with a thin-wall design balancing light weight and high rigidity, stainless steel or bearing steel inner/outer rings paired with precision raceways, a steel cage to separate steel balls, double metal shields for dust protection, and a standardized cylindrical bore suitable for compact installation scenarios, capable of stably bearing radial and small axial loads.
Technical parameter:
| Model Number | 6906 ZZ 2RS thin-section deep groove ball bearing |
| Size | 30x47x9mm |
| Weight | 0.052 KG |
| Material | chrome steel Gcr15 |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Dynamic Load Rating | 7.25 lbf |
| Static Load Rating | 5 lbf |
| Max Speed (Grease Lubrication) | 17000 RPM |
| Shield Type | ZZ |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |

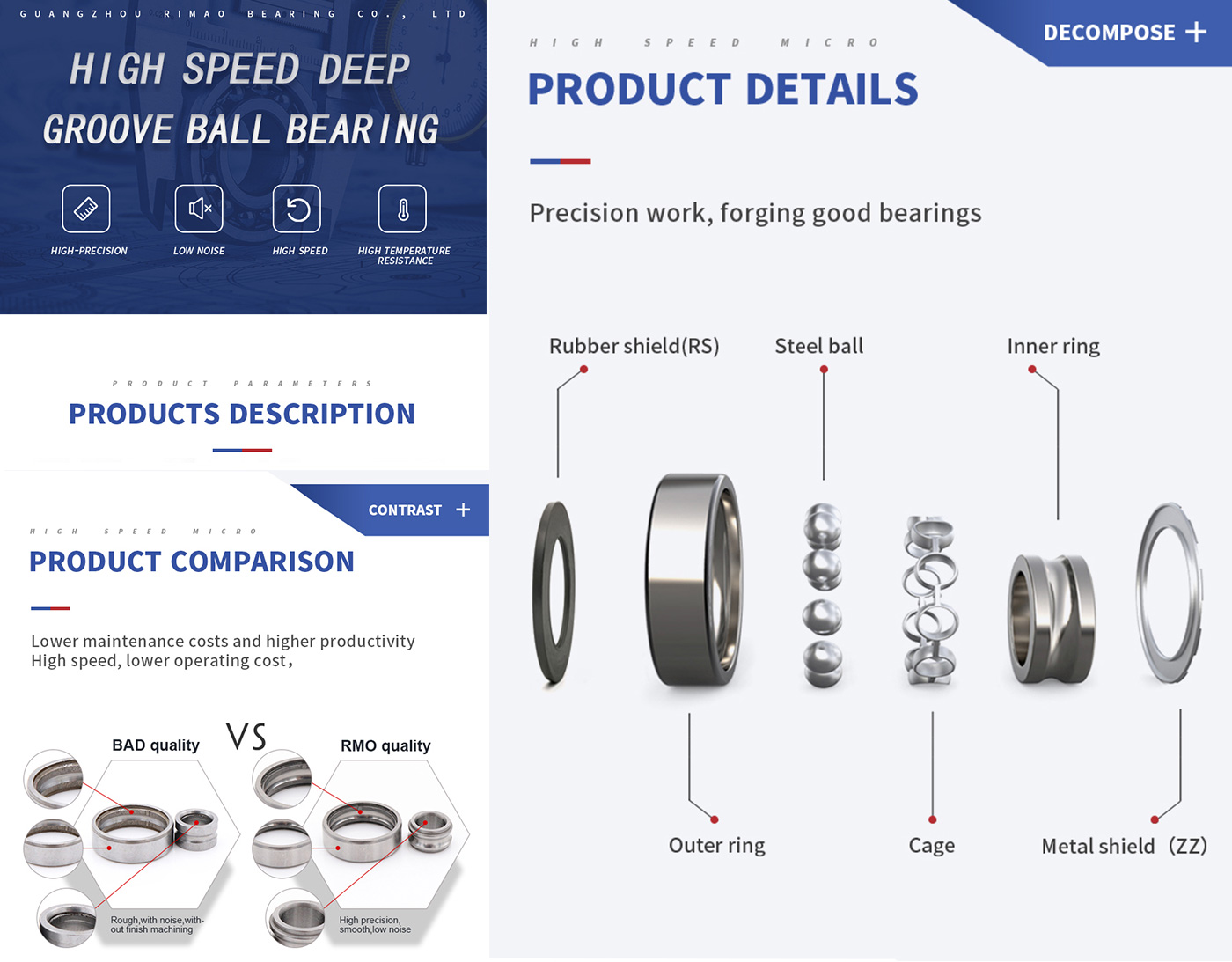

6906ZZ Thin-Section Bearing features a single-row deep groove core structure, with thin-walled inner and outer rings (reducing radial space occupation), a main body made of bearing steel or stainless steel, paired with precision-machined deep groove raceways and a steel cage—the cage can evenly separate steel balls to avoid collision during operation, and double metal shields on both sides form a protective structure that reduces friction and blocks impurities, while the standardized cylindrical bore ensures tight installation, with an overall compact structure that balances rigidity, suitable for rotation needs in narrow spaces.
Related Products

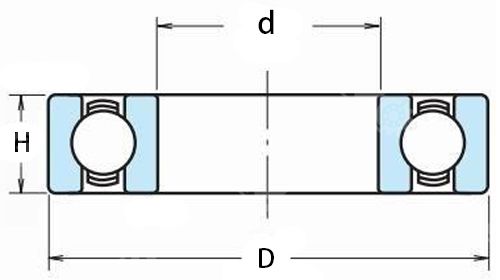

| Model No. | d | D | H | m |
| 6900 | 10 mm | 2 mm | 6 mm | 9 g |
| 6901 | 12 mm | 24 mm | 6 mm | 10 g |
| 6902 | 15 mm | 28 mm | 7 mm | 15 g |
| 6903 | 17 mm | 30 mm | 7 mm | 17 g |
| 6904 | 20 mm | 37 mm | 9 mm | 37 g |
| 6905 | 25 mm | 42 mm | 9 mm | 42 g |
| 6906 | 30 mm | 47 mm | 9 mm | 52 g |
| 6907 | 35 mm | 55 mm | 10 mm | 75 g |
| 6908 | 40 mm | 62 mm | 12 mm | 112 g |
| 6909 | 45 mm | 68 mm | 12 mm | 126 g |
| 6910 | 50 mm | 72 mm | 12 mm | 135 g |
| 6911 | 55 mm | 80 mm | 13 mm | 189 g |
| 6912 | 60 mm | 85 mm | 13 mm | 192 g |
| 6913 | 65 mm | 90 mm | 13 mm | 218 g |
| 6914 | 70 mm | 100 mm | 16 mm | 349 g |
| 6915 | 75 mm | 105 mm | 16 mm | 364 g |
| 6916 | 80 mm | 110 mm | 16 mm | 391 g |
| 6917 | 85 mm | 120 mm | 18 mm | 550 g |
| 6918 | 90 mm | 125 mm | 18 mm | 585 g |
| 6919 | 95 mm | 130 mm | 18 mm | 601 g |
