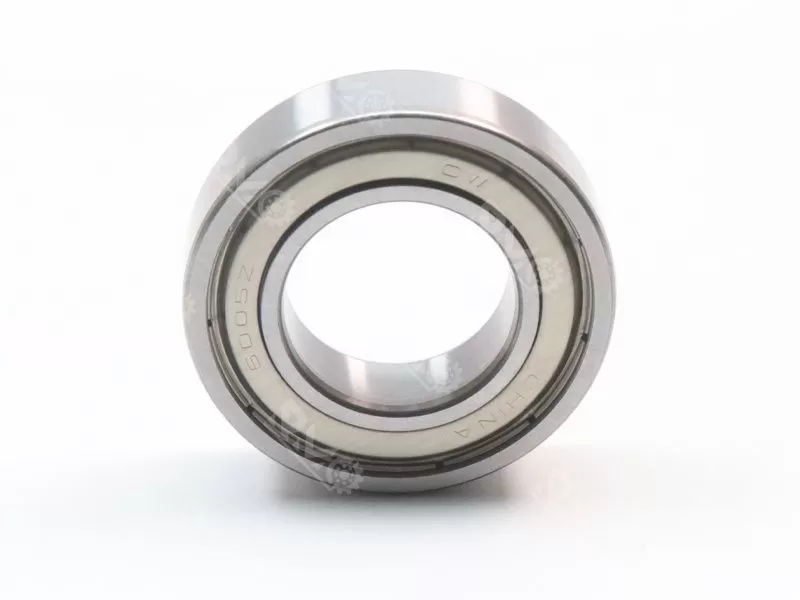

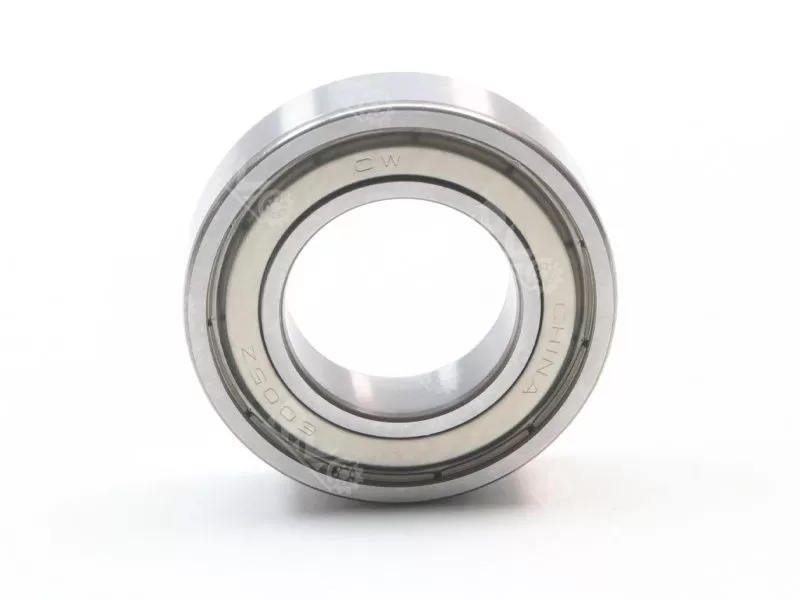

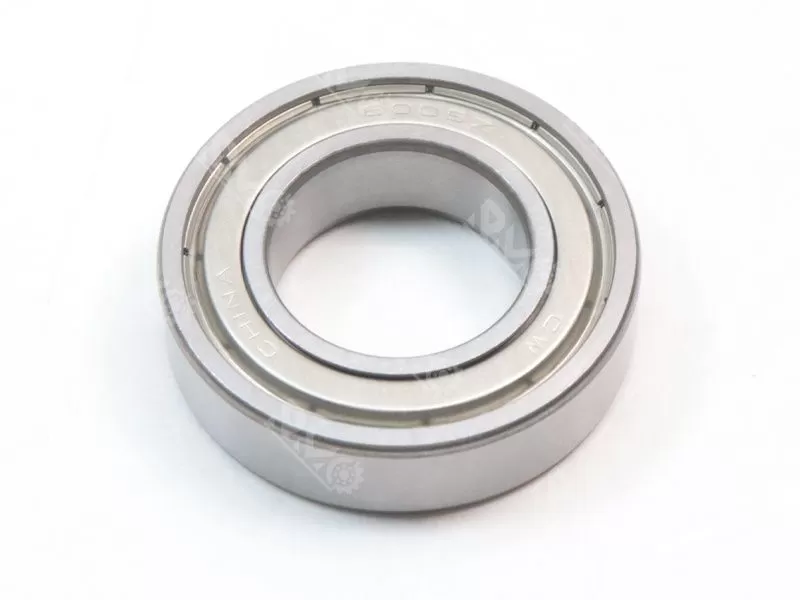

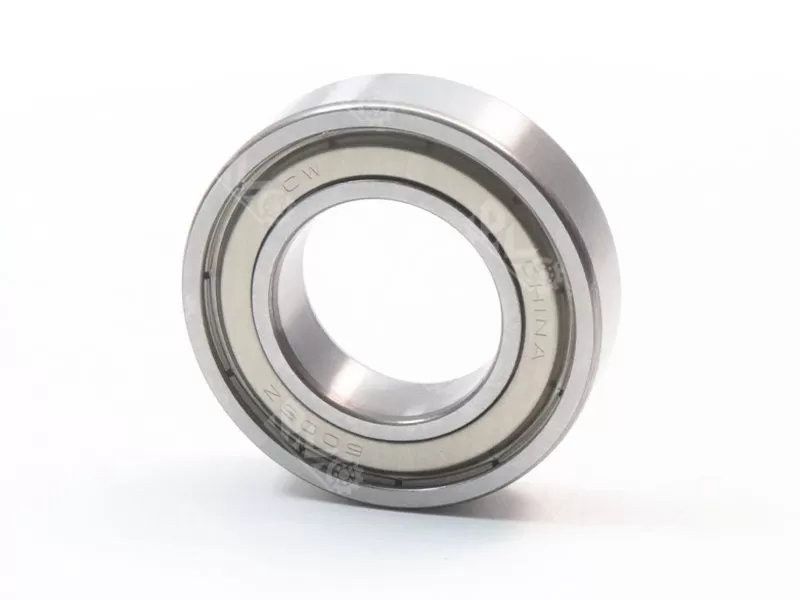

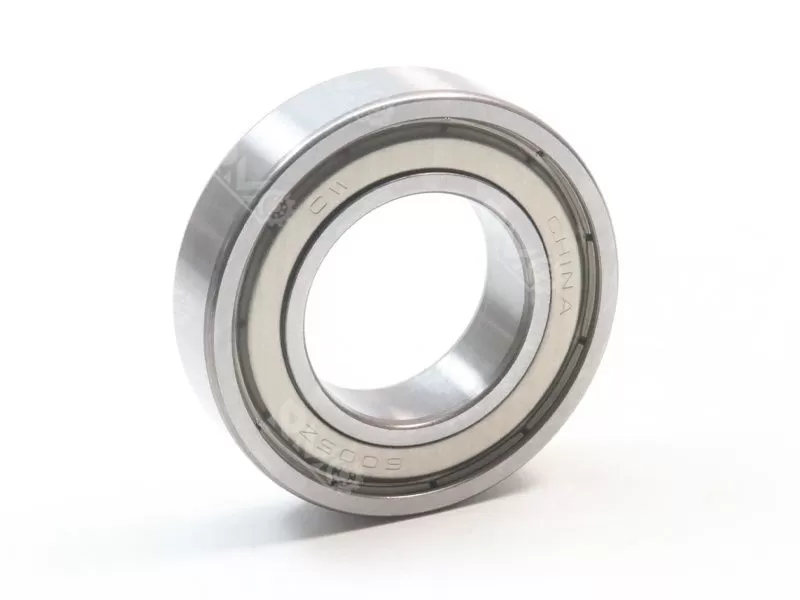

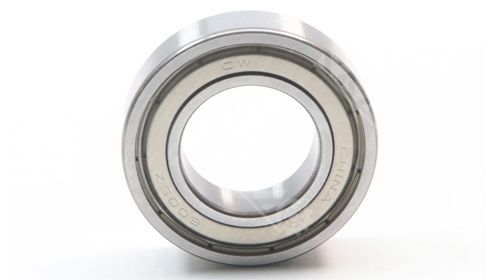

6005ZZ Good Quality Deep Groove Ball Bearing

It is composed of an outer ring, an inner ring, a set of steel balls and a set of cages.

Model number: 6005ZZ

Size: 25X47x12mm

Materials: Gcr15.chrome steel

Weight: 0.08KG

MOQ:100pcs

Lead Time:3-5 Days

Inquire Now Next Product

Specification

6005ZZ High-quality deep groove ball bearing, manufactured from high-hardness bearing steel, equipped with double-sided metal seals (ZZ), and filled with long-lasting grease. It features low friction, high rotational speed, strong dust resistance, and extended service life. Capable of withstanding both radial and bidirectional axial loads simultaneously, it is widely used in general machinery equipment such as motors, water pumps, and conveyors.

Technical parameter:

Model Number	6005ZZ
Size	25X47x12mm
Weight	0.08KG
Material	Gcr15.chrome steel
Clearance	C2 C0 C3 C4
Precision Grade	p0 p6 p5 p4
Dynamic Load Rating	10.7 lbf
Static Load Rating	5.8 lbf
Max Speed (Grease Lubrication)	18600 RPM
Shield Type	ZZ
Lubrication	Pre-lubricated with High-Performance Grease
Temperature Range	-20°C to +120°C
Lead Time	3-5 Days

Deep groove ball bearing: consists of an outer ring, an inner ring, a group of steel balls and a group of cages. There are two types of deep groove ball bearing, single row and double row, deep groove ball structure is also divided into sealed and open two structures, open refers to the bearing does not have a sealed structure, sealed deep groove ball is divided into dust seal and oil seal. The dust seal cover material is steel plate stamping, which only plays a simple role in preventing dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the leakage of grease in the bearing.

Related Products

6005ZZ Good Quality Deep Groove Ball Bearing

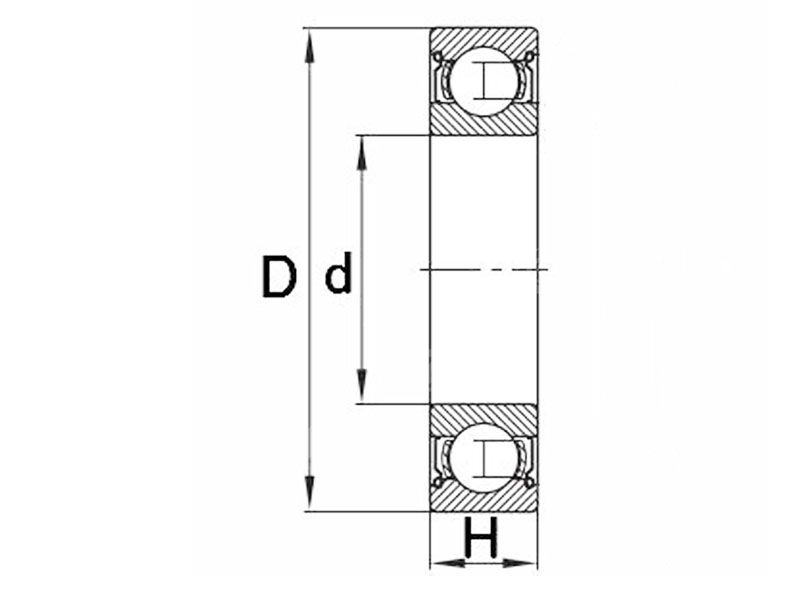

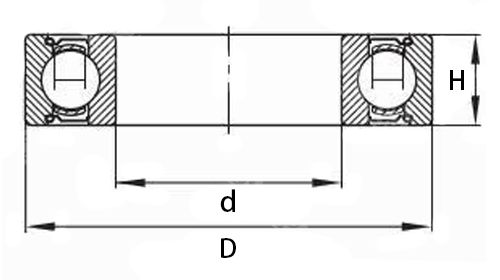

Model No.	d	D	H	m	Model No.	d	D	H	m
6000ZZ	10 mm	26 mm	8 mm	20 g	6014ZZ	70 mm	110 mm	20 mm	642 g
6001ZZ	12 mm	28 mm	8 mm	20 g	6015ZZ	75 mm	115 mm	20 mm	676 g
6002ZZ	15 mm	32 mm	9 mm	33 g	6016ZZ	80 mm	125 mm	22 mm	893 g
6003ZZ	17 mm	35 mm	10 mm	40 g	6017ZZ	85 mm	130 mm	22 mm	940 g
6004ZZ	20 mm	42 mm	12 mm	71 g	6018ZZ	90 mm	140 mm	24 mm	1.23 KG
6005ZZ	25 mm	47 mm	12 mm	83 g	6019ZZ	95 mm	145 mm	24 mm	1.27 KG
6006ZZ	30 mm	55mm	13 mm	126 g	6020ZZ	100 mm	150 mm	24 mm	1.35 KG
6007ZZ	35 mm	62 mm	14 mm	163 g	6021ZZ	105 mm	160 mm	26 mm	1.7 KG
6008ZZ	40 mm	68 mm	15 mm	200 g	6022ZZ	110 mm	170 mm	28 mm	2.11 KG
6009ZZ	45 mm	75 mm	16 mm	253 g	6024ZZ	120 mm	180 mm	28 mm	2.23 KG
6010ZZ	50 mm	80 mm	16 mm	282 g	6026ZZ	130 mm	200 mm	33 mm	3.4 KG
6011ZZ	55 mm	90 mm	18 mm	409 g	6028ZZ	140 mm	210 mm	33 mm	3.65 KG
6012ZZ	60 mm	95 mm	18 mm	431 g	6030ZZ	150 mm	225 mm	35 mm	4.3 KG
6013ZZ	65 mm	100 mm	18 mm	464 g	6032ZZ	160 mm	240 mm	38 mm	5 KG

Use Application

Deep groove ball bearings can be used in transmissions, instruments, motors, household appliances, internal combustion engines, traffic vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo balls and so on.
