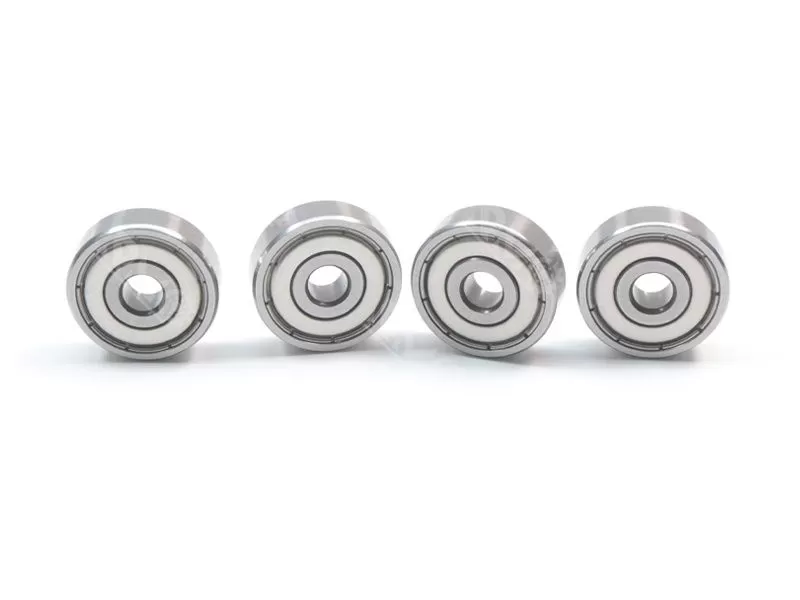

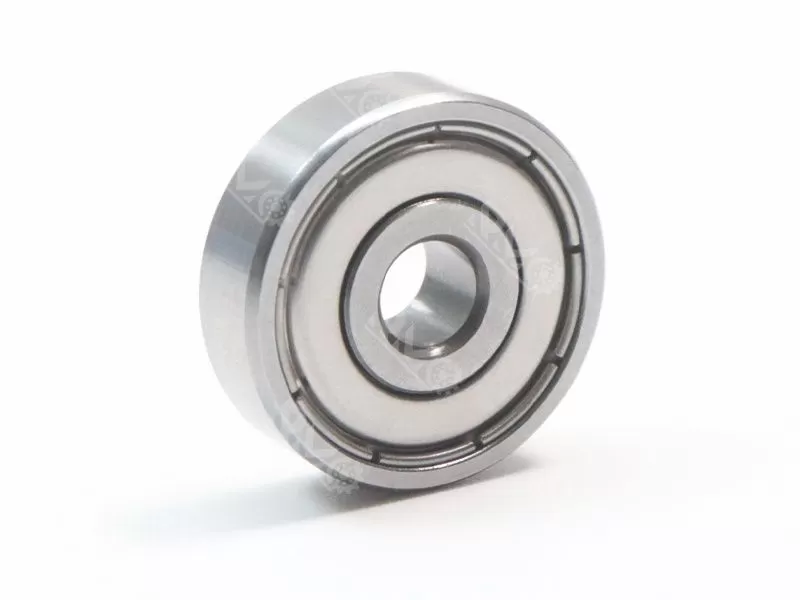

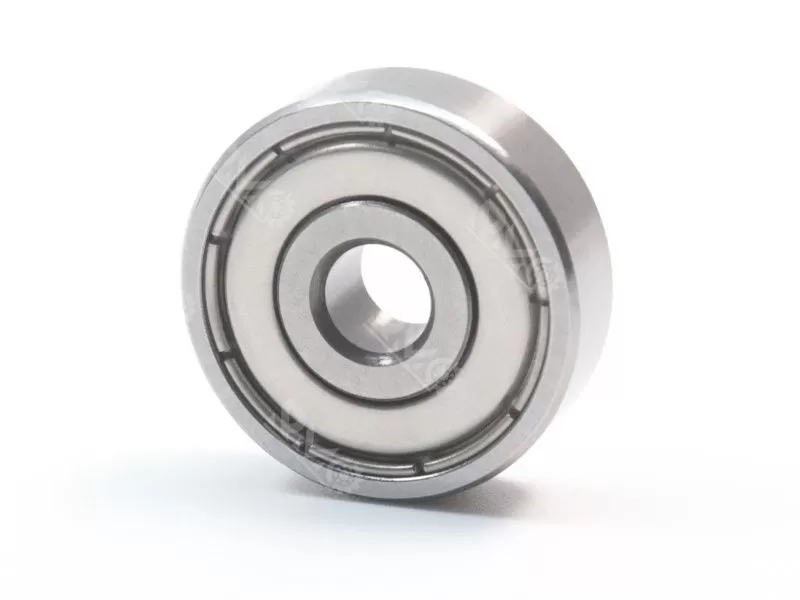

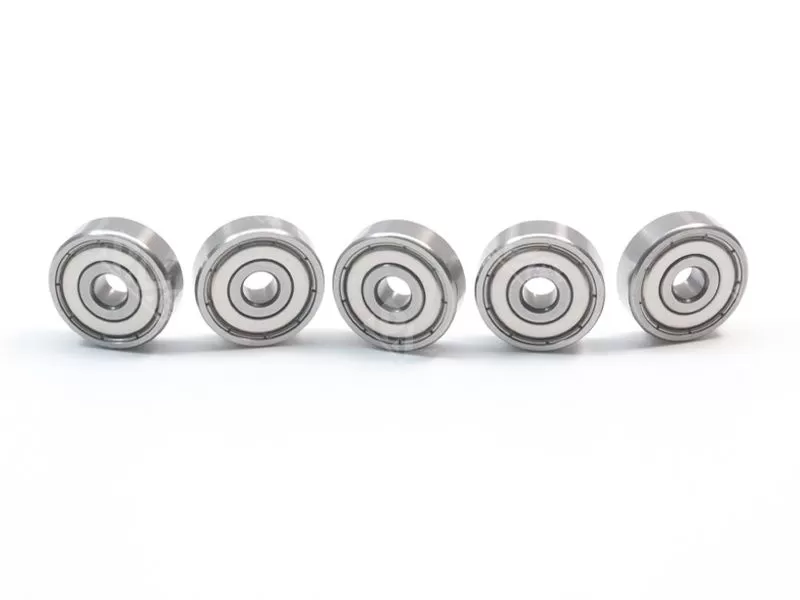

Deep Groove Ball Bearing
The deep groove ball bearing is composed of an outer ring, an inner ring, a set of steel balls and a set of cages.
Model No.: 635ZZ
Size: 5x19x6mm
Weight: 0.008KG
Material: chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc
Lead Time: normally 3-5 days
Specification

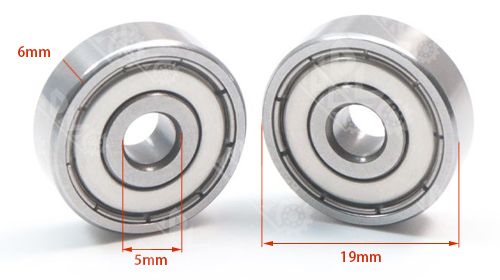

635ZZ Low-Noise Miniature Deep Groove Ball Bearing, with an inner diameter of 5mm, outer diameter of 19mm, and thickness of 6mm. Constructed from chrome steel with dual metal shields, it features low friction, high rotational speed, and low noise characteristics. Capable of withstanding moderate radial and axial loads, it is widely used in small motors, power tools, medical equipment, and other applications.
Technical parameter:

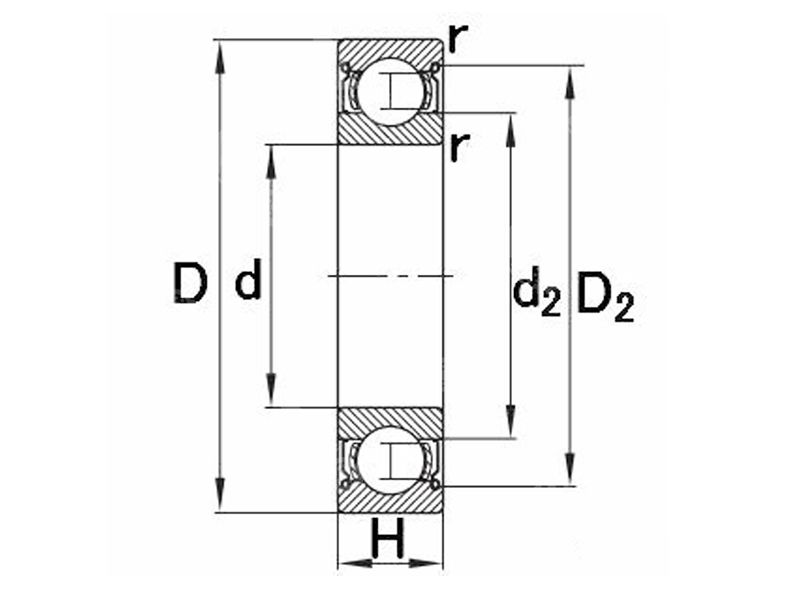

| Model Number | 635ZZ |
| Size | 5x19x6mm |
| Weight | 0.008KG |
| Material | chrome steel Gcr15 |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Dynamic Load Rating | 2.6 lbf |
| Static Load Rating | 1.04 lbf |
| Max Speed (Grease Lubrication) | 53000 RPM |
| Shield Type | ZZ |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Miniature deep groove ball bearing:
There are many types of miniature deep groove ball bearings, including the metric 68 series, 69 series, 60 series, etc., as well as the British R series. In addition, different types of with ZZ steel dust cover, RS rubber seal ring and flange flange can be selected according to requirements.
The main materials are carbon steel, bearing steel, stainless steel, plastic, ceramic and so on. The choice of these materials directly affects the performance and service life of bearings. For example, bearing steel has good comprehensive mechanical properties and wear resistance, stainless steel is suitable for wet or corrosive environments, and ceramic materials are suitable for high temperature, high speed and high load occasions.
Related Products
| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| 634 | 4*16*5 | 0.005 | 6313 | 65*140*33 | 2.08 |
| 635 | 5*19*6 | 0.008 | 6314 | 70*150*35 | 2.51 |
| 636 | 6*22*7 | 0.014 | 6315 | 75*160*37 | 3.01 |
| 637 | 7*26*9 | 0.024 | 6316 | 80*170*39 | 3.67 |
| 638 | 8*28*9 | 0.028 | 6317 | 85*180*41 | 4.21 |
| 639 | 9*30*10 | 0.037 | 6318 | 90*190*43 | 4.92 |
| 6300 | 10*35*11 | 0.0524 | 6319 | 95*200*45 | 5.7 |
| 6301 | 12*37*12 | 0.0586 | 6320 | 100*215*47 | 7.11 |
| 6302 | 15*42*13 | 0.082 | 6321 | 105*225*49 | 7.84 |
| 6303 | 17*47*14 | 0.109 | 6322 | 110*240*50 | 9.67 |
| 6304 | 20*52*15 | 0.142 | 6324 | 120*260*55 | 12.5 |
| 6305 | 25*62*17 | 0.23 | 6326 | 130*280*58 | 15.3 |
| 6306 | 30*72*19 | 0.34 | 6328 | 140*300*62 | 18.5 |
| 6307 | 35*80*21 | 0.453 | 6330 | 150*320*65 | 22 |
| 6308 | 40*90*23 | 0.636 | 6332 | 160*340*68 | 27.8 |
| 6309 | 45*100*25 | 0.825 | 6334 | 170*360*72 | 31.8 |
| 6310 | 50*110*27 | 1.05 | 6336 | 180*380*75 | 36.5 |
| 6311 | 55*120*29 | 1.34 | 6338 | 190*400*78 | 42.5 |
| 6312 | 60*130*31 | 1.7 | 6340 | 200*420*80 | 55 |
Main uses
It is suitable for all kinds of industrial equipment, small rotary motor and other high speed and low noise fields, such as: office equipment, micro motor, instrumentation, laser engraving, small clock, soft drive, pressure rotor, dental drill, hard disk motor, stepper motor, video recorder magnetic drum, toy model, computer cooling fan, money counter, fax machine and other related fields.
