Deep Groove Ball Bearing

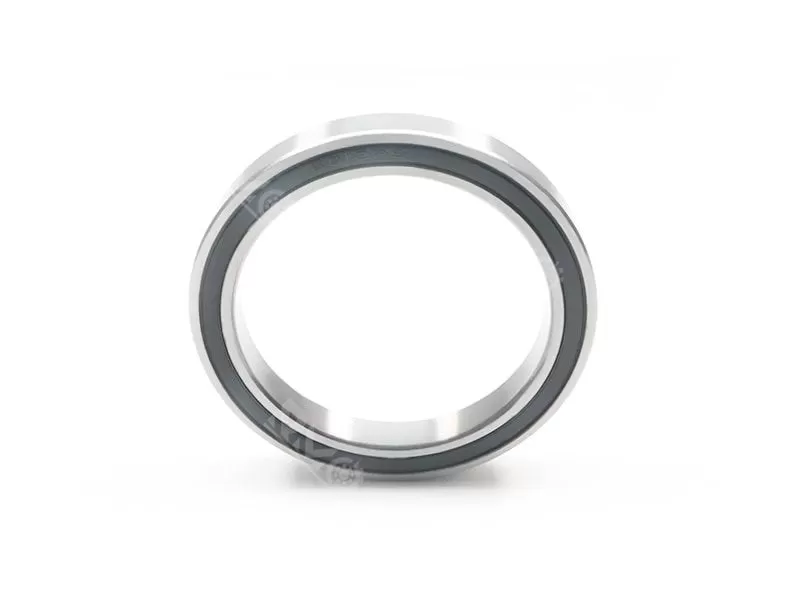

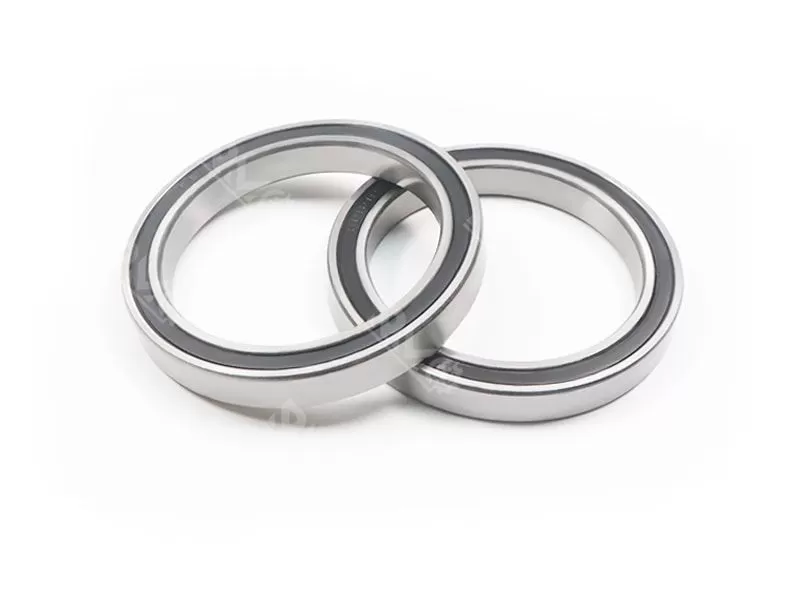

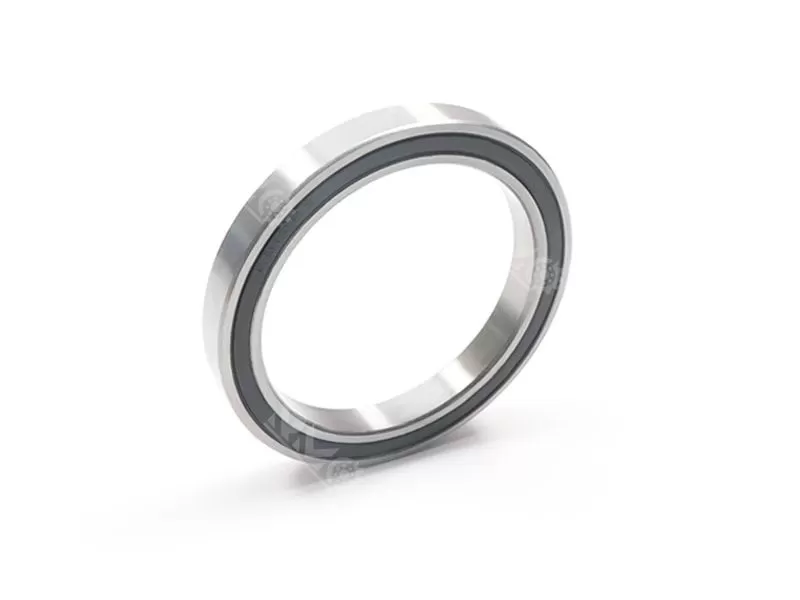

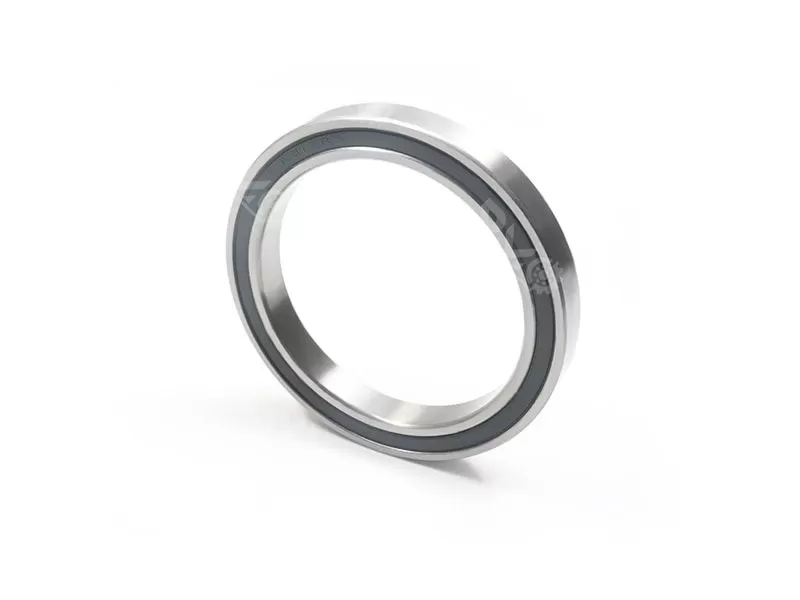

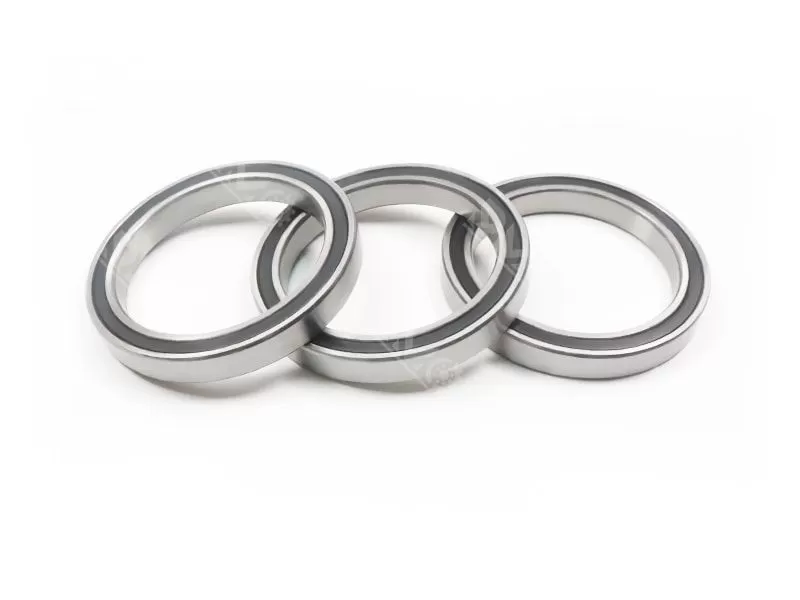

The 6812RS thin-walled deep groove ball bearing is a pre-lubricated chrome steel bearing with rubber seals on both sides, suitable for high-speed applications with limited space, such as motors and HVAC systems.
Product name：6812RS
Size：60x78x10 mm
Weight: 0.105KG
Material：high-quality chromium steel
Lead time：In stock: 3-5 work days. Customize: 20-30 work days
Specification
6812RS is a high-performance thin wall deep groove ball bearing with dimensions of 60mm inner diameter, 78mm outer diameter, and 10mm width.Its compact thin-wall design is especially suitable for equipment with strict installation space constraints.
Technical parameter:
| Model Number | 6812RS |
| Size | 60x78x10 mm |
| Weight | 0.105KG |
| Material | high-quality chromium steel |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Dynamic Load Rating | 11.5 lbf |
| Static Load Rating | 10.9 lbf |
| Max Speed (Grease Lubrication) | 9500 RPM |
| Shield Type | RS |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | In stock: 3-5 work days. Customize: 20-30 work days |
Constructed from high-quality chrome steel, it features double rubber seals (RS) that effectively block dust, moisture, and contaminants from entering, protecting internal
components and extending service life.
Pre-filled with high-quality grease for minimal maintenance needs, it is widely used in motors, air conditioning equipment, printing machinery, bicycle components, and other fields,
providing efficient and reliable rotational support for equipment.
Related Products

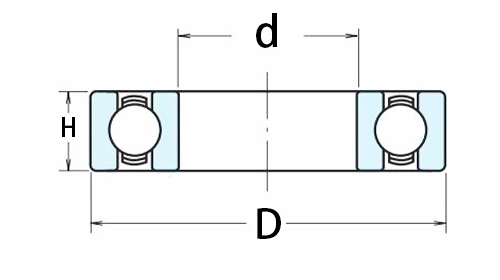

| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| 6800-2RS | 10 mm | 19 mm | 5 mm | 6 g | 6812-2RS | 60 mm | 78 mm | 10 mm | 105 g | |
| 6801-2RS | 12 mm | 21 mm | 5 mm | 6 g | 6813-2RS | 65 mm | 85 mm | 10 mm | 130 g | |
| 6802-2RS | 15 mm | 24 mm | 5 mm | 8 g | 6814-2RS | 70 mm | 90 mm | 10 mm | 140 g | |
| 6803-2RS | 17 mm | 26 mm | 5 mm | 8 g | 6815-2RS | 75 mm | 95 mm | 10 mm | 150 g | |
| 6804-2RS | 20 mm | 32 mm | 7 mm | 18 g | 6816-2RS | 80 mm | 100 mm | 10 mm | 155 g | |
| 6805-2RS | 25 mm | 37 mm | 7 mm | 23 g | 6817-2RS | 85 mm | 110 mm | 13 mm | 270 g | |
| 6806-2RS | 30 mm | 42 mm | 7 mm | 27 g | 6818-2RS | 90 mm | 115 mm | 13 mm | 280 g | |
| 6807-2RS | 35 mm | 47 mm | 7 mm | 30 g | 6819-2RS | 95 mm | 120 mm | 13 mm | 295 g | |
| 6808-2RS | 40 mm | 52 mm | 7 mm | 32 g | 6820-2RS | 100 mm | 125 mm | 13 mm | 310 g | |
| 6809-2RS | 45 mm | 58 mm | 7 mm | 39 g | 6821-2RS | 105 mm | 130 mm | 13 mm | 330 g | |
| 6810-2RS | 50 mm | 65 mm | 7 mm | 52 g | 6822-2RS | 110 mm | 140 mm | 16 mm | 500 g | |
| 6811-2RS | 55 mm | 72 mm | 9 mm | 84 g | 6824-2RS | 120 mm | 150 mm | 16 mm | 550 g |
Application scenarios
6812RS Deep Groove Ball Thin Wall Wall Bearings are suitable for industrial equipment like motors and air conditioning compressors, precision machinery such as precision instruments, and daily and commercial devices including bicycle hubs and medical equipment accessories, thanks to their compact thin-wall structure, high stability, good sealing performance, and adaptability to limited spaces.
