Deep Groove Ball Bearing

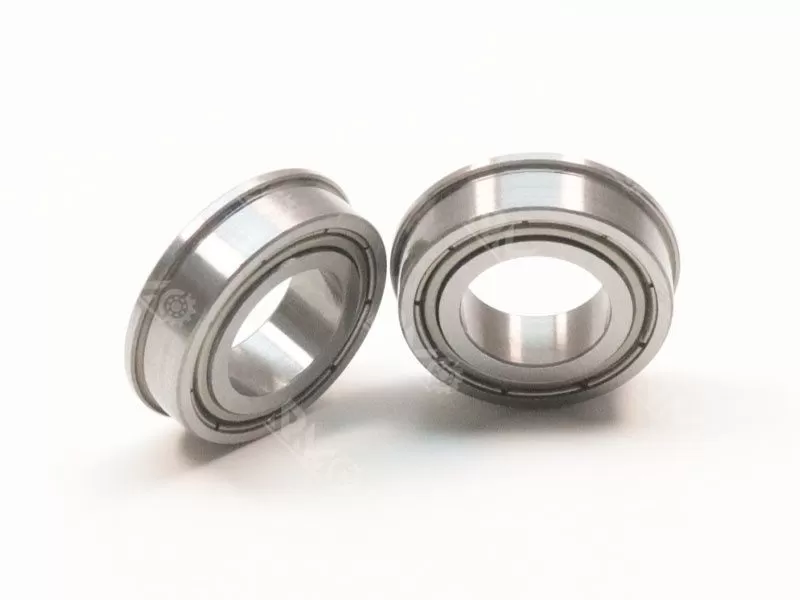

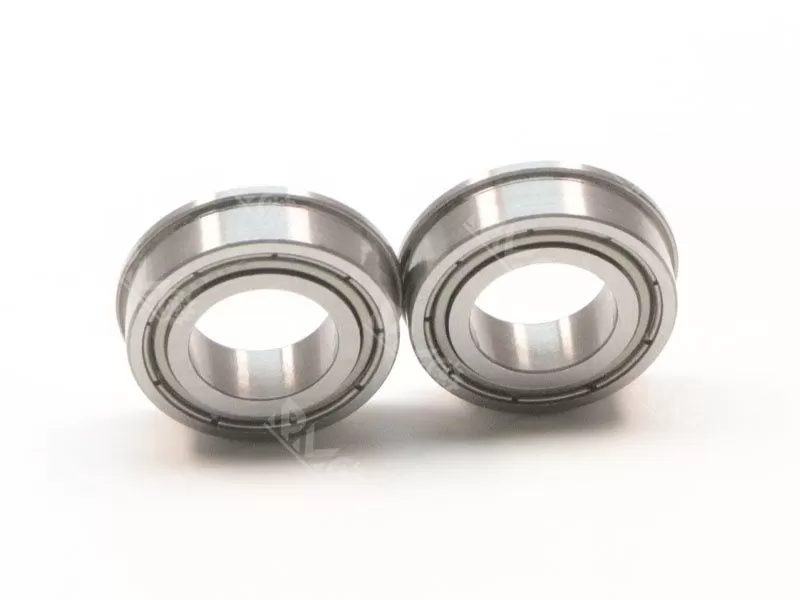

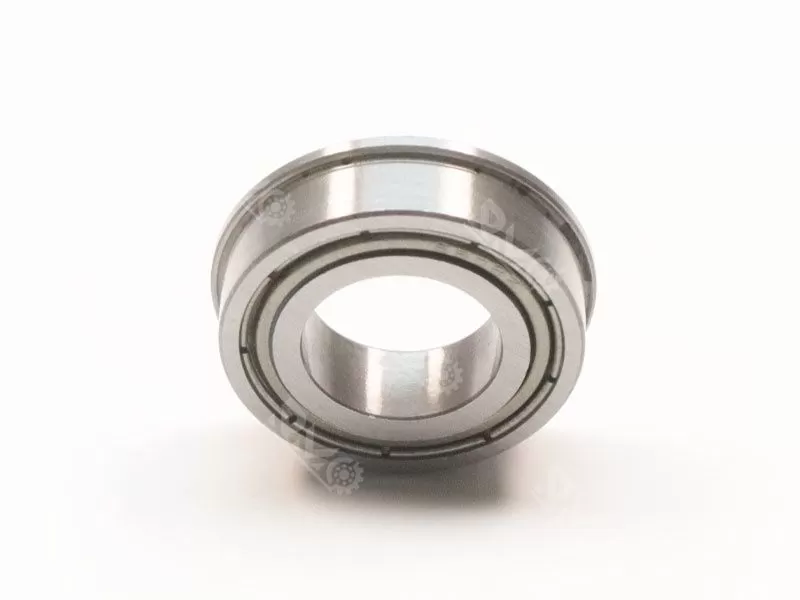

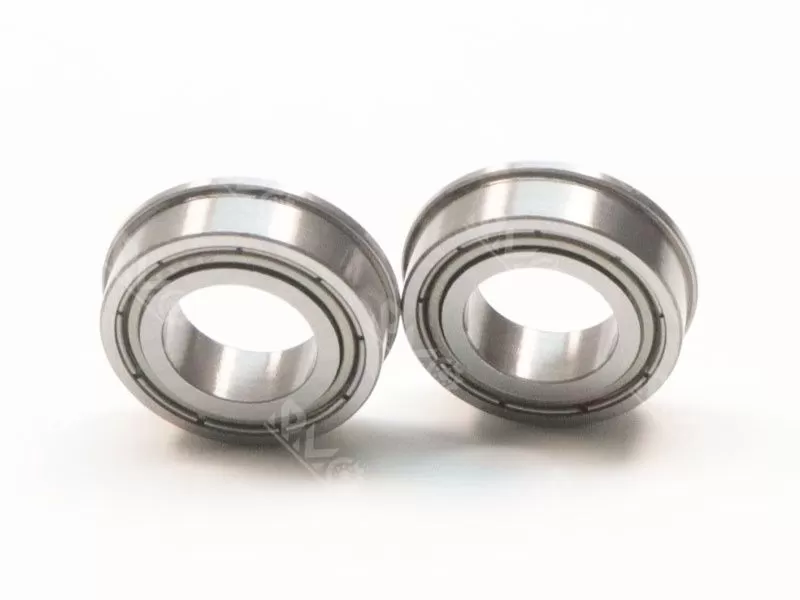

F6802ZZ thin-wall flanged deep groove ball bearing 13.75*25.4*7.142mm, chrome steel materials. Advantages: Simple, economical, light weight.
Model Number: bearing F6802ZZ

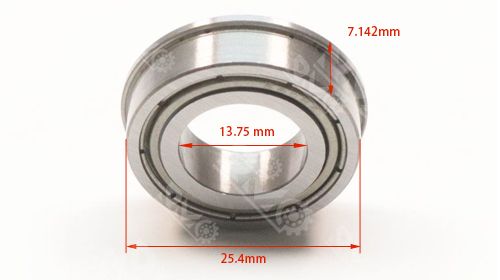

Size: 13.75x25.4x7.142 mm
Material: Chrome Steel
MOQ: 100 PCS
Lead Time：3-5 Days
Specification
F6802ZZ Single-Row Thin-Wall Flange Bearing is constructed from chrome steel, meeting the high-precision ABEC-1 standard. It features dual dust shields that effectively block contaminants, while its stainless steel cage ensures stable operation within a temperature range of -30°C to 110°C. It achieves a maximum rotational speed of 31,000 rpm while delivering low noise, high speed, and wear resistance. This bearing is ideal for space-constrained applications such as precision instruments and small motors.
Technical parameter:
| Model Number | bearing F6802ZZ |
| Size | 13.75x25.4x7.142 mm |
| MOQ | 100 PCS |
| Material | Chrome Steel |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 |
| Service | OEM & ODM service |
| Payment terms | 100% T/T 30% T/T before production, 70% before delivery |
| Package | Industrial package or according to buyers' requirement |
| Sealing | Open, Z, ZZ, RZ,2RZ,RS, 2RS |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Details:
Deep groove ball bearings are simple, easy to use, is the largest production volume, most widely used of a class of bearings. It is mainly used for a bear radial load, but also bear certain axial load. When the bearing radial clearance increased when the function with angular contact bearings can bear large axial load.
Special properties:
1. High accuracy
2. Low noise
3. Long life
4. Can be customized according to your needs
5. Can provide small & miniature standard and non-standard ball bearings.
Application scenarios
Thin-wall bearings are widely used in high-precision, high-rotation speed, limited space and lightweight requirements, such as aerospace, robotics, medical equipment, semiconductor equipment and precision instruments. In addition, thin-wall bearings are also used in model aircraft, machine tools, motors and other equipment.
