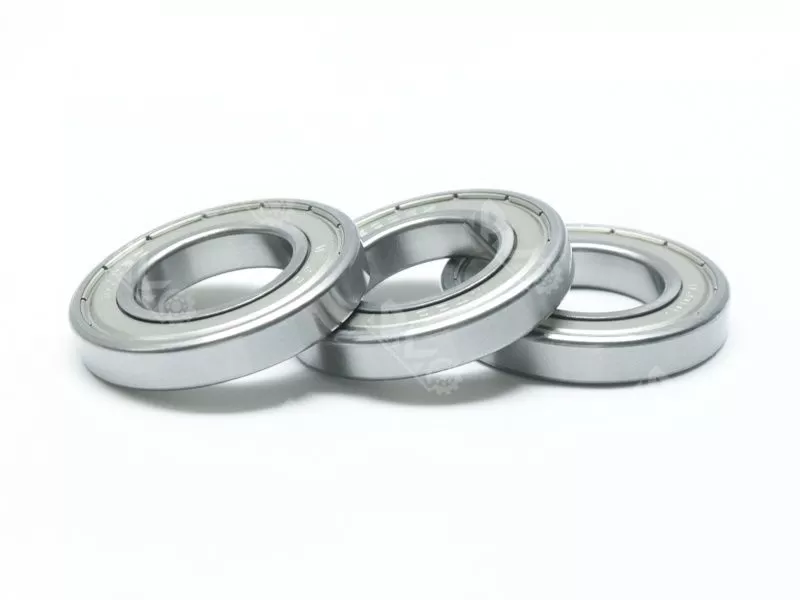

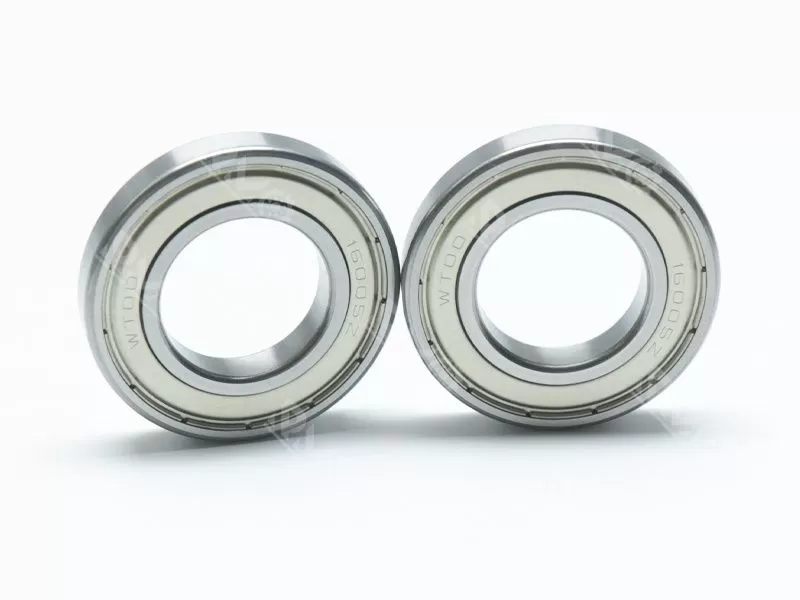

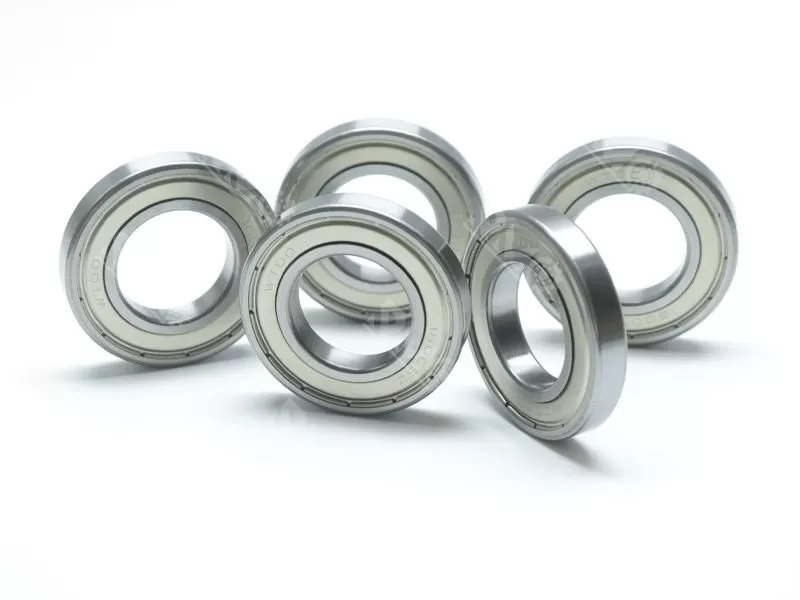

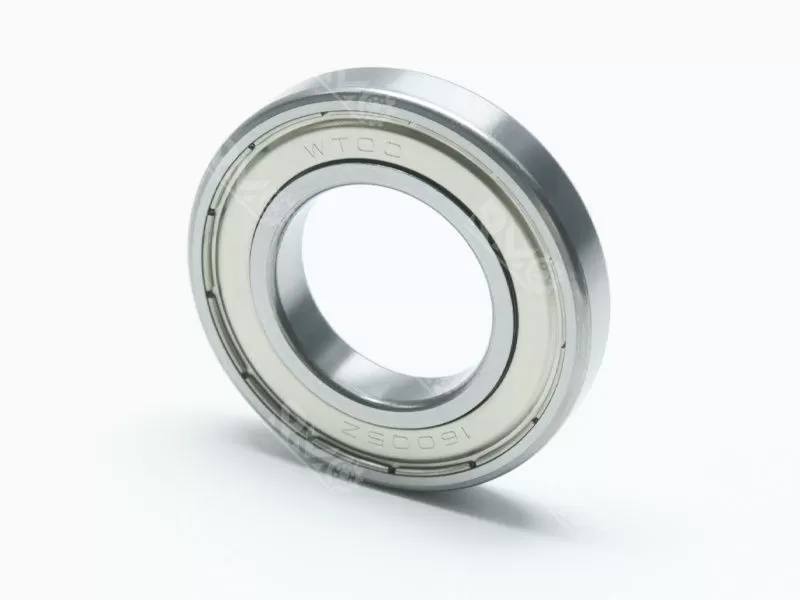

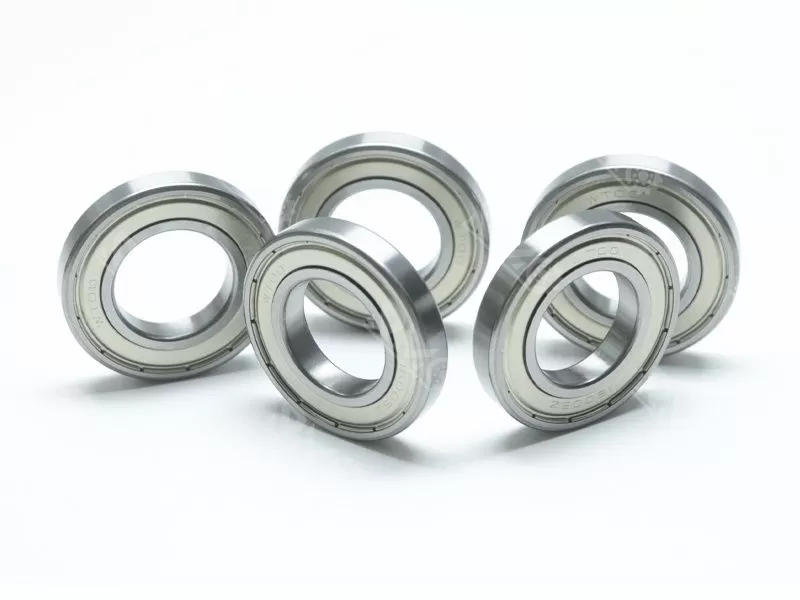

16005ZZ thin section deep groove ball bearing

It is a bearing that realizes an extremely thin bearing section and a miniaturized and lightweight design.

Product name: 16005ZZ thin section ball bearing

Size: 25x47x8mm

Material: chrome steel Gcr15

weight: 0.055KG

Lead time: normally 3-5 days

Inquire Now Next Product

Specification

Package: Plastic tube or single box+Carton+Pallet

MOQ: 100 PCS

Shipping Port: Guangzhou, Ningbo, Shanghai

Payment: 100% T/T or 30% T/T before production, 70% before delivery

Product features:

In order to obtain low friction torque, high rigidity and good rotation accuracy of bearings, steel balls with small outer diameter are used. The use of hollow shafts ensures lightweight and wiring space. The thin-walled bearing realizes the extremely thin bearing section, and also realizes the miniaturization and lightweight of the product. The variety of products expands its range of uses.

Thin-walled 6700, 6800, 6900 series have a variety of dust cover forms, with flange forms, stainless steel forms, wide forms, etc.

Application scenarios: Thin-wall bearings are widely used in high-precision, high-rotation speed, limited space and lightweight requirements, such as aerospace, robotics, medical equipment, semiconductor equipment and precision instruments. In addition, thin-wall bearings are also used in model aircraft, machine tools, motors and other equipment.

Related Products

16005ZZ thin section deep groove ball bearing

Model No.	d	D	H	m	Model No.	d	D	H	m
16002	15 mm	32 mm	8 mm	27 g	16022	110 mm	170 mm	19 mm	1.52 KG
16003	17 mm	35 mm	8 mm	30 g	16024	120 mm	180 mm	19 mm	1.62 KG
16004	20 mm	42 mm	8 mm	50 g	16026	130 mm	200 mm	22 mm	2.41 KG
16005	25 mm	47 mm	8 mm	55 g	16028	140 mm	210 mm	22mm	2.55 KG
16006	30 mm	55 mm	9 mm	82 g	16030	150 mm	225 mm	24 mm	3.17 KG
16007	35 mm	62 mm	9 mm	105 g	16032	160 mm	240 mm	25 mm	3.8 KG
16008	40 mm	68 mm	9 mm	120 g	16034	170 mm	260 mm	28 mm	5.15 KG
16009	45 mm	75 mm	10 mm	167 g	16036	180 mm	280 mm	31 mm	6.92 KG
16010	50 mm	80 mm	10 mm	181 g	16038	190 mm	290 mm	31 mm	7.04 KG
16011	55 mm	90 mm	11 mm	266 g	16040	200 mm	310 mm	34 mm	9 KG
16012	60 mm	95 mm	11 mm	283 g	16044	220 mm	340 mm	37 mm	11.8 KG
16013	65 mm	100 mm	11 mm	302 g	16048	240 mm	360 mm	37 mm	12.7 KG
16014	70 mm	110 mm	13 mm	438 g	16052	260 mm	400 mm	44 mm	19.1 KG
16015	75mm	115 mm	13 mm	463 g	16056-M	280 mm	420 mm	44 mm	23.2 KG
16016	80 mm	125 mm	14 mm	609 g	16060-M	300 mm	460 mm	50 mm	32.6 KG
16017	85 mm	130 mm	14 mm	666 g	16064-M	320 mm	480 mm	50 mm	34.9 KG
16018	90 mm	140 mm	16 mm	866 g	16068-M	340 mm	520 mm	57 mm	47.5 KG
16019	95 mm	145 mm	16 mm	922 g	16072-M	360 mm	540 mm	57 mm	49.4 KG
16020	100 mm	150 mm	16 mm	956 g	16076-M	380 mm	560 mm	57 mm	51.7 KG
16021	105 mm	160 mm	18 mm	1.24 KG
