It is applied in various fields such as low-power electric motors, gearboxes of automobiles and tractors, gearboxes of machine tools, household appliances, instruments and meters, aerospace, medical devices, and many others.

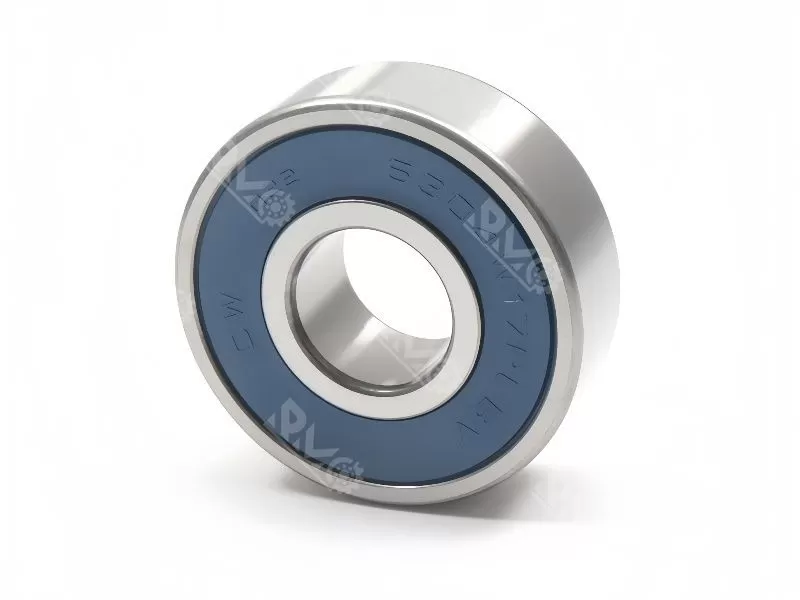

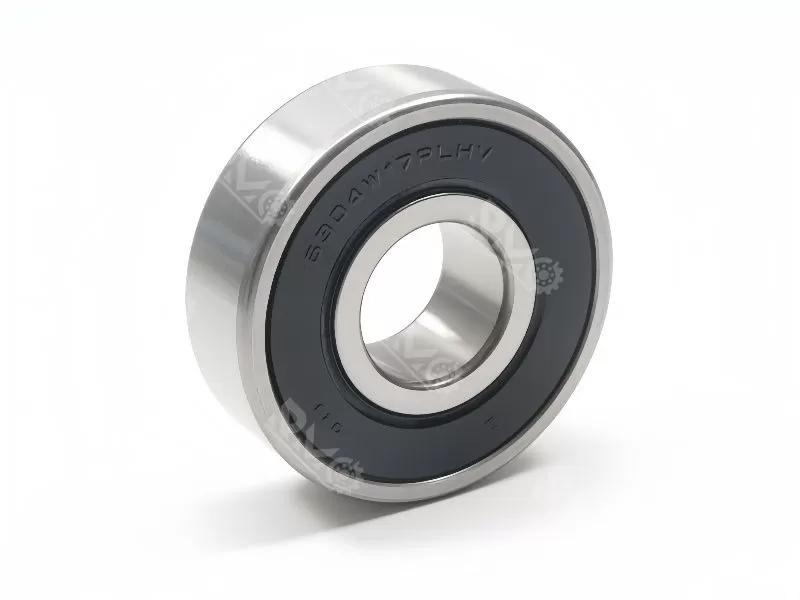

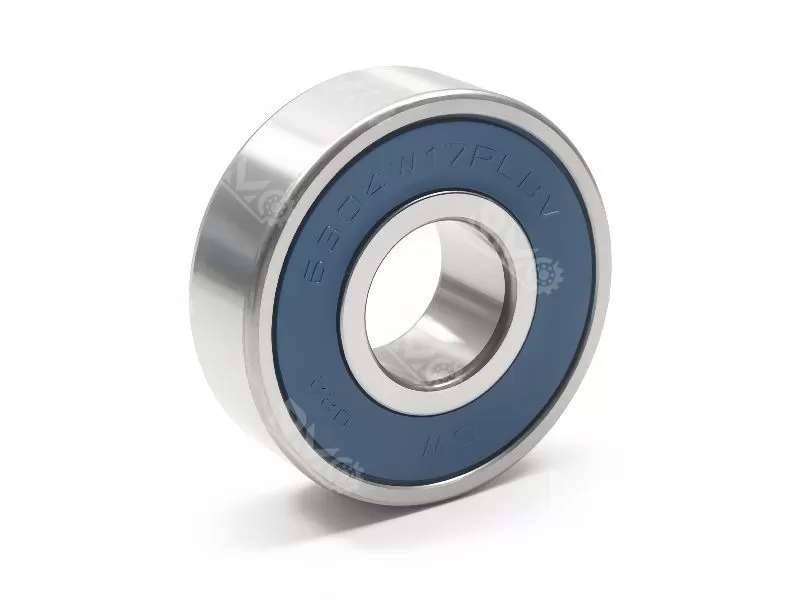

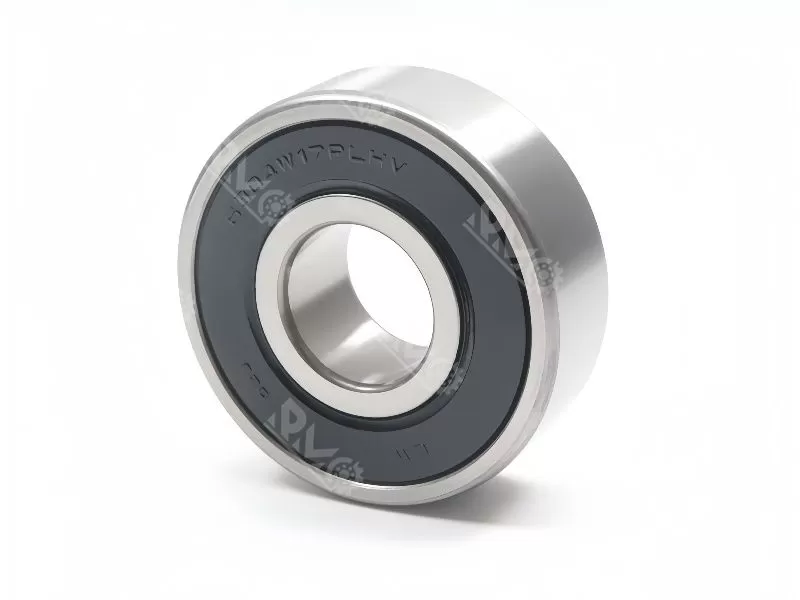

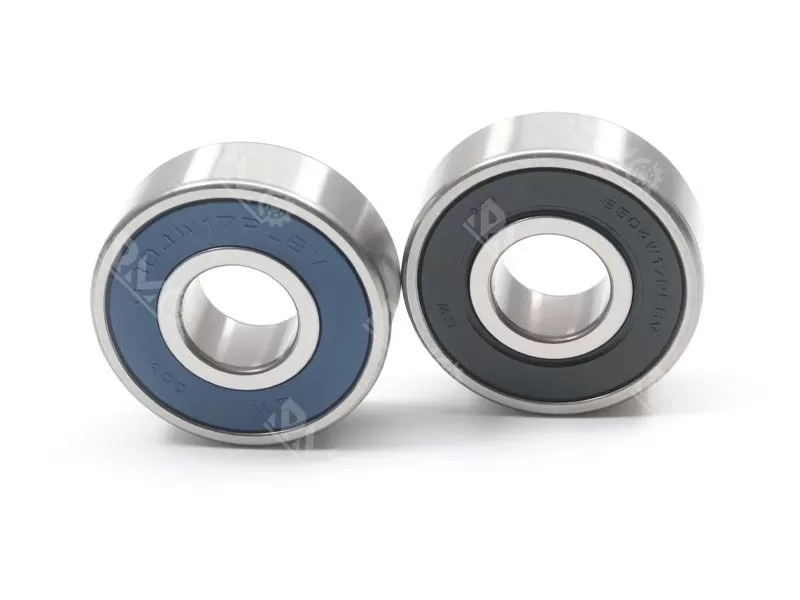

Deep Groove Ball Bearing

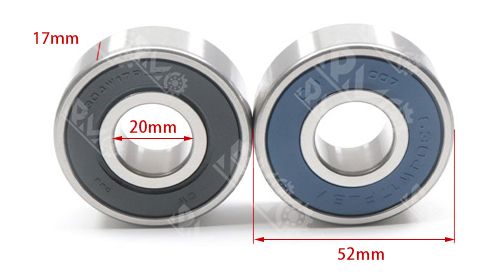

Item No.: 6304W17RS
Branding: CW/RMO/Neutral/OEM
Sealing: OPEN, ZZ (Steel Shield), 2RS(Rubber Seal)
Precision: p0
Clearance: C0
Vibration: Z1V1, Z2V2, Z3V3
MOQ: 50pcs
Specification
Cage material: Steel
Material: Chrome Steel (Gcr15)
Lead Time: 3-5 Days
Shipping Port: GUANGZHOU, NINGBO, SHANGHAI
Payment: 100% T/T or 30% T/T In Advance ,70% T/T After Finishing Production
Deep groove ball bearing: consists of an outer ring, an inner ring, a group of steel balls and a group of cages. There are two types of deep groove ball bearing, single row and double row, deep groove ball structure is also divided into sealed and open two structures, open refers to the bearing does not have a sealed structure, sealed deep groove ball is divided into dust seal and oil seal. The dust seal cover material is steel plate stamping, which only plays a simple role in preventing dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the leakage of grease in the bearing.
Related Products
| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| 634 | 4*16*5 | 0.005 | 6313 | 65*140*33 | 2.08 |
| 635 | 5*19*6 | 0.008 | 6314 | 70*150*35 | 2.51 |
| 636 | 6*22*7 | 0.014 | 6315 | 75*160*37 | 3.01 |
| 637 | 7*26*9 | 0.024 | 6316 | 80*170*39 | 3.67 |
| 638 | 8*28*9 | 0.028 | 6317 | 85*180*41 | 4.21 |
| 639 | 9*30*10 | 0.037 | 6318 | 90*190*43 | 4.92 |
| 6300 | 10*35*11 | 0.0524 | 6319 | 95*200*45 | 5.7 |
| 6301 | 12*37*12 | 0.0586 | 6320 | 100*215*47 | 7.11 |
| 6302 | 15*42*13 | 0.082 | 6321 | 105*225*49 | 7.84 |
| 6303 | 17*47*14 | 0.109 | 6322 | 110*240*50 | 9.67 |
| 6304 | 20*52*15 | 0.142 | 6324 | 120*260*55 | 12.5 |
| 6305 | 25*62*17 | 0.23 | 6326 | 130*280*58 | 15.3 |
| 6306 | 30*72*19 | 0.34 | 6328 | 140*300*62 | 18.5 |
| 6307 | 35*80*21 | 0.453 | 6330 | 150*320*65 | 22 |
| 6308 | 40*90*23 | 0.636 | 6332 | 160*340*68 | 27.8 |
| 6309 | 45*100*25 | 0.825 | 6334 | 170*360*72 | 31.8 |
| 6310 | 50*110*27 | 1.05 | 6336 | 180*380*75 | 36.5 |
| 6311 | 55*120*29 | 1.34 | 6338 | 190*400*78 | 42.5 |
| 6312 | 60*130*31 | 1.7 | 6340 | 200*420*80 | 55 |
Use Application
It is applied in various fields such as low-power electric motors, gearboxes of automobiles and tractors, gearboxes of machine tools, household appliances, instruments and meters, aerospace, medical devices, and many others.
