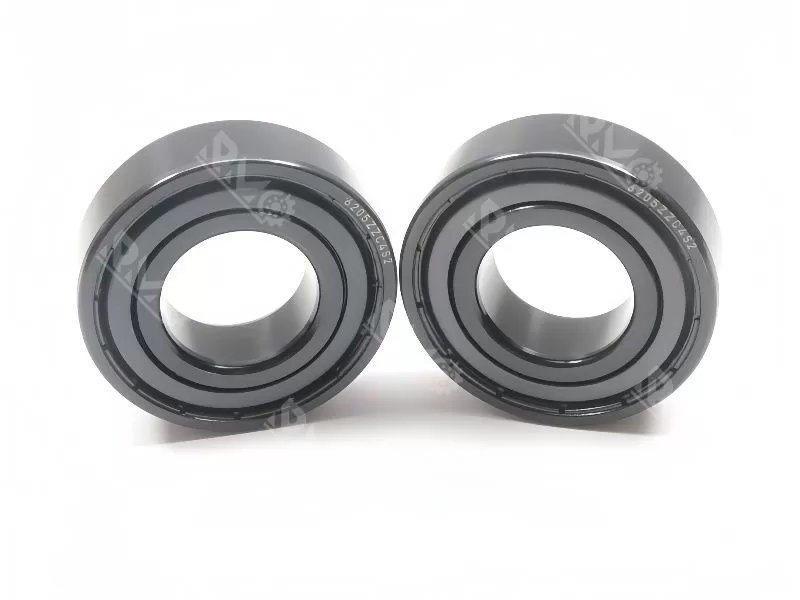

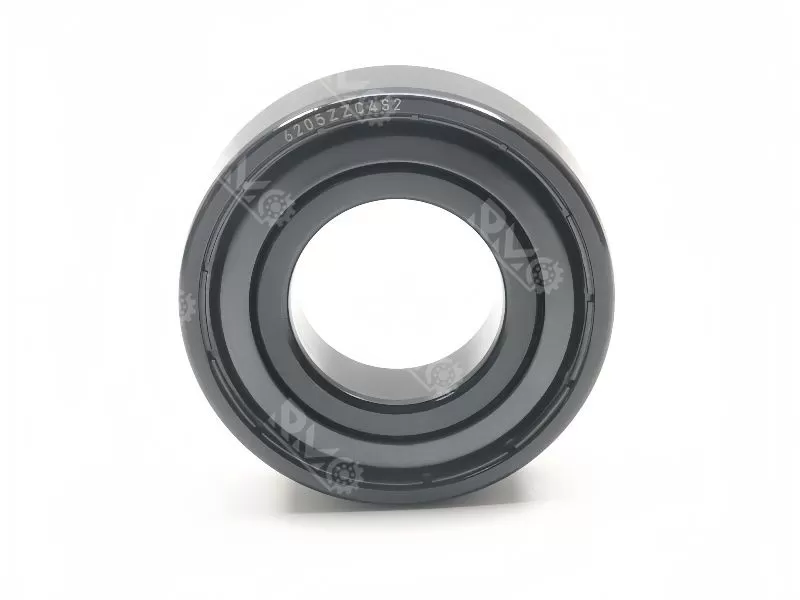

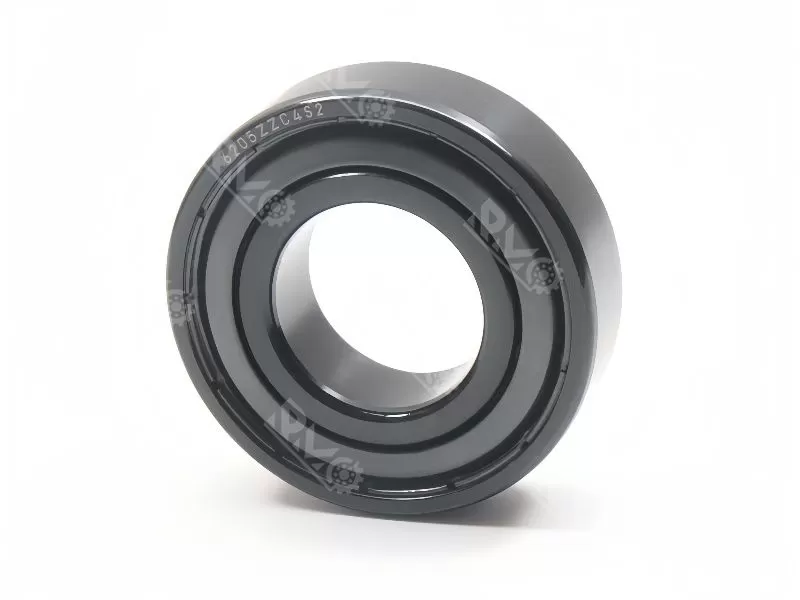

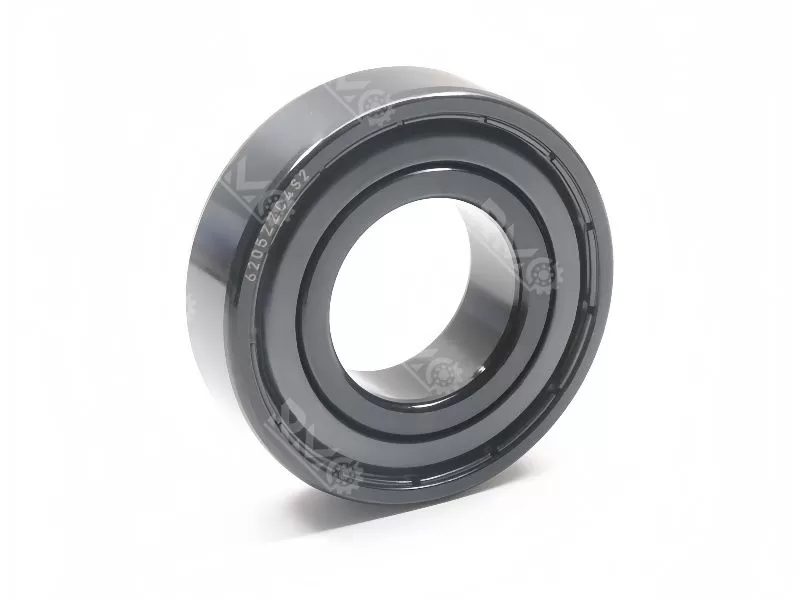

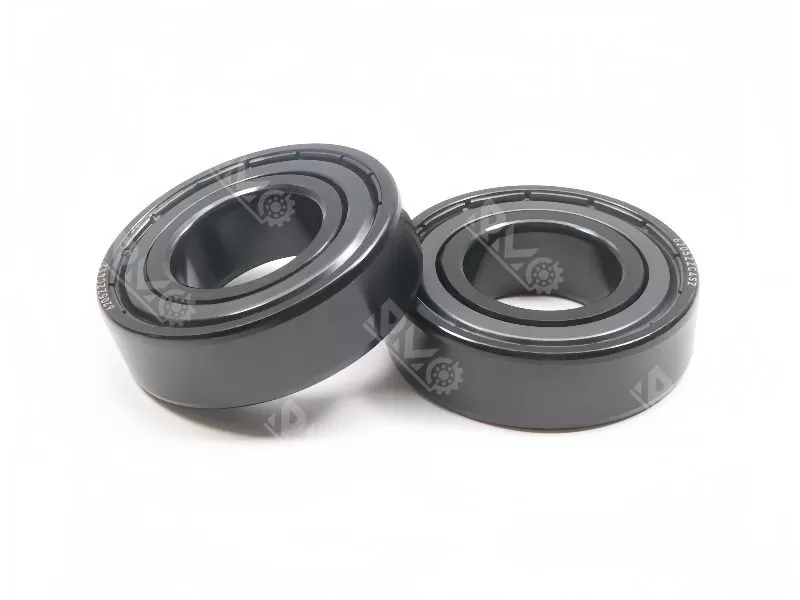

6205ZZC4S2 High-temperature Deep Groove Ball Bearing

6205ZZC4S2 is a type of high-temperature ball bearing, suitable for extreme temperature environments.

Item No.: 6205ZZC4S2

size: 25x52x15mm

Brand: Famous brand/RMO/Neutral /OEM&ODM

Sealing: OPEN, ZZ , 2RS

Material: High-temperature bearing steel

Lead Time: 3-5 days

Inquire Now Next Product

Specification

Precision: p0

Clearance: C4

Vibration: Z1V1, Z2V2, Z3V3

Cage material: steel, graphite or special alloys or without cage

Shipping Port: GUANGZHOU, NINGBO, SHANGHAI

Payment: 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production

This is a high-temperature resistant deep groove ball bearing, which is an industrial bearing specially designed for extreme temperature environments. It can operate at a temperature of +250°C and is mainly used in high-temperature equipment such as ovens, furnaces, and painting machines. It can withstand medium radial loads and bidirectional axial loads.

Product Features:

1. Use C4 clearance to prevent the bearing from getting stuck when rapidly cooled.

2. Dust-proof structure: With a dust cover (model suffix 2Z) design, to prevent solid contaminants from entering.

3. Surface treatment: Overall phosphating manganese treatment enhances the anti-corrosion performance and is suitable for high-temperature environments.

Related Products

6205ZZC4S2 High-temperature Deep Groove Ball Bearing

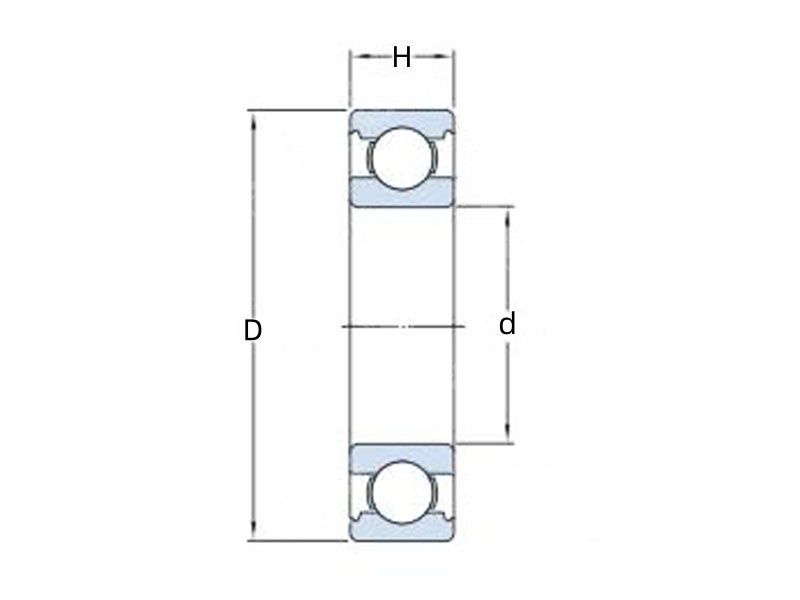

Model No.	d	D	H	m	Model No.	d	D	H	m
6300-2Z/VA201	10 mm	35 mm	11 mm	0.05 KG	6209-2Z/VA201	45 mm	85 mm	19 mm	0.42 KG
6201-2Z/VA201	12 mm	32 mm	10 mm	0.37 KG	6210-2Z/VA201	50 mm	90 mm	20 mm	0.45 KG
6202-2Z/VA201	15 mm	35 mm	11 mm	0.05 KG	6310-2Z/VA201	50 mm	110 mm	27 mm	1.1 KG
6003-2Z/VA201	17 mm	35 mm	10 mm	0.04 KG	6011-2Z/VA201	55 mm	90 mm	18 mm	0.39 KG
6203-2Z/VA201	17 mm	40 mm	12 mm	0.07 KG	6211-2Z/VA201	55 mm	100 mm	21 mm	0.61 KG
6204-2Z/VA201	20 mm	47 mm	14 mm	0.03 KG	6311-2Z/VA201	55 mm	120 mm	29 mm	1.35 KG
6304-2Z/VA201	20 mm	52 mm	15 mm	0.14 KG	6212-2Z/VA201	60 mm	110 mm	22 mm	0.78 KG
6005-2ZVA201	25 mm	47 mm	12 mm	0.08 KG	6213-2ZVA201	65 mm	120 mm	23 mm	1 KG
6205-2Z/VA201	25 mm	52 mm	15 mm	0.13 KG	6313-2Z/VA201	65 mm	140 mm	33 mm	2.1 KG
6206-2ZVA201	30 mm	62 mm	16 mm	0.2 KG	6214-2Z/VA201	70 mm	125 mm	24 mm	1.1 KG
6207-2ZVA201	35 mm	72 mm	17 mm	0.29 KG	6215-2Z/VA201	75 mm	130 mm	25 mm	1.2 KG
6308-2Z/VA201	40 mm	90 mm	23 mm	0.63 KG	6219-2ZVA201	95 mm	170 mm	32 mm	2.6 KG

Application scenario

Suitable for scenarios such as ovens and furnaces that need to withstand drastic temperature changes and combined loads. Ordinary deep groove ball bearings cannot meet the requirements of such conditions.
