Deep Groove Ball Bearing
It is a special kind of deep groove ball bearing with flanged structure.
Model Number: SF698ZZ
Size: 8x19x6x22mm
Weight: 0.008KG
Lead Time: normally 3-5 days
Specification

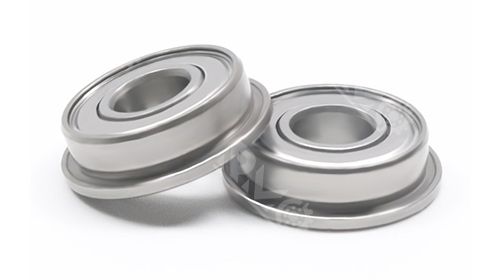

SF698ZZ miniature flanged deep groove ball bearings are manufactured from stainless steel or chrome steel. Featuring metal dust shields on both sides and pre-lubricated, these bearings offer high precision, low noise, high rotational speeds, corrosion resistance, and high load-carrying capacity. They are suitable for various high-precision equipment in aerospace, medical devices, food processing, and other industries.
Technical parameter:
| Model Number | SF698ZZ |
| Size | 8x19x6x22mm |
| Weight | 0.008KG |
| Material | chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Branding | famous brand/RMO/Neutral/OEM&ODM |
| Sealing | OPEN, ZZ, 2RS |
| MOQ | 50 pcs |
| Shield Type | ZZ |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Time | 3-5 Days |
Structure:

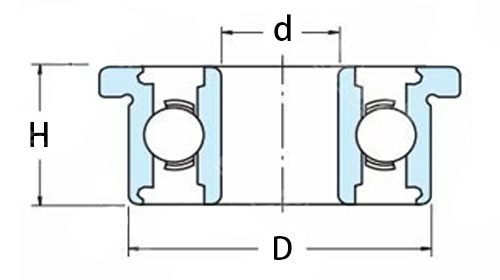

The structure of the micro flanged deep groove ball bearing includes an inner ring, an outer ring, a rolling body and a cage. It is characterized by a flange on the outer ring, which can provide additional axial positioning and radial support, enhancing the stability and bearing capacity of the bearing..
Material and manufacturing process:
The material of micro flange deep groove ball bearing can choose carbon steel, bearing steel, stainless steel, plastic and so on. Among them, stainless steel has excellent corrosion resistance and is suitable for wet or corrosive environments. The manufacturing process includes steps such as heat treatment, quenching and tempering to ensure the hardness and wear resistance of the bearing.
Related Products
| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| SF682ZZ | 2*5*2.3 | 0.001 | MF115ZZ | 5*11*4 | 0.001 |
| SF683ZZ | 3*7*3 | 0.001 | MF106ZZ | 6*10*3 | 0.001 |
| SF684ZZ | 4*8*3 | 0.001 | MF126ZZ | 6*12*4 | 0.002 |
| SF685ZZ | 5*11*3 | 0.001 | MF117ZZ | 7*11*3 | 0.002 |
| SF686ZZ | 6*13*5 | 0.001 | MF137ZZ | 7*13*4 | 0.003 |
| SF687ZZ | 7*14*5 | 0.0023 | MF128ZZ | 8*12*3.5 | 0.003 |
| SF688ZZ | 8*16*5 | 0.0045 | MF148ZZ | 8*14*4 | 0.009 |
| SF689ZZ | 9*17*5 | 0.005 | F626ZZ | 6*19*6 | 0.002 |
| SF692ZZ | 2*6*3 | 0.001 | MF84ZZ | 4*8*3 | 0.02 |
| SF693ZZ | 3*8*4 | 0.002 | FR6ZZ | 9.525*22.225*7.142 | 0.006 |
| SF694ZZ | 4*11*4 | 0.003 | F605ZZ | 5*14*5 | 0.022 |
| SF695ZZ | 5*13*4 | 0.003 | MF74ZZ | 4*7*2.5 | 0.013 |
| SF696ZZ | 6*15*5 | 0.004 | F608ZZ | 8*22*5 | 0.024 |
| SF697ZZ | 7*17*5 | 0.006 | F606ZZ | 6*17*6 | 0.007 |
| SF698ZZ | 8*19*6 | 0.008 | F625ZZ | 5*16*5 | 0.005 |
| SF699ZZ | 9*20*6 | 0.002 | F624ZZ | 4*13*5 | 0.002 |
| MF52ZZ | 2*5*2.5 | 0.0005 | F623ZZ | 3*10*4 | 0.023 |
| MF72ZZ | 2*7*2.5 | 0.0005 | FR8ZZ | 12.7*28.575*7.938 | 00.025 |
| MF82ZZ | 2*8*2.5 | 0.001 | F607 | 7*19*6 | 0.01 |
| MF63ZZ | 3*6*2.5 | 0.001 | FR168 | 6.35*9.52*3.18 | 0.005 |
| MF104ZZ | 4*10*4 | 0.001 | SFRW168ZZ | 3.175*9.525*2.778 | 0.007 |
| MF85ZZ | 5*8*2.5 | 0.001 | F6801 | 12*21*5 | 0.036 |
| MF95ZZ | 5*9*3 | 0.002 | F6202ZZ | 15*35*11 | 0.05 |
| MF105ZZ | 5*10*4 | 0.0009 | F6800ZZ | 10*19*5 | 0.007 |
Application field
Micro flanged deep groove ball bearings are widely used in various industrial equipment, small rotary motors, precision instruments, automation equipment and other fields. They are suitable for high speed, low noise applications and provide stable rotation support and long service life.
