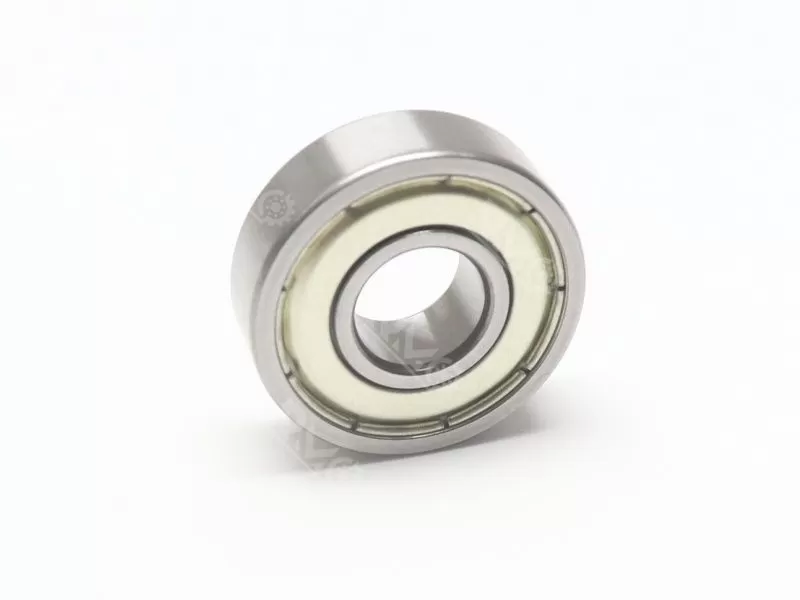

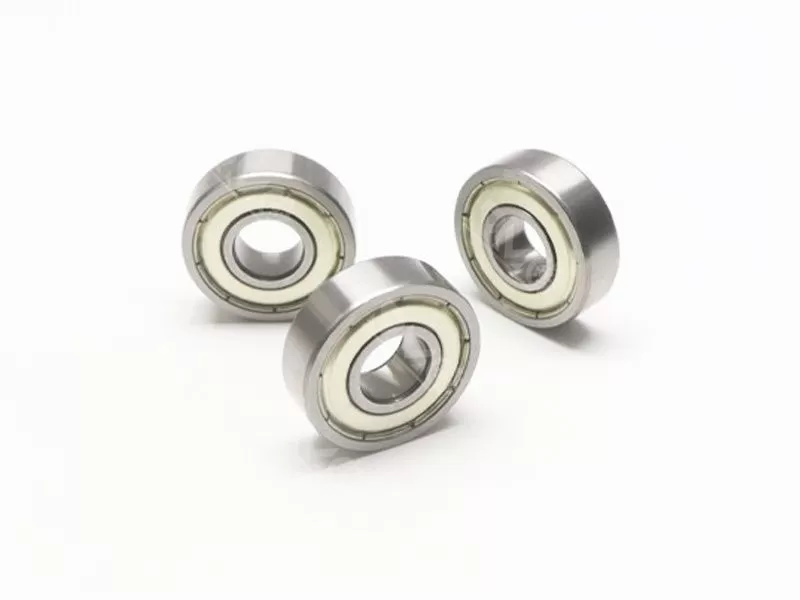

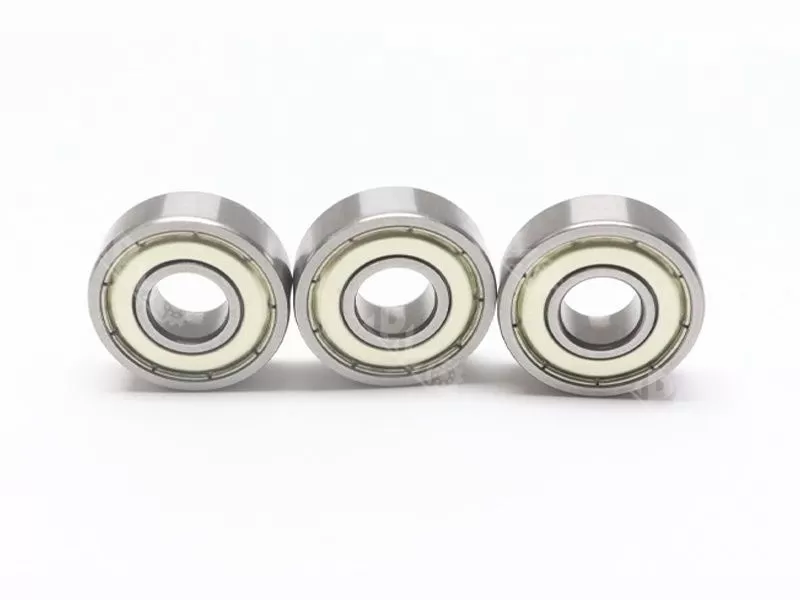

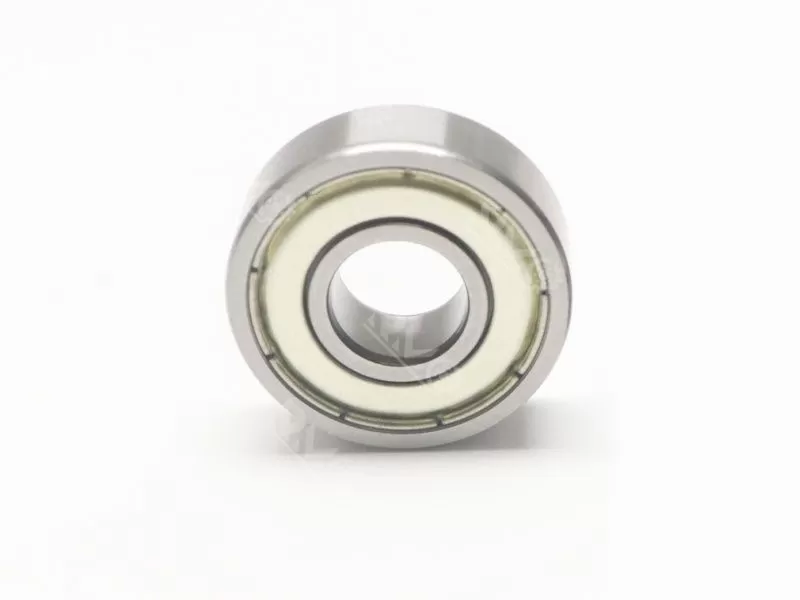

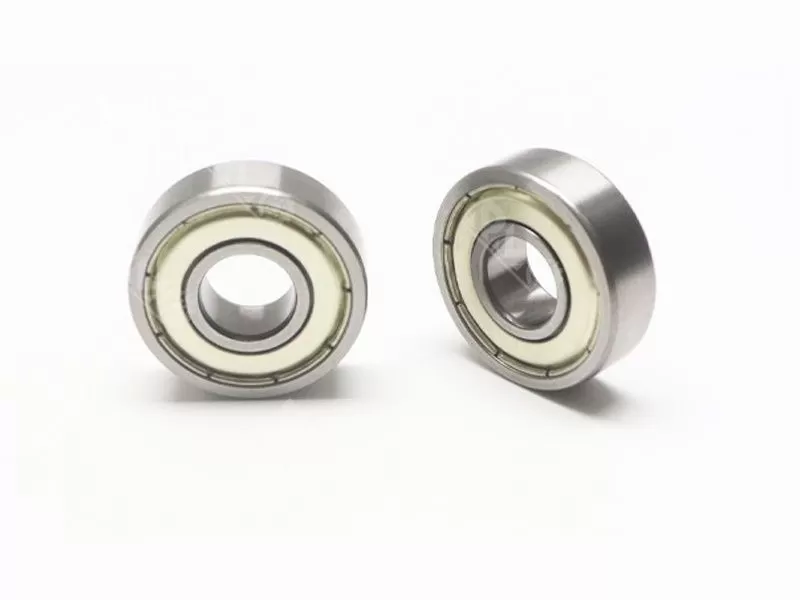

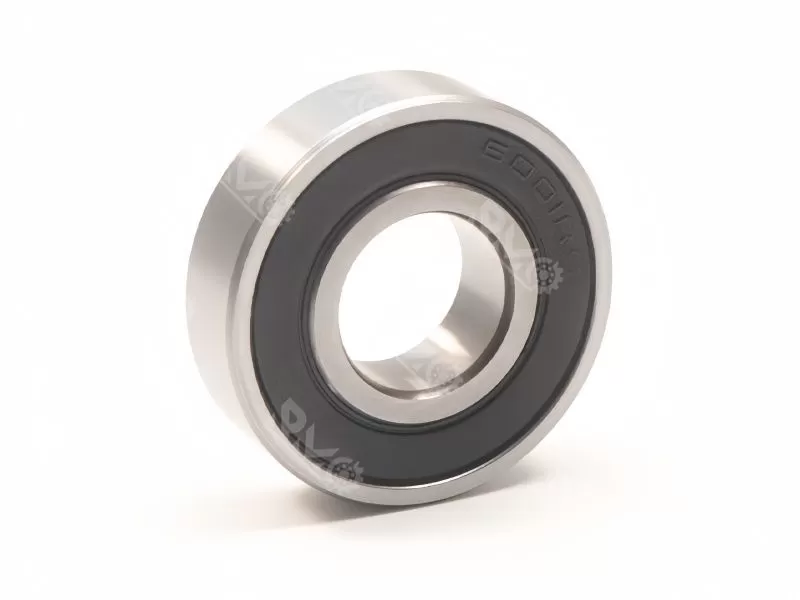

Deep Groove Ball Bearing
It is composed of an outer ring, an inner ring, a set of steel balls and a set of cages.

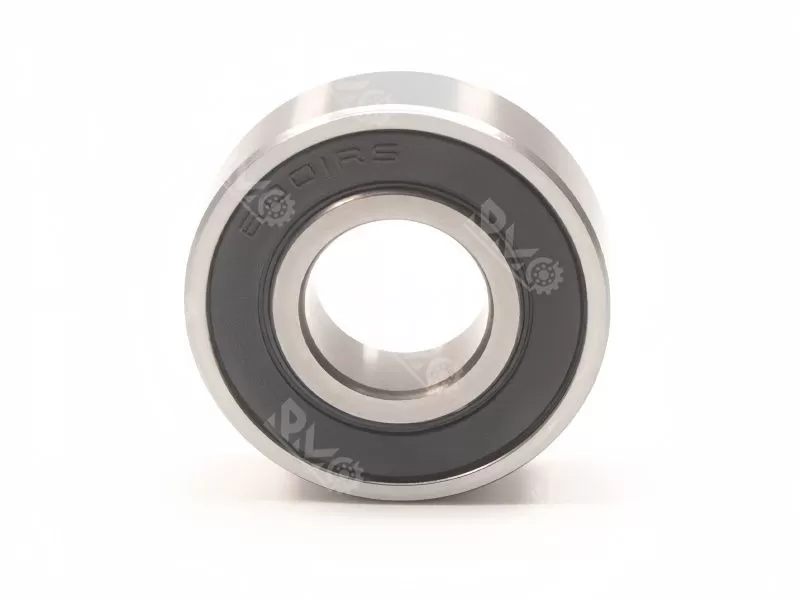

Model number: 6001ZZ/6001RS

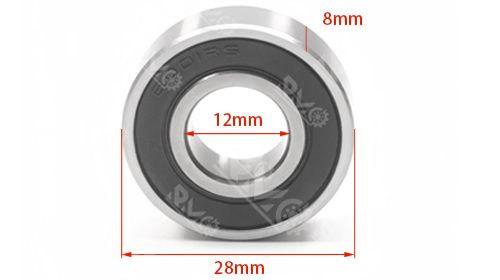

Size: 12x28x8mm
Materials: Gcr15.chrome steel
Weight: 0.022KG
Package: Plastic Tube or single box+Carton+Pallet
Specification
Service: OEM/ODM
Small order: accept
Shipping Port: GUANGZHOU, NINGBO, SHANGHAI
Payment: 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production
Deep groove ball bearing: consists of an outer ring, an inner ring, a group of steel balls and a group of cages. There are two types of deep groove ball bearing, single row and double row, deep groove ball structure is also divided into sealed and open two structures, open refers to the bearing does not have a sealed structure, sealed deep groove ball is divided into dust seal and oil seal. The dust seal cover material is steel plate stamping, which only plays a simple role in preventing dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the leakage of grease in the bearing.
Related Products
| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| 603 | 3*9*5 | 0.002 | 6011 | 55*90*18 | 0.390 |
| 604 | 4*12*4 | 0.003 | 6012 | 60*95*18 | 0.420 |
| 605 | 5*14*5 | 0.004 | 6013 | 65*100*18 | 0.440 |
| 606 | 6*17*6 | 0.006 | 6014 | 70*110*20 | 0.600 |
| 607 | 7*19*6 | 0.073 | 6015 | 75*115*20 | 0.640 |
| 608 | 8*22*7 | 0.012 | 6016 | 80*125*22 | 0.850 |
| 609 | 9*24*7 | 0.016 | 6017 | 85*130*22 | 0.890 |
| 6000 | 10*26*8 | 0.019 | 6018 | 90*140*24 | 1.150 |
| 6001 | 12*28*8 | 0.022 | 6019 | 95*145*24 | 1.200 |
| 6002 | 15*32*9 | 0.030 | 6020 | 100*150*24 | 1.250 |
| 6003 | 17*35*10 | 0.039 | 6021 | 105*160*26 | 1.62 |
| 6004 | 20*42*12 | 0.069 | 6022 | 110*170*28 | 1.96 |
| 6005 | 25*47*12 | 0.080 | 6024 | 120*180*28 | 2.08 |
| 6006 | 30*55*13 | 0.120 | 6026 | 130*200*33 | 3.26 |
| 6007 | 35*62*14 | 0.160 | 6028 | 140*210*33 | 3.48 |
| 6008 | 40*68*15 | 0.190 | 6030 | 150*225*35 | 4.24 |
| 6009 | 45*75*16 | 0.250 | 6032 | 160*240*38 | 4.82 |
| 6010 | 50*80*16 | 0.260 | 6040 | 200*310*51 | 11.8 |
Use Application
Deep groove ball bearings can be used in transmissions, instruments, motors, household appliances, internal combustion engines, traffic vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo balls and so on.
