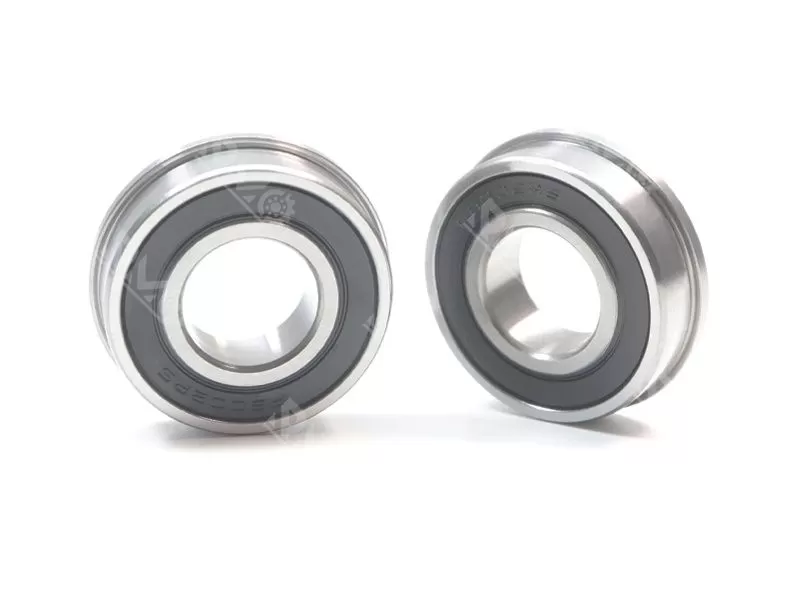

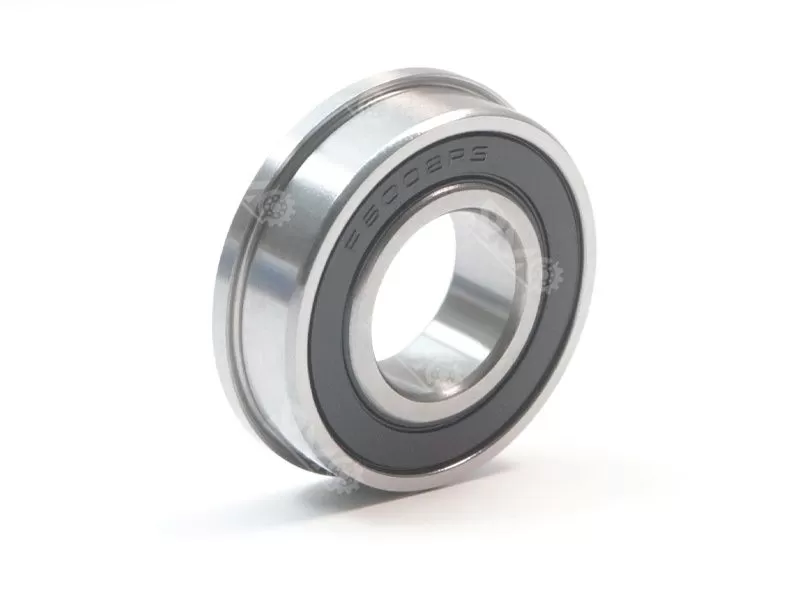

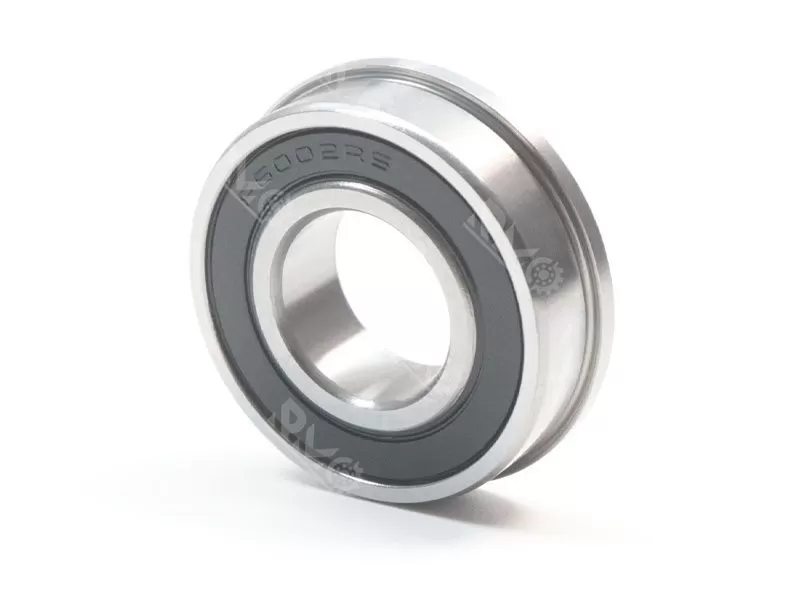

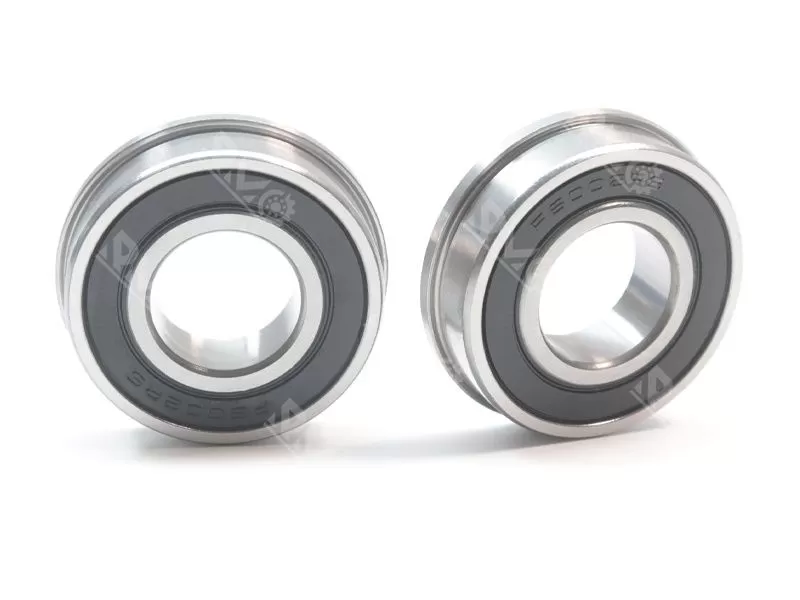

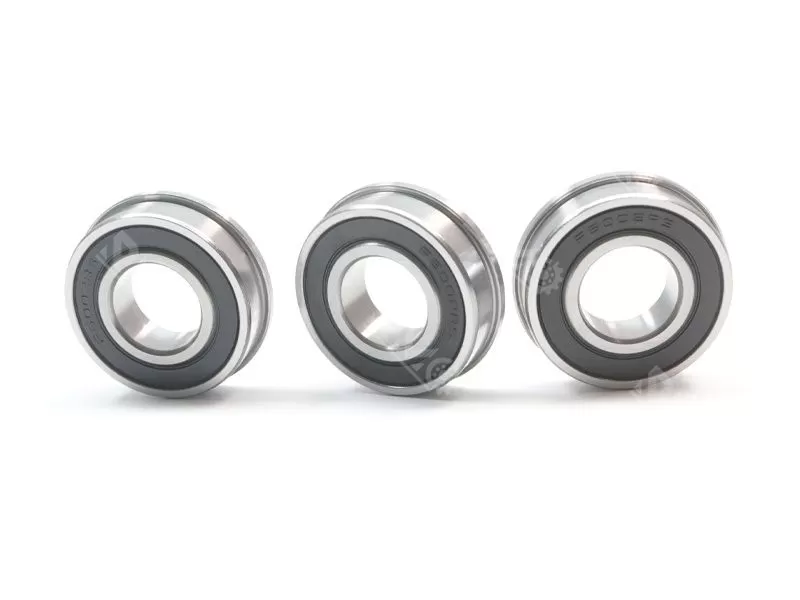

F6002-2RS flange deep groove ball bearing

A flange bearing is a device that integrates a flange and a bearing into one.

Model number: F6002-2RS

Size: 15X32x9x34mm

Materials: Gcr15.chrome steel

Weight: 0.03KG

Lead time: normally 3-5 days

Package: Plastic Tube or single box+Carton+Pallet

Inquire Now Next Product

Specification

Service: OEM/ODM

Small order: accept

Shipping Port: GUANGZHOU, NINGBO, SHANGHAI

Payment: 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production

Advantages:

The series of products with flanges on the outer wheel make axial positioning simple. No more bearing housings are needed, making it more economical. In order to obtain the low friction torque, high rigidity and good rotational accuracy of the bearing, steel balls with small outer diameters were used. The use of hollow shafts ensures lightweight and space for wiring.

Product Features:

The most prominent feature is that the flange and the bearing are integrated as one. When one end of the shaft has no connecting part and needs to be fixed on a flat surface such as a plate or wall, flange bearings demonstrate their advantages.

Among the micro-bearings with ultra-small bore diameters, they can be classified into the ZZ steel plate bearing dust cover series, RS rubber bearing sealing ring series, Teflon bearing sealing ring series, flange plate series, stainless steel series, ceramic ball series, etc. Micro ball bearings have a wide range of applications. It is suitable for products that require high-speed rotation, low friction torque, low vibration and low noise.

Related Products

F6002-2RS flange deep groove ball bearing

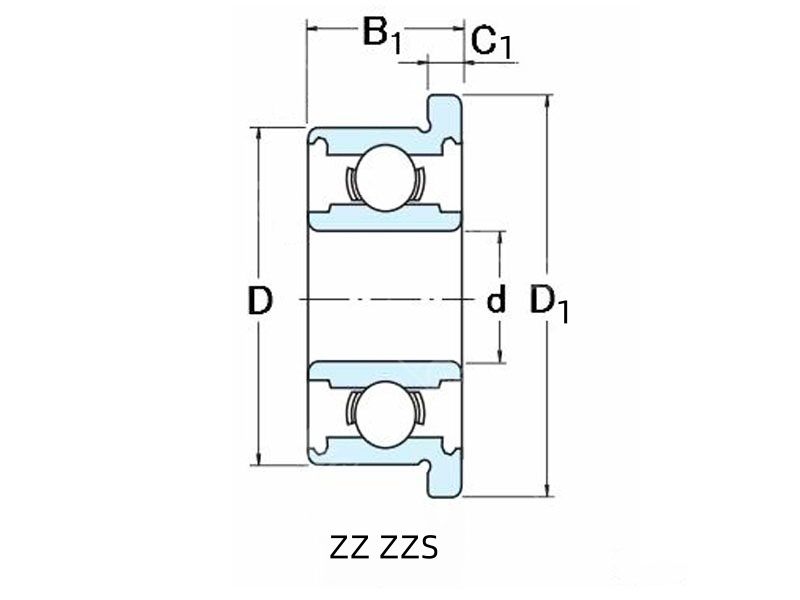

Model No.	d(mm)	D(mm)	D1(mm)	C1(mm)	B1(mm)
F6200	10	30	32.25	2.25	9
F6201	12	32	34.5	2.5	10
F6202	15	35	37.75	2.75	11
F6203	17	40	43	3	12
F6204	20	47	50.5	3.5	14
F6205	25	52	55.75	3.75	15
F6206	30	62	66	4	16
F6207	35	72	76.25	4.25	17
F6208	40	80	84.5	4.5	18
F6209	45	85	89.75	4.75	18
F6210	50	90	95	5	20
F6000	10	26	28	2	8
F6001	12	28	30	2	8
F6002	15	32	34.25	2.25	9
F6003	17	35	37.5	2.5	10
F6004	20	42	45	3	12
F6005	25	47	50	3	12
F6006	30	55	58.25	3.25	13
F6007	35	62	65.5	3.5	14
F6008	40	68	71.75	3.75	15
F6009	45	75	79	4	16
F6010	50	80	84	4	16
F6300	10	35	37.75	2.75	11
F6301	12	37	40	3	12
F6302	15	42	45	3	13
F6303	17	47	50.5	3.5	14
F6304	20	52	55.75	3.75	15
F6305	25	62	66	4	17
F6306	30	72	76.5	4.5	19
F6307	35	80	85	5	21

Main uses

Flange bearings are suitable for various industrial equipment, small rotary motors, office equipment, micro motor soft drives, pressure rotors, dental drills, hard disk motors, stepper motors, video recorder magnetic drums, toy models, fans, pulleys, rollers, transmission equipment, entertainment equipment, robots, medical devices, office equipment, testing instruments, reduction and speed change devices, motor optics Imaging equipment, card readers, electromechanical, precision machinery, power tools and toys, etc.
