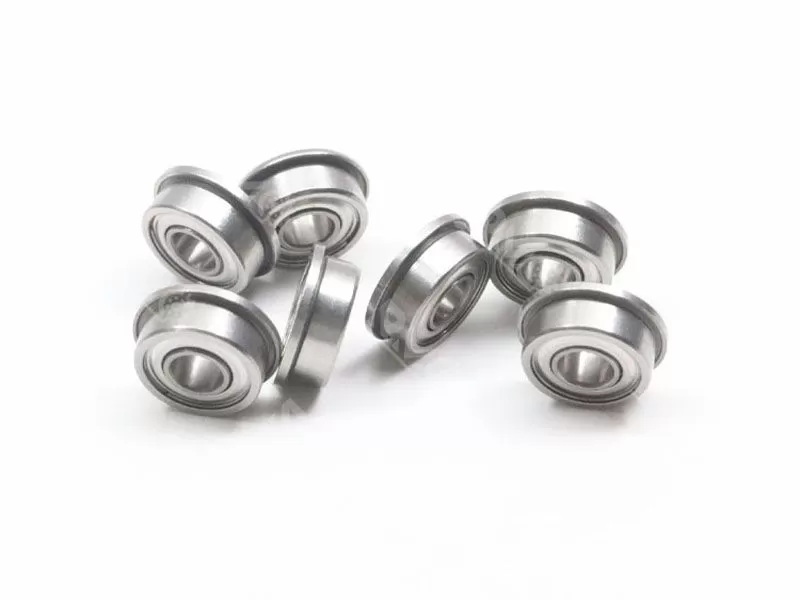

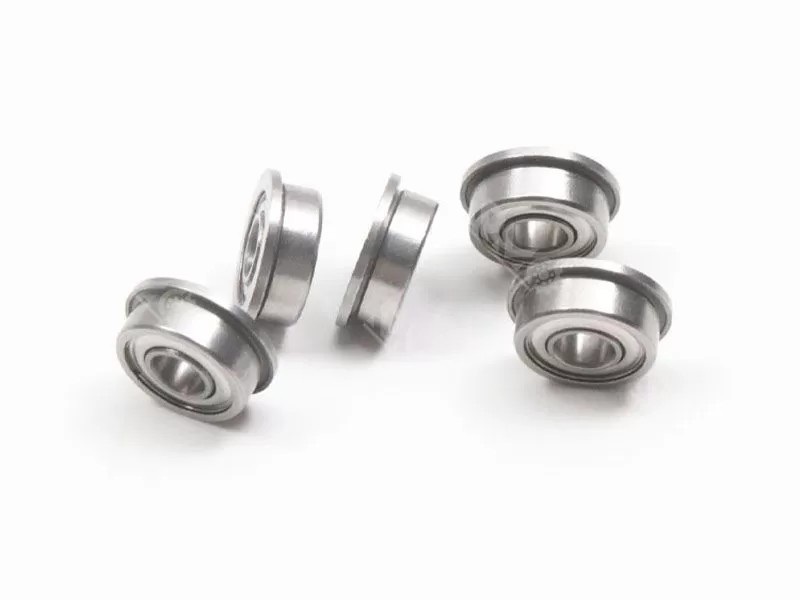

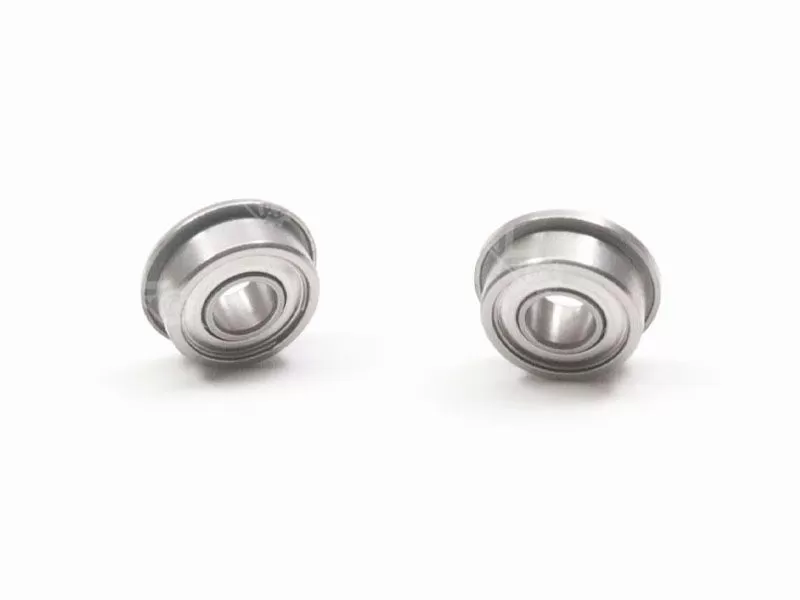

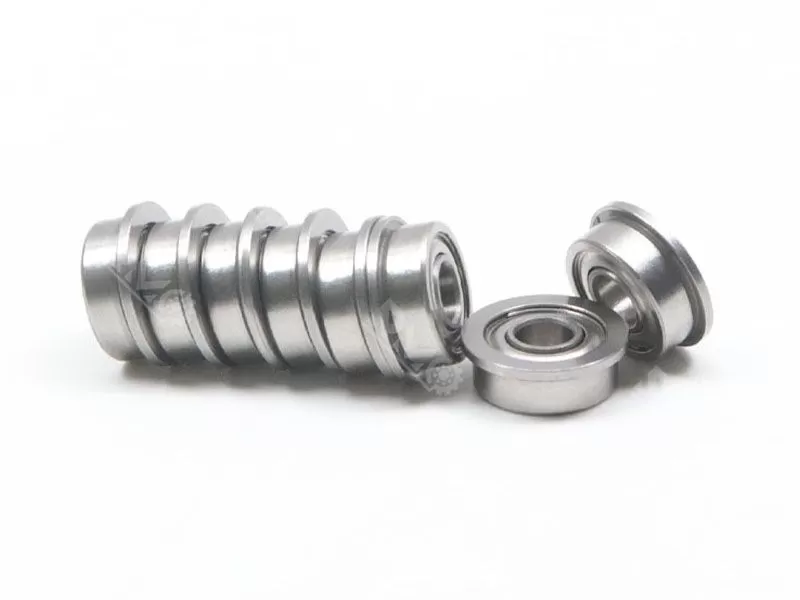

Deep Groove Ball Bearing
it is a special kind of deep groove ball bearing with flanged structure.
Model No.: SMF104ZZ

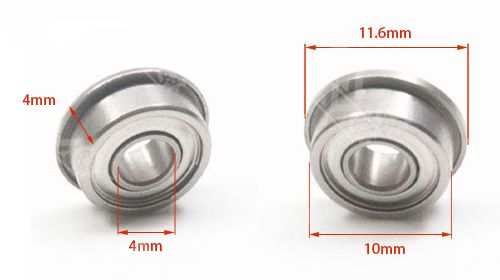

Size: 4x10x4x11.6mm
Weight: 0.0015KG
Material: chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc
MOQ: 100pcs
Lead Time: normally 3-5 days
Specification
SMF104ZZ Stainless Steel Flanged Ball Bearing features AISI 440C stainless steel construction, dual metal shields, and pre-lubrication. With precision up to ABEC-1, it offers corrosion resistance, high rotational speeds (up to 48,000 rpm), and low friction. Suitable for dental tools, small motors, robotics, and various other applications.
Technical parameter:
| Model Number | SMF104ZZ |
| Size | 4x10x4x11.6mm |
| Weight | 0.0015KG |
| Material | chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc |
| Clearance | C2 C0 C3 C4 |
| Precision Grade | p0 p6 p5 p4 |
| Shield Type | ZZ |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| MOQ | 100pcs |

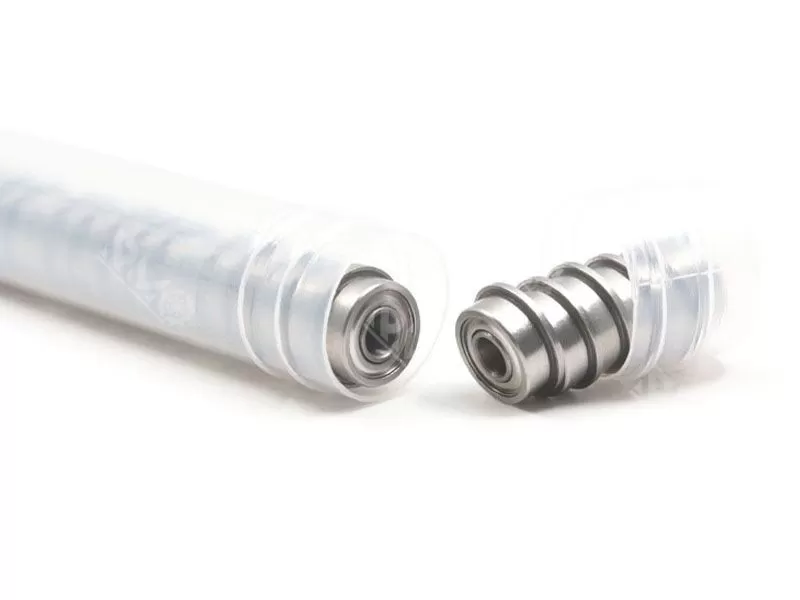

| Package | Plastic Tube or single box+Carton+Pallet |
| Payment | 100% T/T or 30% T/T before production, 70% before delivery |
| Lead Taime | 3-5 Days |
Structure:
The structure of the micro flanged deep groove ball bearing includes an inner ring, an outer ring, a rolling body and a cage. It is characterized by a flange on the outer ring, which can provide additional axial positioning and radial support, enhancing the stability and bearing capacity of the bearing..
Material and manufacturing process:
The material of micro flange deep groove ball bearing can choose carbon steel, bearing steel, stainless steel, plastic and so on. Among them, stainless steel has excellent corrosion resistance and is suitable for wet or corrosive environments. The manufacturing process includes steps such as heat treatment, quenching and tempering to ensure the hardness and wear resistance of the bearing.
Related Products
| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| F682ZZ | 2*5*2.3 | 0.001 | MF115ZZ | 5*11*4 | 0.001 |
| F683ZZ | 3*7*3 | 0.001 | MF106ZZ | 6*10*3 | 0.001 |
| F684ZZ | 4*8*3 | 0.001 | MF126ZZ | 6*12*4 | 0.002 |
| F685ZZ | 5*11*3 | 0.001 | MF117ZZ | 7*11*3 | 0.002 |
| F686ZZ | 6*13*5 | 0.001 | MF137ZZ | 7*13*4 | 0.003 |
| F687ZZ | 7*14*5 | 0.0023 | MF128ZZ | 8*12*3.5 | 0.003 |
| F688ZZ | 8*16*5 | 0.0045 | MF148ZZ | 8*14*4 | 0.009 |
| F689ZZ | 9*17*5 | 0.005 | F626ZZ | 6*19*6 | 0.002 |
| F692ZZ | 2*6*3 | 0.001 | MF84ZZ | 4*8*3 | 0.02 |
| F693ZZ | 3*8*4 | 0.002 | FR6ZZ | 9.525*22.225*7.142 | 0.006 |
| F694ZZ | 4*11*4 | 0.003 | F605ZZ | 5*14*5 | 0.022 |
| F695ZZ | 5*13*4 | 0.003 | MF74ZZ | 4*7*2.5 | 0.013 |
| F696ZZ | 6*15*5 | 0.001 | F608ZZ | 8*22*5 | 0.024 |
| F697ZZ | 7*17*5 | 0.001 | F606ZZ | 6*17*6 | 0.007 |
| F698ZZ | 8*19*6 | 0.002 | F625ZZ | 5*16*5 | 0.005 |
| F699ZZ | 9*20*6 | 0.002 | F624ZZ | 4*13*5 | 0.002 |
| MF52ZZ | 2*5*2.5 | 0.0005 | F623ZZ | 3*10*4 | 0.023 |
| MF72ZZ | 2*7*2.5 | 0.0005 | FR8ZZ | 12.7*28.575*7.938 | 00.025 |
| MF82ZZ | 2*8*2.5 | 0.001 | F607 | 7*19*6 | 0.01 |
| MF63ZZ | 3*6*2.5 | 0.001 | FR168 | 6.35*9.52*3.18 | 0.005 |
| MF104ZZ | 4*10*4 | 0.001 | SFRW168ZZ | 3.175*9.525*2.778 | 0.007 |
| MF85ZZ | 5*8*2.5 | 0.001 | F6801 | 12*21*5 | 0.036 |
| MF95ZZ | 5*9*3 | 0.002 | F6202ZZ | 15*35*11 | 0.05 |
| MF105ZZ | 5*10*4 | 0.0009 | F6800ZZ | 10*19*5 | 0.007 |
Application field
Micro flanged deep groove ball bearings are widely used in various industrial equipment, small rotary motors, precision instruments, automation equipment and other fields. They are suitable for high speed, low noise applications and provide stable rotation support and long service life.
