It is widely used in small mechanical equipment, such as injection molding machines, submersible pumps, electronic component forming machines, thermal transfer printing equipment, etc.
⚙️Obtain Certificate:

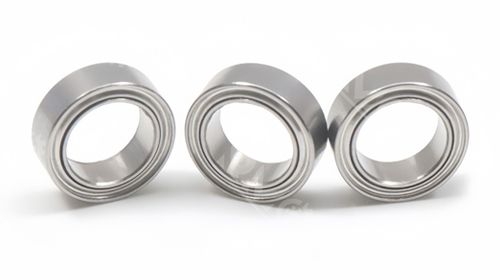

Deep Groove Ball Bearing
This is a small-sized deep groove ball bearing of the British standard series. It has a simple structure, consisting of rings, cages and steel balls.
Model No.: R168ZZ
Size: 6.35x9.525x3.175mm(1/4x3/8x1/8inch)
Weight: 0.001KG
Material: chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc.
Lead Time: normally 3-5 days
Specification
R168ZZ Small-Inch Ball Bearing features an inner diameter of 6.35mm, an outer diameter of 9.525mm, and a width of 3.175mm. Equipped with metal dust shields on both sides and pre-lubricated, it can withstand certain radial and axial loads. This bearing is suitable for high-precision, compact-space applications such as medical devices and robotics.
Technical parameter:
| Model Number | R168ZZ |
| Size | 6.35x9.525x3.175mm(1/4x3/8x1/8inch) |
| Weight | 0.001 KG |
| Material | chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc |
| MOQ | 100 pcs |
| Precision Grade | p0 p6 p5 p4 |
| Dynamic Load Rating | 0.421 lbf |
| Static Load Rating | 0.205 lbf |
| Clearance | C2 C0 C3 C4 |
| Shield Type | ZZ |
| Lubrication | Pre-lubricated with High-Performance Grease |
| Temperature Range | -20°C to +120°C |
| Lead Taime | 3-5 Days |
Inch-sized deep groove ball bearings:
Inch-sized deep groove ball bearings are one of the most widely used types of rolling bearings. They are mainly composed of outer rings, inner rings, steel balls, and retainers. Their structure is simple, with a low friction coefficient, high limit rotational speed, and the ability to withstand radial and axial loads even in cases of significant clearance. These bearings follow the inch-sized standard and are suitable for high-speed rotating machinery. They are widely used in automotive components, household appliances, and other fields.
Related Products
| Model No. | d | D | H | m |
| R155 | 3.97 mm | 7.94 mm | 2.78 mm | 0.55 g |
| R155ZZ | 3.97 mm | 7.94 mm | 3.18 mm | 0.55 g |
| R156 | 4.76 mm | 7.94 mm | 2.78 mm | 0.45 g |
| R156ZZ | 4.76 mm | 7.94 mm | 3.18 mm | 0.45 g |
| R166 | 4.76 mm | 9.52 mm | 3.18 mm | 0.8 g |
| R3ZZ | 4.76 mm | 12.7 mm | 4.98 mm | 2.27 g |
| R3 | 4.76 mm | 12.7 mm | 3.97 mm | 2.27 g |
| R186 | 4.76 mm | 12.7 mm | 2.78 mm | 2 g |
| R186ZZ | 4.76 mm | 12.7 mm | 3.97 mm | 2 g |
| R3A | 4.76 mm | 15.88 mm | 4.98 mm | 4.75 g |
| R3AZZ | 4.76 mm | 15.88 mm | 4.98 mm | 5.08 g |
| R168 | 6.35 mm | 9.52 mm | 3.18 mm | 0.6 g |
| R188 | 6.35 mm | 12.7 mm | 3.18 mm | 2 g |
Application
It is widely used in small mechanical equipment, such as injection molding machines, submersible pumps, electronic component forming machines, thermal transfer printing equipment, etc.
